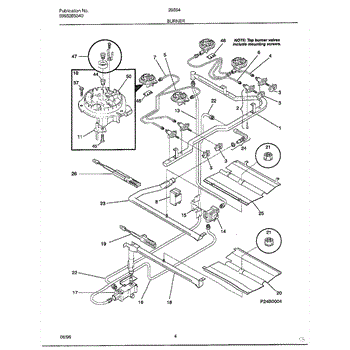

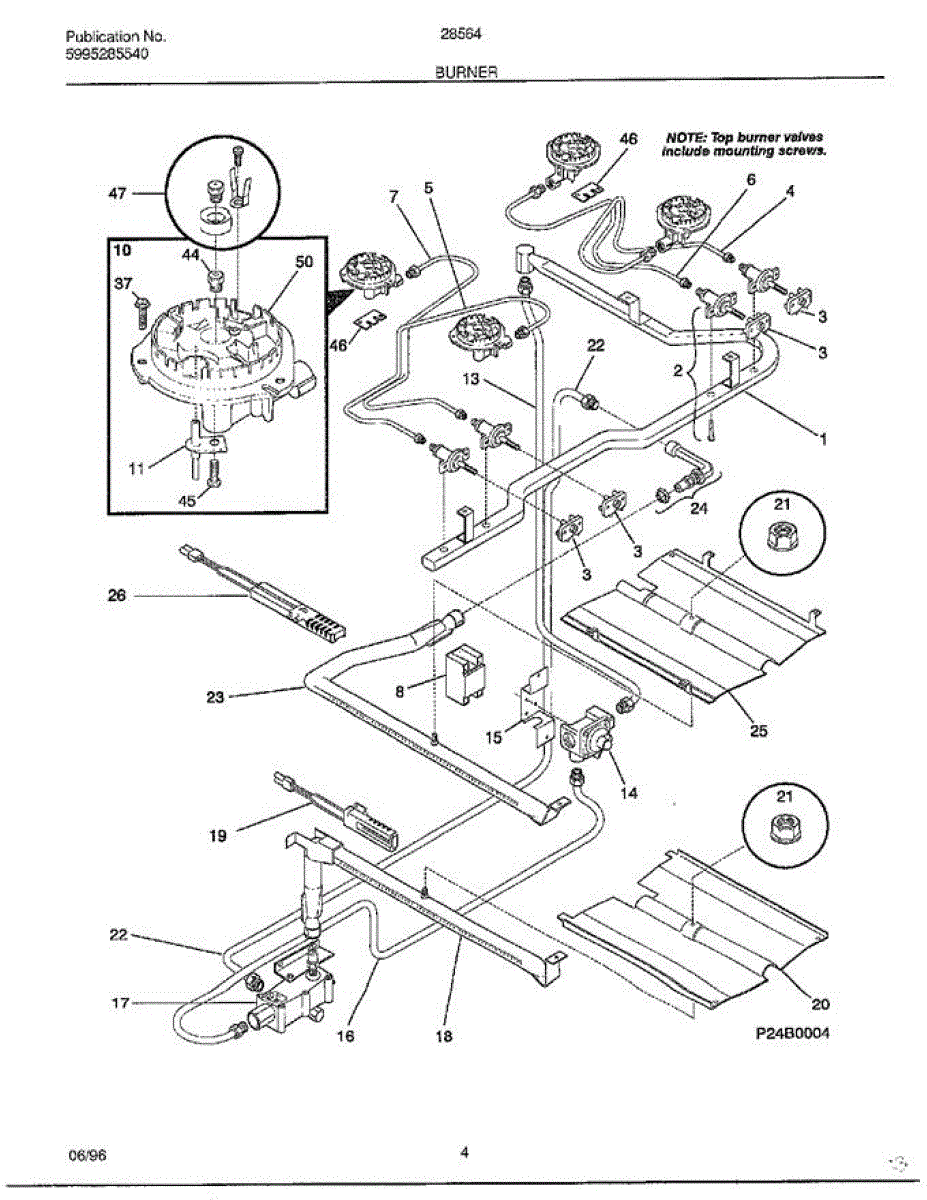

Parts for Frigidaire 285647E: Burner Parts

Burner tube for gas ranges. Connects gas supply to the burner assembly. Replace if cracked, corroded, or damaged to restore proper gas flow to cooktop.

Black burner tube for range cooktop. Replaces cracked, corroded, or damaged gas burner tubes. Installs between gas valve and burner assembly.

Gas burners won't ignite? A faulty spark module may be the issue. This part sends electrical current to igniters. DIY-friendly, takes minutes.

Burner won't spark or ignite? This cooktop igniter electrode creates the spark needed to light gas burners. Simple DIY fix in under 30 minutes.

A replacement hex-head screw used to secure appliance regulator brackets and similar small components. Restores proper fastener fit so panels and brackets stay firmly attached. What it does

• Fastens regulator bracket and related sheet-metal components
• Provides a secure threaded connection for components where an 8-18 thread is specified
• Helps eliminate looseness or rattling caused by a missing or damaged screw
• Matches the nickel/chrome finish commonly used on interior mounting locations

• One hex head screw (8-18 x 3/8), nickel finish

• Intended for use where an 8-18 x 3/8 hex screw is specified by the manufacturer
• Tighten to snug; avoid over-torquing which can strip sheet-metal threads
• Turn off power to the appliance before accessing internal components
• If the original screw used a lock washer or threadlocker, replace or reapply as appropriate

Regulates gas pressure from your home's supply line to the range burners. Replace if cracked, leaking gas, causing whining noises, or damaged threads.

Mounting bracket that secures the gas pressure regulator to your range frame. Replace if bent, broken, or missing to properly support the regulator assembly.

Oven won't light even though igniter glows? Burner lights only when valve is tapped? Replace the dual gas safety valve. DIY install in under 1 hour.

Oven won't light or ignites with a loud pop? A faulty igniter is usually the cause. Simple DIY fix—disconnect two screws and wire nuts to replace.

Oven won't heat, slow to reach temperature, or glows dull orange? This igniter fixes weak ignition. Moderate DIY repair with basic hand tools.

Secures the gas burner assembly to the cooktop base. Replace stripped, rusted, or missing screws to eliminate burner wobble and maintain proper alignment.

LP gas orifice for range top burners. Replaces worn, damaged, or missing orifices that regulate gas flow. Essential for converting or restoring burner fuel delivery.

Gas burner orifice that meters fuel flow to your cooktop or range burner. Replace if clogged, corroded, or when converting between natural gas and LP.

Support plate that secures the burner tube assembly in your range. Replace if cracked, warped, or corroded to properly mount and stabilize burner components.
