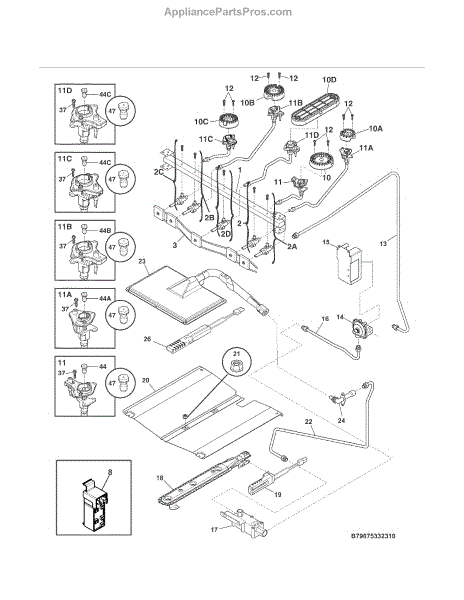

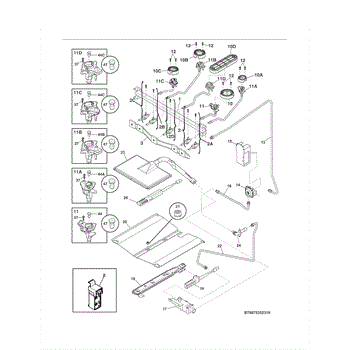

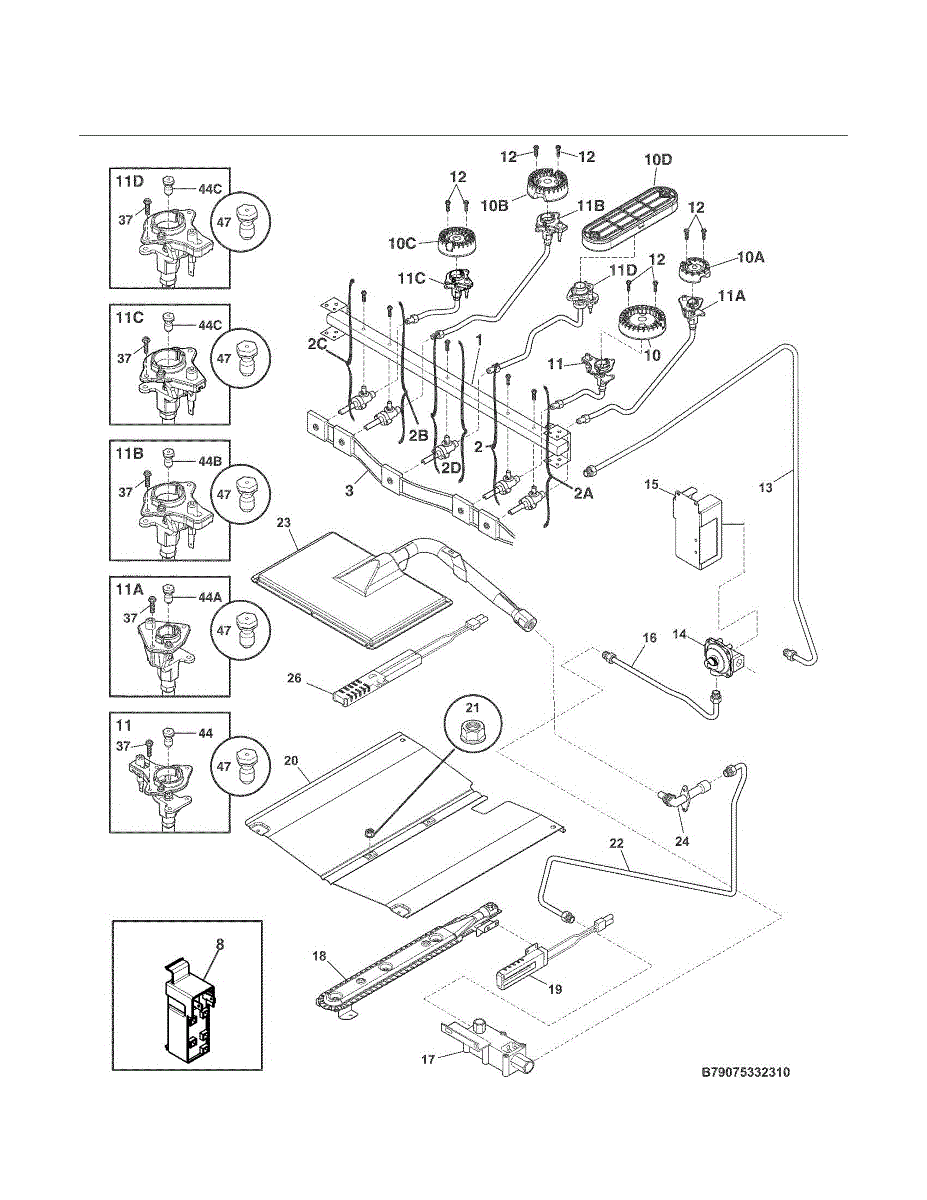

Parts for Kenmore 790.75333310 (79075333310, 790 75333310): Burner Parts

This is the gas manifold that distributes gas from the supply line to the individual surface burners on a gas range. It connects to each burner valve and ensures consistent gas flow across all burners. Replace this manifold if you notice gas leaks at the connections, uneven burner performance, or if the manifold tube is cracked or corroded.

Burner won't ignite or flame won't adjust? This top burner valve controls gas flow to your cooktop burner, restoring proper ignition and flame control.

This is a gas valve that controls the flow of gas to an individual surface burner on a gas range cooktop. Turning the corresponding knob opens or closes this valve to regulate flame size. Replace this valve if the burner will not ignite, the flame is uneven or cannot be adjusted, or if you detect a gas smell around the burner area.

Burner won't light or knob won't turn? This top burner valve controls gas flow to restore reliable ignition and flame control. DIY-friendly replacement.

Replace a gas range burner valve that's broken, stuck open, or causing hard-to-adjust flames. Moderate DIY repair requires raising the stovetop.

Burner won't ignite or sparks intermittently? This spark ignition switch and harness assembly restores reliable ignition. Moderate DIY repair.

Gas burners won't ignite and there's no clicking sound? The spark module provides the electrical spark to light all burners. DIY repair in under 1 hour.

Replacement surface burner for gas range cooktops. Installs directly onto the burner base. Order when your existing burner is cracked, clogged, or missing.

Replacement surface burner head for gas ranges and cooktops. Distributes gas through precision ports for even flame. Needed when original is clogged, damaged, or corroded.

Replacement burner head for gas ranges and cooktops. Mounts over the orifice to distribute flame evenly. Needed when original is cracked or damaged.

Replacement gas burner for ranges and cooktops. Restores even flame distribution when original is clogged, damaged, or worn from boilovers and daily use.

Combined spark igniter and orifice holder for gas surface burners. Replace when the assembly is cracked, worn, or damaged to restore proper burner operation.

Replace a cracked, clogged, or damaged ignitor orifice assembly under your gas range cooktop. Routes gas to surface burner and houses spark electrode.

This surface burner ignitor/orifice assembly directs gas through a calibrated orifice and provides the spark to ignite it. Replacing a worn or damaged assembly restores consistent lighting and an even flame on the affected rangetop burner.

• Routes gas from the valve through the orifice to the burner head
• Positions the ignitor for reliable sparking and quick ignition
• Helps maintain correct flame size and pattern on that burner
• Common symptoms: burner won't light, clicks without flame, delayed ignition, weak or uneven flame

• Disconnect power and shut off the gas supply before servicing
• Remove grates, caps, and burner heads; lift the cooktop to access the assemblies
• Note wire routing and original orifice location; transfer any reusable hardware from the old part
• After installation, restore gas and check connections for leaks, then test spark and flame

Integrated ignitor and orifice assembly for gas range burners. Replace when ignitor electrodes are damaged, orifice threads are stripped, or mounting holes are worn.

The Screw is an OEM part for Frigidaire ranges and cooktops. This part secures the burner head in place, ensuring proper alignment and functioning of the burner.

Causes of a bad burner head screw can include loosening due to repeated heating and cooling cycles, damage from impact or mishandling, or simply wear and tear over time.

Symptoms of a loose or missing burner head screw include:

• Uneven or irregular flame pattern on the burner
• Burner head not sitting flush or properly aligned
• Burner head wobbling or moving during use
• Potential gas leaks if the burner head is not securely fastened

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

Regulates gas flow from the supply line to your range burners. Replace if cracked, leaking, or damaged to restore proper fuel control and flame size.

Fixes oven not heating or slow to heat issues. Controls gas flow to burner for safe ignition. Common repair for delayed heating or no heat problems.

This electric surface burner replaces a worn or broken cooktop heating element to restore even heating for pots and pans. It's a direct-replacement heating element commonly used on many Frigidaire electric ranges and cooktops. What it does:

• Heats cookware by converting electrical energy into heat for stovetop cooking
• Replaces cracked, unresponsive, or unevenly heating elements
• Helps stop sparks, intermittent heating, or a burner that won't warm
• Works with compatible receptacles and cooktop wiring to complete the circuit

• One electric surface burner element

• Disconnect power to the range at the breaker or unplug before servicing
• Remove the cooktop grate and any retaining clips to lift out the old element; reinstall in reverse order
• Inspect terminal connections and receptacle for damage; replace receptacle if corroded or loose

Oven won't heat or takes too long to ignite? This gas range igniter draws current to light the burner. Straightforward DIY repair in under an hour.

Fixes uneven baking or hot spots in your gas range oven. This heat baffle distributes flames evenly across the oven cavity for consistent cooking results.

This is a gas supply tube that delivers gas to the broil burner in a gas range or oven. It connects the gas valve to the broil burner assembly, allowing fuel to reach the burner for proper ignition. Replace this tube if you notice a gas smell near the broiler, if the broil burner won't light or heats unevenly, or if the tube shows signs of corrosion or damage.

This surface cooktop burner element replaces a damaged or worn heating element to restore even heat for stovetop cooking. Designed to match the OEM form and fit for straightforward swap-out on compatible ranges. What it does:

• Heats cookware across the cooktop for boiling, simmering and general cooking
• Replaces elements that produce no heat or inconsistent heating
• Helps stop flickering, popping, or intermittent on/off heating when faulty
• Restores proper electrical contact when original element is bent or corroded

• One surface burner element

• Disconnect power at the breaker before removing the old element
• Lift or remove the cooktop/surface as required per your model to access the element terminals
• Handle glass or ceramic surfaces carefully to avoid cracking; avoid flexing the element

This is an orifice elbow fitting that connects to the broil burner assembly in a gas range. It directs and regulates the gas flow to the broil burner for proper ignition and flame output. Replace this part if the broil burner produces an uneven flame, fails to ignite consistently, or if the fitting is cracked or corroded and causing a gas leak.

The Gas Oven Ignitor is an OEM replacement part for Frigidaire gas ranges and ovens. It uses electricity to generate a spark that ignites the burner flames for heating. To check if the ignitor is the issue, look inside the broiler oven while the oven is turned on. If the element is glowing a bright red, it's getting power. If not, it may not be getting enough power to ignite the gas and should be replaced.

Symptoms of a bad gas ignitor can include:

• The oven or burners failing to ignite or stay lit consistently
• Diminishing heating performance over time
• Burners that intermittently ignite or go out

Causes stem from normal wear with extended use. The ignitor's ability to spark diminishes as parts degrade. No spark means no gas ignition.

This OEM replacement part is compatible with Electrolux, Gibson, Kelvinator, and Kenmore brands.

Secures the ignitor assembly to your gas cooktop burner base. Replace if screw head is stripped, threads damaged, or screw is missing after disassembly.

Gas burner orifice jets meter fuel flow to range and oven burners. Replace when damaged, worn, or missing to restore proper flame size and heat control.

Burner orifice regulates gas flow to your range burners. Replace if clogged with debris, corroded, or damaged to restore proper combustion and heat output.

Burner orifice controls gas and air flow to cooktop burners. Replace if cracked, corroded, or when converting between natural gas and propane fuel types.

Burner orifice for gas ranges and cooktops. Controls gas flow to burner. Replace if cracked, corroded, or when converting between natural gas and propane.

Converts your gas range from natural gas to LP (propane) fuel. Includes orifices and components for burners and oven. Replace when switching fuel types.

This mounting bracket secures internal appliance components to the cabinet, restoring proper alignment and preventing movement. Use it to replace a broken, bent or missing support that causes loose panels, rattling or misaligned assemblies. What it does

• Provides a fixed mounting point to hold panels, assemblies or internal components in place
• Restores alignment for drawers, panels or modules affected by a damaged bracket
• Reduces vibration and rattling caused by a loose or broken support
• Prevents further damage by keeping connected parts properly supported

• One mounting bracket

• Disconnect power to the appliance before starting any repair
• Basic hand tools (screwdriver, nut driver) are typically required; retain all fasteners
• Inspect surrounding parts for damage and replace any worn fasteners or clips

Secures gas valve assemblies and mounting brackets to your range. Replace if screw is stripped, missing, or corroded to keep valve hardware stable.

A replacement hex-head screw used to secure appliance regulator brackets and similar small components. Restores proper fastener fit so panels and brackets stay firmly attached. What it does

• Fastens regulator bracket and related sheet-metal components
• Provides a secure threaded connection for components where an 8-18 thread is specified
• Helps eliminate looseness or rattling caused by a missing or damaged screw
• Matches the nickel/chrome finish commonly used on interior mounting locations

• One hex head screw (8-18 x 3/8), nickel finish

• Intended for use where an 8-18 x 3/8 hex screw is specified by the manufacturer
• Tighten to snug; avoid over-torquing which can strip sheet-metal threads
• Turn off power to the appliance before accessing internal components
• If the original screw used a lock washer or threadlocker, replace or reapply as appropriate

Replacement mounting screw for ovens and ranges. Secures panels, brackets, trim, and internal components. Replace missing or stripped screws to restore fit.

This wiring harness connects the appliance's electrical components to restore reliable power and signal routing. It replaces a damaged or worn harness to help resolve power loss and intermittent electrical issues. What it does:

• Transfers power and control signals between components so controls and motors can operate
• Replaces frayed, burned, or broken wiring that can cause intermittent operation
• Helps stop failures that lead to no-start or loss of specific functions
• Restores secure connector fit to reduce arcing or poor connections

• Always disconnect power before servicing the appliance
• Match connectors and wire routing to the original harness; avoid stretching or pinching wires
• Secure fasteners and strain reliefs; verify all connections are fully seated
• If you find heat or burn damage at terminals, inspect adjacent components for root cause

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.
