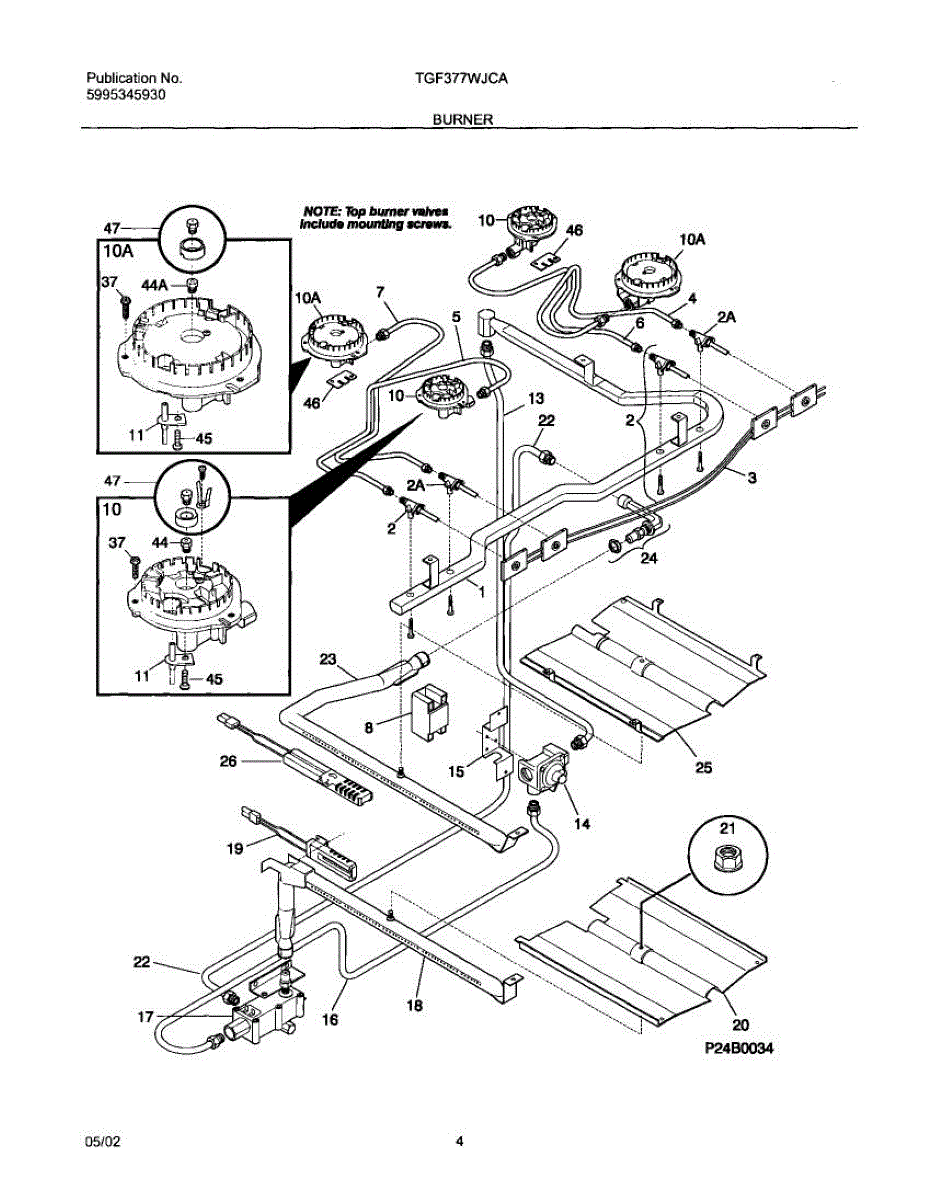

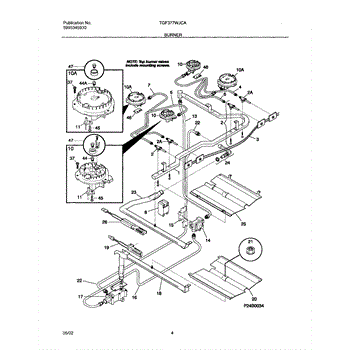

Parts for Tappan TGF377WJCA: 05 - Burner Parts

The Spark Module is an OEM part for Frigidaire gas ranges. It allows precise flame control for cooking. This module sends the necessary electrical currents to the igniters at each burner, which then spark to ignite the gas.

Causes of a bad spark module can include electrical failures, corrosion, or moisture damage, as well as wear and tear from normal use.

Symptoms of a bad Spark Module include:

• Burners failing to ignite despite being turned on
• Intermittent ignition or weak spark generation
• Continuous clicking sounds from the burner area even after ignition
• Unlit burners leading to gas smell, indicating incomplete combustion

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Top Igniter Electrode is an OEM replacement part for Frigidaire gas ranges. This part provides the spark to ignite the surface burners.

Causes involve repetitive heat stresses and deterioration of internal wiring over extended use. Corrosion from possible gas or moisture intrusion may also degrade electrode performance.

Symptoms of a faulty top igniter electrode include:

• Burners failing to light or stay lit during cooking
• Potential gas leaks or explosions from unlit burners
• Difficult relighting requiring extended holds of ignition buttons

This Frigidaire OEM replacement part is also compatible with Electrolux, Gibson, Kelvinator, and some Kenmore models.

The Regulator is an OEM part for Frigidaire ranges and cooktops. It's designed to maintain a safe and consistent gas flow to the burners, ensuring optimal performance and efficiency during cooking. This regulator adjusts the pressure of the gas coming from your home's supply line to match the requirements of the appliance, allowing for precise temperature control and reliable operation.

Causes of a bad regulator can include general wear and tear over time, exposure to high temperatures or cleaning chemicals that degrade its components, or a malfunction within the regulator itself, such as a stuck valve or broken diaphragm.

Symptoms of a bad Regulator include:

• Inconsistent flame size or color
• Burners not lighting
• A noticeable gas smell when the cooktop or range is on
• Weak or uneven heating performance

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

Made by Frigidaire. This is a dual oven valve for bake and broil.

The Oven Igniter is an OEM replacement part for Frigidaire ovens and ranges. This essential component is responsible for igniting the gas burners or bake and broil burners within the oven cavity, allowing for proper heating and cooking operations.

Causes of a faulty oven igniter can include normal wear and tear over time, exposure to excessive heat or debris buildup, or electrical malfunctions preventing proper ignition.

Symptoms of needing to replace the oven igniter include:

• Failure of the oven burners to ignite or light
• Delayed ignition or inconsistent burner lighting
• Visible damage or deterioration of the igniter element

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore ovens and ranges.

Length - 7.53"

This burner mounting screw fastens the surface burner assembly to its base on the cooktop, keeping it stable and properly aligned. Replace stripped, rusted, or missing screws to eliminate wobble and maintain even flame positioning.

• Secures the surface burner to the orifice holder/cooktop assembly
• Helps keep the burner level, stable, and properly seated
• Can address a loose or wobbly burner or one that lifts when removing the grate/cap
• Restores proper seating when original hardware is lost or corroded

• Disconnect power and shut off the gas supply; allow the cooktop to cool completely
• Remove grate, cap, and burner head (as designed) to access the fastener
• Start threads by hand and use the correct driver to avoid cross-threading
• Tighten snugly without overtightening; clean or chase threads if corrosion is present

A single gas burner orifice that meters fuel flow to a range or oven burner for consistent flame sizing and reliable cooking performance. Replaces a worn or clogged orifice to help restore steady ignition and even heat. What it does:

• Controls the amount of gas delivered to a burner for proper flame height and heat output
• Helps maintain consistent cooking and baking temperatures when functioning correctly
• A clogged or damaged orifice can cause weak or uneven flames, slow ignition, or poor heating
• Works as a small, precision-fit insert that sits in the burner assembly

• Turn off the appliance and shut off the gas supply before servicing
• Use a wrench or socket sized to the orifice and avoid rounding the fitting
• Inspect burner ports and clean any debris before installing the new orifice

Size: 8-18ab x 0.5 inch.

A replacement hex-head screw used to secure appliance regulator brackets and similar small components. Restores proper fastener fit so panels and brackets stay firmly attached. What it does

• Fastens regulator bracket and related sheet-metal components
• Provides a secure threaded connection for components where an 8-18 thread is specified
• Helps eliminate looseness or rattling caused by a missing or damaged screw
• Matches the nickel/chrome finish commonly used on interior mounting locations

• One hex head screw (8-18 x 3/8), nickel finish

• Intended for use where an 8-18 x 3/8 hex screw is specified by the manufacturer
• Tighten to snug; avoid over-torquing which can strip sheet-metal threads
• Turn off power to the appliance before accessing internal components
• If the original screw used a lock washer or threadlocker, replace or reapply as appropriate
