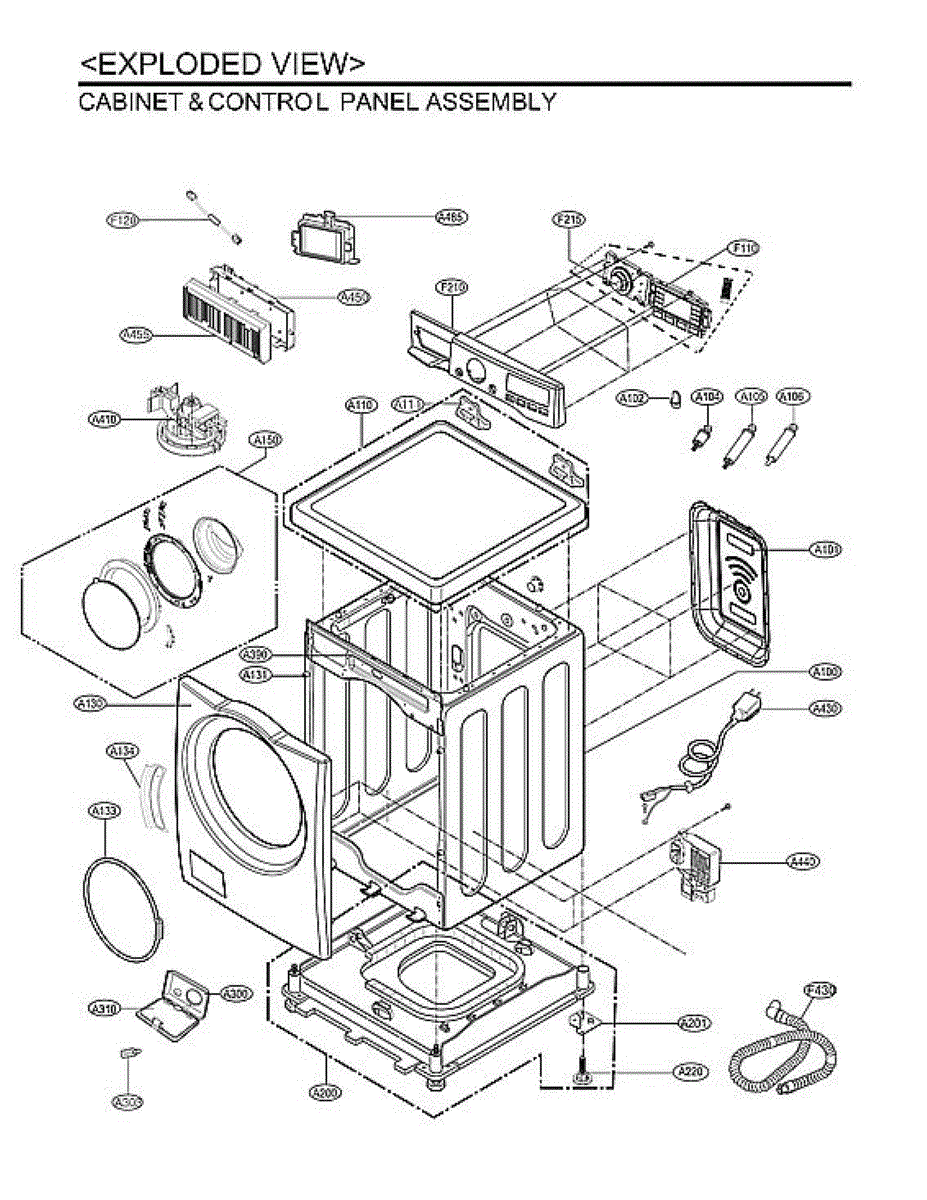

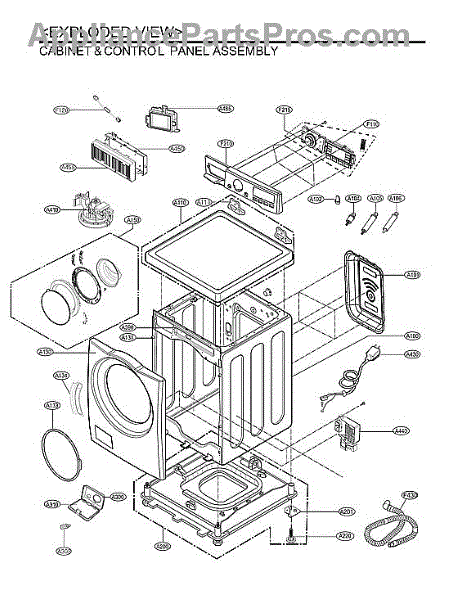

Parts for Lg WM4200HBA: Cabinet & Control Panel Assy Parts

Dissolves odor-causing residue and mildew buildup in washing machine tubs. Use every 30 washes to maintain freshness. Verify fit with your model.

This cabinet assembly is the main outer housing that supports and protects a laundry appliance's internal components, restoring structure and alignment for safe, quiet operation. Use it to replace a cracked, dented, or corroded cabinet. What it does

• Replaces the appliance's outer cabinet that holds the motor, tub, controls and other internal parts.
• Restores proper panel and door alignment to help reduce rattling and vibration.
• Helps stop issues caused by a damaged housing such as rubbing components or displaced seals.
• Returns the unit to a finished, serviceable condition after impact, corrosion or wear.

• Disconnect power and water before beginning any repair; follow all safety procedures.
• Cabinet assemblies are large and may require two people and basic hand tools to remove and reinstall.
• Keep fasteners and brackets organized for reassembly; confirm routing of wiring and hoses before final tightening.
• Refer to the OEM service manual or exploded parts diagram for exact removal and reinstallation steps.

Drum bearing bushing for washers. Installs between drum and bearing assembly. Replace if cracked, worn, or missing to restore proper drum support.

Fix a washer that won't drain or leaves standing water with a new drain pump assembly. Moderately challenging repair that solves drainage issues.

Shipping bolt assembly secures the washer drum during transport. Replace if bolts are lost, damaged, or missing before moving your washer to prevent damage.

Secures washer drum during moving or transport. Immobilizes internal components to prevent damage. Replace if missing, lost, or needed for relocation.

Secures the washer’s tub and basket during moving to prevent internal damage. If the originals are missing after a move, install replacements for transport and remove them before using the washer.

What it does

• Locks the tub and basket to limit movement in transit
• Helps prevent suspension damage and internal rattles while relocating
• Replaces missing, bent, or stripped transport bolts
• Useful for moves, storage, or service shipments

What’s included
One shipping bolt assembly (sold individually).

Install notes

• Unplug power and turn off water before service
• Insert through the rear panel into the designated mounting point; tighten snugly—don’t overtighten
• Do not operate the washer with shipping bolts installed; remove all bolts after placement
• Some models use multiple bolts and lengths—match count/positions to your owner’s manual

Usage tip
After removal, bag and tape the bolts to the cabinet so they’re on hand for the next move.

Top plate assembly for washer control panel area. Replaces cracked, broken, or missing top plates. Structural component that covers the top section.

The Display PCB Assembly is an OEM part for LG washers. Housed within the digital control panel, this printed circuit board coordinates the interface between users and the washer. Integrated microchips and programs process commands to start cycles and display settings.

Causes of a bad display PCB can include liquid intrusion into circuit paths, power surges, or natural component deterioration over time. Without a functioning control interface, users cannot operate basic functions or monitor wash status.

Symptoms of a bad display PCB include:

• Unresponsive or blank control panel display
• Erratic or failed control functions
• Water damage or physical damage visible on PCB

This LG OEM replacement ensures dependable performance for control programming years to come. Compatible also with Sears/Kenmore models for a direct fit and restoration of essential washing controls.

This multi-connector wire harness routes power and signals between control electronics and appliance components to restore reliable electrical connections. It replaces damaged or worn wiring to help stop intermittent operation and communication faults. What it does:

• Connects multiple control modules and components through factory-style multi-pin plugs
• Restores lost or intermittent power and signal paths caused by frayed wires or broken connectors
• Helps stop symptoms such as intermittent cycles, component non-response, or error codes tied to wiring faults
• Matches OEM connector layouts for proper fit and secure connections

• One multi-connector wire harness

• Designed for professional or experienced DIY installation; confirm connector orientation and routing before connecting
• Disconnect power to the appliance before service to avoid shock or damage
• Inspect mating connectors and terminals for corrosion or damage; replace if necessary
• Secure harness with existing clips or ties to prevent contact with moving or hot parts

Washer won't spin or makes grinding noises? The motor rotor bolt secures the rotor to the motor shaft. Requires a 17mm socket for installation.

Secures the outer door boot seal to prevent water leaks. Replace if damaged, rusted, or losing tension. Includes tensioning spring. Verify fit.

Hinge bracket for laundry center and washer units. Replaces broken, cracked, or worn brackets that support the door hinge assembly during operation.

Balance weight for front-load washers. Mounts to the drum assembly to stabilize spin cycles. Replace if cracked, broken, or detached from the tub.

Fix washer electrical failures with this multi-connector wiring harness. Restores power connections when controls fail or components stop responding.

Secures the stator to the motor assembly in your washer. Replace if bolt is stripped, spinning freely, or missing to restore proper motor stability.

Fix washer electrical failures with this wire harness. Restores power and signal routing between control boards and components. Direct fit replacement.

Complete door assembly for your laundry center. Replaces cracked, broken, or damaged doors. Includes outer panel and mounting hardware for installation.

This internal inlet hose directs incoming water into the appliance's fill system. Replacing a cracked or leaking hose restores proper water flow during cycles and helps prevent water damage around the unit. What it does:

• Routes water from the supply or inlet valve into the unit during fill
• Maintains a sealed path to help prevent drips and leaks when clamped correctly
• Common failure symptoms: water on the floor, slow or no fill, visible cracks/bulges/kinks, or dripping at hose connections
• Restores consistent water delivery to the dispenser, tub, or reservoir

• 1 inlet hose

• Disconnect power and shut off the water supply before servicing
• Place a towel or pan to catch residual water; relieve line pressure
• Note hose routing and transfer any reusable clamps/fittings from the original
• Secure all connections, restore water/power, and run a test cycle to check for leaks

Fix a washer that won't fill, fills slowly, or leaks at the water connection. This inlet valve controls water flow into the tub. Easy DIY repair.

Fix no hot water, slow filling, or screaming noise during fill. This washer water inlet valve controls water flow into the tub. Moderate DIY repair.

The Float Assembly is an OEM part for LG washing machines. This part monitors and controls the water level within the appliance. It's a safety feature that prevents water overflow and potential flooding, contributing to the efficient operation of the washing machine by maintaining the correct water level for each cycle.

Causes of a bad Float Assembly can vary from simple blockages that prevent the float from moving freely to electrical faults within the switch mechanism.

Symptoms of a bad Float Assembly include:

• Water overflowing from the washing machine
• Inadequate water levels that affect the washing cycle's effectiveness
• The washing machine failing to start the fill cycle due to a malfunctioning float switch

This OEM LG part is also compatible with some Kenmore models.

Control panel not responding or display blank? This washer control panel assembly restores buttons and display functionality. Moderate DIY repair.

The Knob Assembly is an OEM part for LG dryers. The assembly includes the knob used to operate cycles and settings on the dryer control panel.

Symptoms of a bad knob assembly include:

• Knobs falling off or detaching from the control panel
• Difficulty selecting cycles or temperatures
• Inability to activate or adjust timer settings
• Loose, wobbly, or improperly functioning knobs

Causes of a bad knob assembly can be general wear over time, excessive heat exposure damaging internal mechanisms, or accidental impact or damage.

Replace yours today with this genuine OEM LG knob assembly to restore full and reliable dryer operation. This replacement part is also compatible with Kenmore and some Samsung dryer models.

Leveling leg assembly for washers and laundry centers. Installs at the base to support and level the unit. Replace if cracked, broken, or missing.

Fix fabric softener leaking or not dispensing properly with this washer dispenser cap. Seals the softener compartment to prevent drips and residue.

Seals siphon/drain connection to prevent leaks and odors. Replace if worn, cracked, or leaking. Confirm fit with your washer model number.

Fix leaking from under the detergent dispenser with this washer dispenser box. Solves cracks or breaks that compromise the dispenser structure.

Washer case housing component. Replaces cracked, damaged, or missing case parts. Essential structural element for proper appliance assembly.

This drain hose cap seals and secures the refrigerator defrost drain outlet so meltwater is directed into the drain hose instead of pooling in the cabinet. Replaces a worn or damaged cap to help stop interior leaks and water buildup. What it does:

• Seals the defrost drain outlet to prevent water from spilling into drawers or onto shelves.
• Guides defrost/meltwater into the drain hose and toward the drain pan.
• Helps reduce odors and pests entering through an open drain opening.
• Fits onto the drain outlet to replace cracked, missing, or loose caps.

• Disconnect power before working inside the refrigerator to avoid electrical hazard.
• Remove shelves and drawers as needed to access the drain outlet; clear any visible debris or ice first.
• Press the cap firmly onto the drain outlet/hose until fully seated; avoid excessive force or prying tools.
• After installation, pour a small amount of warm water down the drain to confirm proper flow and seating.

Dissolves odor-causing residue and mildew buildup in washing machine tubs. Use every 30 washes to maintain freshness. Verify fit with your model.

Connects detergent dispenser to washer tub. Replace if cracked, leaking, or clogged with detergent buildup. Verify fit with your model number.

The Vent Hose is an OEM part for LG washing machines. This hose is essential for ensuring proper ventilation within the washer, allowing air to circulate and preventing the buildup of moisture and mildew. It helps maintain the efficiency of the washing machine by facilitating the expulsion of air and excess water vapor during operation.

Causes of a bad washer vent hose can include wear and tear over time, blockages from lint or debris, or damage due to bending or pinching.

Symptoms of a bad vent hose include:

• Excessive moisture or condensation inside the washer
• Musty odors from the washing machine
• Visible cracks or holes in the hose
• Poor ventilation leading to inefficient washing cycles

This OEM LG part is also compatible with Sears/Kenmore.

Includes sensor probe

Connects household water supply to your washer inlet valve. Replace this hose if it's cracked, leaking, or worn to restore safe water flow during cycles.

Washer won't spin or agitate? The stator assembly generates the electromagnetic field that powers drum rotation. Moderately difficult repair.

Fix LE error codes or grinding noises during spin with this washer rotor assembly. Pairs with stator to drive drum rotation. DIY repair in 30 minutes.

Direct-replacement door hinge spring that provides proper tension for smooth door operation. Needed when the door sags, closes unevenly, or the spring is worn or broken.

Washer won't fill properly or overfills? The pressure switch monitors water levels and signals when to stop filling. Moderately easy DIY repair.

The Holder is an OEM part for LG front-loading washing machines. It is a plastic mounting bracket or suspension system that attaches to the rear of the washer tub and helps secure internal components like hoses, pulleys, and the rear bearing in place during spin cycles. Subject to force and vibration, the holder must withstand years of washing use.

Symptoms of a bad holder include:

• Loosening or detaching internal parts leading to noise and imbalance
• Cracking or damage of the plastic bracketry
• Bearing or tub damage from improperly secured components

Causes can be fatigue from repeated wash cycles, stress cracks from heavy loads, or material deterioration over time. Replace with this OEM LG holder to maintain drum balance and suspend components securely. It is also compatible with Sears/Kenmore front-load washers.

Appliance won't power on? This power cord assembly restores electrical connection when the cord is damaged or has poor contact. Direct plug-in repair.

If your washer won't drain or leaks water during cycles, the drain hose assembly may need replacement. This hose carries water from the tub to your drain.

Pivot hanger assembly that supports and stabilizes washer components. Replace if worn, damaged, or causing misalignment to restore smooth movement.

Washer won't start or shows dE/door lock error? This door switch detects if the door is closed so the cycle can begin. Easy DIY repair with video guide.

This sensor assembly detects vibration and out-of-balance conditions during the washer's spin cycle. It mounts to the washer's tub or frame and sends signals to the control board to adjust spin speed or pause the cycle when excessive vibration is detected. Replace this sensor if the washer frequently stops mid-spin, displays an out-of-balance error code, or fails to reach full spin speed even with a properly balanced load.

Fix a washer that won't start, displays error codes, or has cycles that won't advance with this main control board. Manages all electrical functions.

Secures hose connections to prevent leaks in your washer. Replace if corroded, rusted, or leaking around hose fittings. Confirm fit by model number.

The Clamp is an OEM part for LG washing machines. It is used to secure the hose connections within the washer, ensuring that water flows correctly without leaks.

Over time, the clamp can become worn or damaged due to repeated exposure to water, vibration, or general wear and tear. If the clamp fails, it can lead to water leaks or hoses becoming detached.

Symptoms of a bad clamp include:

• Water leaking from hose connections
• Hoses coming loose or detaching during operation
• Visible rust or damage on the clamp
• Poor water flow or pressure issues

This OEM LG part is also compatible with Sears/Kenmore models.

Secures washer hoses to pumps, tubs, and drain fittings to prevent leaks. Replace when weakened, rusty, or damaged to maintain tight connections.

Fix washer leaks with this hose clamp. Secures hoses to pumps and valves, preventing water leaks and disconnections during wash cycles. Simple repair.

The NOISE FILTER ASSEMBLY is an OEM part for LG washing machines. It is a component designed to minimize vibrations and reduce noise emanating from the washer during operation. Proper noise damping is important for smooth functionality without disturbance.

Causes of a bad noise filter assembly can include cracks or tears developing over extended use. Physical damage from impact could also compromise its noise-blocking abilities.

Symptoms of a bad noise filter assembly include:

• Loud banging or clanking noises during wash and spin cycles
• Excessive vibrations felt through the washer cabinetry
• Increased stress on other components from inadequate dampening
• Premature wear of suspension components like legs and runners

Replace yours today with this genuine OEM LG part to restore a quiet wash experience. This replacement assembly ensures optimum vibration control. It is also compatible with Sears/Kenmore models.

Creates a tight seal between washer door and cabinet. Replace if torn, moldy, or leaking to prevent water damage and maintain wash performance.

Fix washer leaks or weak water spray with this connector nozzle. Channels water between internal components when worn nozzles cause drips or poor flow.

Fix water leaking from your washer dispenser or misdirected flow with this dispenser water guide channel. Routes water properly to prevent splashing.

Pressure sensor air chamber for washers. Connects the tub to the water level switch. Replace if cracked, clogged with detergent residue, or leaking air.

Secures rubber hoses to fittings with constant spring tension to prevent leaks. Replace when rusted or weakened to maintain a tight seal. Confirm fit.

Fix excessive vibration, banging during spin, or washer walking across floor. This damper assembly controls drum movement. Moderate DIY repair.

Locking pin for shock absorber.

Connector nozzle creates a secure seal between hoses or tubing in your washer. Replace when you notice leaks or loose connections. Confirm fit with your model.

Fix a washer that won't drain or has standing water with this drain pump motor assembly. Powers the pump to remove water during drain cycles.

Dissolves odor-causing residue and mildew buildup in washing machine tubs. Use every 30 washes to maintain freshness. Verify fit with your model.
