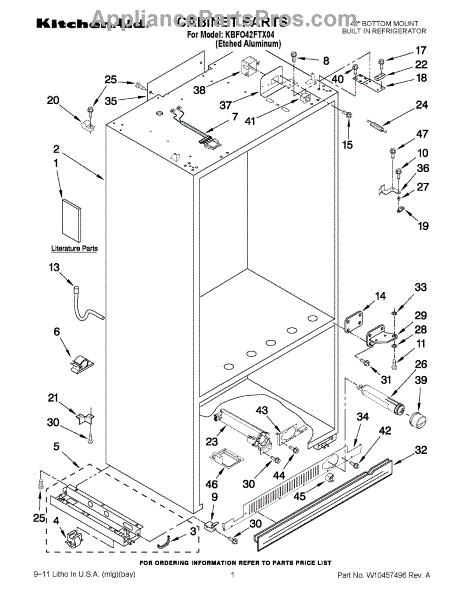

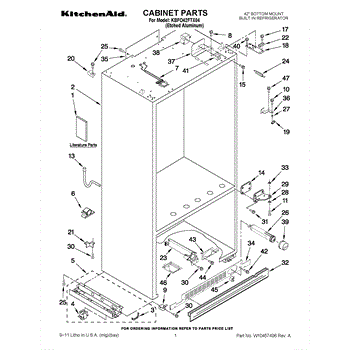

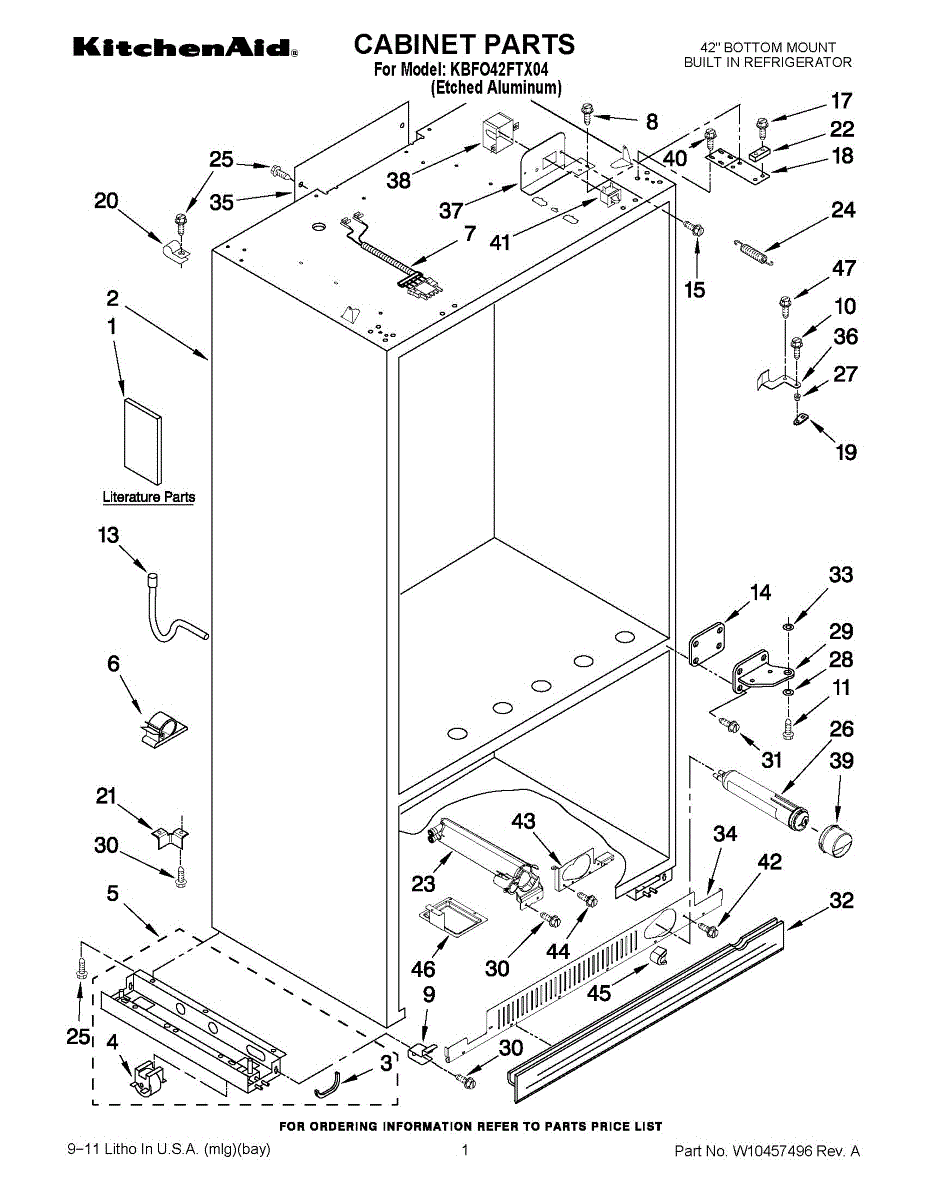

Parts for Kitchenaid KBFO42FTX04: 01 - Cabinet Parts

The Whirlpool Everydrop Water Filter 3 is a genuine OEM replacement part designed to improve the quality and taste of water while filtering out impurities. This filter is specifically designed for side-by-side refrigerators that accept Filter 3. Contains the ability to reduce 66 contaminants including lead, mercury, asbestos, and industrial chemicals. It helps to provide clean, fresh-tasting water. The filter needs to be changed every 6 months or 200 gallons for optimal performance. The fast and easy filter change requires no special tools. Simply push until you hear the receiver click into place. This NSF-certified filter is a reliable and affordable way to ensure that your family is drinking clean, refreshing water. SOLD INDIVIDUALLY

Specs:

• Filter Media: Carbon Block
• Operating Pressure: 30-120 psi
• Operating Temperature: 33-100 °F
• Flow rate: 0.5 gpm
• Material: Plastic
• Color: White
• Approximate Dimensions: 12 inches long, 2 inches in diameter

This replacement roller fits the front or rear position of a slide mechanism, restoring smooth, even movement and reducing noise when a wheel is worn or broken. It helps racks or drawers glide properly and stay aligned. What it does:

• Provides low-friction rolling support for the slide track
• Helps slide-out assemblies move freely without binding or scraping
• Worn or damaged rollers can cause sticking, squeaking, or uneven travel
• Restores proper alignment and smooth operation when replaced

• 1 roller assembly

• Disconnect power and allow the appliance to cool before servicing
• Remove the slide-out assembly; note roller orientation and hardware
• Transfer/reuse existing screws, clips, or retainers as required
• Do not lubricate unless the manufacturer specifies a lubricant

This Support (mounting bracket) secures internal components and stabilizes the appliance's assembly to help prevent sagging, misalignment and excess vibration. It's a small replacement that restores proper fit and reduces rattling. What it does:

• Provides a stable mounting point for panels or internal assemblies
• Keeps components aligned to prevent binding or wear
• Reduces noise caused by loose or sagging parts
• Helps stop intermittent contact or rubbing that can cause rattles

• Disconnect power (and water, if applicable) before servicing
• Access may require removing outer panels or trim; keep track of fasteners
• Support the assembly while replacing the bracket to avoid strain

This Support bracket holds internal components in place to restore proper alignment and reduce rattling or sagging. It's a simple replacement that helps stabilize the appliance's interior structure. What it does:

• Secures internal panels or assemblies to prevent movement and vibration
• Restores proper alignment when a factory support is damaged or missing
• Can reduce noise caused by loose components
• Helps maintain safe, stable operation of the affected area

• One Support bracket

• Disconnect power and unplug the appliance before beginning any repair
• Inspect surrounding fasteners and mounting points; replace any damaged hardware as needed
• Use appropriate hand tools; avoid over-tightening to prevent cracking plastic or stripping threads

The Screw is an OEM part for Whirlpool appliances, designed to provide secure fastening in a variety of locations within the appliance. This versatile component is crucial for assembly and maintenance tasks, ensuring that parts are held together tightly and function as intended. Whether it's securing panels, attaching components, or facilitating repairs, this screw is engineered to meet the specifications of Whirlpool appliances, offering durability and reliability.

Causes of screw issues can include normal wear and tear, over-tightening, which may strip the threads, or corrosion that weakens the screw's hold.

Symptoms of a bad or missing Screw include:

• Loose components or panels within the appliance
• Unusual noises due to parts not being securely fastened
• Difficulty in assembling or disassembling parts for repairs or maintenance

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This screw secures panels and internal components to restore proper alignment and reduce vibration or rattling from loose or missing fasteners. Replace stripped or lost screws to keep assemblies stable and help maintain normal appliance operation. What it does:

• Fastens trim, panels, and internal parts to prevent movement and vibration
• Helps stop rattling or noise caused by loose or missing fasteners
• Restores proper fit and alignment of assemblies after repair
• Used wherever the appliance design calls for this specific screw to secure parts

• Disconnect power (unplug appliance or switch off circuit) before accessing internal components
• Use the correct screwdriver or bit to avoid stripping the head
• Install by hand first, then tighten snugly—do not overtighten to prevent thread or part damage
• Keep track of small fasteners and replace any that are damaged or corroded

Size: 8-32 x 1/4 inch.

This drain tube routes wastewater from the appliance to the drain system, restoring proper drainage and preventing leaks or pooling. It's a direct-fit replacement designed to match the original drain path and connections. What it does

• Carries wastewater from the appliance pump to the household drain or disposal.
• Helps stop leaks or puddling caused by cracked, kinked, or clogged tubing.
• Restores normal drain cycles when a damaged tube prevents water removal.
• Prevents backflow when installed with proper routing and clamps.

• Disconnect power and turn off the water supply before starting any repair.
• Verify the tube routing and clamp positions match the original to avoid kinks and siphoning.
• Use proper clamps or fittings; tighten securely but avoid over-tightening which can damage the tube.

This is a genuine replacement screw used to secure panels, brackets, and components on compatible Whirlpool appliances. It restores proper fastening so loose parts stop rattling and panels stay aligned. What it does

• Fastens trim, panels, brackets, or mounting hardware to appliance chassis
• Helps stop vibration and rattling caused by missing or stripped fasteners
• Restores secure connections after repair or part replacement
• Matches OEM thread specification to fit intended mounting holes

• Disconnect power to the appliance before beginning any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Start threads by hand and tighten until snug; do not overtighten
• Inspect mating threads and replace if damaged

This replacement screw fastens panels and small components in Whirlpool appliances, restoring secure mounting and reducing vibration or rattling. Use it to replace a missing or stripped screw that's preventing proper assembly. What it does:

• Secures panels, brackets, and accessory parts to the appliance frame
• Prevents loose or vibrating panels that cause noise or misalignment
• Restores correct fit for doors, trim pieces, or internal supports
• Helps maintain safe, stable appliance operation when all fasteners are present

• Unplug the appliance or shut off power before accessing internal components
• Use the correct-size screwdriver or bit to avoid stripping the head
• Tighten until snug; avoid over-tightening which can strip threads or crack plastics
• Keep removed hardware organized to ensure you reinstall all fasteners

This door hinge is the factory-style replacement that lets a refrigerator/freezer door pivot smoothly and stay securely aligned. Restores proper door movement and helps prevent sagging or gaps that keep the door from sealing. What it does:

• Provides the pivot point that allows the appliance door to open and close smoothly
• Supports the door weight to maintain proper alignment and sealing
• Helps eliminate door sag or uneven gaps that can cause cooling loss
• Restores normal door operation when a worn or damaged hinge causes sticking or misalignment

• Disconnect power and empty the door before starting; work on level ground
• Use appropriate hand tools; support the door during removal and reinstallation
• Align hinge and door carefully to ensure an even seal; tighten fasteners to manufacturer torque if specified

This cam door stop is a replacement door cam that helps control door travel and alignment, restoring secure closing and smooth operation. It prevents over-rotation and helps the latch engage correctly for reliable everyday use. What it does:

• Limits door rotation so the door closes and latches properly
• Keeps the door aligned to prevent rubbing, scraping, or uneven gaps
• Reduces slamming and helps maintain consistent latch engagement
• Common fix when a door drops, won't stay closed, or closes unevenly

• Disconnect power to the appliance before beginning any repair
• Inspect surrounding door components (hinge, latch) for wear during replacement
• Wear gloves and eye protection to avoid cuts from sharp edges

The Water Filter Housing is an OEM part for Whirlpool refrigerators. It encases the water filter, ensuring a secure fit and proper water flow through the filtration system to provide clean, safe drinking water.

Causes of a bad water filter housing can include cracks or wear and tear over time, improper installation, or damage from replacing the water filter.

Symptoms of a bad water filter housing include:

• Water leaks around the filter area
• Reduced water flow from the dispenser
• Odd tastes or odors in the water
• The water filter not fitting securely

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The door closure spring restores the tension that pulls the door closed and holds it securely. Replacing a fatigued spring brings back smooth, reliable closing action and helps prevent doors that drift open or feel loose.

• Provides return tension to assist door closing and latch engagement
• Replaces a stretched, broken, or missing spring
• Can help with symptoms like a door that won't stay shut, pops open, or closes weakly
• Restores a consistent, even feel to the door movement

• Disconnect power to the appliance before servicing; wear gloves and eye protection
• Support the door/drawer to relieve spring tension before removal
• Note the spring's routing and hook locations; take a photo for reference
• Use pliers to detach/attach the spring; keep hands clear of pinch points and avoid overstretching

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

The Whirlpool Everydrop Water Filter 3 is a genuine OEM replacement part designed to improve the quality and taste of water while filtering out impurities. This filter is specifically designed for side-by-side refrigerators that accept Filter 3. Contains the ability to reduce 66 contaminants including lead, mercury, asbestos, and industrial chemicals. It helps to provide clean, fresh-tasting water. The filter needs to be changed every 6 months or 200 gallons for optimal performance. The fast and easy filter change requires no special tools. Simply push until you hear the receiver click into place. This NSF-certified filter is a reliable and affordable way to ensure that your family is drinking clean, refreshing water. SOLD INDIVIDUALLY

Specs:

• Filter Media: Carbon Block
• Operating Pressure: 30-120 psi
• Operating Temperature: 33-100 °F
• Flow rate: 0.5 gpm
• Material: Plastic
• Color: White
• Approximate Dimensions: 12 inches long, 2 inches in diameter

A small replacement bushing that secures and centers the appliance's rotating plate or tray for smooth, stable rotation. Restores proper alignment and reduces noise or wobble caused by a worn or damaged bushing. What it does:

• Centers and locks the rotating plate/tray to the drive hub for steady rotation
• Prevents the plate from wobbling, slipping, or scraping during use
• Helps eliminate grinding, rattling, or uneven rotation symptoms
• Durable replacement for a worn, cracked, or deformed bushing

• One adjustable plate locking bushing

• Disconnect power before servicing and handle any glass plate or trim carefully
• Remove the plate/tray and access the bushing location according to the appliance service instructions
• Test rotation before use

This is a replacement screw designed to work with a wide range of household appliances. It is used for many purposes in these appliances, from holding body panels together to securing electronics into control boards. However, screws are subject to damage through corrosion, impact, and improper installation/removal. In most cases, the primary damage to this screw is through corrosion – it may become rusted or corroded in place, depending on the appliance and the maintenance provided during its lifespan. The screw may also be stripped or rounded due to improper removal or installation. If the screw is damaged, lost, or corroded in place, it will need to be replaced. In most cases, removal will require nothing more than a Phillips head screwdriver or the appropriately sized socket with a ratchet. However, if the screw is damaged, it may require a tap set to remove it from its mounting location. Note that this is a genuine OEM replacement screw made from durable, high-quality metal, and is sold individually. It fits Whirlpool, Maytag, Roper, Estate, Amana, Crosley, and Thermador appliances. It is used in over 150 machines, ranging from washers and dryers to air conditioners.

The Screw is an OEM part for Whirlpool refrigerators. This screw plays a small but important structural role, securely fastening the refrigerator door hinges in place.

Causes of a bad screw include normal wear and tear, repeated door opening/closing stress, or accidental damage during cleaning or servicing of the hinge area.

Symptoms of a bad hinge screw include:

• Loose or sagging door that does not close or seal properly
• Increased vibration or noise from the hinge area
• Difficulty opening/closing the door smoothly

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Replacement extension that secures or supports a component on select Whirlpool appliances to restore proper fit and alignment. Helps reduce panel or drawer movement and improves smooth operation when a factory extension is damaged or missing. What it does:

• Secures and supports a panel, drawer, or internal component to maintain correct alignment.
• Restores smooth movement and prevents binding or sagging caused by a missing or broken extension.
• Reduces rattling and improves overall fit to help prevent further wear on adjacent parts.
• Works as a direct-fit replacement for the exact OEM extension designed for specific models.

• Disconnect power (and water, if applicable) before beginning any repair.
• Remove required trim or access panels to reach the mounting area; retain any factory fasteners unless replacement hardware is provided.
• Refer to the appliance's service manual or exploded parts diagram to fit and proper orientation before installing.

Left hand side

The Water Filter Cap is an OEM part for Whirlpool refrigerators. This cap is designed to securely seal the water filter compartment in your refrigerator, ensuring that the filter remains in place and functions effectively to provide clean, fresh-tasting water and ice.

Symptoms of a failing water filter cap include:

• Water leakage around the filter area
• Difficulty in removing or securing the cap, which may indicate a poor fit
• Cracks or damage to the cap that can compromise the water filtration system's integrity

Causes of water filter cap issues typically involve regular wear and tear from replacing the water filter, accidental damage during filter changes, or manufacturing defects that could affect fit and function.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Door Switch is an OEM part for Whirlpool refrigerators. This switch plays a crucial role in monitoring the status of the refrigerator door. It detects when the door is open and closed and signals the refrigerator to suspend or resume cooling operations accordingly.

Causes of a bad door switch can include general wear and tear over time, exposure to moisture, or impact damage. Please check for proper connection and that the wires are intact before replacing the switch.

Symptoms of a bad door switch include:

• The refrigerator fails to resume cooling after closing the door
• The inside light fails to turn on when the door is opened
• Abnormal energy usage due to improper door monitoring

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


This is a replacement screw designed to work with a wide range of household appliances. It is used for many purposes in these appliances, from holding body panels together to securing electronics into control boards. However, screws are subject to damage through corrosion, impact, and improper installation/removal. In most cases, the primary damage to this screw is through corrosion – it may become rusted or corroded in place, depending on the appliance and the maintenance provided during its lifespan. The screw may also be stripped or rounded due to improper removal or installation. If the screw is damaged, lost, or corroded in place, it will need to be replaced. In most cases, removal will require nothing more than a Phillips head screwdriver or the appropriately sized socket with a ratchet. However, if the screw is damaged, it may require a tap set to remove it from its mounting location. Note that this is a genuine OEM replacement screw made from durable, high-quality metal, and is sold individually. It fits Whirlpool, Maytag, Roper, Estate, Amana, Crosley, and Thermador appliances. It is used in over 150 machines, ranging from washers and dryers to air conditioners.

This bracket is a small mounting/support part that secures and aligns appliance components to restore proper fit and reduce movement. It's a direct-fit replacement designed to return panels and assemblies to their correct position. What it does:

• Provides a stable mounting point to secure panels, trim, or internal assemblies
• Restores correct alignment to eliminate rattling, vibration, or loose fit
• Helps maintain proper clearances for smooth operation of moving parts
• Replaces worn, bent, or broken brackets that prevent components from seating correctly

• One bracket

• Disconnect power and water before starting any repair
• Use common hand tools; support panels during removal to avoid damage
• Align bracket and fasteners before tightening; do not overtighten screws

This replacement screw secures panels, brackets, and internal components within your appliance. Replacing a missing or damaged fastener restores a tight fit, reduces vibration and noise, and helps keep parts properly aligned during operation.

• Fastens panels, trim, brackets, or internal components to the chassis
• Maintains proper alignment and stability during normal use
• Replaces missing, rusted, or stripped hardware
• Common symptoms: loose or rattling panels, vibration, difficulty fastening, or a visibly missing screw

• Disconnect power; for gas appliances, also shut off the gas supply
• Match length and thread to the original; replace one-for-one in the same location
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• If the receiving hole is stripped, repair threads or replace the clip/nut before installing

Color: Black

This is a machine screw used to secure appliance components and panels. It provides a reliable threaded fastener that restores proper fit and prevents movement or rattling for a finished, stable repair. What it does:

• Fastens panels, brackets, or components to the appliance frame
• Helps stop vibration and rattling caused by loose hardware
• Restores alignment of parts that shift when mounts are missing or damaged
• Common symptom: loose or wobbling panels, trim, or internal brackets

• Use the correct #8-32 driver/socket and size to avoid stripping the head or threads
• Hand-start threads to avoid cross-threading; tighten until snug without over-torquing
• Disconnect power and follow appliance-specific safety instructions before servicing
• If screw threads are damaged, replace with the correct OEM part number for proper fit
