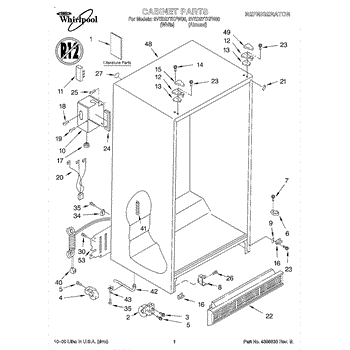

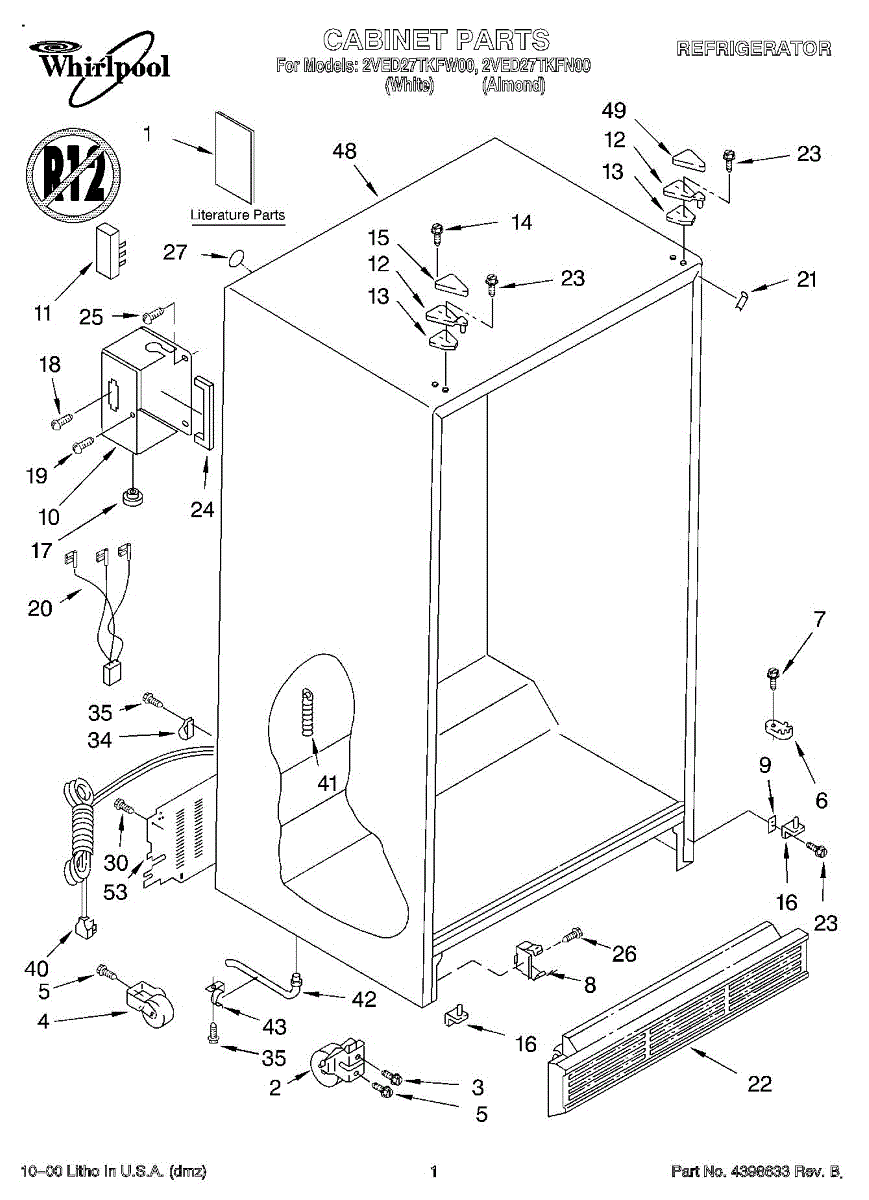

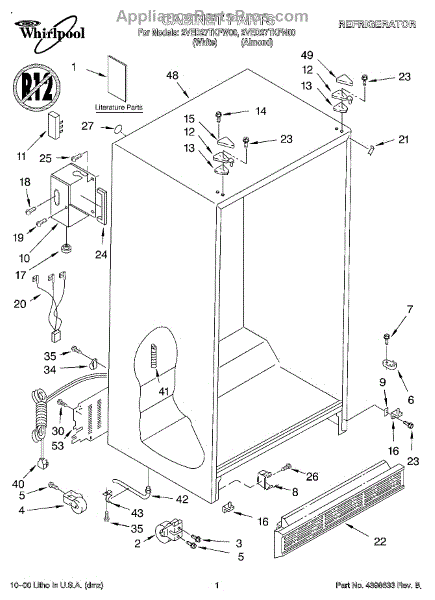

Parts for Whirlpool 2VED27TKFN00: 01 - Cabinet, Literature Parts

The Roller Assembly is an OEM part for Whirlpool refrigerators. This assembly includes the rollers that support and allow the refrigerator to be moved easily for cleaning or maintenance. Proper functioning rollers ensure smooth movement and stability of the appliance.

Causes of a bad roller assembly can include wear and tear from regular use, damage from moving the refrigerator improperly, or exposure to moisture leading to rust or corrosion.

Symptoms of a bad roller assembly include:

• Difficulty in moving the refrigerator
• Uneven or unstable placement of the appliance
• Unusual noises when moving the refrigerator

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This cabinet roller assembly supports the refrigerator at the base and lets you roll the unit forward for cleaning or service. Replace a cracked or seized roller to restore smooth movement and a stable, level stance. What it does:

• Supports the refrigerator cabinet and helps maintain proper leveling
• Allows the unit to roll for easier cleaning and servicing
• Replaces worn, cracked, or seized rollers and damaged brackets
• Helps resolve wobbling, uneven stance, scraping noises, or difficulty moving the fridge

• One complete cabinet roller assembly

• Disconnect power and turn off the water supply before servicing
• Protect flooring and use a second person or an appliance dolly to safely tilt or move the unit
• Remove mounting fasteners, swap the assembly in the original position, and reuse hardware if applicable
• After installation, level the refrigerator and verify doors close and seal properly

This is a replacement 1/4-20 threaded screw used to secure appliance components and panels. It restores proper fastening where a matching screw is missing, loose, or stripped and helps stop rattling or misalignment. What it does:

• Secures panels, brackets, and assemblies to maintain proper alignment and reduce vibration
• Replaces missing or damaged fasteners that cause loose or rattling parts
• Works wherever a 1/4-20 threaded screw is specified by the manufacturer
• Simple mechanical fastener—no electrical or calibration changes required

• Disconnect power to the appliance before servicing to avoid injury
• Use the matching driver and thread engagement; do not overtighten to prevent stripping
• Verify screw length and head type match the original before installing
• If threads are damaged, repair or replace the mating component rather than forcing the screw

The Door Cam is an OEM part for Whirlpool refrigerators. It functions as a critical component in the door closing mechanism, facilitating the smooth opening and closing of the refrigerator door. The door cam helps to lift and lower the door slightly as it opens and closes, reducing stress on the hinges and ensuring a tight seal.

Causes of a bad Door Cam can include wear from regular use, cracking due to excessive force when opening or closing the door, or misalignment that prevents the door from functioning properly.

Symptoms of a bad Door Cam include:

• The refrigerator door making noise when opened or closed
• Difficulty in shutting the door completely
• Increased energy consumption as the fridge works harder to maintain its internal temperature due to a poor seal

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Screw is an OEM replacement part for Whirlpool appliances. The precise threads allow screws to join or assemble other parts securely.

Causes of a bad screw can include stripping, cracking, or loss of threads due to repeated installation/removal over time. Corrosion is also possible depending on environmental conditions.

Symptoms of a bad screw include:

• Loosened or detached components that were once fastened
• Reduced structural integrity of connections or assemblies
• Potential safety hazards if critical parts become dislodged

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Clip for bottom grill. If your original clip is riveted, order screw WP489478.

This hinge shim installs at the bottom refrigerator door hinge to fine-tune door height and alignment. Replacing a missing or damaged shim helps the door close smoothly and seal evenly for reliable performance.

• Positions the door by spacing the bottom hinge for correct height and alignment
• Helps restore smooth closing and consistent gasket contact
• Useful after hinge or gasket service to set the door-to-cabinet gap

• Disconnect power before servicing
• Support the door; remove bottom hinge fasteners and lift the door off per your manual
• Add or replace shim(s) on the bottom hinge, then reinstall and tighten hardware
• Check level and uniform gasket contact around the door

Top

White. For almond order WP1129262.

This Door Hinge Kit is an OEM replacement part for Whirlpool refrigerators. It includes the left and right lower door hinges. These hinges are crucial components that allow the refrigerator doors to swing open and close both smoothly and securely.  This kit includes both the freezer and refrigerator door hinges.

Symptoms of bad door hinges can include:

• The door not sealing properly when closed
• Difficulty opening or closing the door
• Excessive noise emanating from the hinge area
• Door alignment issues where it does not sit flush

Causes of failure typically involve hinge components wearing down over extended use. Hinges may also become loose, misaligned, or damaged due to impact over time.

This OEM replacement is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore models.

This 10-16 screw secures panels, brackets, and internal components in your appliance. Replacing a missing or stripped fastener restores a snug fit, reduces vibration and rattling, and keeps parts properly anchored for reliable operation.

• Provides 10-16-thread fastening for sheet metal, plastic, and bracket assemblies
• Direct replacement for a missing, worn, or stripped factory screw
• Helps address loose or rattling panels or covers that won't stay secured
• Supports proper alignment and retention of internal components

• Disconnect power; shut off water and/or gas before servicing
• Match the new screw to the original location and length; replace like-for-like
• Start threads by hand to avoid cross-threading; use the correct driver for the head style
• Tighten snugly; do not overtighten into plastic or thin sheet metal

Size: 8-32 x .312 inch.

Black

The Grille is an OEM part for Whirlpool bottom-mount refrigerators. It is an attractive decorative grille installed on the top of the refrigerator, above the freezer compartment. The grille covers internal fans and vents while maintaining an airy design aesthetic.

Symptoms of a faulty grille include:

• Gaps or openings around the edges compromising seals
• Loose or detached mounting points from vibration
• Damage like dents, scratches or cracks affecting appearance

Causes can be normal wear and tear over time, accidental impacts, or degradation from cleaning chemicals.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This black grille extension replaces a damaged or faded lower front trim to restore the appliance's finished appearance and help direct airflow at the base. Fits models that use the WPW10283946 grille extension. What it does:

• Covers and protects the lower front opening of the appliance while providing a finished look
• Helps channel air intake/exhaust at the base so the appliance can ventilate properly
• Replaces cracked, warped, or discolored trim that no longer sits flush or locks into the cabinet
• Visible cosmetic fix that can eliminate rough edges or gaps at the toe-kick area

• One black grille extension

• Disconnect power to the appliance before attempting removal or installation
• Usually secures with clips or a few screws; remove adjacent trim pieces as needed to access fasteners
• Handle plastic trim carefully to avoid cracking; align tabs and press or fasten until secure

A factory fastener used to secure appliance components and panels. Replacing a missing, rusted, or stripped screw restores a solid, rattle-free fit and helps keep brackets, housings, and covers properly aligned for reliable operation.

• Fastens and holds panels, brackets, or internal components in place
• Helps maintain alignment and reduce vibration or rattling noises
• Direct replacement for a lost, corroded, stripped, or damaged fastener
• Restores proper fit when a component has loosened over time

• Unplug the appliance; also shut off gas and/or water supplies before servicing
• Match to the original screw and start threading by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• If multiple screws secure a part, start all screws before fully tightening to ensure even seating

This factory fastener secures appliance components and panels, helping keep assemblies properly aligned and tight. Replace worn, stripped, or missing hardware to eliminate looseness and vibration and maintain safe, reliable operation.

• Fastens brackets, panels, trim, and internal assemblies to the cabinet/frame
• Helps maintain alignment of doors, consoles, or covers
• Restores a tight fit to reduce rattling, vibration, or shifting
• Common symptoms: missing screw, stripped head/threads, loose panel or handle, recurring vibration/noise

• Disconnect power (and shut off gas/water if applicable) before servicing
• Match thread and length to the original fastener for proper fit
• Start threading by hand to avoid cross-threading; use the correct driver
• Do not overtighten into plastic or thin sheet metal

Size: 8 x 1/2 ab.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Size: 8 x 1/2 ab.

The Drain Fitting is an OEM part for Whirlpool refrigerators. It is responsible for directing the water from the defrost cycle or ice maker to the appropriate drain line, ensuring proper drainage and preventing water buildup or leaks.

Causes of a bad refrigerator drain fitting can include clogs or obstructions, damage from impact or freezing temperatures, or simply wear and tear over time.

Symptoms of a faulty refrigerator drain fitting include:

• Water leaks near the bottom of the refrigerator
• Buildup of ice or water in the drain pan
• Noticeable odors from stagnant water
• Difficulty with the defrost cycle or improper defrosting

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This drain fitting extension connects to the ice machine's drain outlet to extend the connection point for proper hose attachment. It helps ensure a secure, leak-resistant drain path so meltwater can exit the unit correctly.

• Extends the factory drain fitting to improve hose reach and connection
• Maintains a tight, stable drain hookup to help prevent leaks
• Designed for ice machines that use a gravity or pump-assisted drain path

• Disconnect power and shut off water before servicing
• Place a towel or pan to catch residual water
• Ensure the drain hose seats fully and clamp is secure per your model's instructions
• Check for leaks by running a short test after reassembly

White.
