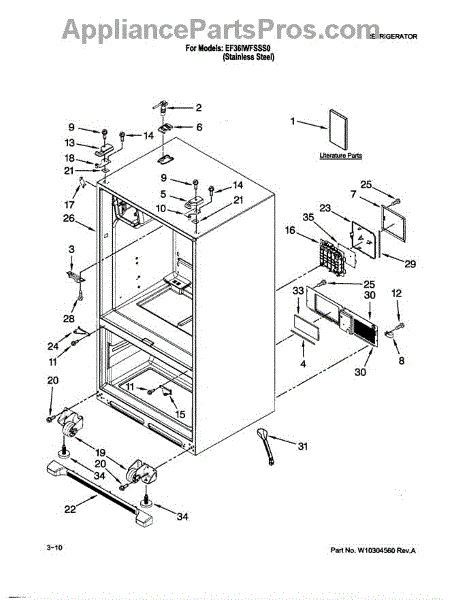

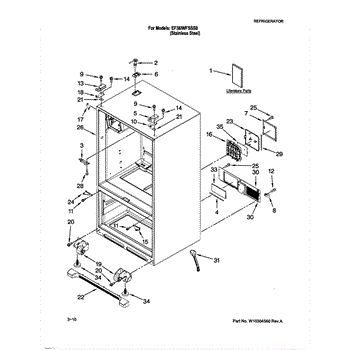

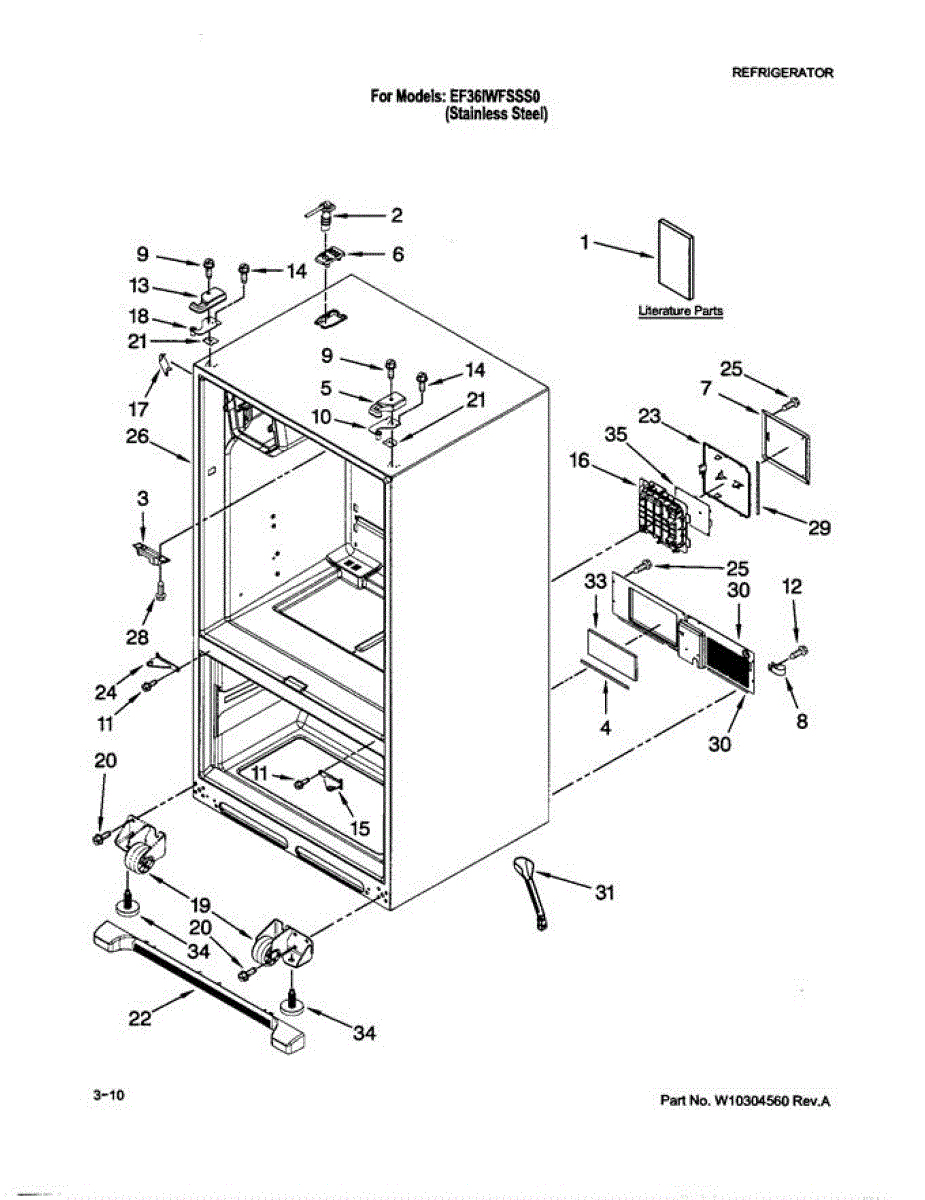

Parts for Whirlpool EF36IWFSSS0: Cabinet Parts

The Water Filter is an OEM part for Whirlpool refrigerators. It is designed to filter and purify the water for your refrigerator, ensuring clean and fresh drinking water and ice.

A bad refrigerator water filter can be caused by regular use and the buildup of contaminants over time. It may also become less effective if not replaced according to the manufacturer's recommended schedule.

Symptoms of a bad refrigerator water filter include:

• A decrease in water flow or water pressure.
• An unpleasant taste or odor in the water.
• The presence of particles or sediment in the water.
• Cloudy or discolored ice cubes.

If you notice any of these signs or if it has been more than six months since your last filter replacement, it's time to replace the refrigerator water filter with this genuine OEM part. This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


The Icemaker Fill Tube is an OEM part for Whirlpool refrigerators. This fill tube directs water from the water supply line to the icemaker, ensuring a consistent flow for ice production. It is crucial for maintaining the efficiency and functionality of the icemaker.

Causes of a bad icemaker fill tube can include clogs from mineral deposits, freezing of the tube, or damage from regular wear and tear. A malfunctioning fill tube can disrupt the water flow, leading to issues with ice production.

Symptoms of a bad icemaker fill tube include:

• No ice being produced
• Reduced ice output
• Water leaks near the icemaker
• Visible cracks or clogs in the tube

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Refrigerator Pivot Block is an OEM part for Whirlpool refrigerators. It supports the door hinge, allowing the refrigerator door to open and close smoothly. The pivot block ensures that the door stays aligned and securely attached to the refrigerator frame.

Causes of a bad pivot block can include wear and tear over time, heavy use, or damage from accidental impacts. Misalignment or excessive force when opening and closing the door can also contribute to its failure.

Symptoms of a bad refrigerator pivot block include:

• The refrigerator door not opening or closing properly
• A misaligned door that doesn't seal correctly
• Unusual noises when the door is operated
• The door feeling loose or wobbly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This cover replaces a cracked, warped, or missing cover on your appliance. It protects internal components and restores the correct fit and finish so parts stay secured and the unit operates as designed.

• Shields internal components from debris and moisture
• Helps maintain proper airflow, water path, or guarding as designed
• Restores fit/finish and keeps parts secured
• Common signs of failure: cracks, broken tabs, discoloration, or a cover that won't stay in place

• Disconnect power and shut off water/gas before servicing
• Note the original orientation and transfer any screws/clips from the old part
• Align tabs and fasteners; avoid overtightening to prevent damage
• After installation, test operation and ensure no interference or leaks

This cover-tube protects and guides the evaporator/related tubing inside the freezer compartment to help maintain proper airflow and prevent contact damage. It's a direct-fit replacement used in affected Whirlpool refrigeration units. What it does:

• Protects evaporator or refrigerant lines from rubbing, kinking, or accidental contact
• Helps keep tubing routed properly for consistent airflow and cooling performance
• Reduces risk of damage during routine use and service
• Useful when replacing damaged, cracked, or missing tube covers

• Install by sliding or snapping into place per the factory diagram; no adhesives unless specified by OEM
• Power off and unplug the appliance before accessing internal components
• Handle surrounding tubing and evaporator fins carefully to avoid damage

This clamp secures flexible hoses to fittings to maintain a tight seal and prevent leaks. Use it to replace a worn or loose clamp to stop water or air seepage and restore proper hose attachment. What it does:

• Holds a washer, dryer, or appliance hose firmly to a barb or fitting to prevent slipping
• Helps maintain a watertight or airtight connection to reduce leaks and drips
• Replaces corroded, cracked, or stretched clamps that no longer grip reliably
• Supports normal appliance operation by keeping fluid/air flow contained

• One clamp

• Inspect the hose and fitting; replace the hose if damaged before installing the clamp
• Position clamp over the hose barb and tighten evenly; avoid over-tightening that can cut the hose
• Disconnect power and water supply before servicing any appliance components

The Screw is an OEM part for Whirlpool refrigerators. This screw secures the refrigerator door hinge in place, allowing the door operates smoothly and seals properly.

Over time, screws can become loose or go missing during repairs or adjustments, which can lead to a misaligned door, compromised sealing, and increased energy consumption.

Symptoms of a bad screw include:

• The refrigerator door seems misaligned or does not close properly.
• Increased effort needed to open or close the door.
• Unusual gaps around the door seal when closed.
• The door might squeak or make other noises during operation.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Top hinge assy-rh gal

This replacement screw secures appliance panels and components to restore proper fit and reduce vibration. A straightforward fastener that helps keep parts aligned and prevents noise or loose trim from worsening. What it does:

• Fastens panels, brackets, or trim pieces to the appliance frame
• Helps stop rattling or vibration caused by loose or missing hardware
• Restores proper alignment where original screw has been lost or damaged
• Works wherever the OEM screw specification is required for secure mounting

• Turn power off and unplug the appliance before working on it
• Use the correct screwdriver or bit to avoid stripping the head
• Thread carefully and avoid overtightening to prevent damage to threads or plastic parts
• Keep removed fasteners organized so you reinstall the correct pieces

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

This hinge cover assembly conceals and protects the door hinge area, providing a clean look while shielding wiring and moving parts from dust and moisture. It restores proper coverage if the original cover is cracked, missing, or loose.

• Covers the hinge area to protect components and improve appearance
• Helps prevent debris intrusion around the hinge mechanism
• Common fix for a broken, missing, or damaged hinge cover
• May help if the hinge area is exposed or rattling due to a loose cover

• Unplug appliance before service; shut off water if applicable
• Use a non-marring tool to release clips or tabs; avoid prying on finished surfaces
• Transfer any reusable screws or trim from the old cover
• Confirm secure engagement of tabs/screws to prevent vibration

This hex washer-head screw secures panels, brackets, and other components inside your appliance. Replacing a worn, stripped, or missing screw restores a tight fit, reduces vibration and rattles, and helps keep assemblies properly aligned.

• Fastens panels, brackets, covers, and internal hardware to the cabinet or frame
• Helps prevent loosening, rattling, or misalignment during appliance operation
• Replace if the head is rounded, threads are stripped, or the screw is missing
• Useful after service when an original fastener is lost or damaged

• Disconnect power and shut off gas/water before starting
• Use the correct nut driver or socket for the hex head to avoid rounding
• Start threads by hand to prevent cross-threading; tighten snugly without overtightening

A replacement door hinge assembly that secures the appliance door and lets it pivot smoothly. Installing the correct hinge restores proper door alignment so the door opens and closes reliably and reduces uneven gaps. What it does:

• Provides the pivot point that supports the door and maintains alignment.
• Replaces cracked, worn, or bent hinges that cause door sag or misalignment.
• Helps the door close fully and stay seated to reduce drafts and uneven sealing.
• Restores normal hinge movement to eliminate sticking or noisy operation.

• Disconnect power to the appliance before beginning any repair.
• Support the door while removing and installing the hinge to prevent injury or damage.
• Use the correct hand tools and keep track of mounting hardware; do not overtighten fasteners.
• After installation, check door swing and alignment; adjust as needed.

This HV control box is the electrical control module that routes power and switching signals for the appliance's high-voltage circuits, restoring correct power delivery and control when the module has failed. What it does:

• Controls and distributes high-voltage power to heating and/or motor circuits in the appliance.
• Replaces a failed control module that can cause intermittent or complete loss of heating or operation.
• Common symptom: appliance runs but does not heat or perform expected functions.
• Common symptom: appliance is unresponsive or has inconsistent power to components.

• Disconnect power (unplug or shut off breaker) before servicing to avoid electrical shock.
• Only install on compatible models and verify fit; consult model-specific service literature.
• Avoid touching terminals; secure all wiring connections and mounting hardware before restoring power.

This cover corner replaces a missing or damaged corner trim piece to restore the refrigerator's interior/exterior finish and help keep shelves and bins seated properly. It provides a clean, finished look and protects edges from wear. What it does:

• Replaces the corner trim/filler that covers panel edges or joins interior liners
• Helps keep adjoining panels, shelves or bins aligned and reduces gaps
• Restores appearance after chipping, cracks or impact damage

• Designed for drop-in or snap-on installation; verify fit against the appliance before final assembly
• Use basic hand tools; avoid excessive force which can crack plastic parts
• Disconnect power if removing interior panels or working near electrical components

Top hinge assembly secures the top of the refrigerator door to the cabinet and restores proper pivoting for smooth opening and correct alignment, helping maintain the door seal and prevent sagging. What it does:

• Supports and pivots the top of the door for stable, even movement.
• Keeps the door aligned so the gasket seals evenly across the cabinet.
• Helps prevent door sagging, rubbing, or uneven gaps that can affect cooling.
• Resolves symptoms like difficulty closing or a door that sits crooked.

• Disconnect power and empty the door before starting the repair.
• Have a second person or a support to hold the door while removing/installing the hinge.
• Use basic hand tools and follow the manufacturer's service instructions; avoid forcing parts.
• After installation, check door alignment and operation to ensure a proper seal.

The Front Left Roller Assembly is an OEM part for Whirlpool refrigerators. This roller assembly supports the refrigerator, allowing it to be easily moved for cleaning or maintenance.

Causes of a bad roller assembly can include wear and tear over time, damage from moving the refrigerator frequently, or exposure to heavy loads that can cause the roller to crack or break.

Symptoms of a bad front left roller assembly include:

• Difficulty moving the refrigerator
• The refrigerator not staying level
•  Unusual noises when attempting to move the appliance
• Visible damage or wear on the roller

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Roller Assembly is an OEM part for Whirlpool refrigerators. It contains heavy-duty ball bearing rollers located along the bottom front-right cabinet. Repeatedly maneuvering fully-loaded refrigerators can cause cabinet rollers to crack or bearing races to deteriorate over extended use.

Potential failure causes include structural cracks from strong impacts or bearing lubrication washing away from repeated wet cleaning.

Symptoms of faulty cabinet rollers include:

• Resistance or grinding noises when tilting the refrigerator
• Visible bearing marks wearing into roller housing
• Potential for cabinet walls or flooring damage without smooth motion

This is a genuine Whirlpool OEM replacement, this part is also compatible with Maytag, Jenn-Air and some KitchenAid models.

This hex-head sheet metal screw secures refrigerator panels, brackets, and other internal components. Replacing a missing, corroded, or stripped screw helps keep parts tight, reduces vibration noise, and maintains proper alignment of covers and assemblies.

• Fastens sheet-metal panels, ducts, brackets, and trim inside the cabinet
• Helps maintain a secure fit and reduce rattles or buzzing
• Restores alignment when an original fastener is missing or damaged
• Common signs include loose or vibrating panels, a stripped screw head, or a screw that won't tighten

• Unplug the refrigerator and shut off water supply if working near ice/water components
• Use the correct nut driver or socket for the hex head
• Start threads by hand to avoid cross-threading; tighten until snug—do not overtighten
• Replace screws one at a time to help keep parts aligned

This replacement shim is a thin positioning spacer used to align or level internal components for correct fit and operation. It helps restore proper clearances and reduce rubbing, noise, or misalignment-related issues. What it does:

• Provides precise spacing between parts to ensure correct alignment
• Helps eliminate rubbing or contact that can cause noise or wear
• Restores proper component clearance after service or reassembly
• Used when a missing, worn, or incorrect spacer leads to misalignment symptoms

• One replacement shim

• Inspect mating surfaces and clean debris before installing the shim
• Verify correct placement and orientation against the original shim or diagram
• Tighten fasteners to the manufacturer's specifications; do not overtighten
• Disconnect power and follow all safety precautions before servicing

A flat replacement shim that fills small gaps and realigns appliance components to restore proper fit and reduce vibration. Use it where a thin, precise spacer is needed for better part alignment and quieter operation. What it does:

• Provides a thin, stable spacer to correct minor misalignment between metal parts
• Helps reduce vibration or rubbing caused by uneven panels or mounts
• Restores correct clearance for seals, bearings, or mounting surfaces
• Useful when a worn or missing shim allows parts to sit unevenly

• Disconnect power before servicing; follow your appliance's service manual for disassembly
• Handle edges carefully — shims can be sharp
• Replace any additional shims or related fasteners shown in the model's parts diagram for best results

The Kickplate Grille is an OEM part for Whirlpool refrigerators. It is installed at the base of the refrigerator and serves to cover and protect the lower ventilation area, helping to ensure proper airflow to the condenser and other components. It measures approximately 37 inches wide, 2 inches high, and 4 inches deep.

You should replace the kickplate grille if it becomes damaged or broken. Causes of a bad kickplate grille can include accidental impacts, wear and tear over time, or exposure to cleaning chemicals that can weaken the material.

Symptoms of a bad kickplate grille include:

• Visible cracks or breaks in the grille
• Loose or unstable attachment
• Obstructions in airflow leading to poor refrigerator performance
• Accumulation of dust and debris behind the grille

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

A replacement door hinge assembly that secures the appliance door and lets it pivot smoothly. Installing the correct hinge restores proper door alignment so the door opens and closes reliably and reduces uneven gaps. What it does:

• Provides the pivot point that supports the door and maintains alignment.
• Replaces cracked, worn, or bent hinges that cause door sag or misalignment.
• Helps the door close fully and stay seated to reduce drafts and uneven sealing.
• Restores normal hinge movement to eliminate sticking or noisy operation.

• Disconnect power to the appliance before beginning any repair.
• Support the door while removing and installing the hinge to prevent injury or damage.
• Use the correct hand tools and keep track of mounting hardware; do not overtighten fasteners.
• After installation, check door swing and alignment; adjust as needed.

This factory screw secures appliance components so they stay aligned and firmly attached during everyday use. Replacing a missing or damaged screw helps stop rattles, looseness, and poor fit that can affect performance over time.

• Fastens panels, brackets, or hardware to keep assemblies tight
• Helps correct issues like loose handles, vibrating panels, or misaligned parts
• Restores proper fit after a screw is stripped, corroded, or lost
• Built to match the original thread and length for reliable engagement

• Disconnect power and, if applicable, shut off water before servicing
• Use the correct driver to avoid stripping the head or threads
• Start threads by hand to prevent cross-threading; tighten snugly without over-torquing
• Replace any companion fasteners that are worn or missing for even clamping

The Refrigerator Drain Tube is an OEM replacement part for Whirlpool refrigerators. It is the tube responsible for draining condensation and any other moisture that collects at the back of the refrigerator compartment. The drain tube guides liquid to the evaporation pan located below the refrigerator to be evaporated.

Symptoms of a bad drain tube include:

• Water collecting in the back of the refrigerator
• Musty odors emanating from the refrigerator
• Water leakage from the bottom of the refrigerator

Causes of a bad drain tube can be blockages from food particles or debris, cracks or leaks that prevent proper drainage, or damage due to impact or kinking of the tube over time.

This OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Leveling Leg is an OEM replacement part for Whirlpool refrigerators. It is one of four legs situated internally at the base corners for proper tilt positioning. It raises or lowers each leg independently to stabilize units on uneven kitchen floors.

Causes of replacement consist of wear from continual torque required during positioning processes. Thread damage or corrosion buildup attributable to floor locations over extended use necessitates periodic renewal as well.

Symptoms involve:

• Doors that fail to align or seal completely during open-close cycles
• Noisy imbalances traced to feet contacting floor surfaces
• Appliance rocking is unable to be remedied through existing leg corrections

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air, and some Kenmore models

The Electronic Control Board is an OEM part for Whirlpool refrigerators. This component acts as the brain of the refrigerator, managing and regulating various functions such as temperature control, defrost cycles, and the operation of fans and compressors. By processing inputs from sensors and user settings, the control board ensures that the refrigerator operates efficiently and maintains the desired temperature.

Causes of a bad control board can include power surges, electrical component failures, or damage from moisture or debris. A malfunctioning control board can lead to various operational issues and inconsistent performance.

Symptoms of a bad electronic control board include:

• The refrigerator not cooling properly
• The freezer or refrigerator compartments being too warm or too cold
• The refrigerator not running at all
• Erratic or unresponsive control panel
• Unusual noises or failure to start the defrost cycle

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
