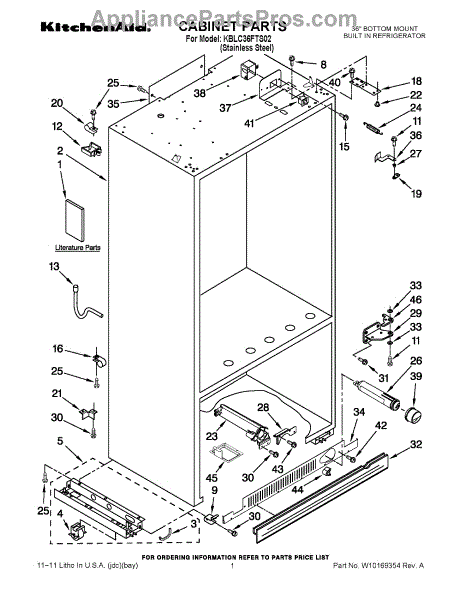

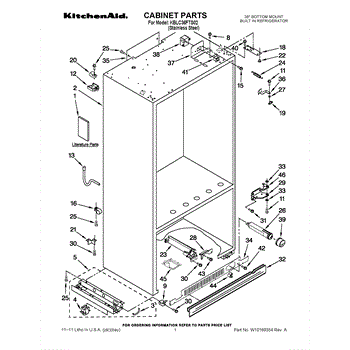

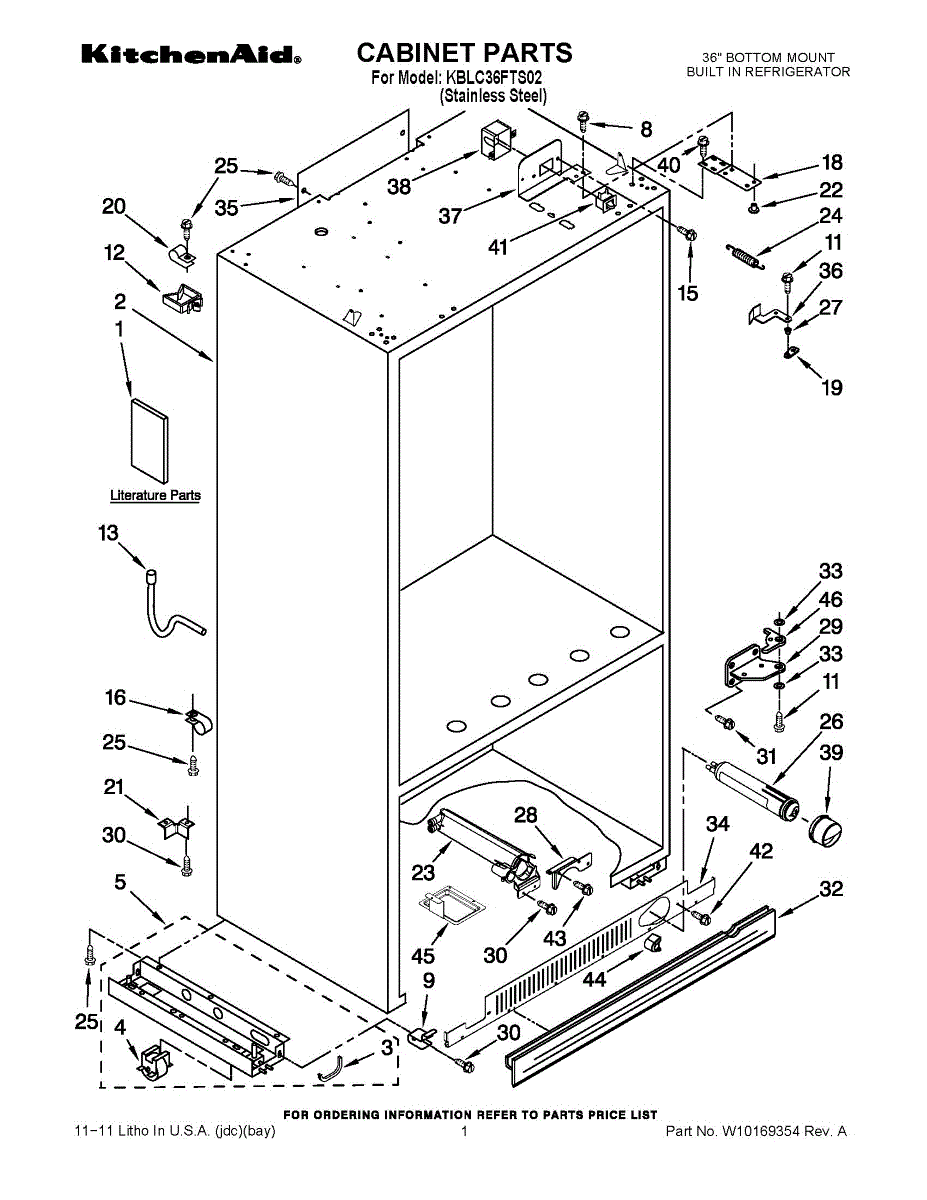

Parts for Kitchenaid KBLC36FTS02: 01 - Cabinet Parts

The Whirlpool Everydrop Water Filter 3 is a genuine OEM replacement part designed to improve the quality and taste of water while filtering out impurities. This filter is specifically designed for side-by-side refrigerators that accept Filter 3. Contains the ability to reduce 66 contaminants including lead, mercury, asbestos, and industrial chemicals. It helps to provide clean, fresh-tasting water. The filter needs to be changed every 6 months or 200 gallons for optimal performance. The fast and easy filter change requires no special tools. Simply push until you hear the receiver click into place. This NSF-certified filter is a reliable and affordable way to ensure that your family is drinking clean, refreshing water. SOLD INDIVIDUALLY

Specs:

• Filter Media: Carbon Block
• Operating Pressure: 30-120 psi
• Operating Temperature: 33-100 °F
• Flow rate: 0.5 gpm
• Material: Plastic
• Color: White
• Approximate Dimensions: 12 inches long, 2 inches in diameter

This replacement roller fits the front or rear position of a slide mechanism, restoring smooth, even movement and reducing noise when a wheel is worn or broken. It helps racks or drawers glide properly and stay aligned. What it does:

• Provides low-friction rolling support for the slide track
• Helps slide-out assemblies move freely without binding or scraping
• Worn or damaged rollers can cause sticking, squeaking, or uneven travel
• Restores proper alignment and smooth operation when replaced

• 1 roller assembly

• Disconnect power and allow the appliance to cool before servicing
• Remove the slide-out assembly; note roller orientation and hardware
• Transfer/reuse existing screws, clips, or retainers as required
• Do not lubricate unless the manufacturer specifies a lubricant

This Support (mounting bracket) secures internal components and stabilizes the appliance's assembly to help prevent sagging, misalignment and excess vibration. It's a small replacement that restores proper fit and reduces rattling. What it does:

• Provides a stable mounting point for panels or internal assemblies
• Keeps components aligned to prevent binding or wear
• Reduces noise caused by loose or sagging parts
• Helps stop intermittent contact or rubbing that can cause rattles

• Disconnect power (and water, if applicable) before servicing
• Access may require removing outer panels or trim; keep track of fasteners
• Support the assembly while replacing the bracket to avoid strain

This Support bracket holds internal components in place to restore proper alignment and reduce rattling or sagging. It's a simple replacement that helps stabilize the appliance's interior structure. What it does:

• Secures internal panels or assemblies to prevent movement and vibration
• Restores proper alignment when a factory support is damaged or missing
• Can reduce noise caused by loose components
• Helps maintain safe, stable operation of the affected area

• One Support bracket

• Disconnect power and unplug the appliance before beginning any repair
• Inspect surrounding fasteners and mounting points; replace any damaged hardware as needed
• Use appropriate hand tools; avoid over-tightening to prevent cracking plastic or stripping threads

The Screw is an OEM part for Whirlpool appliances, designed to provide secure fastening in a variety of locations within the appliance. This versatile component is crucial for assembly and maintenance tasks, ensuring that parts are held together tightly and function as intended. Whether it's securing panels, attaching components, or facilitating repairs, this screw is engineered to meet the specifications of Whirlpool appliances, offering durability and reliability.

Causes of screw issues can include normal wear and tear, over-tightening, which may strip the threads, or corrosion that weakens the screw's hold.

Symptoms of a bad or missing Screw include:

• Loose components or panels within the appliance
• Unusual noises due to parts not being securely fastened
• Difficulty in assembling or disassembling parts for repairs or maintenance

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This drain tube routes wastewater from the appliance to the drain system, restoring proper drainage and preventing leaks or pooling. It's a direct-fit replacement designed to match the original drain path and connections. What it does

• Carries wastewater from the appliance pump to the household drain or disposal.
• Helps stop leaks or puddling caused by cracked, kinked, or clogged tubing.
• Restores normal drain cycles when a damaged tube prevents water removal.
• Prevents backflow when installed with proper routing and clamps.

• Disconnect power and turn off the water supply before starting any repair.
• Verify the tube routing and clamp positions match the original to avoid kinks and siphoning.
• Use proper clamps or fittings; tighten securely but avoid over-tightening which can damage the tube.

This is a genuine replacement screw used to secure panels, brackets, and components on compatible Whirlpool appliances. It restores proper fastening so loose parts stop rattling and panels stay aligned. What it does

• Fastens trim, panels, brackets, or mounting hardware to appliance chassis
• Helps stop vibration and rattling caused by missing or stripped fasteners
• Restores secure connections after repair or part replacement
• Matches OEM thread specification to fit intended mounting holes

• Disconnect power to the appliance before beginning any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Start threads by hand and tighten until snug; do not overtighten
• Inspect mating threads and replace if damaged

This spring-style tube clamp secures flexible tubing to fittings, helping prevent leaks and maintain proper flow. It's a simple replacement that restores a firm seal on water or drain lines. What it does:

• Keeps flexible tubing firmly clamped to barbed or nipple fittings
• Helps stop or reduce leaks from loose or corroded connections
• Prevents tubing from slipping off under pressure or vibration
• Useful where a compact, spring-action clamp is required

• Disconnect power and shut off water to the appliance before replacing parts
• Use pliers to expand the clamp, position it over the tube/fitting, then release to secure
• Inspect connected tubing and fittings for damage; replace if cracked or severely corroded

This top door hinge secures the refrigerator door to the cabinet and lets the door pivot smoothly. Replace a worn hinge to restore proper door alignment and even sealing for better cooling performance. What it does

• Supports the top of the refrigerator door and provides the pivot point for opening and closing.
• Helps keep the door aligned so the gasket seals properly and cold air stays inside.
• Worn or damaged hinge can cause door sag, uneven gaps, rubbing, or noisy operation.
• Restoring the hinge can reduce stress on the door and other hinge components.

• One top door hinge.

• Basic hand tools are usually required; support the door while removing or installing hinges to prevent injury or door damage.
• Disconnect power only if working near electrical components; this hinge replacement typically does not require electrical disconnection.
• If the door was removed, recheck alignment and gasket contact after reinstalling; adjustments may be needed.
• Follow OEM instructions and use proper safety equipment.

This clamp secures flexible hoses to fittings to maintain a tight seal and prevent leaks. Use it to replace a worn or loose clamp to stop water or air seepage and restore proper hose attachment. What it does:

• Holds a washer, dryer, or appliance hose firmly to a barb or fitting to prevent slipping
• Helps maintain a watertight or airtight connection to reduce leaks and drips
• Replaces corroded, cracked, or stretched clamps that no longer grip reliably
• Supports normal appliance operation by keeping fluid/air flow contained

• One clamp

• Inspect the hose and fitting; replace the hose if damaged before installing the clamp
• Position clamp over the hose barb and tighten evenly; avoid over-tightening that can cut the hose
• Disconnect power and water supply before servicing any appliance components

The Water Filter Housing is an OEM part for Whirlpool refrigerators. It encases the water filter, ensuring a secure fit and proper water flow through the filtration system to provide clean, safe drinking water.

Causes of a bad water filter housing can include cracks or wear and tear over time, improper installation, or damage from replacing the water filter.

Symptoms of a bad water filter housing include:

• Water leaks around the filter area
• Reduced water flow from the dispenser
• Odd tastes or odors in the water
• The water filter not fitting securely

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The door closure spring restores the tension that pulls the door closed and holds it securely. Replacing a fatigued spring brings back smooth, reliable closing action and helps prevent doors that drift open or feel loose.

• Provides return tension to assist door closing and latch engagement
• Replaces a stretched, broken, or missing spring
• Can help with symptoms like a door that won't stay shut, pops open, or closes weakly
• Restores a consistent, even feel to the door movement

• Disconnect power to the appliance before servicing; wear gloves and eye protection
• Support the door/drawer to relieve spring tension before removal
• Note the spring's routing and hook locations; take a photo for reference
• Use pliers to detach/attach the spring; keep hands clear of pinch points and avoid overstretching

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

The Whirlpool Everydrop Water Filter 3 is a genuine OEM replacement part designed to improve the quality and taste of water while filtering out impurities. This filter is specifically designed for side-by-side refrigerators that accept Filter 3. Contains the ability to reduce 66 contaminants including lead, mercury, asbestos, and industrial chemicals. It helps to provide clean, fresh-tasting water. The filter needs to be changed every 6 months or 200 gallons for optimal performance. The fast and easy filter change requires no special tools. Simply push until you hear the receiver click into place. This NSF-certified filter is a reliable and affordable way to ensure that your family is drinking clean, refreshing water. SOLD INDIVIDUALLY

Specs:

• Filter Media: Carbon Block
• Operating Pressure: 30-120 psi
• Operating Temperature: 33-100 °F
• Flow rate: 0.5 gpm
• Material: Plastic
• Color: White
• Approximate Dimensions: 12 inches long, 2 inches in diameter

This bracket is a small mounting/support part that secures and aligns appliance components to restore proper fit and reduce movement. It's a direct-fit replacement designed to return panels and assemblies to their correct position. What it does:

• Provides a stable mounting point to secure panels, trim, or internal assemblies
• Restores correct alignment to eliminate rattling, vibration, or loose fit
• Helps maintain proper clearances for smooth operation of moving parts
• Replaces worn, bent, or broken brackets that prevent components from seating correctly

• One bracket

• Disconnect power and water before starting any repair
• Use common hand tools; support panels during removal to avoid damage
• Align bracket and fasteners before tightening; do not overtighten screws

This bottom refrigerator hinge secures and supports the door pivot point to keep the door aligned and closing properly. Replacing a worn hinge restores smooth door movement and corrects door sag or misalignment. What it does:

• Provides the pivot and support for the refrigerator door to open and close smoothly
• Maintains proper door alignment for a consistent seal and better cooling performance
• Common symptoms: door sagging, scraping at the cabinet, uneven gap, or door that won't close fully
• Fits the lower hinge location on compatible refrigerator models

• Unplug the refrigerator or disconnect power before starting any work.
• Support the door securely (use a second person or a suitable prop) before removing the hinge to avoid injury or damage.
• Keep track of mounting hardware; reuse original screws if the replacement does not include them.
• After installation, check door alignment and gasket contact across the full perimeter.

This is a replacement screw designed to work with a wide range of household appliances. It is used for many purposes in these appliances, from holding body panels together to securing electronics into control boards. However, screws are subject to damage through corrosion, impact, and improper installation/removal. In most cases, the primary damage to this screw is through corrosion – it may become rusted or corroded in place, depending on the appliance and the maintenance provided during its lifespan. The screw may also be stripped or rounded due to improper removal or installation. If the screw is damaged, lost, or corroded in place, it will need to be replaced. In most cases, removal will require nothing more than a Phillips head screwdriver or the appropriately sized socket with a ratchet. However, if the screw is damaged, it may require a tap set to remove it from its mounting location. Note that this is a genuine OEM replacement screw made from durable, high-quality metal, and is sold individually. It fits Whirlpool, Maytag, Roper, Estate, Amana, Crosley, and Thermador appliances. It is used in over 150 machines, ranging from washers and dryers to air conditioners.

This bottom skirt grille replaces the lower front trim on compatible refrigerators to restore appearance and help protect internal components. A direct-fit exterior piece that keeps the appliance looking finished while covering the lower access area. What it does:

• Covers and protects the refrigerator's lower front area and components from dirt and accidental contact
• Restores the appliance's finished appearance when the original grille is cracked, broken, or missing
• Helps maintain proper airflow pathways by keeping the access area closed (when installed correctly)
• Prevents small objects from entering the condenser/vent area behind the grille

• Disconnect power to the appliance before beginning any work near electrical components
• Typically installs at the refrigerator's lower front; remove the toe-kick or existing grille per manufacturer instructions
• May require basic hand tools; handle carefully to avoid scratching the finish

This door bearing fits the washer door assembly to restore smooth opening and closing and reduce noise, wobble, or binding. Replacing a worn bearing helps maintain proper door alignment for reliable operation. What it does:

• Supports the door hinge so the door pivots smoothly without sagging or sticking
• Reduces squeaks, grinding, or rough movement when opening or closing the door
• Helps keep the door aligned to reduce stress on the latch and door seal
• Addresses symptoms like door wobble, uneven closing, or noisy operation

• Disconnect power (and water if accessing near waterlines) before starting any repair
• Removing the door panel or inner door trim may be required; retain all fasteners and document their locations
• Inspect surrounding parts (hinge, seal, latch) and replace if damaged; improper alignment can cause premature wear

This light cam assembly positions and secures the interior light mechanism so the appliance light operates correctly when the door is opened. Replaces a worn or broken cam to restore proper light activation and fit. What it does:

• Holds and indexes the interior light/lens assembly so the light turns on/off reliably with door movement
• Prevents the light or lens from rattling or becoming loose inside the cabinet
• Restores proper alignment when a broken or worn cam causes intermittent or non-functioning interior lighting
• Works with the door/light linkage to ensure consistent contact with the light switch

• Disconnect power to the appliance before starting any repair
• Remove the light lens and/or inner trim panel to access the cam; keep all fasteners for reassembly
• Inspect mating parts (lens, switch, brackets) and replace if damaged to avoid repeat failures
• Test light and door operation after installation to confirm correct alignment and function

Left hand side

The Water Filter Cap is an OEM part for Whirlpool refrigerators. This cap is designed to securely seal the water filter compartment in your refrigerator, ensuring that the filter remains in place and functions effectively to provide clean, fresh-tasting water and ice.

Symptoms of a failing water filter cap include:

• Water leakage around the filter area
• Difficulty in removing or securing the cap, which may indicate a poor fit
• Cracks or damage to the cap that can compromise the water filtration system's integrity

Causes of water filter cap issues typically involve regular wear and tear from replacing the water filter, accidental damage during filter changes, or manufacturing defects that could affect fit and function.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Door Switch is an OEM part for Whirlpool refrigerators. This switch plays a crucial role in monitoring the status of the refrigerator door. It detects when the door is open and closed and signals the refrigerator to suspend or resume cooling operations accordingly.

Causes of a bad door switch can include general wear and tear over time, exposure to moisture, or impact damage. Please check for proper connection and that the wires are intact before replacing the switch.

Symptoms of a bad door switch include:

• The refrigerator fails to resume cooling after closing the door
• The inside light fails to turn on when the door is opened
• Abnormal energy usage due to improper door monitoring

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


This is a replacement screw designed to work with a wide range of household appliances. It is used for many purposes in these appliances, from holding body panels together to securing electronics into control boards. However, screws are subject to damage through corrosion, impact, and improper installation/removal. In most cases, the primary damage to this screw is through corrosion – it may become rusted or corroded in place, depending on the appliance and the maintenance provided during its lifespan. The screw may also be stripped or rounded due to improper removal or installation. If the screw is damaged, lost, or corroded in place, it will need to be replaced. In most cases, removal will require nothing more than a Phillips head screwdriver or the appropriately sized socket with a ratchet. However, if the screw is damaged, it may require a tap set to remove it from its mounting location. Note that this is a genuine OEM replacement screw made from durable, high-quality metal, and is sold individually. It fits Whirlpool, Maytag, Roper, Estate, Amana, Crosley, and Thermador appliances. It is used in over 150 machines, ranging from washers and dryers to air conditioners.

This replacement screw secures panels, brackets, and internal components within your appliance. Replacing a missing or damaged fastener restores a tight fit, reduces vibration and noise, and helps keep parts properly aligned during operation.

• Fastens panels, trim, brackets, or internal components to the chassis
• Maintains proper alignment and stability during normal use
• Replaces missing, rusted, or stripped hardware
• Common symptoms: loose or rattling panels, vibration, difficulty fastening, or a visibly missing screw

• Disconnect power; for gas appliances, also shut off the gas supply
• Match length and thread to the original; replace one-for-one in the same location
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• If the receiving hole is stripped, repair threads or replace the clip/nut before installing

Color: Black

This gap hinge is a direct-fit door hinge that helps maintain correct alignment and spacing between refrigerator doors for smooth opening and a consistent seal. It restores proper door positioning and reduces rubbing or uneven gaps. What it does:

• Supports and pivots the door to maintain correct alignment and spacing
• Prevents door binding, uneven gaps, and rubbing against adjacent surfaces
• Helps doors close fully to preserve the fresh seal and temperature control
• Durable metal construction designed for repeated door cycles

• Use appropriate hand tools and keep power to the appliance off when adjusting nearby electrical components or lighting
• Follow manufacturer torque and alignment recommendations to avoid misalignment or seal issues
• Inspect surrounding hinges and mounting hardware for wear and replace as needed
