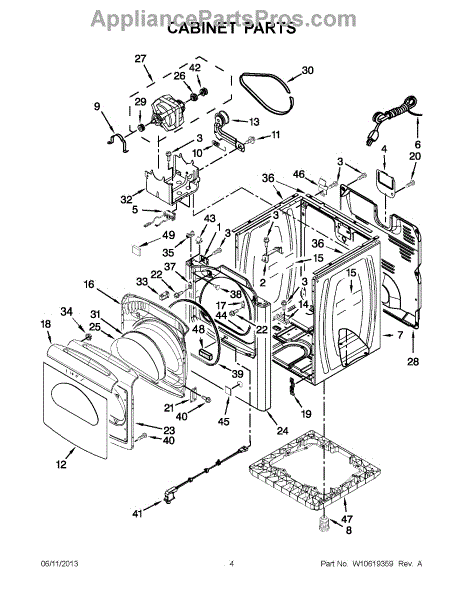

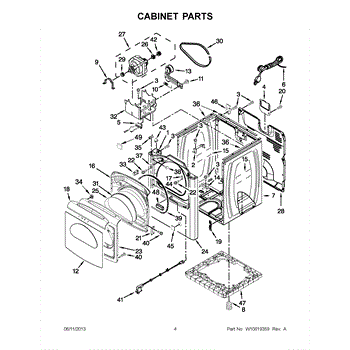

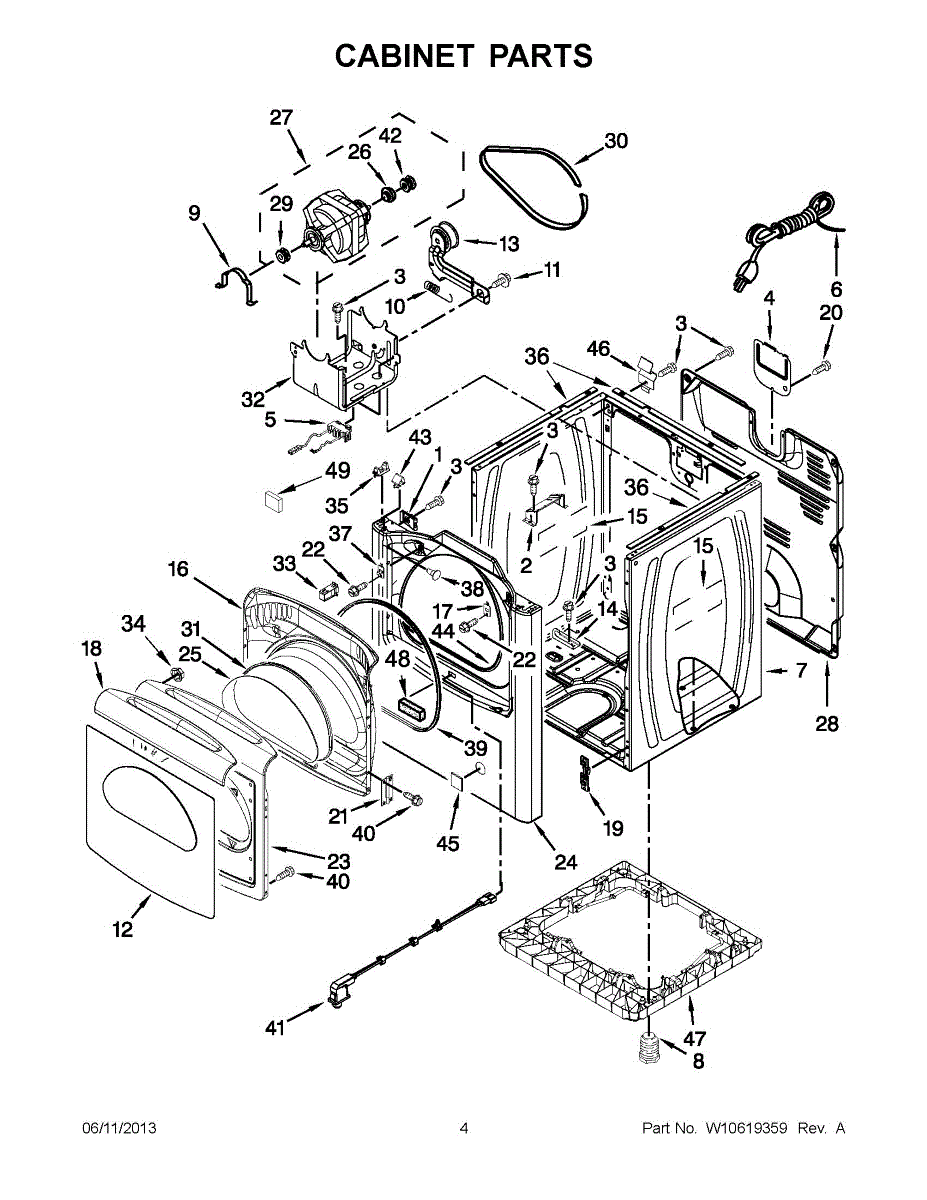

Parts for Whirlpool WGD8900BC0: 02 - Cabinet Parts

This U-type nut clips over a sheet-metal edge to create a durable threaded anchor for a screw. It helps secure panels, trim, and brackets so fasteners hold tight and components stay aligned and rattle-free. What it does:

• Clips onto thin sheet metal to provide captive threads where a standard nut cannot be used
• Holds screws securely to fasten panels, trim pieces, or mounting brackets
• Addresses issues like loose panels, missing/broken clips, or screws that will not tighten
• Helps reduce vibration and rattling from unsecured components

• 1 U-type nut

• Disconnect power and shut off gas/water before servicing
• Position the U-nut over the panel edge with the threaded side aligned to the hole
• Start the screw by hand to avoid cross-threading; tighten snugly without overtightening
• Replace any damaged or corroded hardware to ensure a secure hold

10 - 16 x 1/2

This replacement cover restores the appliance's finished appearance and protects internal components from dust and debris. It's a direct-fit exterior trim piece designed to replace a cracked, broken, or missing cover. What it does:

• Protects internal components and wiring from debris and accidental contact
• Restores the appliance's cosmetic appearance and helps maintain sealing
• Helps reduce dust buildup in the covered area
• Replaces damaged or missing trim that can expose sharp edges or hardware

• Disconnect power (unplug or switch off circuit breaker) before beginning work
• Basic hand tools may be required; follow for panel removal/replacement
• Handle carefully to avoid scratching the finish and watch for sharp edges
• Replace with manufacturer-recommended fasteners

This broken belt switch monitors drive belt tension and cuts power to the motor if the belt snaps or slips. Replacing a faulty switch restores proper start/run operation and maintains the dryer's built-in safety shutoff. What it does:

• Monitors belt tension through the idler mechanism
• Opens the motor circuit if the belt is broken or loses tension
• Helps prevent the motor from running when the drum isn't turning
• Failure symptoms include: dryer won't start, stops soon after pressing Start, or no motor sound while controls have power

• Includes 1 broken belt switch

• Disconnect power; turn off gas supply for gas models
• Access the switch near the belt/idler area; many models require removing the front panel and drum
• Note wire locations; move connectors to the new switch and secure in the original orientation
• Inspect belt and idler for wear; ensure correct belt routing/tension before reassembly

This power cord connects your appliance to household electricity, supplying safe, reliable power to its controls and components. Replace a damaged or overheated cord to restore dependable operation and reduce the risk of shorts.

• Supplies AC power from the wall outlet to the appliance's electrical system
• Helps resolve no power, intermittent power loss, or tripped breaker issues
• Replace if the cord is cut, frayed, melted, discolored, or feels hot at the plug
• Restores safe operation when the original plug or insulation is damaged

• Disconnect power at the outlet or circuit breaker before servicing
• Note wire routing and connection points; match the original orientation for hot, neutral, and ground
• Seat the cord properly and secure with the model's required strain relief or clamp to prevent tension on terminals
• Ensure the cord is not pinched and is clear of sharp edges, hot surfaces, and moving parts; test for proper operation

These adjustable leveling feet replace worn or damaged appliance legs to stabilize and level your appliance for safe, quiet operation. They help stop rocking, improve door alignment, and ensure proper drainage or operation on uneven floors. What it does:

• Provides a threaded, adjustable support to raise or lower the appliance height
• Restores stable, wobble-free placement to reduce vibration and noise
• Helps align doors and drawers for better sealing and performance
• Supports proper appliance drainage and leveling on uneven floors

• Turn off and unplug the appliance and remove any stored items before adjusting or replacing feet
• Use caution when lifting or tilting the appliance; get a helper for heavy units
• Thread the foot in or out to adjust height and use a level to ensure proper alignment
• If rusted or seized, apply penetrating lubricant and avoid forcing to prevent damage

This part is a motor clamp. This is a genuine OEM part and has been sourced directly from the manufacturer. This part is intended to replace a deteriorated, damaged, or broken motor clamp on certain makes of indoor appliance models. Motor clamps are essential for properly securing the drive motor on various types of indoor appliances such as washers, dryers, and refrigerators. Without the use of a motor clamp, the drive motor is free to move around or become detached. This can easily cause serious damage to the equipment and prevent proper functionality. Proper tools are needed to replace this part and appropriate safety measures should be adhered to when working on any type of equipment. For accurate information on how and where to install this replacement motor clamp, specific manufacturer diagrams should be referred to.As an authentic replacement part, this motor clamp can be used on multiple different models of washers, dryers, refrigerators, and washer/dryer combos manufactured by Kenmore, Maytag, Whirlpool, and Amana. Please note that this motor clamp is a genuine part made of high-quality materials and is sold individually.

The Idler Arm Spring is an OEM part for Whirlpool dryers, maintains tension in the dryer's belt system. This spring is crucial for the proper operation of the dryer, as it helps to keep the belt tight around the drum and motor pulley, enabling the drum to rotate smoothly during cycles.

Causes of a bad Idler Arm Spring can include stretching or weakening over time due to constant tension, or breakage from wear and tear.

Symptoms of a bad Idler Arm Spring include:

• Unusual noises, such as squeaking or squealing
• The dryer drum may not rotate smoothly or may stop turning altogether
• Clothes take longer to dry, or you may notice uneven drying
• The dryer might not start if the belt is disengaged due to insufficient tension.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Idler Arm Bolt is an OEM part for Whirlpool dryers. It secures the idler pulley, which maintains the proper tension on the dryer drum belt.

Causes of a bad idler arm bolt can include wear and tear from prolonged use, vibration and movement within the dryer, or improper installation.

Symptoms of a bad idler arm bolt include:

• The dryer drum not rotating properly
• Unusual noises such as squeaking or grinding
• The dryer belt slipping or coming off the pulley
• The dryer not drying clothes effectively

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Idler Pulley Wheel & Arm Assembly is an OEM replacement part for Whirlpool washing machines. It plays an important support role by providing additional tension on the drive belt during spin cycles to ensure balanced operation. Proper belt tension is necessary for the smooth rotation of the wash basket.

Symptoms of a faulty assembly include:

• Vibration or shaking during high-speed spins
• Loud clunking or grinding noises from unbalanced loads
• Premature belt wear due to insufficient tension
• Error codes related to spin function issues

Causes can be wear over time, belt slippage damaging the idler wheel, or stiffness impairing proper tensioning.

This OEM Whirlpool replacement is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Dryer Clip is an OEM component for Whirlpool electric and gas dryers. It securely fastens critical ductwork attached to the dryer cabinet. Over extended periods, the constant vibrations produced during tumbling cycles cause microscopic fractures or loosening within the clip material where it grips duct joints.

Causes relate to ordinary fatigue from long-term resonance vibrations concentrated at anchoring points.

Symptoms involve:

• Loose or detached venting/ductwork affecting airflow
• Noticeable leaks emerging at separation interfaces
• Reduced drying effectiveness due to compromised ventilation

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This replacement screw secures appliance components so panels, brackets, and assemblies stay tight and aligned. Replace stripped or missing hardware to eliminate rattles and keep your unit assembled safely and correctly.

• Fastens panels, brackets, or components to the appliance frame
• Restores a secure fit when the original screw is lost, stripped, or corroded
• Helps prevent vibration noise and movement during operation
• Supports proper alignment of trim and assemblies

• Disconnect power; for gas units, also shut off the gas supply
• Use the correct driver to avoid stripping the head; do not overtighten
• Inspect and address damaged mating threads, clips, or brackets before reinstalling
• Refer to your model's parts diagram to confirm location and quantity

A hinge pin assembly that secures and aligns an appliance door to its cabinet, restoring proper fit and smooth opening and closing while reducing hinge noise. What it does:

• Secures the door pivot and maintains proper door alignment for a consistent seal.
• Can correct door sag, uneven gaps, or doors that stick, scrape, or fail to close fully.
• Can reduce grinding, clicking, or binding noises caused by worn or bent hinge pins.
• Replaces worn, broken, or bent hinge components that affect door motion.

• Disconnect power to the appliance before beginning any repair.
• Support the door (use a helper or suitable block) to prevent it from dropping when removing the hinge.
• Basic hand tools are typically required; follow the manufacturer's service instructions for safe removal and reinstallation.
• Inspect adjacent hinge mounts and fasteners during installation; replace damaged mounting hardware as needed.

This factory fastener secures appliance panels, brackets, and internal components so everything stays aligned and quiet. Replacing a missing or damaged screw restores a tight fit and helps reduce vibration, rattles, and wear.

• Fastens metal or plastic parts to the cabinet/frame
• Maintains alignment of covers, ducts, housings, and brackets
• Replace if the head is stripped, threads are worn, or hardware is missing
• Symptoms can include loose or misaligned panels, rattling/vibration noises, or parts that won't stay secured

• Disconnect power and shut off gas/water before service.
• Match the screw to the original location and reuse existing holes/mounts.
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening.
• Use the correct driver bit to prevent stripping the head.

This belt restrainer is the small guide that keeps the dryer's drive belt on the motor pulley. It prevents the belt from walking off during operation, supporting consistent drum rotation and reducing premature belt wear. What it does:

• Guides and retains the drive belt on the motor pulley
• Helps maintain proper belt tracking with the idler assembly
• Can help with symptoms like drum not turning, belt repeatedly slipping off, burning rubber smell, or frayed belt edges

• 1 belt restrainer

• Disconnect power; for gas dryers, also shut off the gas supply
• Access the motor area per your model (remove front or lower access panel)
• Position the restrainer adjacent to the motor pulley with slight clearance to the belt; route the belt correctly around drum, idler, and motor
• Hand-rotate the drum to confirm alignment before reassembly and testing

3 groove blower belt pulley mounted on motor shaft.

The Drum Drive Belt is an OEM part for Whirlpool dryers. This part transfers power from the dryer's motor to the drum, enabling it to tumble. Made from durable, flexible materials, the belt wraps around the dryer drum, tension pulley, and drive motor pulley, keeping everything moving smoothly and efficiently.

A bad Drum Drive Belt can result from fraying or wear due to regular use, leading to loss of integrity and eventual breakage, glazing causing slippage and reduced dryer efficiency, and stretching reducing tension and hindering proper drum tumbling.

Symptoms of a bad Drum Drive Belt include:

• The dryer motor running but the drum not tumbling.
• Unusual noises, such as squeaking or thumping, indicating the belt may be worn or misaligned.
• The dryer not starting at all if the belt has broken completely.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Door Catch is an OEM part for Whirlpool dryers designed to securely hold the dryer door closed during use. This catch is the female piece on the door. For the strike on the front panel that inserts into the catch order W10295405.

Symptoms of a bad Dryer Door Catch include:

• The dryer door not staying shut
• Difficulty in closing the door
• The dryer failing to start due

Causes of failure can include normal wear and tear from the constant use of the dryer, damage from an external force, or misalignment from the door being improperly closed or hit. Over time, these factors can lead to the weakening or breaking of the door catch.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Replacement 1/4-inch hex flange nut that secures panels, brackets and other appliance hardware. Restores a firm connection to reduce rattling and keep assemblies aligned for reliable operation. What it does:

• Fastens panels, brackets, hinges and small assemblies to maintain proper alignment.
• Prevents loose or vibrating panels that can cause noise or premature wear.
• Replaces missing, stripped or damaged nuts to restore secure mounting.
• Works where a flange provides extra bearing surface to resist loosening.

• Always unplug the appliance or disconnect power before beginning service.
• Use the correct socket or wrench size to avoid rounding the nut; hand-start threads to prevent cross-threading.
• Do not overtighten; tighten until components are seated and secure.
• Replace any damaged mating fasteners or hardware to ensure a reliable repair.

This snap-down locator is a small locking clip that positions and secures its mating component. Replacing a worn or missing locator helps keep assemblies aligned and reduces unwanted movement during normal operation.

• Snaps down to lock the component securely in place
• Maintains proper position and alignment of the part it supports
• Helps minimize vibration, rattling, or shifting
• Common signs of failure: cracked, deformed, or missing clip; part won't stay put

• Disconnect power to the appliance before servicing; wear protective gloves
• Match the orientation to the original part before installation
• Press firmly until fully seated/snapped; do not force misaligned parts
• Verify a secure fit and proper operation before reassembly

This foam seal cushions and seals the icemaker area to reduce vibration and prevent air leaks that can affect ice quality and efficiency. It's a direct-fit replacement designed to restore proper sealing around the icemaker housing. What it does:

• Cushions the icemaker assembly to reduce noise and movement
• Helps seal gaps to limit warm air intrusion that can cause icemaking issues
• Supports consistent ice production by maintaining the intended airflow path
• Resists compression set for reliable sealing over time

• One foam seal for the icemaker housing

• Basic installation; remove power to the appliance before starting
• Align the seal to the icemaker housing, pressing into place until fully seated
• Inspect surrounding surfaces for debris or damage and clean before installing

This in the male piece on the front panel. For the female piece on the door order WPW10111905.

The Dryer Door Seal is an OEM replacement part for Whirlpool dryers. It is located around the perimeter of the dryer door opening.  Includes door seal and adhesive. The seal prevents air exchanges between the dryer drum and the external environment, helping retain heat inside.

Causes of failure involve degradation over years of routine usage. Heat cycling and door slams gradually compromise the seal's integrity.

Symptoms of a faulty door seal include:

• Extended drying times required
• Clothes not drying fully before the cycle ends
• Warm air felt escaping from door/vents during use
• High energy bills as more runtime needed

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore dryers.

This flat-head screw secures panels, brackets, or trim so they sit flush on your appliance. Replacing a worn or missing screw restores a tight fit and helps prevent vibration, rattling, or shifting components.

• Provides a countersunk, flush-mount fastener for panels, trim, brackets, or covers
• Helps maintain alignment and secure attachment during operation
• Replaces stripped, rusted, or missing hardware
• Symptoms can include loose panels or handles, rattling noises, or visible gaps/misalignment

• Disconnect power (and shut off gas, if applicable) before servicing
• Match screw length and thread to the original for proper fit
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Support the part being fastened to keep alignment while tightening

This snap-action door switch is a small interlock microswitch that detects when the door is opened or closed. Replacing a worn switch restores proper start/stop control and interior light behavior so the appliance only runs with the door fully shut.

• Senses door position and signals the control to allow or interrupt operation
• Helps control interior light and other door-dependent functions
• Common symptoms include: won't start with door closed, must press/hold door to run, or "door/close door" message
• May also present as an interior light that stays on or won't turn on

• Disconnect power at the breaker or unplug the appliance before servicing
• Access the switch near the door latch/closure; note wire positions and transfer one at a time
• Ensure the actuator aligns with the latch and is not bent during install
• Verify switch continuity with a multimeter before reassembly; for microwaves, high-voltage hazards exist.

This motor/drum pulley assembly transfers motor torque to the dryer drum so the drum turns smoothly during operation. Replacing a worn pulley restores proper belt tracking and reduces noise and slipping. What it does:

• Guides and supports the drive belt that turns the drum
• Transfers rotary force from the motor to the drum for normal tumbling
• Worn or damaged pulley can cause squealing, grinding, or a drum that won't turn
• Prevents belt misalignment that can lead to premature belt wear

• One motor/drum pulley assembly

• Disconnect power before beginning any repair to avoid shock or injury
• Support or secure the drum and belt when removing and reinstalling the pulley
• Inspect the belt and idler for wear and replace if needed during service

This lock secures the appliance's top panel to the front frame for a tight, stable cabinet. Replacing a worn lock restores a solid fit and helps eliminate rattles, gaps, and vibration during operation.

• Locks the top panel to the front panel to keep the top closed and secure
• Helps maintain cabinet alignment and rigidity
• Reduces movement that can cause vibration and rattling/squeaking noises
• Common symptoms: loose or popping top, visible gap at front edge, buzzing or clunking during cycles

• Disconnect power before servicing.
• Access the lock at the front edge where the top meets the front panel; remove the old lock and install the new one in the same orientation.
• Reuse original mounting hardware and ensure both sides are evenly aligned.
• Close the top and ensure a secure latch before restoring power.

This replacement seal restores a tight barrier between mating parts in your appliance, helping maintain proper performance. It replaces a worn or deformed factory seal that can no longer hold a reliable fit due to age, heat, or chemical exposure.

• Creates a tight barrier between components to prevent leaks or air intrusion, as designed for the assembly
• Helps maintain correct pressure/flow and overall performance
• Common signs of failure: cracks, flattening, brittleness, or residue at the joint
• Helps address moisture seepage or performance loss at the sealed connection

• Disconnect power and, if applicable, turn off water supply before servicing
• Access the sealed joint; note the original seal's orientation
• Clean and dry mating surfaces thoroughly; install the new seal evenly and squarely
• Do not use sealants or lubricants unless specified by the manufacturer; test for leaks/fit before reassembly

This small plug seals and finishes an unused factory or service hole on the appliance cabinet or liner. It restores a clean, finished appearance and helps keep dust and splashes out of the opening. What it does

• Closes an open hole on the cabinet/liner or panel
• Helps reduce entry of debris and incidental moisture into the opening
• Maintains a neat, finished look
• Replace if the original plug is missing, cracked, or won't stay seated

• 1 plug

• Disconnect power before servicing; shut off water supply if working near water lines
• Identify the correct opening per your model's parts diagram
• Remove any remnants of the old plug; clean the area
• Align and press the plug fully into the hole until it sits flush—do not force or deform the panel

This top hinge supports the hinged top or upper panel, allowing it to lift for service and close securely. Replacing a worn hinge restores smooth motion and proper alignment to help eliminate wobble, scraping, or gaps.

• Provides the pivot point for lifting the top/panel
• Maintains alignment and helps the top seat flat when closed
• Restores smooth opening/closing without binding or rubbing
• Common signs of failure: loose or uneven top, squeaks, difficulty lifting/closing, visible bending or cracks at the hinge

• Disconnect power; also shut off gas and allow all surfaces to cool
• Support the top/panel while removing and installing the hinge to prevent strain
• Transfer and tighten existing mounting screws unless new hardware is provided
• After installation, check alignment and clearances; replacing hinges in pairs can improve fit
