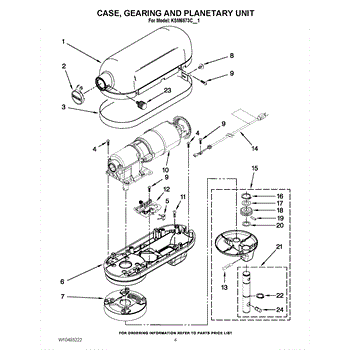

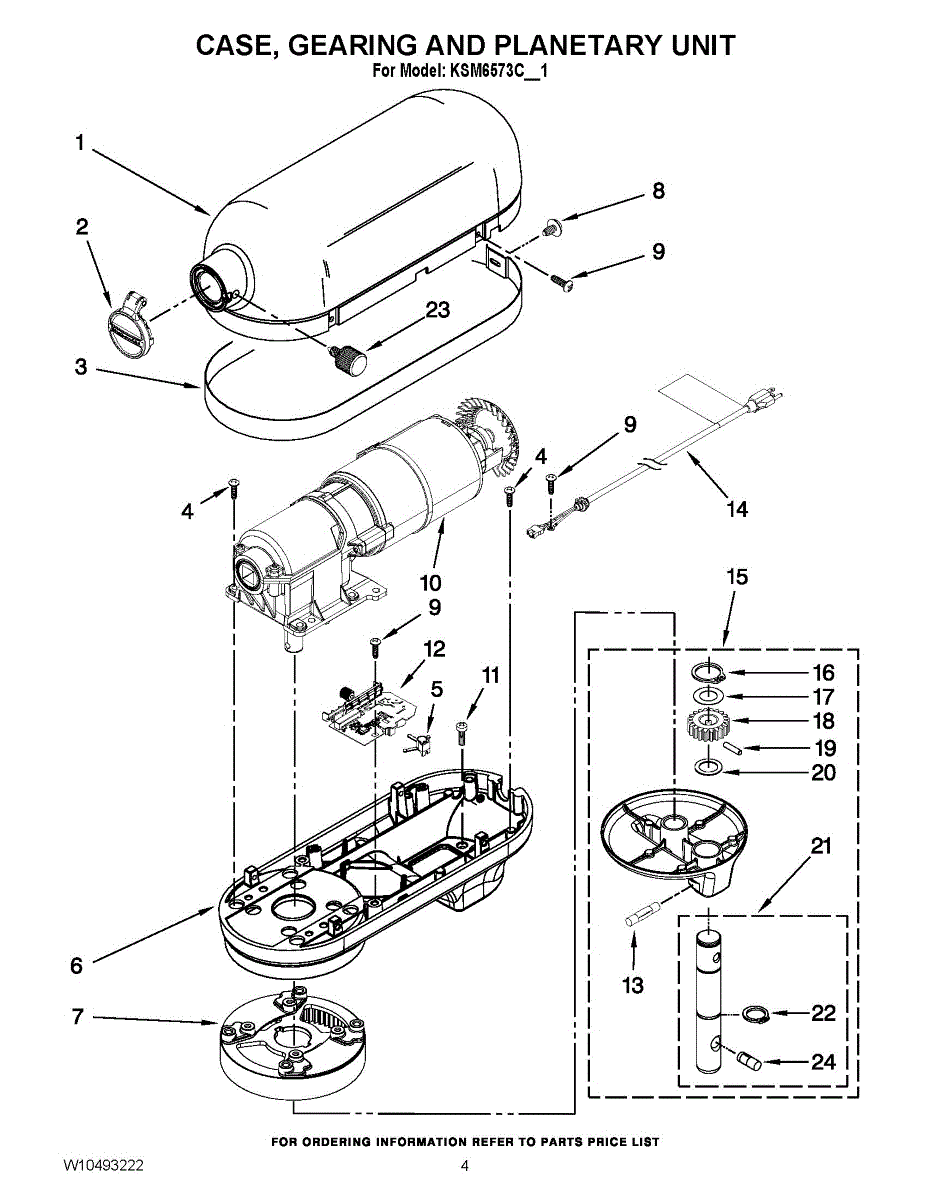

Parts for Kitchenaid KSM6573COB1: 02 - Case, Gearing And Planetary Unit Parts

Cap Hub covers and protects the appliance's hub, restoring a finished appearance and helping keep debris away from internal components. Use when the original hub cap is cracked, missing or visibly worn. What it does:

• Covers and conceals the drive/tub hub for a finished look.
• Helps keep lint and debris away from the hub area.
• Replaces cracked, broken or missing hub caps that expose the hub.
• Check the model-specific diagram for exact fit and orientation.

• Disconnect power (and water if applicable) before beginning any service.
• Part typically snaps or presses into place; the appliance's exploded diagram for the correct removal/replacement procedure.
• Do not force the part; inspect surrounding components and replace any damaged mounting hardware as needed.

This factory replacement screw fastens appliance components securely. Use it to replace lost, stripped, or corroded hardware and restore a snug, rattle-free fit and proper alignment of panels and assemblies.

• Secures panels, brackets, and internal components to their mounting points
• Replaces missing or damaged fasteners to maintain correct alignment
• Helps eliminate vibration and rattling caused by loose hardware
• Restores the original fit with OEM-matched threads and dimensions

• Disconnect power and shut off water or gas supplies before servicing
• Use the correct driver bit that matches the screw head to avoid stripping
• Replace one fastener at a time to keep parts aligned
• Tighten snugly; do not overtighten to prevent stripped threads or cracked plastic

This 8-32 x 5/8 screw replaces missing or damaged hardware specified by the manufacturer to secure panels, brackets, and internal components in your appliance. Restores a tight, rattle-free fit to help prevent vibration and misalignment.

• Provides the correct 8-32 thread and 5/8-inch length where specified
• Secures sheet-metal panels, brackets, and internal assemblies
• Replaces missing, stripped, or corroded screws
• Symptoms include loose or rattling panels, misaligned parts, or hardware that won't stay tight

• Disconnect power; shut off gas before servicing
• Support panels/components while removing or installing hardware
• Start threads by hand to avoid cross-threading; tighten only until snug
• Match the original screw's location and orientation for proper fit

The Mixer Motor is an OEM replacement part for Whirlpool stand mixers. Located inside the mixer head assembly, it provides the power for mixing, kneading, and whisking various ingredients. Reliable operation is needed for consistent results.

Causes of motor failure can include reduced torque from extended use taxing the windings, loose wiring connections disrupting power flow, or buildup within the gearbox slowing rotation speed.

Symptoms include:

• Mixer failing to blend, knead, or whip as intended
• Reduced motor RPMs seen from the mixing attachment speed
• Unusual noises emerge while mixing

This OEM Whirlpool motor is also compatible with Maytag, KitchenAid, and some Kenmore models.

This screw secures appliance panels, brackets, and trim so everything stays aligned and rattle-free. Replace missing, stripped, or rusted hardware to restore a solid fit and dependable operation. What it does:

• Fastens components to the cabinet/frame to maintain proper alignment
• Helps prevent vibration, rattling, and small gaps from loose hardware
• Replaces lost, damaged, or corroded screws to restore secure mounting
• Common signs include loose panels/trim, vibration noises, or shifting parts

• 1 screw

• Disconnect power; shut off gas/water if applicable before servicing
• Support the part being fastened to keep holes aligned and avoid damage
• Start threads by hand to prevent cross-threading; realign if resistance is high
• Tighten snugly—do not overtighten to avoid stripping threads or cracking plastic

This speed control regulates and stabilizes motor speed in your appliance. Replacing a faulty control restores smooth start-up and accurate speed selection so the motor runs consistently at the setting you choose.

• Modulates power to the motor to reach and hold the selected speed
• Helps correct issues like surging, stalling, or running only at one speed
• Common symptoms include erratic speeds, failure to start, or sudden speed changes
• Also presents as an unresponsive speed selector or inconsistent performance

• Disconnect power before servicing and allow components to discharge
• Access the control per your model's service information; note wire locations or take photos
• Transfer connectors one at a time; seat fully and handle electronics with ESD care
• Reassemble and test operation through all speed settings; perform any model-specific calibration if required

Small but critical: this groove pin locks the planetary/drive assembly to the mixer shaft so the beater is driven firmly and wobble-free. Replacing a bent or sheared pin restores solid, reliable mixing.

What it does

• Secures the planetary to the drive shaft to transmit torque
• Helps fix beater not-turning, slipping, or intermittent drive
• Reduces wobble or knocking from a loose planetary
• Replaces pins that are bent, mushroomed, or missing

What’s included
One groove/retainer pin (sold individually).

Install notes

• Unplug the mixer; work on a padded surface
• Support the planetary; drive the old pin out with a small punch
• Align holes and tap the new pin in until seated flush—don’t overstrike
• Inspect the planetary and shaft holes for elongation; re-grease if opened

The Retaining Clip is an OEM part for Whirlpool stand mixers. This small but essential part ensures the stability and secure fitting of various mixer components, contributing significantly to the appliance's overall performance and durability. Its primary role is to hold parts in place, preventing movement that could lead to wear or malfunction during operation.

Stand mixers are subjected to a variety of stresses, particularly when mixing thick doughs or other dense mixtures. The retaining clip's integrity is vital in these situations, as it helps to maintain the correct alignment and functioning of the mixer's moving parts.

Symptoms of a bad Retaining Clip in a stand mixer include:

• Components such as beaters or attachments becoming loose or detaching during use.
• Unusual vibration or noise
• Difficulty in attaching or detaching mixer attachments

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Washer is an OEM replacement part for Kitchenaid stand mixers. This washer is used as a spacer and insulator between gears to provide protection to the planetary bushing on the stand mixer.

Causes of a bad washer can include wear over time allowing increased play between gears, or deformation from heavy use that compromises its insulating properties.

Symptoms of a bad washer include:

• Excessive noise and vibration from the gear assembly
• Premature failure of gears or other components
• Reduced power transmission and mixing performance

This OEM replacement is also compatible with Maytag, Whirlpool, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This planetary pinion gear is part of the stand mixer drive system. It meshes within the gear train to turn the planetary assembly, restoring smooth beater rotation when the original gear's teeth are worn, chipped, or stripped.

• Transfers motor torque through the gear train to rotate the planetary/beater hub
• Common fix for grinding or clicking noises from the mixer head
• Helps address slow, intermittent, or no planetary/beater movement
• Useful when inspection shows rounded or damaged gear teeth

• Disconnect power before servicing and remove the mixer's head/gearcase cover as directed by the service guide
• Note gear orientation; clean out old grease and debris before reassembly
• Inspect mating gears, bearings, and bushings; replace any worn components together to prevent repeat failures
• Pack with food-grade mixer grease, seat the gear fully, and verify smooth planetary rotation by hand before powering on

Small but critical: this retaining pin secures the drive components in the planetary so your stand mixer transmits power reliably to the beater and attachments, helping restore steady mixing when the original pin is missing or worn.

What it does

• Locks the gear/shaft connection inside the planetary for positive drive
• Helps address symptoms like beater not turning, intermittent drive, or a loose/descending planetary
• Works in conjunction with the worm-follower and bevel/pinion gears
• Useful when the original pin is damaged during service or shears under load

What’s included
One retaining (dowel) pin, sold individually.

Install notes

• Unplug the mixer; lay it on its side and support the planetary
• Drive the old pin out with a small punch; align and tap the new pin in flush
• If the gearcase is open, clean and re-grease per service guidance
• Run at low speed first to verify smooth operation before full use

This small flat washer is used as a hardware spacer in Whirlpool appliances. It distributes clamping force and helps maintain proper alignment and smooth movement where a screw, bolt, or pin secures components. Exact placement varies by model.

• Distributes load to protect mating surfaces from damage
• Acts as a spacer/shim to set correct clearance
• Helps reduce friction and metal-to-metal noise
• Common symptoms of a worn or missing washer: loose or misaligned parts, scraping/squeaking, or difficulty keeping a fastener tight

• Disconnect power and shut off water supply before servicing
• Support the assembly and note the original washer order and placement during disassembly
• Reinstall the washer in the same position/orientation as the original
• Tighten hardware snugly; do not overtighten to avoid deforming the washer

This agitator shaft assembly is the vertical drive shaft used in select stand mixers. It transmits power through the planetary to spin your beater or whisk, helping restore smooth, consistent mixing when the original shaft is worn, bent, or stripped.

• Transfers motor power from the gearcase to the beater hub
• Maintains alignment and smooth rotation of mixer attachments
• Wear or damage can cause wobble or excess play at the attachment
• Help resolve attachments not turning, intermittent spinning, or clicking/grinding from the planetary area

• Unplug the mixer before servicing; let moving parts stop fully
• Access typically requires removing the planetary and opening the gearcase—note gear, shim, and washer order during disassembly
• Inspect internal gears and bushings for wear; clean and re-lubricate before reassembly

This retaining ring secures components on a drive shaft, keeping gears or assemblies properly seated so the drive operates smoothly. A worn or missing ring can allow unwanted movement, noise, or separation under load.

• Locks into the shaft groove to hold parts in correct axial position
• Helps prevent wobble, slipping, or parts working loose during operation
• Can address symptoms like rattling/grinding noises or a drifting/wobbly shaft
• Visual signs of failure include bending, deformation, or loss of spring tension

• Disconnect power and allow moving parts to stop before servicing
• Wear eye protection—retaining rings can spring free under tension
• Use appropriate retaining ring/snap-ring pliers or controlled leverage to remove/install
• Ensure the ring seats fully in the groove and secure engagement before reassembly

Chrome Thumb Screw for KitchenAid Tilt Head Stand Mixer is used to secure the attachments to the stand mixer. The Chrome Thumb Screw fits KitchenAid Stand Mixer model KSM6573.

This small grooved pin is a precision retaining fastener used to secure and align mating parts within an appliance assembly. Replacing a worn or missing pin restores proper support and helps the mechanism operate smoothly and quietly. What it does:

• Locks two components together with an interference-fit groove to prevent unwanted movement
• Maintains alignment of hinges, linkages, or levers in the assembly
• Reduces wobble, vibration, and rattling that can occur when a pin is worn or missing
• Common symptoms include loose or drifting parts, misalignment, intermittent operation, or unusual noises

• 1 grooved pin

• Disconnect power and, if applicable, shut off water/gas before servicing
• Support the assembly; remove any retainers, then drive out the old pin with a small punch/drift and install the new pin aligned to the original orientation
• Do not reuse damaged hardware; replace worn bushings or clips and ensure smooth movement
• Test operation before reassembling covers and restoring power
