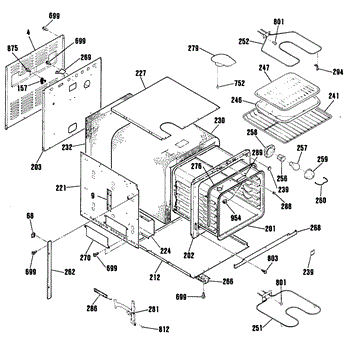

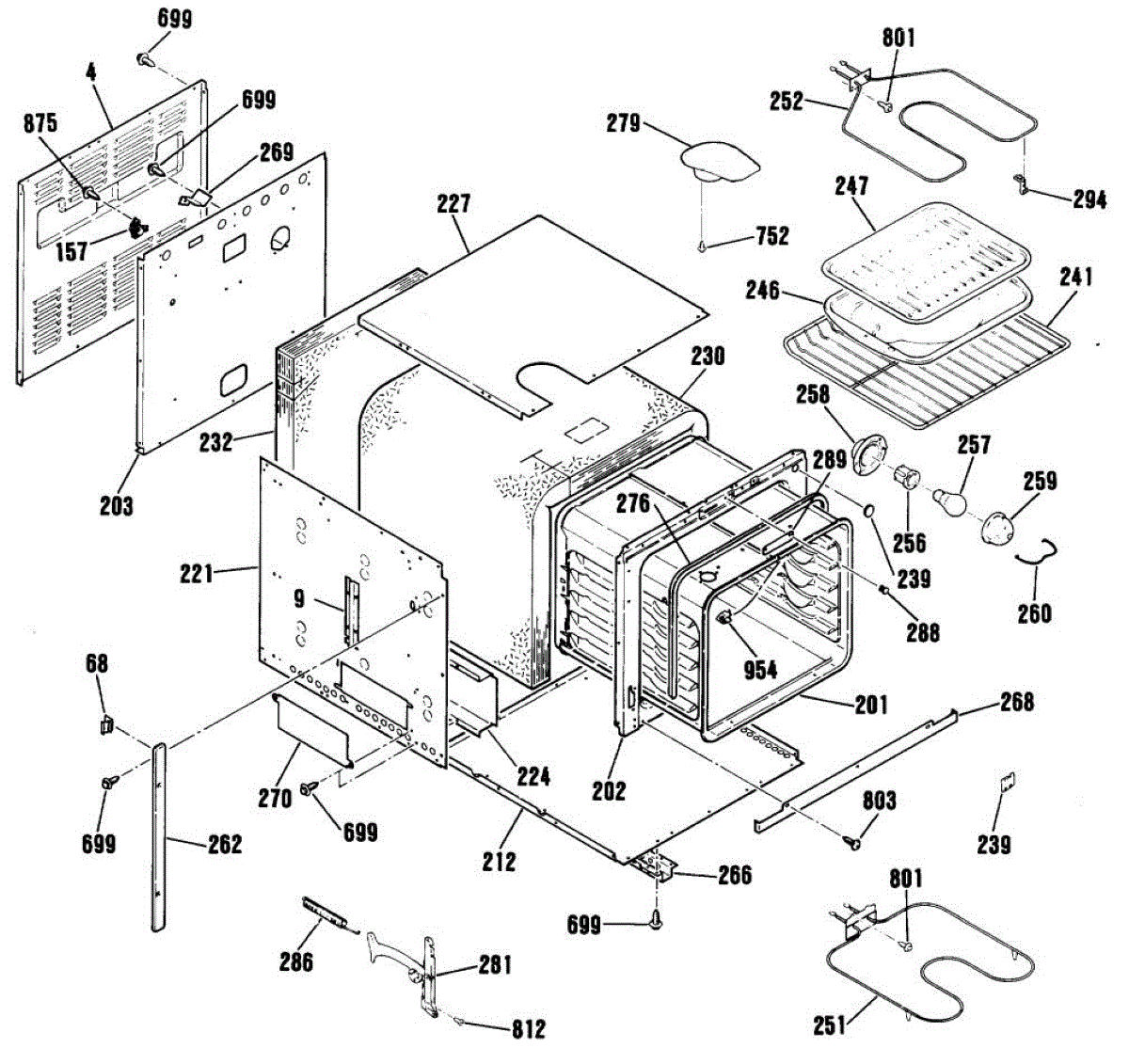

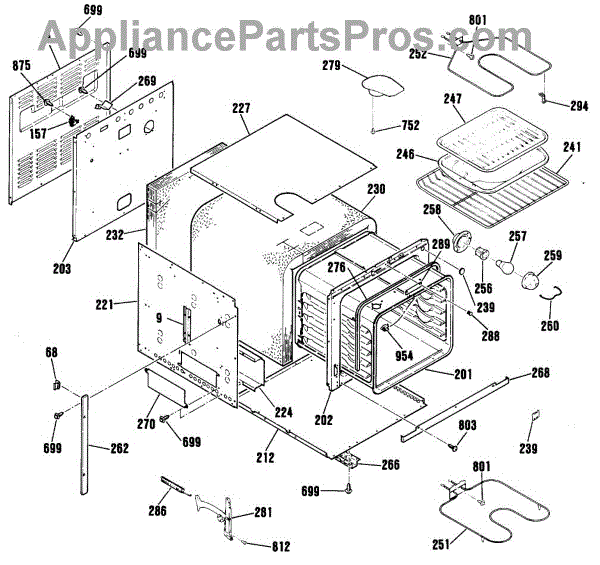

Parts for Ge JRS04GT1BB: 02 - Section2 Parts

The Oven Rack is an OEM part for GE ovens. This sturdy and durable rack is designed to fit securely in the oven's interior, providing a stable surface for baking and roasting. It is adjustable, allowing you to customize the cooking space to accommodate various dish sizes and ensure even heating.

Common causes of a bad oven rack include warping from prolonged exposure to heat, bending under heavy cookware, or rust and corrosion from moisture.

Symptoms of a bad oven rack include:

• Difficulty in sliding the rack in and out
• Warped or bent rack affecting stability
• Rust or corrosion on the rack's surface
• Inconsistent cooking results due to uneven rack positioning

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Broiler Pan Kit is an OEM part for GE ranges. It serves as a secure platform for positioning meats, vegetables, and various foods directly beneath the broiler element, ensuring safe and efficient cooking. The pan is about 17 inches wide by 13 inches deep.

Over time, wear and tear can affect broiler pans, causing issues such as flaking or stripping of the non-stick coating and the development of small ridges or holes that permit grease to drip down.

Symptoms of bad broiler pans include:

• Grease fires caused by dripping grease contacting the heating element
• A burnt or smoky flavor transferring to foods
• Difficulty removing baked-on grease and food deposits
• Pans that are misshapen or developing small cracks

This OEM GE replacement part is also compatible with select Hotpoint, RCA, and some Kenmore ranges

The Broiler Pan Kit is an OEM part for GE ranges. It serves as a secure platform for positioning meats, vegetables, and various foods directly beneath the broiler element, ensuring safe and efficient cooking. The pan is about 17 inches wide by 13 inches deep.

Over time, wear and tear can affect broiler pans, causing issues such as flaking or stripping of the non-stick coating and the development of small ridges or holes that permit grease to drip down.

Symptoms of bad broiler pans include:

• Grease fires caused by dripping grease contacting the heating element
• A burnt or smoky flavor transferring to foods
• Difficulty removing baked-on grease and food deposits
• Pans that are misshapen or developing small cracks

This OEM GE replacement part is also compatible with select Hotpoint, RCA, and some Kenmore ranges

The Oven Bake Element is an OEM part for GE ovens. This component is located at the bottom of the oven cavity and is responsible for generating the heat needed for baking. By converting electrical energy into heat, the bake element ensures even temperature distribution throughout the oven, allowing for consistent cooking results.

Causes of a malfunctioning Oven Bake Element may involve visible signs of wear or damage, like blistering or holes, a break in the element that hinders proper heating, and burnout or malfunctioning resulting from age or excessive use.

Symptoms of a failing Oven Bake Element include:

• The oven not heating to the set temperature
• Uneven baking results
• No visible glow from the element when the oven is turned on
• The oven taking longer than usual to preheat

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Broil Element is an OEM part for GE ovens. This element is located at the top of the oven and is crucial for the broiling function, providing high heat for cooking dishes such as meats and vegetables directly under the heat source. The broil element glows red hot when in use, creating the necessary temperature to sear food and lock in flavors.

Symptoms of a failing Broil Element include:

• The element not heating up when the broil setting is activated
• Uneven cooking or lack of browning on food intended to be broiled
• Visible damage to the element, such as blistering, bubbling, or breaks in the element coil
• No visible glow from the element during operation

Causes of a bad broil element often involve burnout from regular use, electrical issues such as faulty wiring or a malfunctioning thermostat that doesn't cycle the heat correctly.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This oven lamp holder is the replacement socket that secures and powers the interior oven light, restoring safe illumination for checking food without opening the door. Designed to fit industry-standard oven lamp bulbs. What it does:

• Provides a secure electrical connection and mounting point for the oven light bulb
• Enables interior oven illumination so you can monitor cooking without opening the door
• Commonly replaces cracked, burned, or loose lamp sockets that cause the light to flicker or not work
• Works with the oven's existing wiring and bulb type

• Disconnect power to the appliance at the breaker before servicing to avoid shock
• Replace only when the oven is cool; use gloves to protect hands and bulb surfaces
• Inspect wiring and connectors for damage; replace any damaged wiring per OEM guidance

The Oven Light Lens is an OEM part for GE ovens, designed to protect and cover the oven light bulb. It allows for a clear view of the oven's interior, making it easier to monitor the cooking progress without opening the oven door, thus maintaining a consistent temperature.

Over time, the oven light lens can become discolored or cloudy from exposure to high temperatures, grease, and food splatters, which can diminish its effectiveness. Additionally, accidental bumps or cleaning can lead to cracks or breaks in the lens.

Symptoms of a bad Oven Light Lens include:

• Diminished light output, making it hard to see inside the oven
• Cracks or damage to the lens itself
• Discoloration or cloudiness that cannot be cleaned off
• The lens becoming loose or falling off

This OEM GE  part is also compatible with Hotpoint, RCA, and some Kenmore models.

Color: Black

This light cup support secures the interior lighting assembly and helps position the light socket and lens for reliable illumination. It restores proper alignment and contact for the refrigerator or freezer interior light. What it does:

• Holds the light socket and lens in place to prevent shifting or detachment
• Ensures consistent light alignment so the bulb illuminates the interior correctly
• Addresses symptoms like a loose or hanging light, intermittent contact, or misaligned lens
• Compatible with common GE refrigerator interiors where the original cup support is used

• One light cup support

• Disconnect power before accessing the interior light assembly to avoid shock
• Remove the old cup support by unsnapping or unfastening retaining tabs as required
• Press the replacement into position until retaining tabs engage; test light function before reassembling shelves

This cover plate is a replacement console trim piece that restores the appliance's finished appearance and protects control components from dust and spills. It helps keep the control area clean while maintaining proper fit with surrounding panels. What it does:

• Covers and protects the control/module opening to prevent dirt, grease, and moisture intrusion
• Restores the appliance's exterior appearance after damage or wear
• Keeps buttons, switches and electronic components shielded from direct contact
• Provides a stable mounting surface for adjacent trim and hardware

• Disconnect power to the appliance before starting any repair
• Installation typically requires removing a few screws or clips; save fasteners for reassembly
• Handle with care to avoid scratching the finished surface; align tabs/holes before tightening

Right hand side. For left hand use WB14K5007

Left hand side. For right hand use WB14K5006

The Support Bracket is an OEM part for GE ovens, designed to provide stability and support for the broiling element. This bracket is essential for ensuring the broiling element is securely positioned at the top of the oven, allowing for even heat distribution and optimal cooking performance when broiling foods.

Causes of damage to the support bracket often involve high heat exposure, accidental impacts during cleaning or cooking, or general wear and tear over time.

Symptoms of a bad Support Bracket include:

• The broiling element hanging lower than usual or touching the oven cavity, which can affect cooking performance and potentially damage the oven's interior.
• Unstable or loose broiling element, leading to uneven cooking or broiling.
• Visible signs of wear, damage, or corrosion on the bracket itself, indicating it may no longer provide adequate support.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

ST10-16 X 7/16"

ST10-16 X 7/16"

This flat-head 10-32 zinc screw secures panels and components on compatible appliances, providing a corrosion-resistant fastener for reliable mechanical fastening. Use when replacing stripped or missing panel screws to restore proper fit. What it does:

• Fastens control panels, trim, or small appliance components with a 10-32 thread size
• Zinc plating helps resist rust and wear in typical household environments
• Replaces missing, damaged, or stripped flat-head screws that prevent panels from seating correctly
• Fits applications that require a countersunk/flush head for a clean finish

• Use the correct 10-32 driver bit and moderate torque to avoid stripping the head or threads
• Ensure the screw is the correct length and head style for your application before tightening
• Disconnect power to the appliance and follow OEM safety instructions before servicing

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.
