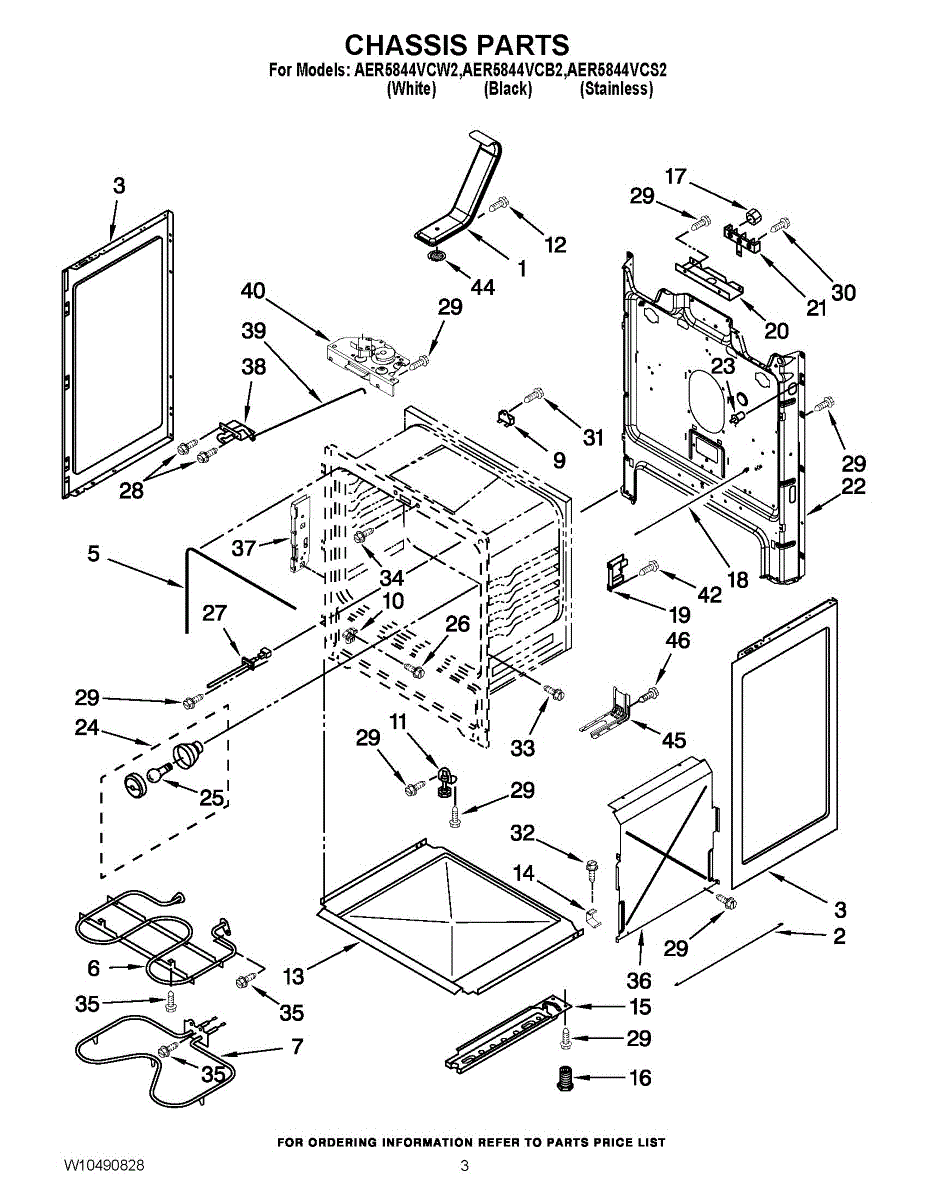

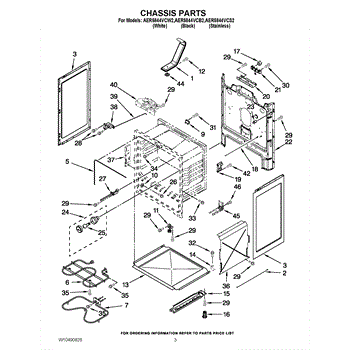

Parts for Amana AER5844VCS2: 03 - Chassis Parts

Replacement side panel that restores your range's exterior finish. Covers dents, scratches, or damaged cabinet trim. Easy-to-install cosmetic part.

Replace your range oven door gasket when torn or worn to restore an airtight seal and improve heating efficiency. Easy 5-15 minute install. Confirm fit.

Broil element burnt out or not heating? This top heating element provides intense direct heat for broiling. Takes 15-20 minutes to replace yourself.

Oven won't heat or bakes unevenly? The bake element likely failed. Located at oven bottom, this part restores proper baking heat. 10-minute DIY fix.

Oven won't heat or both elements stopped working? A faulty thermal fuse cuts power to prevent overheating. Easy DIY fix with basic tools in under an hour.

Replace broken or worn drawer glides that cause wobbly drawers or difficulty opening and closing your range storage drawer. Verify fit by model number.

Front leveling foot adjusts range height for stability. Replaces cracked, broken, or missing feet. Ensures proper leveling to reduce vibration.

Metal tray that secures insulation beneath the oven cavity. Replaces damaged, warped, or missing retainers to restore proper insulation support.

Adjustable leveling leg installs on the front or rear corners of your range. Replace if broken, cracked, or worn to stabilize and level your appliance.

This 10-32 terminal block nut fastens wire lugs to the appliance's terminal studs. Replacing a missing, stripped, or corroded nut restores a tight, reliable connection and helps prevent heat damage or intermittent power at the connection.

• Secures wire lugs to a 10-32 terminal stud for a solid electrical connection
• Restores proper clamping force when the original nut is stripped, corroded, or missing
• Helps address loose/burned terminal connections, heat discoloration, or intermittent power at the block
• Suitable for terminal block and similar 10-32 stud applications on compatible appliances

What's included: One 10-32 nut Install notes:

• Disconnect power at the breaker or unplug the appliance before servicing
• Inspect the terminal block, studs, and wiring for heat damage; replace any damaged components
• Clean threads and start the nut by hand to avoid cross-threading; tighten firmly without overtightening
• If the stud turns while tightening, hold it with an appropriate tool to protect the block

Replace a broken or missing door switch actuator rod on your range. This small rod engages the door switch to detect open/closed positions and control the interior light.

Secures and stabilizes range components to reduce movement and maintain alignment. Replace if cracked, broken, or missing to stop rattling and restore support.

Service bracket for electric and gas ranges. Mounts internal components securely. Replace if bent, broken, or missing to restore proper structural support.

Exposed wiring at the back of your range? This terminal block cover shields power connections from contact and debris, restoring safe operation.

Oven light not turning on when door opens? This door-activated switch detects door position and controls interior lighting. Easy push-in installation.

Light socket assembly houses your oven bulb and provides electrical connections to illuminate the interior. Replace when bulb won't stay secure or light fails.

Fix oven temperature issues, error codes F3E2/F3E0, or uneven cooking. This oven sensor is a straightforward 10-minute DIY repair with our video guide.

Replacement mounting screw for ranges. Secures panels, trim pieces, control boards, and brackets. Order when original screws are missing, stripped, or damaged.

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

Self-tapping screw secures panels, brackets, and trim to range frames and housings. Replace worn, missing, or stripped fasteners to restore fit.

Replacement mounting screw for securing appliance panels, trim, and internal components. Restores proper fastening when original screws are missing or stripped.

The Screw is an OEM part for Whirlpool ranges. This screw is used to secure various components within the range, ensuring that parts such as panels, control boards, or burners are firmly attached and remain stable during operation.

Causes of a bad range screw can include regular wear and tear, over-tightening, or exposure to high heat.

Symptoms of a bad range screw include:

• Loose or unstable components within the range
• Difficulty in securing parts during maintenance or repair
• Visible damage or wear on the screw
• Parts becoming misaligned or rattling during operation

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This factory screw secures panels, brackets, or trim within your appliance. Replacing a missing or stripped fastener restores a tight fit, reduces vibration and rattles, and helps keep components aligned for reliable, long-term performance.

• Fastens panels, brackets, or trim to the appliance cabinet/frame
• Replaces damaged, rusted, or missing hardware
• Helps eliminate vibration noises, gaps, and loose-fitting parts
• Supports proper alignment of adjoining components

• Disconnect power; turn off gas/water supplies where applicable.
• Match to the original screw from your model's parts diagram before installation.
• Start threads by hand to avoid cross-threading; use the correct driver bit for the head.
• Tighten snugly—do not overtighten to prevent stripping threads or cracking plastic bosses.

Size: 8-18 x 1/2 inch.

10-32 machine thread screw secures brackets, panels, and trim inside ranges and washers. Replace missing, stripped, or damaged fasteners to restore alignment.

Mounts to the range frame to anchor the door hinge arm. Replace if cracked, bent, or worn to restore proper door alignment and smooth operation.

This latch mechanism secures the oven door in the closed position on electric and gas ranges. It engages when the door is shut to hold it firmly against the gasket for proper heat retention. Replace when the oven door won't stay closed, pops open during cooking, or the latch handle feels loose or broken.

Replacement door latch rod that connects the latch assembly to the mechanism. Needed when the original rod is bent, broken, or missing from your range door.

Fix an oven door that won't close or stay shut with this range door latch. Common repair for loose or broken latches. Easy 15-minute installation.

Replace missing or stripped screws for your range anti-tip bracket. This 2-piece hardware set secures the bracket to the wall or floor for stability.

Fiberglass insulation installs behind oven and broiler walls to contain heat within the cavity. Replace if worn, compressed, damaged, or missing for safety.

Insulation batting installs between inner and outer oven walls to retain heat. Replace if damaged, cracked, infested, or missing for proper temperature.

The Oven Insulation is an OEM replacement part for Whirlpool ranges. Properly insulated walls are necessary to prevent heat loss through the oven exterior, ensuring consistent and even cooking from the inside out.

Causes of bad insulation include the breakdown of insulating materials over time due to repeated high heat exposure during cooking. Crumbling, compressed, or discolored insulation has lost its ability to hold in heat.

Symptoms of needing new insulation include:

• Inefficient and uneven cooking/baking performance
• Interiors not reaching/maintaining set temperatures
• Overheating or longer than normal cook times
• Hot or warm oven exteriors that were previously cool to the touch

This genuine Whirlpool OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
