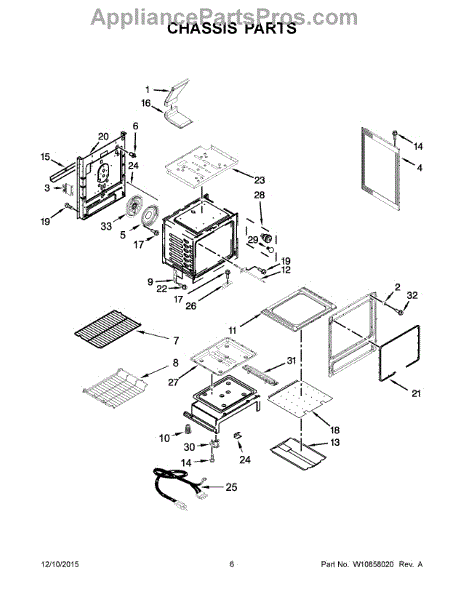

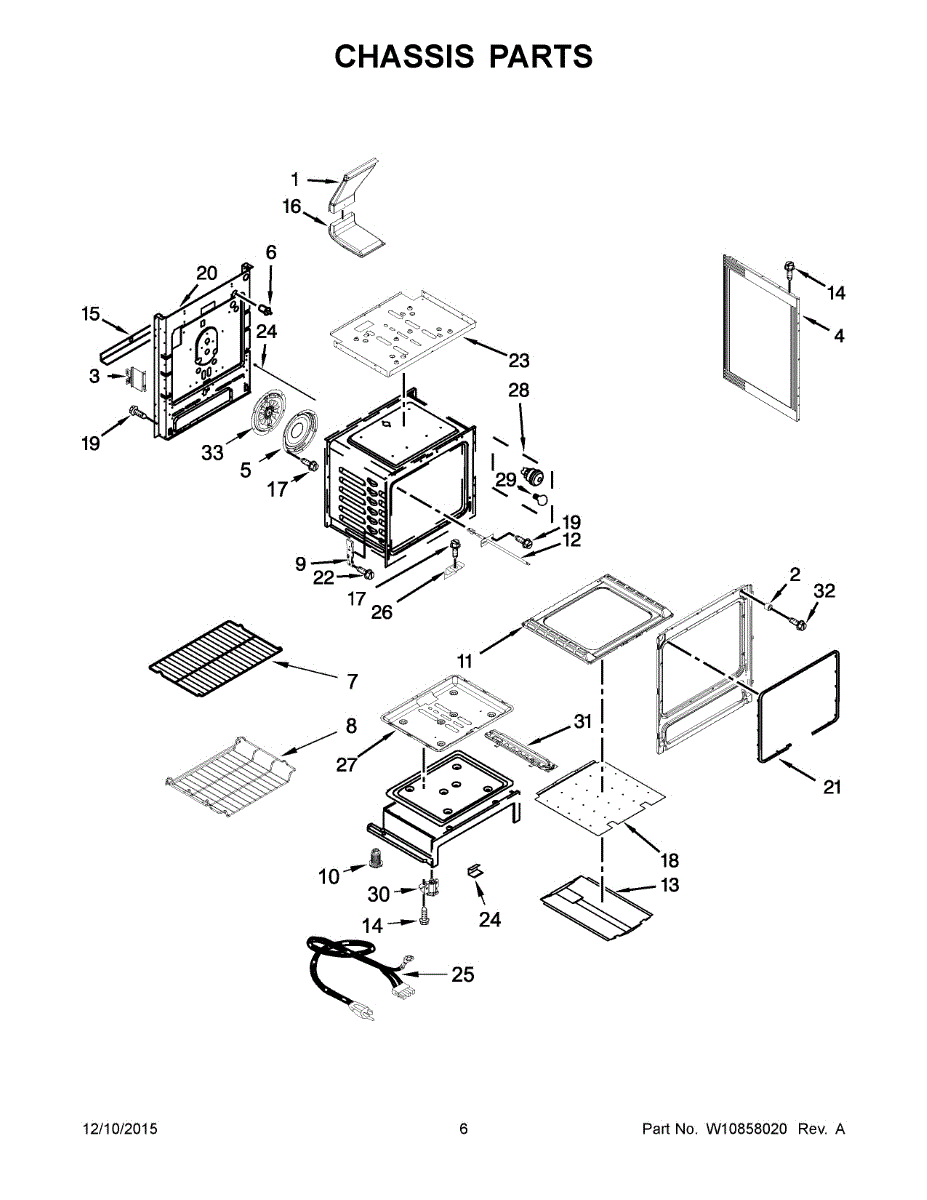

Parts for Maytag MGR8700DE2: 04 - Chassis Parts

This spacer provides a precise gap for proper alignment and clearance between components, helping maintain correct part positioning for reliable operation. It's a simple replacement that restores intended spacing and reduces wear. What it does:

• Positions and separates adjoining parts to maintain correct clearance
• Helps prevent rubbing, misalignment, or binding of moving components
• Restores factory spacing after maintenance or part replacement
• Fits where the original spacer was used to support assembly alignment

• One spacer as shown

• Inspect surrounding components and mounting surfaces for damage before installing
• Remove power to the appliance and follow manufacturer service instructions
• Install in the same orientation as the original spacer and verify proper clearance
• If fasteners or adjacent parts are worn, replace them to ensure a secure fit

This side panel is a replacement cabinet trim piece that restores the exterior finish and protects the refrigerator side from dings and scratches. It matches original fit and appearance for a clean, factory look. What it does

• Covers and protects the refrigerator cabinet side from damage and wear
• Restores a uniform exterior appearance after dent or cosmetic repair
• Helps maintain proper panel alignment and mounting for adjacent parts
• Matches OEM shape so doors and trim fit correctly

• One side panel

• Intended for cabinet-side replacement; verify side (left/right) using your model diagram before ordering
• Remove power and empty nearby shelves before starting; handle panel edges carefully to avoid cuts
• May require basic tools (screwdriver, trim removal tool) and a second person for proper alignment

This oven rack replaces a bent, missing, or rusty shelf so bakeware sits level and slides smoothly. Restore full support and the correct cooking height inside your oven for safer loading and consistent results.

• Provides sturdy, adjustable support for pans, sheets, and dishes at multiple rack positions
• Slides on the side rails for easy loading and removal
• Helps maintain proper clearance for airflow and even heating
• Common replacement signs: warped wires, flaking or rusted finish, wobble/tipping, poor sliding, or a missing rack

• Allow the oven to cool completely; disconnect power or shut off gas before service
• Pull the old rack forward to the stop, lift the front to clear the stop ends, and remove
• Insert the new rack with the stops toward the back; level it on the rails and slide fully in
• The rack is seated securely before use

This oven rack restores a stable cooking surface inside the oven, letting you slide baking sheets, pans and cookware in and out safely. It replaces bent, rusted or missing racks to help your oven perform as intended. What it does:

• Provides a stable shelf for cookware and bakeware during cooking and baking
• Slides into oven rack guides to allow easy insertion and removal of pans
• Replaces warped, bent or missing racks that cause uneven cooking or instability
• Compatible with models that use part number W11256463

• Allow the oven to cool completely before installing or removing the rack.
• Slide the rack into the oven's existing rack guides until fully seated.
• Wear gloves to protect hands from sharp edges and to avoid pinching.
• Do not modify the rack or force it into incompatible guides.

This hinge receiver mounts to the appliance frame and accepts the door hinge arm/pin. It keeps the door aligned and secure so it opens and closes smoothly. Replacing a worn or cracked receiver restores proper door action.

• Anchors the hinge arm/pin at the cabinet/frame for smooth door movement
• Maintains door alignment and consistent closing action
• Wear or damage can cause a loose or sagging door, misalignment, or binding
• Common signs include clicking/grinding noises and visible cracks or deformation

• Disconnect power; allow the appliance to cool and shut off gas/water if applicable
• Support or remove the door to access the receiver
• Remove mounting fasteners, swap in the new receiver, and align per service instructions
• Reinstall the door and verify smooth movement and full closure

The Leveling Leg is an OEM part for Whirlpool ranges. It's designed to ensure your range is perfectly balanced and stable on uneven floors. By adjusting the height of the leveling legs, you can prevent wobbling and ensure that your cooking surface is perfectly horizontal, which is critical for even cooking and baking.

Causes of a malfunctioning Leveling Leg can stem from physical impact damage, corrosion in humid conditions affecting integrity and adjustability, and wear over time, particularly if frequently adjusted or cleaned aggressively.

Symptoms of a bad Leveling Leg include:

• The range tilts or wobbles, making cooking uneven.
• Difficulty sliding pots and pans across the cooking surface due to the appliance not being level.
• Increased strain on other components of the range, which could lead to premature wear or failure.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This Oven Bottom forms the floor of a gas oven cavity. Positioned above the bake burner, it shields the burner/igniter from spills while providing a smooth, removable surface that helps direct heat and is easier to clean.

• Covers and protects the bake burner and igniter assembly
• Helps channel heat and airflow across the oven cavity
• Catches drips and debris; removes for periodic cleaning
• Typical failure signs: warped or rusted panel, flaking finish, burnt-through spots, or persistent smoke from baked-on spills

• Allow the oven to cool completely; wear cut-resistant gloves—edges may be sharp
• Disconnect power and turn off gas supply before servicing
• Remove racks; release rear screws or tabs per your model, lift and slide the old panel out; seat the new panel under the front lip and secure
• Restore power and gas, then verify proper fit and clearance

The Temperature Sensor is an OEM part for Whirlpool ovens and ranges. It monitors the internal temperature of the oven cavity and communicates with the oven control board to maintain accurate cooking temperatures. This ensures that your oven heats to the correct temperature for baking, roasting, and broiling.

Causes of a bad temperature sensor can include normal wear and tear, exposure to high temperatures over extended periods, or damage from accidental impacts or electrical surges.

Symptoms of a bad temperature sensor include:

• Incorrect oven temperatures
• Overcooking or undercooking of food
• Oven not heating up
• Error codes displayed on the oven control panel

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This burner baffle is a replacement heat shield that protects the range cooktop and burner assembly from spills and directs heat for more consistent cooking. Durable design helps keep burner components cleaner and working properly. What it does:

• Shields burner components from drips, spills, and food debris that can cause clogging or uneven flame
• Helps channel heat from the burner for more consistent surface heating
• Reduces direct exposure of internal parts to corrosive residues, extending component life
• Can stop rattling or misalignment caused by a damaged or bent baffle

• Disconnect gas supply and electrical power and allow the range to cool fully before servicing
• Handle edges carefully; baffle may have sharp metal edges or be spring-tensioned into place
• Installation typically requires removing grates and lift-off parts to access the burner area; follow OEM instructions

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

The Door Gasket is an OEM part for Whirlpool ovens. This part creates a tight seal around the oven door, preventing heat from escaping during cooking. This part ensures that the oven maintains a consistent temperature, leading to more efficient cooking and energy use.

A damaged gasket might also allow hot air to escape, potentially causing heat damage to surrounding kitchen cabinetry and increasing energy consumption.

Symptoms of a bad Door Gasket include:

• The oven takes longer to preheat
• You notice heat escaping from the edges of the oven door
• Uneven cooking or baking results
• Increased energy bills due to the oven working harder to maintain temperatures

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Screw is an OEM part for Whirlpool ranges. This screw is used to secure various components within the range, ensuring that parts such as panels, control boards, or burners are firmly attached and remain stable during operation.

Causes of a bad range screw can include regular wear and tear, over-tightening, or exposure to high heat.

Symptoms of a bad range screw include:

• Loose or unstable components within the range
• Difficulty in securing parts during maintenance or repair
• Visible damage or wear on the screw
• Parts becoming misaligned or rattling during operation

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This heat shield protects nearby components from burner heat on gas ranges, helping prevent heat damage and extending the life of surrounding parts. It fits where the burner assembly channels heat away from sensitive areas. What it does:

• Deflects and disperses burner heat to protect nearby wiring, controls, and cabinet surfaces
• Prevents premature failure of parts exposed to high temperatures
• Helps maintain proper airflow around the burner area
• Useful when heat is causing discoloration or damage near the burner

• One heat shield for gas range burner area

• Disconnect power and shut off gas supply before servicing
• Allow appliance to cool completely; use appropriate tools and follow OEM removal steps
• Install in the original orientation and fasten securely; do not bend or modify the shield

This supply cord assembly connects the appliance to household power using 18-gauge wiring and a factory-installed push-tie strain relief, replacing a damaged or frayed cord to restore a safe, reliable connection. What it does:

• Provides the electrical connection between the appliance and the outlet using 18 AWG conductors.
• Secures and routes the cord with a built-in push-tie strain relief to help prevent wiring stress.
• Replaces cords that are cut, frayed, burned, or causing intermittent power.
• Restores reliable power delivery when a damaged cord is the source of power loss or flickering.

• One supply cord assembly (18 ga) with factory-installed push-tie.

• Always disconnect power at the breaker or unplug the appliance before servicing.
• Match wire colors and secure connections per the appliance wiring diagram; ensure the push-tie/strain relief is seated properly.
• After installation, restore power and verify normal operation; if issues persist, stop and consult service.

The Light Socket Assembly is an OEM part for Whirlpool ranges and wall ovens. This part houses the oven light bulb, providing the necessary electrical connections to illuminate the oven's interior. It ensures that you can monitor the cooking process without opening the oven door, thereby maintaining a consistent temperature and energy efficiency.

Causes of damage to the light socket assembly often include excessive heat, electrical surges, or physical damage during cleaning or maintenance.

A malfunctioning light socket assembly can lead to several issues, including:

• The inability to turn the oven light on
• Flickering or inconsistent lighting caused by loose connections or damage to the socket
• Complete failure of the light feature, due to wear and tear or electrical faults

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

This leveling foot adjusts the appliance's height at the front to keep the cabinet stable and level. A properly leveled unit helps reduce vibration and noise and ensures doors, drums, and drawers operate smoothly.

• Supports the appliance and provides front height adjustment
• Helps correct rocking, vibration, and excessive noise from an unlevel appliance
• Can improve door alignment and smooth operation when the cabinet is leveled
• Common wear or damage can cause wobbling or difficulty staying level

• Unplug the appliance and, if applicable, turn off the water supply before servicing
• Tip or lift the unit carefully; use a helper to avoid injury
• Thread the new foot into the base and adjust until the cabinet is level and stable
• Tighten any applicable lock nut and recheck level after repositioning the appliance

This rail base provides the structural support for the refrigerator drawer/rail assembly, restoring smooth drawer alignment and preventing sagging or binding. It's a direct-fit replacement that helps maintain proper drawer operation and cabinet fit. What it does:

• Supports and aligns the drawer/rail assembly so drawers slide smoothly
• Secures the lower rail to the cabinet to prevent shifting or sagging
• Restores proper drawer clearance and prevents sticking or uneven movement
• Addresses symptoms like crooked or loose drawers, binding, or gaps at the drawer edge

• One rail base

• Disconnect power to the appliance before beginning work
• Remove drawer(s) and any trim panels to access the rail area
• Use basic hand tools; avoid overtightening fasteners to prevent damage

This rail base provides the structural support for the refrigerator drawer/rail assembly, restoring smooth drawer alignment and preventing sagging or binding. It's a direct-fit replacement that helps maintain proper drawer operation and cabinet fit. What it does:

• Supports and aligns the drawer/rail assembly so drawers slide smoothly
• Secures the lower rail to the cabinet to prevent shifting or sagging
• Restores proper drawer clearance and prevents sticking or uneven movement
• Addresses symptoms like crooked or loose drawers, binding, or gaps at the drawer edge

• One rail base

• Disconnect power to the appliance before beginning work
• Remove drawer(s) and any trim panels to access the rail area
• Use basic hand tools; avoid overtightening fasteners to prevent damage

This replacement screw restores secure fastening for appliance panels and components, helping stop loose parts and rattling so controls and panels stay aligned. Use when original screws are missing, stripped, or damaged. What it does:

• Secures panels, trim, control boards, brackets, or components to the appliance frame
• Stops rattling, vibration noise, and loose or misaligned parts caused by missing or damaged fasteners
• Replaces stripped, corroded, or missing screws to restore proper fit and function
• Matches OEM fit and threading for straightforward hardware replacement when the correct screw is identified

• Turn off power and unplug the appliance before accessing internal components
• Use the correct screwdriver or bit to avoid stripping the head; do not force mismatched drivers
• Tighten until snug—do not overtighten, which can strip threads or crack plastic
• Keep removed hardware organized and verify the replacement screw matches the original before installation

This convection fan circulates hot air inside the oven cavity to promote even baking and roasting. Replacing a failed fan restores proper air flow for more consistent cooking results. What it does:

• Spins to move heated air around the oven cavity for uniform temperature distribution
• Commonly used when baking or roasting with convection mode
• Symptoms of failure: uneven cooking or baking, convection mode not working, no air movement from oven interior
• Can make noise or wobble if bearings are worn or blade is damaged

• Turn off power to the appliance at the breaker before starting work
• Replacement typically requires access to the oven interior or rear panel and removal of mounting screws
• Handle the fan blade carefully to avoid bending; ensure proper seating on the motor shaft
• If electrical connectors are corroded or damaged, replace or repair them before reassembly

The Insulation is an OEM part for Whirlpool ranges. It serves as the heat-resistant fiberglass insulation installed inside oven cavity walls and behind backsplash panels.

Symptoms of damaged or degraded insulation could include:

• Uneven or inefficient heat distribution inside the oven
• Hot and cold spots developing on bake elements over time
• Longer preheat periods are needed to reach target temperatures
• Higher energy costs from overworked heating components

Causes may involve breaks in insulation fibers from extended heat cycling. Exposure to moisture or condensation could compromise insulation integrity as well. Physical punctures may develop from accidental impact or installing range components.

This replacement insulation works for Jenn-Air, KitchenAid, and select Kenmore oven ranges too.
