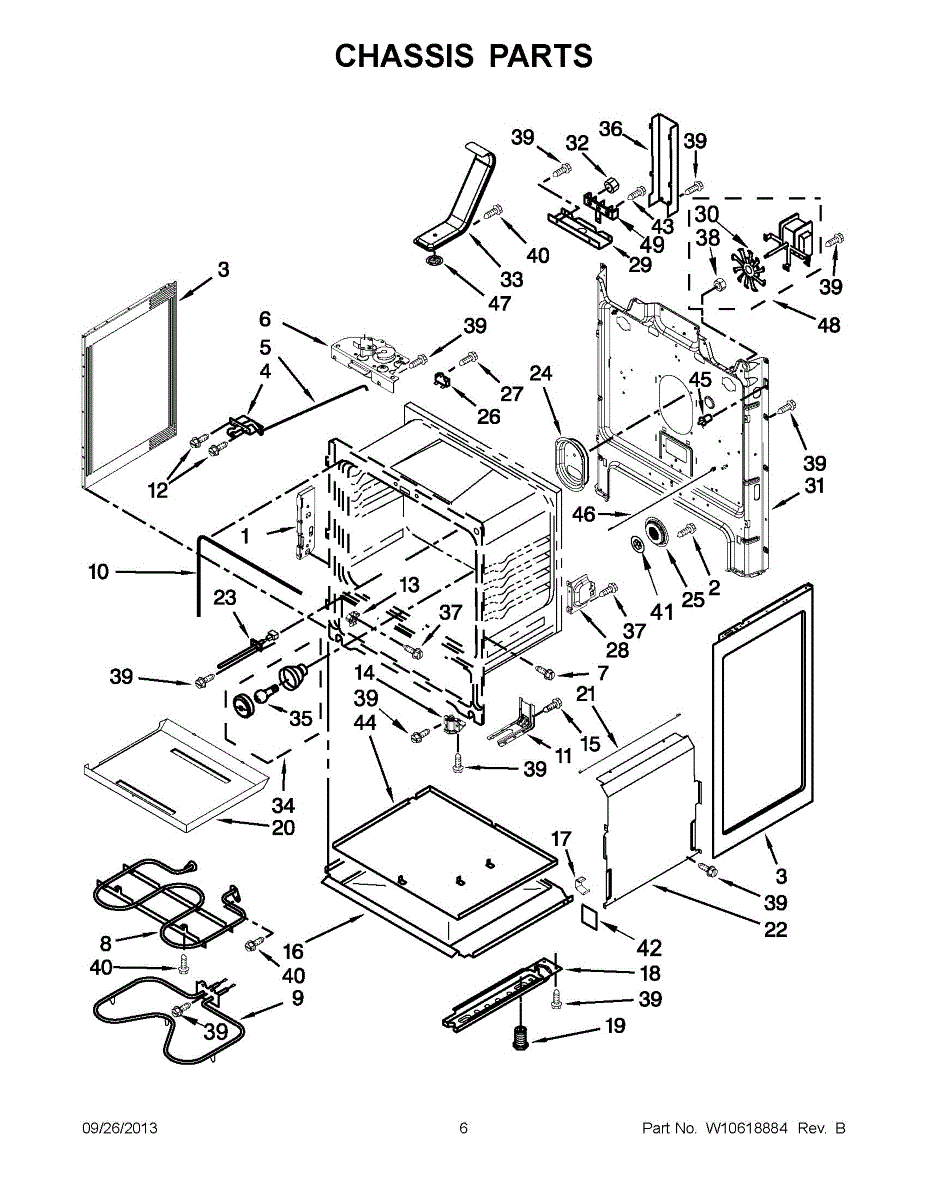

Parts for Whirlpool WFE525C0BS0: 04 - Chassis Parts

Mounts to the range frame to anchor the door hinge arm. Replace if cracked, bent, or worn to restore proper door alignment and smooth operation.

Replacement mounting screw for securing panels, brackets, covers, and trim pieces in appliances. Restores fit when hardware is missing, stripped, or lost.

Replacement side panel that restores your range's exterior finish. Covers dents, scratches, or damaged cabinet trim. Easy-to-install cosmetic part.

Complete front door assembly for electric and gas ranges. Replaces cracked, dented, or misaligned doors that no longer close or secure properly.

Replacement door latch rod that connects the latch assembly to the mechanism. Needed when the original rod is bent, broken, or missing from your range door.

This rear latch assembly secures the dryer door so the appliance can latch and run properly. It replaces a worn or broken rear latch to restore reliable door closure and help the dryer start and stay closed during cycles. What it does:

• Secures the dryer door to engage the door switch so the dryer will start
• Keeps the door closed during operation to prevent interruptions mid-cycle
• Replaces a broken, bent, or worn latch that prevents the door from latching
• Commonly used when the dryer won't start, stops unexpectedly, or the door won't stay closed

• Disconnect power (unplug or switch off breaker) before beginning any work
• Installation may require removing the dryer top or front panel; follow the model's service instructions
• Handle panels and metal edges carefully to avoid cuts
• After installation, verify the door latches securely and the dryer starts before reassembling all panels

This factory screw secures panels, brackets, or trim within your appliance. Replacing a missing or stripped fastener restores a tight fit, reduces vibration and rattles, and helps keep components aligned for reliable, long-term performance.

• Fastens panels, brackets, or trim to the appliance cabinet/frame
• Replaces damaged, rusted, or missing hardware
• Helps eliminate vibration noises, gaps, and loose-fitting parts
• Supports proper alignment of adjoining components

• Disconnect power; turn off gas/water supplies where applicable.
• Match to the original screw from your model's parts diagram before installation.
• Start threads by hand to avoid cross-threading; use the correct driver bit for the head.
• Tighten snugly—do not overtighten to prevent stripping threads or cracking plastic bosses.

Broil element burnt out or not heating? This top heating element provides intense direct heat for broiling. Takes 15-20 minutes to replace yourself.

Oven won't heat or takes too long to preheat? A failed bake element is the most common cause. This lower heating coil restores proper baking temperature.

Replace your range oven door gasket when torn or worn to restore an airtight seal and improve heating efficiency. Easy 5-15 minute install. Confirm fit.

Safety bracket that secures your range to the floor to prevent tipping. Replace if missing, broken, or during new installation. Essential for homes with children.

Replacement mounting screw for ranges. Secures panels, trim pieces, control boards, and brackets. Order when original screws are missing, stripped, or damaged.

Replace broken or worn drawer glides that cause wobbly drawers or difficulty opening and closing your range storage drawer. Verify fit by model number.

Front leveling foot adjusts range height for stability. Replaces cracked, broken, or missing feet. Ensures proper leveling to reduce vibration.

Replace missing or stripped screws for your range anti-tip bracket. This 2-piece hardware set secures the bracket to the wall or floor for stability.

Secures and aligns the oven door on your electric range. Replace this retainer if it's cracked, broken, or missing to properly hold door components in place.

Structural support base for range drawer rail assembly. Replacement needed when original is cracked, broken, or warped causing misalignment or instability.

Adjustable leveling leg installs on the front or rear corners of your range. Replace if broken, cracked, or worn to stabilize and level your appliance.

Replace your range's damaged or missing baking tray. This oven tray installs inside the oven cavity for standard baking needs. Order now if worn or cracked.

Fix oven temperature issues, error codes F3E2/F3E0, or uneven cooking. This oven sensor is a straightforward 10-minute DIY repair with our video guide.

Oven won't heat or both elements stopped working? A faulty thermal fuse cuts power to prevent overheating. Easy DIY fix with basic tools in under an hour.

Replacement mounting screw for securing appliance panels, trim, and internal components. Restores proper fastening when original screws are missing or stripped.

Secures and stabilizes range components to reduce movement and maintain alignment. Replace if cracked, broken, or missing to stop rattling and restore support.

Service bracket for electric and gas ranges. Mounts internal components securely. Replace if bent, broken, or missing to restore proper structural support.

Fix rattling or noisy oven fan with this convection fan blade. Restores proper airflow for even baking temperatures. Mounts directly on motor shaft.

This 10-32 terminal block nut fastens wire lugs to the appliance's terminal studs. Replacing a missing, stripped, or corroded nut restores a tight, reliable connection and helps prevent heat damage or intermittent power at the connection.

• Secures wire lugs to a 10-32 terminal stud for a solid electrical connection
• Restores proper clamping force when the original nut is stripped, corroded, or missing
• Helps address loose/burned terminal connections, heat discoloration, or intermittent power at the block
• Suitable for terminal block and similar 10-32 stud applications on compatible appliances

• Disconnect power at the breaker or unplug the appliance before servicing
• Inspect the terminal block, studs, and wiring for heat damage; replace any damaged components
• Clean threads and start the nut by hand to avoid cross-threading; tighten firmly without overtightening
• If the stud turns while tightening, hold it with an appropriate tool to protect the block

Light socket assembly houses your oven bulb and provides electrical connections to illuminate the interior. Replace when bulb won't stay secure or light fails.

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

Exposed wiring at the back of your range? This terminal block cover shields power connections from contact and debris, restoring safe operation.

Size: 8-18 x 1/2 inch.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

10-32 machine thread screw secures brackets, panels, and trim inside ranges and washers. Replace missing, stripped, or damaged fasteners to restore alignment.

Speed nut secures oven components in electric and gas ranges. Replace if nut is stripped, missing, or no longer holds parts firmly in place.

Self-tapping screw secures panels, brackets, and trim to range frames and housings. Replace worn, missing, or stripped fasteners to restore fit.

Secures and holds components in place on your electric range. Replace this retainer if it's cracked, broken, or missing to restore proper assembly.

This replacement light switch controls the oven/range interior light so you can safely check cooking progress without opening the door. Restores proper on/off function when the original switch fails or becomes intermittent. What it does:

• Replaces the failed oven/range interior light switch to restore on/off control
• Stops flickering or intermittent lighting caused by a worn switch
• Allows the oven light to turn on for safe, clear viewing of food while cooking
• Fits behind the control panel or light housing depending on model

• One replacement light switch

• Turn off power to the appliance at the breaker or unplug before starting
• Remove access panels or control housing to reach the switch; keep track of fasteners
• Disconnect wiring connectors by gently pulling straight off; note wire locations before removal

Replace a broken or missing door switch actuator rod on your range. This small rod engages the door switch to detect open/closed positions and control the interior light.

Fix uneven baking and roasting with this convection fan motor assembly. Restores proper air circulation when your oven fan stops working or makes noise.

The Terminal Block is an OEM part for Whirlpool ranges. It serves as a crucial connection point for the range’s electrical wiring, ensuring a safe and reliable transfer of power to the appliance.

Over time, terminal blocks can deteriorate due to factors such as heat exposure, electrical surges, or wear and tear. When the terminal block becomes damaged or corroded, it can lead to poor electrical connections or potential safety hazards.

Symptoms of a bad terminal block include:

• Burnt or scorched connections
• Intermittent power loss to the range
• Difficulty in the range heating up properly
• Visible damage or corrosion on the terminal block

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Insulation panel that wraps or lines the oven cavity to contain heat. Replace if worn, damaged, or missing to restore proper heat retention.

Fiberglass insulation installs behind oven and broiler walls to contain heat within the cavity. Replace if worn, compressed, damaged, or missing for safety.

The Oven Insulation is an OEM replacement part for Whirlpool ranges. Properly insulated walls are necessary to prevent heat loss through the oven exterior, ensuring consistent and even cooking from the inside out.

Causes of bad insulation include the breakdown of insulating materials over time due to repeated high heat exposure during cooking. Crumbling, compressed, or discolored insulation has lost its ability to hold in heat.

Symptoms of needing new insulation include:

• Inefficient and uneven cooking/baking performance
• Interiors not reaching/maintaining set temperatures
• Overheating or longer than normal cook times
• Hot or warm oven exteriors that were previously cool to the touch

This genuine Whirlpool OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
