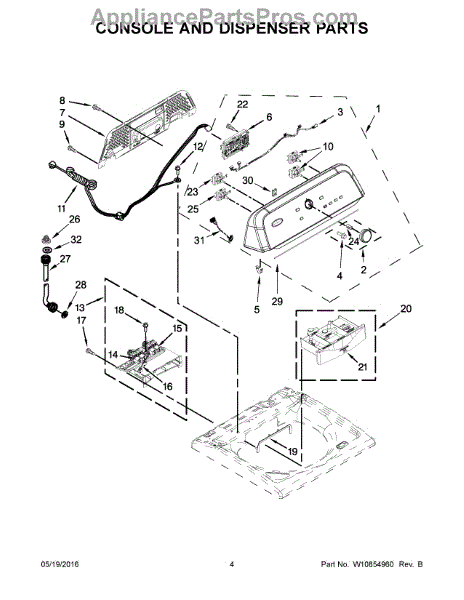

Parts for Whirlpool 7MWTW5622BW1: 03 - Console And Dispenser Parts

This electronic control board governs washer functions and user interface, restoring control panel operation and cycle selection so your washer responds correctly to button presses and cycle settings. What it does:

• Receives input from the console and directs washer cycle operations
• Controls timing, fill/drain commands and motor/pump signals
• Resolves symptoms like unresponsive buttons, no power to cycles, or cycles not advancing
• Works with the washer's display and indicator lights to show status and error codes

• One electronic control board assembly

• Disconnect power to the washer before service to avoid shock
• Handle the board by the edges and avoid static discharge; wear an anti-static strap if available
• Reassemble panels and test basic cycles after replacement to confirm proper operation

The Screw is an OEM component compatible with Whirlpool washing machines. This screw secures the rear panel onto the cabinet frame, ensuring a sturdy connection between housing components.  Proper installation is critical for the washer's structural integrity.

Causes of a bad screw include corrosion from repeated water exposure or stresses from years of use. Loosening can occur from vibrations weakening the threads over time.

Symptoms of a bad screw include:

• Rear panel detaching from frame opening gaps
• Increased noise and vibrations from a compromised seal
• Stress on other connections from improper mounting points
• Potential leak paths from openings near hoses or tub areas

This OEM Whirlpool replacement screw helps maintain a tight panel closure. It is compatible with additional brands like Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Console Clip is an OEM part compatible with Whirlpool dryers. This clip secures the control console assembly to the top panel, ensuring it is firmly mounted during operation. Properly functioning clips are necessary to maintain the correct alignment of controls and prevent detachment.

Causes of a bad clip can include wear and fatigue from repeated opening and closing of the dryer door. Excessive force or impact could also bend or break the clip over time.

Symptoms of a bad clip include:

• Loose console assembly that is not securely fastened
• Misaligned or dangling controls that do not sit flush
• Dislodged console at risk of detaching from housing
• Missing clip leaving an open mounting point

This OEM Whirlpool replacement clip is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

This is a replacement power cord that restores electrical connection to the appliance so it powers on safely and reliably. Use it when the original cord is damaged, frayed, or no longer making a secure connection. What it does:

• Provides the main AC power connection between the appliance and household outlet
• Replaces damaged, cut, or burned cords that cause intermittent power or no power
• Helps prevent arcing and unsafe connections when the original cord's insulation or plug is compromised
• Restores a secure line connection for?? operation and diagnostics

• One replacement power cord

• Disconnect power at the breaker or unplug the appliance before starting any work
• Inspect cord routing and strain relief; replace the strain relief if the OEM design requires it
• Secure connections to the terminal block or wiring harness per OEM orientation and torque; verify tight, corrosion-free contacts

The Screw is an OEM component compatible with Whirlpool washing machines. This screw secures the rear bulkhead to the tub, ensuring vibrations are reduced through solid mounting points. Properly installed screws dampen oscillating movement.

Causes of a bad screw include damage from water exposure like corrosion or breakage from stress concentrations if the tub bangs around during imbalanced loads.

Symptoms of a bad screw include:

• Loose or detached rear bulkhead allowing side-to-side play
• Excessive noise and shaking felt through the surrounding walls
• Development of micro-cracks around screw holes over time
• Potential leak paths if holes are no longer sealed

This Whirlpool replacement screw restores a stable suspension system. It is compatible with additional brands like Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement housing is the molded support/cover used in select appliances to secure and protect its mated components. It restores proper alignment and sealing when the original housing is cracked, warped, or has broken mounting tabs. What it does

• Provides a rigid mount and enclosure for the associated component(s)
• Maintains correct alignment and sealing to prevent leaks or air loss
• Protects internal parts from damage and vibration
• Common failure signs: visible cracks, broken tabs, rattling, poor fit, or leakage around the assembly

• Housing

• Disconnect power before servicing; if the part interfaces with water, shut off the water supply
• Note orientation and transfer any screws, clips, seals, or O-rings from the original part
• Inspect mating seals and fittings; replace any worn gaskets to ensure a proper seal
• After reassembly, restore power/water and test for proper operation and any leaks or noise

This is a genuine replacement mounting screw that secures appliance components and panels so parts stay aligned and stable. Installing the correct screw restores proper fit and helps eliminate vibration or loose panels. What it does:

• Fastens panels, brackets, or small components in place
• Replaces missing, stripped, or damaged screws that cause loose parts
• Helps stop rattling, vibration, or misaligned panels
• Restores secure connections after repairs or part replacement

• One mounting screw

• Unplug the appliance or disconnect power before starting work
• Use the correct screwdriver bit to avoid stripping the head
• Tighten until snug; avoid over-tightening which can strip threads or crack plastic
• Keep removed hardware organized so you can reuse existing screws when applicable

This replacement screw secures panels, brackets, and other components in your appliance to keep them aligned and rattle-free. Replacing worn, stripped, or missing hardware restores a tight fit and helps maintain safe, quiet operation.

• Fastens panels, brackets, or internal parts to the cabinet/frame
• Helps maintain alignment to reduce vibration and rattling
• Replaces lost, stripped, or corroded screws
• Common symptoms: loose panels/trim, rattles, or a screw that won't tighten

• Disconnect power; shut off water or gas if applicable
• Match thread and length to the original; replace one at a time to keep alignment
• Start threads by hand to avoid cross-threading; use the correct driver
• Tighten snugly—do not overtighten, especially into plastic or thin sheet metal

This is a replacement refrigerator storage drawer. It restores smooth sliding and dependable storage when the original drawer is cracked, warped, or missing, helping you keep items organized and easy to access. What it does

• Provides enclosed storage for food items inside the refrigerator
• Slides on the existing rails for easy access and organization
• Helps keep contents visible and separated from other items
• Common failure symptoms: cracks, broken tabs, drawer falling off tracks, hard to open/close

• 1 drawer

• Disconnect power and remove items from the drawer area before starting
• Fully extend and lift to remove the old drawer; clean the tracks
• Align the new drawer with both rails and slide it in evenly
• Do not force; ensure tabs and tracks are properly seated

This facia assembly is the dispenser front panel that restores the appearance and proper user access to the detergent/softener dispenser. It provides a clean, secure fit for the dispenser opening and controls. What it does

• Replaces a cracked, warped, or broken dispenser front panel to restore a proper seal and appearance.
• Keeps detergent and fabric softener contained and directed into the dispenser slot.
• Provides the mounting surface and user access for the dispenser insert and controls.
• Helps prevent water or detergent from leaking into the console area around the dispenser.

• One dispenser facia assembly.

• Disconnect power to the appliance before starting any repair.
• Some installations require removing the console or control panel—handle panels gently to avoid scratching.
• Use appropriate screwdrivers and keep fasteners organized for reassembly.

The Switch Mounting Screw is an OEM part compatible with Whirlpool washing machines. This screw securely mounts the cycle selector switch within the control console assembly. Proper fastening ensures dependable operation of control functions.

Causes of a bad mounting screw can stem from stress cracks developing over multiple years of operation. Vibrations accumulate, slowly loosening connections housed in a wet environment.

Symptoms of a bad mounting screw include:

• Loose or rattling switch within the console face
• Difficulty selecting cycles as buttons wobble out of place
• Water intrusion hastening corrosion of electrical terminals
• Potential shock hazards if live connections are exposed

This Whirlpool replacement screw restores a tight mounting point. It is compatible with brands like Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Knob Spring Clip is an OEM part for Whirlpool appliances, specifically designed for use in washers and dryers. This small but essential component is responsible for securing the control knob to the control panel, ensuring that the knob stays firmly in place during operation.

Common causes of a bad spring clip include frequent use, accidental impacts, or wear and tear over time. A faulty spring clip can result in the control knob becoming loose or falling off, making it difficult to operate the appliance.

Symptoms of a bad knob spring clip include:

• The control knob is loose or wobbly
• The control knob falls off easily
• Difficulty in turning or setting the control knob
• The appliance not responding correctly to knob adjustments

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Size: 5 foot long. Rubber fill hose used on most automatic washing machines. Two hoses used per machine.

Size: 1-1/16 x 5/8 inch. Used for fill hose. For a 4 pack order 285448A

This replacement nut secures appliance parts and hardware to keep assemblies stable and prevent loose connections. It's a simple, direct replacement for worn or missing fastening hardware to restore proper fit and reduce vibration. What it does:

• Fastens mounting studs, brackets or panels to hold components in place
• Restores secure mechanical connections that can loosen over time
• Helps eliminate rattling, vibration and misaligned panels caused by missing or stripped hardware
• Provides a straightforward, durable replacement for corroded or damaged nuts

• Disconnect power to the appliance before beginning any repair
• Use the correct-size wrench or socket; ensure threads engage smoothly before tightening
• Tighten until snug—avoid overtightening that can strip threads or damage components
• Inspect mating threads and replace any damaged studs or hardware for a reliable repair

Size: 1-1/16 x 5/8 inch. Used for fill hose. For a 4 pack order 285448A
