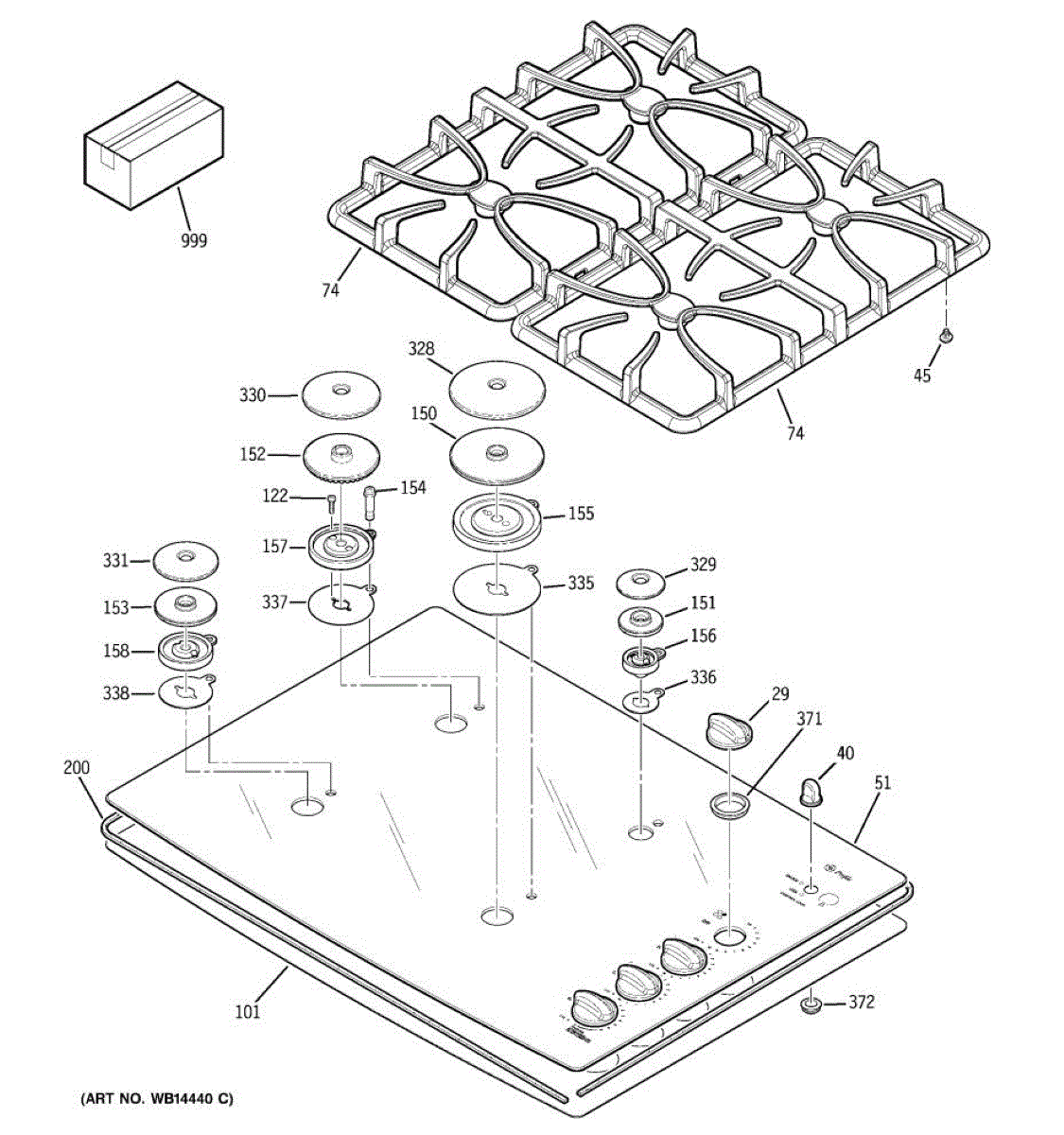

Parts for Ge JGP940TEK1WW: 02 - Control Panel & Cooktop Parts

Color: White

Rubber foot that attaches to the bottom of cooktop grates. Replace if cracked, worn, missing, or loose to prevent grates from sliding and scratching.

White 30-inch glass main top for cooktops. Replaces cracked, chipped, or broken glass cooking surfaces. Direct-fit replacement part.

This replacement cooktop grate assembly restores a stable cooking surface for gas ranges, letting cookware sit level and burners operate safely. It replaces damaged or worn grates to help prevent pans from wobbling and improve usability. What it does:

• Supports pots and pans securely over the burner for safer cooking
• Replaces cracked, chipped, or warped grates that cause instability
• Helps burners and cookware align properly for consistent heat contact
• Restores the cooktop's original appearance and functionality

• Turn off the appliance and allow the cooktop to cool completely before handling
• Lift out the old grate and set the new grate into place; ensure it seats flat and stable
• No wiring or gas-line disconnection is required for grate replacement

Replace worn or missing cabinet liner insulation in your cooktop. Installs in the cabinet cavity to restore the thermal barrier. Fabric side faces up.

This machine screw is an authentic OEM replacement part sourced directly from the manufacturer. It is used in securing the burner head to the gas range top so that it can be used for cooking. If the burner head becomes loose or the screw is missing, it should be replaced. For safety reasons, the burner should not be used until this screw is replaced; the burner head could shift during cooking and lead to a fire. To start, disconnect the gas and power from the stove to prevent accidental ignition of the burner. Make sure the burners are not hot. Remove the burner grate and burner cap from the burner that is missing a screw. Install the new screw in the hole and tighten it with a screwdriver. Put the burner cap and burner grate back on the stove and reconnect the gas and power. Periodic inspection of the burner heads and all associated screws and parts on the stovetop will prevent accidents and keep the stove working correctly. This screw is a silver, metal part that is sold individually. It is designed for use in gas rangetops manufactured by General Electric and Hotpoint.

Burner head sits on top of the burner base on gas cooktops. Replace if warped, cracked, or causing uneven flame distribution across the burner surface.

Burner head component that sits atop the gas burner base on cooktops and ranges. Replace if warped, cracked, or no longer fitting correctly.

B Burner

C burner

Burner won't light or clicking with no spark? This igniter creates the spark to light gas burners. Easy press-fit installation takes 15 minutes.

Burner base that sits beneath the burner cap on your cooktop. Replace this component if damaged, cracked, or missing to restore your burner's appearance.

Burner base for gas cooktops, secures to cooktop surface and holds igniter assembly. Replace if cracked, broken, or damaged during repairs.

Burner base installs beneath the burner cap on gas cooktops. Replace if cracked, warped, or dome-shaped to restore proper flame coverage and alignment.

Approx 3 inches in diameter

Foam seal tape creates an airtight barrier between your cooktop and countertop, preventing spills from dripping into cabinets. Replace when worn or gaps appear.

Grey. D Burner

Grey burner cap for gas cooktops and ranges. Covers the burner head assembly. Replace if cracked, chipped, discolored, or missing for proper flame distribution.

Grey burner cap for gas cooktop. Sits atop the burner base to distribute flame evenly. Replace if cracked, chipped, discolored, or missing.

Grey. C Burner

Note: The part is approximately 4" in diameter.

Small

Note: The part is approximately 2-3/8" in diameter.

Seals burner assembly to cooktop surface, preventing gas leaks and ensuring proper ignition. Replace if cracked, brittle, or damaged during cleaning.

Seals and protects the cooktop control panel from moisture and debris. Replace if worn, cracked, or loose to prevent damage. Verify fit with your model number.

Note: Ignitor wires
