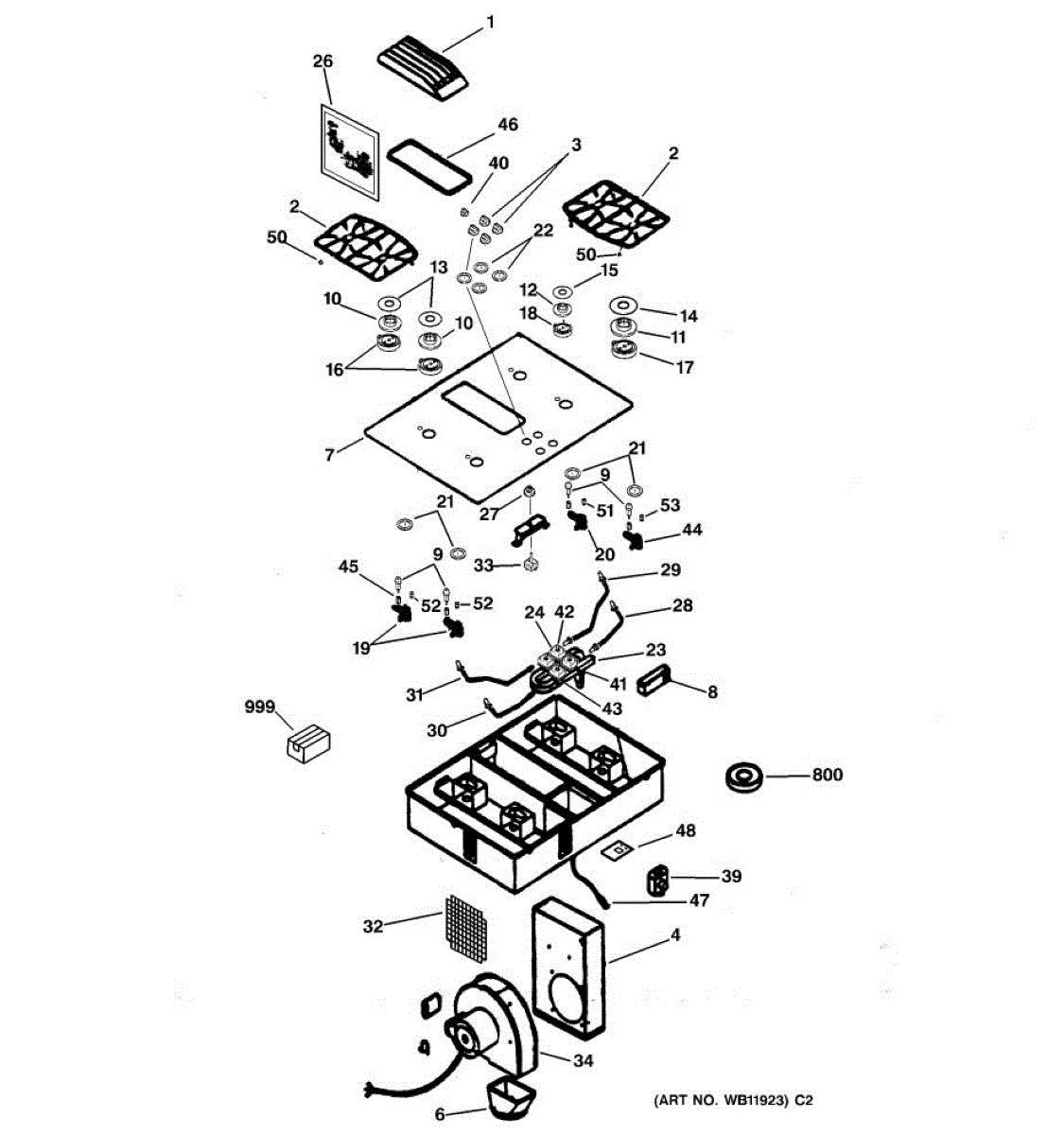

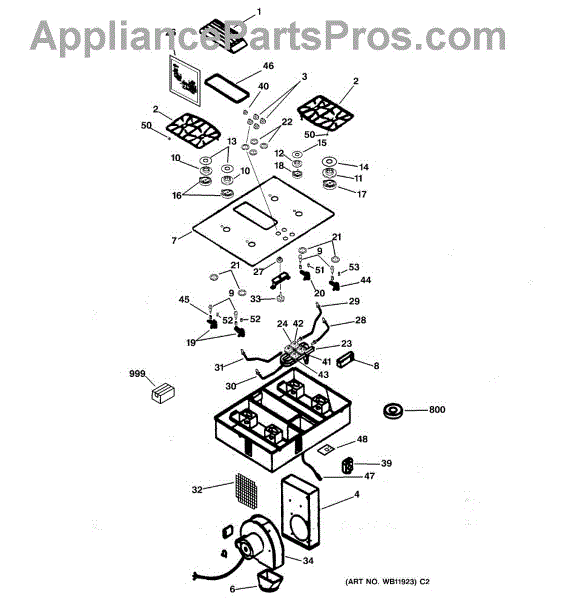

Parts for Ge JGP989BC1BB: 01 - Control Panel & Cooktop Parts

This OEM replacement part is a grate burner for stoves. The grate burner is the black metal frame that is used to support pots and pans for cooking. If the grate burner is damaged to the point of no longer being operable, it will need to be replaced. To replace the grate burner, simply pull out the old grate by lifting it up from the stove. Once removed, set it to the side. Take the new grate burner and place it directly on top of the stove in its correct position. Make sure it is set securely. This genuine replacement part is sold individually and is sourced directly from the manufacturer. It is compatible with General Electric, Hotpoint, and RCA brand appliances.

The Spark Module is an OEM replacement part for GE gas ranges. It is responsible for generating electric sparks to ignite the gas burners on the cooktop. The spark module produces consecutive sparks when a surface burner knob is turned on, which ignite the gas mixture and allows the burner flame to ignite safely and consistently.

Causes of a bad spark module can include faulty electrodes, worn internal components that hamper sparking, or damage due to moisture intrusion or power surges over time.

Symptoms of a bad spark module include:

• Burners that will not ignite or only intermittently ignite
• Flashback or burning above the burner head
• The smell of gas when turning burners on

This GE replacement part is also compatible with models from Hotpoint, RCA, and certain Kenmore gas ranges.

This igniter lights the gas at a burner. Replacing a worn or cracked igniter restores quick, consistent ignition so your gas range or cooktop lights reliably and heats as expected without repeated tries.

• Provides the ignition source to light burner gas when heat is selected
• Supports consistent flame start-up for reliable cooking performance
• Common symptoms include: burner won't ignite, delayed or intermittent ignition, or needing to light manually
• Visual clues can include a cracked insulator or damaged igniter tip/element

• Disconnect power and shut off gas before servicing; allow the appliance to cool completely
• Access the igniter per your model; note wire routing and mounting before removal
• Transfer any reusable mounting clip/grommet from the old part to the new one
• Handle the igniter carefully and avoid touching the element/tip; ensure secure connections and test ignition before reassembly

Color: Black. This medium burner cap is used to ensure the gas burner's heat is evenly distributed for cooking on gas stoves. The burner cap sits under the burner grate and covers the exposed flame, acting as a sort of hot plate. As the flame heats the cap, the heat is distributed upwards. The amount of heat is determined by temperature control which adjusts the gas flow. This burner cap is designed for the medium burners on the stove and should not be used for other size burners. Over time, the burner cap may become damaged due to food spills or simply due to the stove's age. If the cap is damaged, it should be replaced before cooking on the burner.Make sure the stove is completely cool before removing and replacing the burner cap. Remove the cooking grate and set it aside. Lift the burner cap and remove it from the stove. Line the new burner cap up and place it over the burner spreader. Put the grate back on the stove.This medium burner cover is made of heat-tempered metal and is sold individually. It is an authentic OEM part sourced directly from the manufacturer. It is designed for use on gas stovetops manufactured by General Electric.

This burner cap is an authentic OEM replacement part sourced directly from the manufacturer. It is used on gas ranges to distribute the burner's heat evenly. There are various size burners on gas stovetops, with each size having a specific size of burner cap. This cap is for large burners and should not be used on other size burners. Over time, the burner cap may become rusted from being washed or having liquids spilled on it. If the cap is damaged, it should be replaced before cooking on the burner.To start, disconnect the gas and ensure that the grate and burner are completely cool before touching the parts. Remove the cooking grate and set it aside. Lift the burner cap and remove it from the stove. Align the new burner cap up with the grooves on the burner and set it flush. Restore the grate and turn the gas back on to operate the stove. Test the burner to make sure it is seated correctly.This large burner cover is made of heat-tempered metal and is sold individually. It is designed for use on gas stovetops manufactured by General Electric.

Approx 2-1/2 inches in diameter

Approx 3 inches in diameter

Includes the natural gas orifice

This burner inlet assembly directs gas from the manifold to a single cooktop burner, restoring proper gas flow and stable ignition for safe, even flames. It replaces a worn or damaged inlet to help your range light reliably. What it does:

• Channels gas from the manifold to the burner so the burner can ignite
• Supports proper ignition and consistent flame strength
• Can resolve symptoms like a burner that won't light or produces a weak/uneven flame
• Helps prevent gas routing problems when the inlet is cracked or clogged

• Turn off the gas supply and electrical power before servicing.
• Use proper tools and replace only with the exact part; verify fit against your appliance diagram.
• Inspect seals and fittings; test carefully for leaks after installation (use a leak detector or soapy water).

This burner grommet sits beneath the gas burner head on the cooktop surface, providing a snug seat and spill barrier. Replacing a worn grommet helps keep the burner level and helps prevent spills and debris from entering the burner box.

• Seats and centers the burner head on the cooktop
• Helps seal around the burner opening to limit spill intrusion
• Maintains proper burner height and stability
• Replaces grommets that are cracked, shrunken, or deformed
• Common signs: burner wobbles or sits unevenly, visible wear, or liquids leaking under the top

• Disconnect power and shut off gas supply before servicing
• Remove grates and burner caps; lift off the burner head carefully to avoid damaging the igniter
• Remove the old grommet and clean the recess; press the new grommet fully and evenly into place
• Reassemble and verify burner alignment and ignition before restoring gas and power

This rubber grommet seals the cabinet opening where a water valve or hose passes through, helping prevent leaks and reducing vibration. It's a simple replacement that restores a tight, water-resistant seal around the valve area. What it does

• Provides a cushion and seal around a water valve or hose where it passes through the cabinet wall
• Helps stop drips or minor leaks that travel along the cabinet opening
• Reduces vibration and rattling from the valve or connected lines
• Commonly replaced when the original grommet is cracked, brittle, or missing

• One grommet

• Disconnect power and shut off the water supply before starting any work
• Remove the old grommet and clean the mounting area; push the new grommet into the valve hole until fully seated
• Inspect valve hose alignment and test for leaks after restoring power and water

This tubing routes water inside the refrigerator for the dispenser and ice maker, restoring a sealed path for reliable water flow. It replaces damaged or leaking internal supply tubing to stop drips and restore normal dispensing. What it does

• Carries water between the inlet, dispenser, and ice maker components
• Restores proper water flow when internal lines are cracked, pinched, or clogged
• Stops visible leaks or moisture inside the fresh-food compartment
• Helps prevent water damage and keeps the dispenser/ice maker functioning

• One refrigerator water supply tubing assembly (as shown)

• Shut off the refrigerator water supply and unplug the appliance before beginning
• Use care removing trim/panels to access internal tubing; keep track of clips and fasteners
• Make secure, leak-free connections; replace any damaged clips or fittings
• After installation, restore power and water, then check all connections for leaks

This 3-speed blower switch controls the exhaust fan in your range hood, allowing you to select low, medium, or high airflow. Replacing a worn switch can restore dependable ventilation and proper speed control. What it does:

• Selects low, medium, or high fan speed by routing power to the blower motor
• Helps resolve a fan that will not run, runs only on one speed, or will not change speeds
• Can address a switch that feels loose, sticks, or works intermittently

• 1 three-speed blower switch

• Disconnect power at the breaker before servicing
• Access the control area; note wire locations (or take a photo) and transfer wires to the new switch one at a time
• Ensure push-on terminals are fully seated and secure
• Test all fan speeds before reassembly

The Pressure Regulator is an OEM part for GE ranges. This part controls and maintains the appropriate gas pressure flowing to the burners, ensuring consistent and safe operation of the stove.

Causes of a bad pressure regulator can include wear and tear over time, exposure to high temperatures, or contamination from dirt and debris.

Symptoms of a bad pressure regulator include:

• Inconsistent or fluctuating burner flames
• Burners not igniting
• The smell of gas around the range
• Reduced cooking efficiency

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Color: glossy black. Measures about 1 inch in diameter, and 1 inch deep.

This water inlet valve controls water flow to the refrigerator's ice maker and dispenser, restoring normal ice production and water dispensing when the valve fails. Durable direct-fit replacement for affected GE refrigerators. What it does

• Opens and closes to supply water to the ice maker and dispenser when the dispenser or ice maker calls for water.
• Commonly used to fix no-water or low-water flow to the ice maker or dispenser.
• Stops water flow when the refrigerator is off to prevent leaks or flooding.
• Works with electrically controlled solenoid valves in the water system.

• One water inlet valve

• Disconnect power and shut off the household water supply before starting work.
• Access may require removing interior panels, the back cover, or toe panel depending on the model.
• Replace using the existing mounting and wiring connections; use new water line fittings if old fittings are corroded.

This gas surface burner valve controls the right-rear burner on your cooktop or range, regulating gas flow as you turn the knob. Replacing a worn valve restores consistent ignition and precise flame control at that position.

• Regulates gas flow to the right-rear surface burner for on/off and flame level control
• Common symptoms include no ignition, uneven or weak flame, or poor flame adjustment at that burner
• Stiff, loose, or wobbly knob action at the RR position can indicate internal valve wear
• If a gas odor is detected, shut off gas and have the unit serviced before use

• Disconnect power and shut off the gas supply before servicing
• Remove the knob and front panel to access the manifold; note valve orientation and connections
• Support the manifold with a second wrench while loosening/tightening fittings to avoid damage
• After installation, perform a soap-solution leak test on all connections and verify proper ignition and flame

This surface burner valve regulates gas flow to a cooktop/range burner. Used in the left front or right rear position, it restores smooth knob control so the burner lights and the flame adjusts properly from simmer to high. What it does:

• Meters and shuts off gas to a single top burner
• Position-specific: intended for the left front or right rear location on the manifold
• Helps resolve issues like a hard-to-turn knob, inconsistent flame height, or a burner that won't adjust as expected
• Can correct no-gas flow to that burner when the original valve is blocked or failed

• 1 gas surface burner valve (LF/RR orientation)

• Shut off gas supply and disconnect power before servicing
• Lift the cooktop/top panel to access the manifold; note hose/tube routing and valve orientation
• Transfer any orifice holder/fittings from the old valve as required; avoid overtightening compression connections
• Use an approved gas-thread sealant if specified and leak-test all joints with a soap-and-water solution before use

The Electrode Clip is an OEM part for GE gas ranges. This part secures the electrode, which provides the ignition spark that lights the burners.

Causes of a bad Electrode Clip can include corrosion, physical damage from impact or mishandling, or loosening over time due to heat exposure and repeated use.

Symptoms of a bad Electrode Clip include:

• Failure of the burners or oven to ignite
• Intermittent or inconsistent ignition
• Visible damage or deterioration of the clip itself

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Grate Foot is an OEM part for GE cooking ranges and stovetops. This small but essential component provides stability to the burner grates, preventing them from sliding or wobbling during use. Includes 1 rubber foot that goes on the bottom of stove top grates to protect the stovetop if feet become damaged or lost. Sold individually. Order as needed. If you also need an adhesive, order W10841140.

Symptoms of a bad grate foot include:

• Grates that move or wobble when touched
• Scratches or damage to the stovetop surface beneath the grates
• Unstable cookware positioning, potentially leading to spills or uneven cooking

Causes of damage to the grate foot often include regular wear and tear, heat degradation, or impact from heavy pots and pans being dropped or dragged across the grate.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Liquid propane

This scraper blade replaces a worn or damaged cleaning scraper to help remove baked-on food and residue from appliance surfaces, restoring the tool used for safer, easier cleanup. Ideal when the existing scraper is dull or broken. What it does:

• Provides a sharp edge to lift and remove stubborn, baked-on spills and residue from glass and smooth appliance surfaces
• Helps restore proper scraping action when the original blade is nicked, bent, or missing
• Reduces the need for excessive scrubbing or abrasive cleaners that can damage surfaces
• Commonly used to address poor cleaning results or an unusable scraper tool

• Disconnect power to the appliance and allow all surfaces to cool fully before handling
• Handle the blade carefully; edges may be sharp—wear cut-resistant gloves
• Replace only the damaged scraper blade; follow OEM instructions for securing the blade if required
• Test scraping action gently after installation to ensure proper fit and avoid surface damage

The Foam Tape is an OEM part for GE gas ranges. It serves as a sealant, ensuring a proper fit and preventing the escape of heat and gases from the range. This tape helps maintain the efficiency of the range by providing an airtight seal around various components.

Causes of a bad Foam Tape can include wear and tear over time, exposure to high temperatures, or physical damage during cleaning or maintenance. When the foam tape degrades, it can compromise the range's performance and safety.

Symptoms of a bad Foam Tape include:

• Heat escaping from the range
• Gas odors near the appliance
• Visible wear or gaps in the seal
• Decreased cooking efficiency

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Cerama Bryte Cooktop Cleaner is a special cleaner designed specifically for ceramic glass and smooth-top cooking surfaces. It easily removes cooked-on foods, spills, or grease while leaving your cooktop looking like new. This product contains no abrasives or harsh chemicals, so it won’t scratch or damage your delicate cooktop surface.

To use the cleaner effectively, all you need to do is spray it onto the surface and then scrub it with a clean damp cloth. Use circular motions for best results. The product can also be used to remove baked-on foods from grates and drip pans on your stovetop. For tougher stains, let the cleaner sit for a few minutes before wiping it away.
