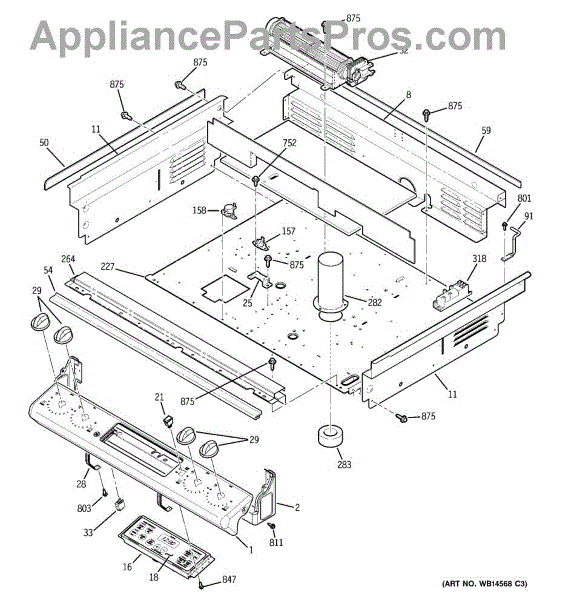

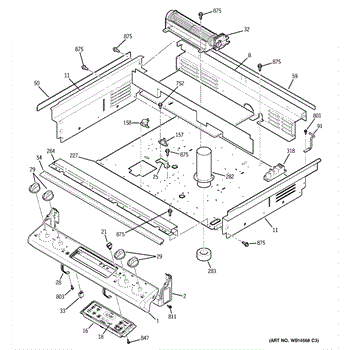

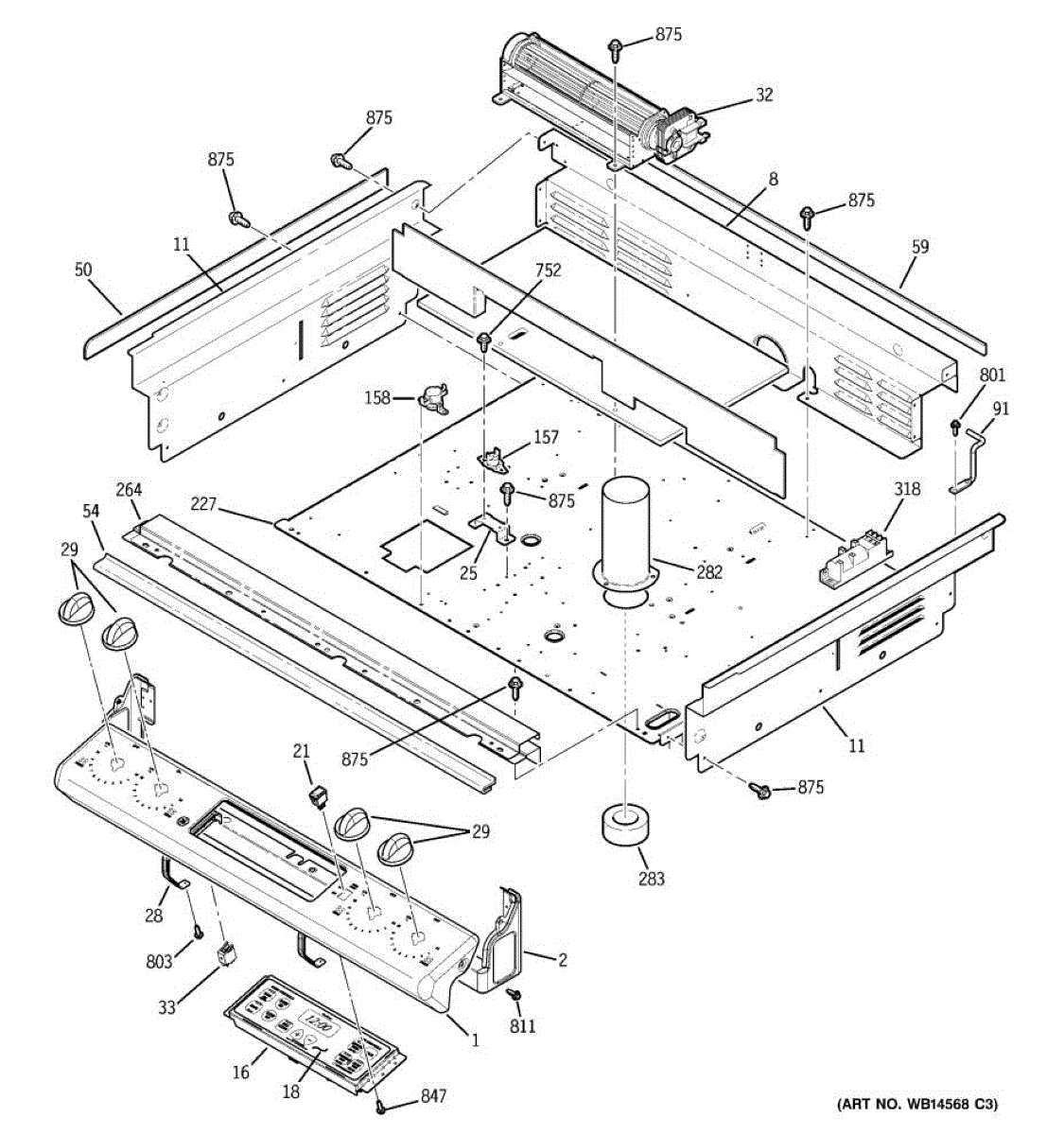

Parts for Ge JGSP28DEN2WW: 06 - Control Panel & Cooling Fan Parts

Touch pad control panel for ranges. Installs on the front control surface. Replace if the graphics are worn, faded, peeling, or the panel is cracked or damaged.

Replace your range's bottom control panel trim if it's cracked, broken, or missing. This decorative trim piece installs below the control panel area.

This is the lower control panel located beneath the main touch pad area on the front of the range. It serves as the structural and cosmetic housing for the bottom portion of the control interface. Replace this panel if it is cracked, warped, discolored, or if the finish has deteriorated to the point that it no longer properly supports or protects the control components behind it.

Oven won't heat or ignitor doesn't glow? A failed control board prevents baking and broiling. This replacement restores temperature control and operation.

Plastic faceplate graphics assembly that covers electronic range controls. Replace if cracked, faded, or damaged. Displays function labels like Bake, Broil, and Time.

This is a rocker-style switch used on ranges and ovens, commonly controlling the oven light or other on/off functions. It mounts on the control panel and toggles between on and off positions. Replace this switch if the oven light no longer turns on or off, the switch feels loose or broken, or the toggle does not stay in position.

This is a white rocker switch used on the control panel of a range or oven. It functions as an on/off toggle for a specific burner or oven feature. Replace this switch if it no longer clicks into position, feels loose, or fails to activate the corresponding element when toggled.

This mounting bracket secures the appliance switch in place to maintain reliable switch alignment and operation. It's a simple replacement that restores proper switch positioning and helps prevent intermittent or failed switch contact. What it does

• Holds the switch assembly firmly in the correct position for consistent operation
• Prevents switch movement that can cause intermittent operation or failure to engage
• Commonly replaced when a loose or broken bracket causes the appliance not to start, stops mid-cycle, or has inconsistent controls
• Compatible with the factory switch design to maintain original fit and function

• Disconnect power to the appliance before starting any repair
• Basic hand tools are typically required; keep screws and small parts organized
• Handle the switch and wiring carefully; avoid pulling on wires during replacement
• After installation, restore power and test the switch operation before reassembling panels

This control bracket secures and positions the range/oven control assembly so the console stays stable and the control board is properly aligned. Replacing a damaged bracket restores firm mounting and reliable button/knob operation. What it does:

• Mounts and supports the control board/console to the appliance cabinet
• Keeps the control panel aligned to prevent rubbing, vibration, or mispositioned buttons
• Prevents the control assembly from shifting during use, which can cause intermittent controls
• Helps maintain consistent button/knob actuation and overall console stability

• Disconnect power to the appliance before starting any repair
• Access usually requires removing the console or control panel; keep or note screw/hardware locations
• Handle the control board and wiring gently to avoid connector or component damage

This blower assembly circulates air through the appliance to support drying and venting, restoring proper airflow for consistent performance. It replaces a worn or damaged fan wheel and housing to reduce overheating and poor drying. What it does:

• Moves air through the appliance to aid drying and ventilation
• Restores airflow lost from cracked, warped, or broken blower wheel
• Helps eliminate overheating, long-dry times, or reduced airflow
• Works with the motor and ducting to maintain proper exhaust flow

• One blower assembly

• Disconnect power before servicing to avoid shock or injury
• Inspect motor shaft and mounting before installing; replace any damaged hardware
• Ensure blower is oriented and secured per manufacturer alignment to prevent noise or imbalance
• Verify clear, unrestricted ducting after installation for proper performance

Pilot indicator light mounts in the control panel and illuminates when a surface element or heating circuit is powered. Replace if burned out or stuck on.

Seals the right edge of your electric range cooktop to prevent spills from entering the chassis. Replace if worn, cracked, or no longer sealing properly.

Seals the left edge of your range cooktop to the chassis, containing spills and fumes. Replace when worn to restore a clean seal and easier cleanup.

This front gas-mount gasket seals the oven door/frame to help keep heat and combustion gases inside the appliance, improving efficiency and consistent cooking. It's a direct-replacement part used where a worn or damaged gasket lets heat or fumes escape. What it does:

• Creates a tight seal between the oven door and frame to reduce heat loss and maintain oven temperature
• Helps prevent combustion gases or odors from escaping the oven cavity
• Reduces drafts and uneven cooking caused by a compressed or torn gasket
• Restores proper sealing when the existing gasket is brittle, torn, or flattened

• One front gas-mount gasket

• Turn off and disconnect power; shut off gas supply and ensure the appliance is cool before starting
• Removal may require loosening or removing door/retainer screws or clips; keep fasteners for reinstallation
• Inspect the door and frame for damage and clean mating surfaces before installing the new gasket

Seals the top maintenance panel on over-the-range units to keep grease and steam out of internal cavities. Replace when worn to restore a snug seal.

This limit switch is a position-sensing safety switch used in cooking appliances. It signals the control when a mechanism reaches the correct position, helping the unit start or stop related functions reliably.

• Detects the position of a latch, cam, or actuator and opens/closes the circuit accordingly
• Allows the control to enable features only when the correct position is reached
• Common symptoms: related feature won't start or finish, motor runs but never "signals done," intermittent operation, or no continuity change when the switch is actuated
• Restores dependable interlock/position feedback to the control

• Disconnect power at the breaker before servicing
• Access point varies by model; the switch is typically mounted near the associated mechanism it monitors
• Move wires over one at a time and note terminal orientation to match the original setup
• The actuator is aligned and the switch clicks/changes continuity when pressed; test operation before reassembly

Oven overheating or won't heat properly? This thermal limit switch monitors temperature and cuts power to prevent damage. Resets automatically when cooled.

Black burner trim ring for gas ranges. Replaces cracked, chipped, or discolored trim pieces around stovetop burners. Restores a finished appearance.

Insulation panel that installs on the back and bottom of your oven cavity. Replace if damaged, torn, compressed, or missing to maintain heat efficiency.

Fix burners that won't ignite or spark continuously. This spark module controls ignition for all surface burners. DIY repair in about 45 minutes.

This replacement mounting screw is used in cooking appliances to fasten components securely. It restores a tight, rattle-free fit so panels, brackets, or burner-related parts stay properly aligned during everyday use.

• Secures appliance components to the chassis or assembly
• Replaces a missing, stripped, or corroded screw
• Helps resolve loose panels, wobbling parts, or vibration noises
• Supports proper alignment of mounted parts

• Disconnect power at the breaker; for gas units, also shut off gas supply
• Allow the appliance to cool completely before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten snugly without overtightening; replace damaged threads or hardware as needed

ST10-16 X 7/16"

This 8-32 pan head screw secures internal components in your range. Replace missing, stripped, or damaged screws to restore proper assembly.

Mounting screw for securing range components and panels. Replace if stripped, rusted, missing, or broken to properly fasten parts during repairs.

Nickel

Black. 8-18 AB HXW 3/8
