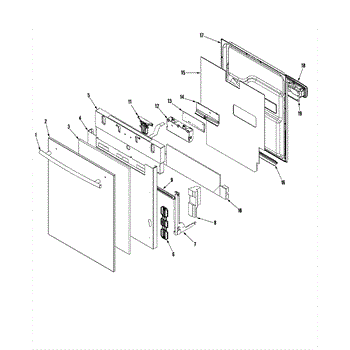

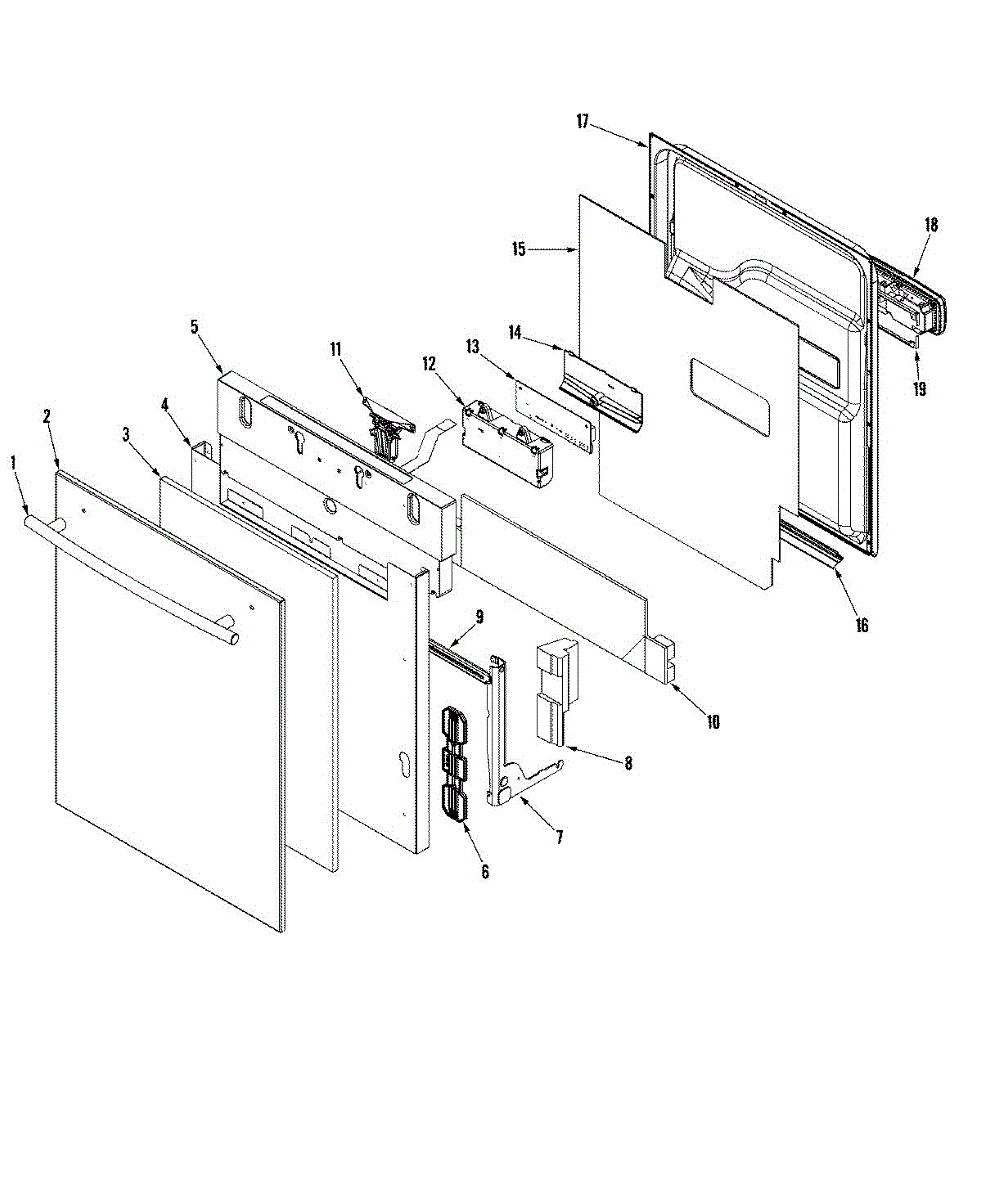

Parts for Jenn-Air JDB1090AWW: 01 - Control Panel & Door Parts

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Sixe: Approx. 6``X 18``

Panel fastener screw for dishwashers. Secures access panels and outer door components. Replace if stripped, missing, or damaged during service.

Specs: No.8X1/2 HEX WASHER HEAD

Panel fastener screw for dishwashers. Secures access panels and outer door components. Replace if stripped, missing, or damaged during service.

Left hand side

Bracket that secures the dishwasher door hinge assembly. Installs on the side of the tub. Replace if cracked, bowing outward, or damaged.

This foam insulation wraps around your dishwasher door to reduce noise and improve energy efficiency during operation. The insulation helps contain sound and maintain proper water temperature inside the tub. Replace this insulation if your dishwasher has become noticeably louder or if the existing foam is deteriorated or missing.

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Door won't latch or stay closed? This dishwasher door latch assembly secures the door and activates the safety switch. DIY-friendly repair in 30 minutes.

This control board housing secures and protects the washer's electronic control board, keeping circuitry stable and shielded from moisture and debris for reliable operation. It fits into the console area and supports proper control panel alignment. What it does:

• Holds and protects the electronic control board inside the console from impact, dust and moisture.
• Keeps the control board properly positioned for reliable electrical connections.
• Helps prevent control panel wobble or misalignment that can cause button or dial issues.
• Commonly replaced when housing is cracked, broken mounting tabs fail, or board access is needed.

• 1 control board housing

• Disconnect power and water to the appliance before beginning any repair.
• Handle the control board and housing carefully to avoid damage to connectors or circuit components.
• Use appropriate tools to remove console components; replace damaged mounting tabs and secure all fasteners.
• Discharge any capacitors and follow the board manufacturer's ESD/safety recommendations.

Specs: No.8X1/2 HEX WASHER HEAD

Dishwasher won't start or buttons/lights don't respond? This electronic control board kit restores operation and cycle management. DIY-friendly repair.

Top

Specs: No.8X1/2 HEX WASHER HEAD

Bottom

Replacement screw for securing dishwasher door panels, inner liners, and internal brackets. Needed when original screws are stripped, missing, or damaged.

Specs: No.8X1/2 HEX WASHER HEAD

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.
