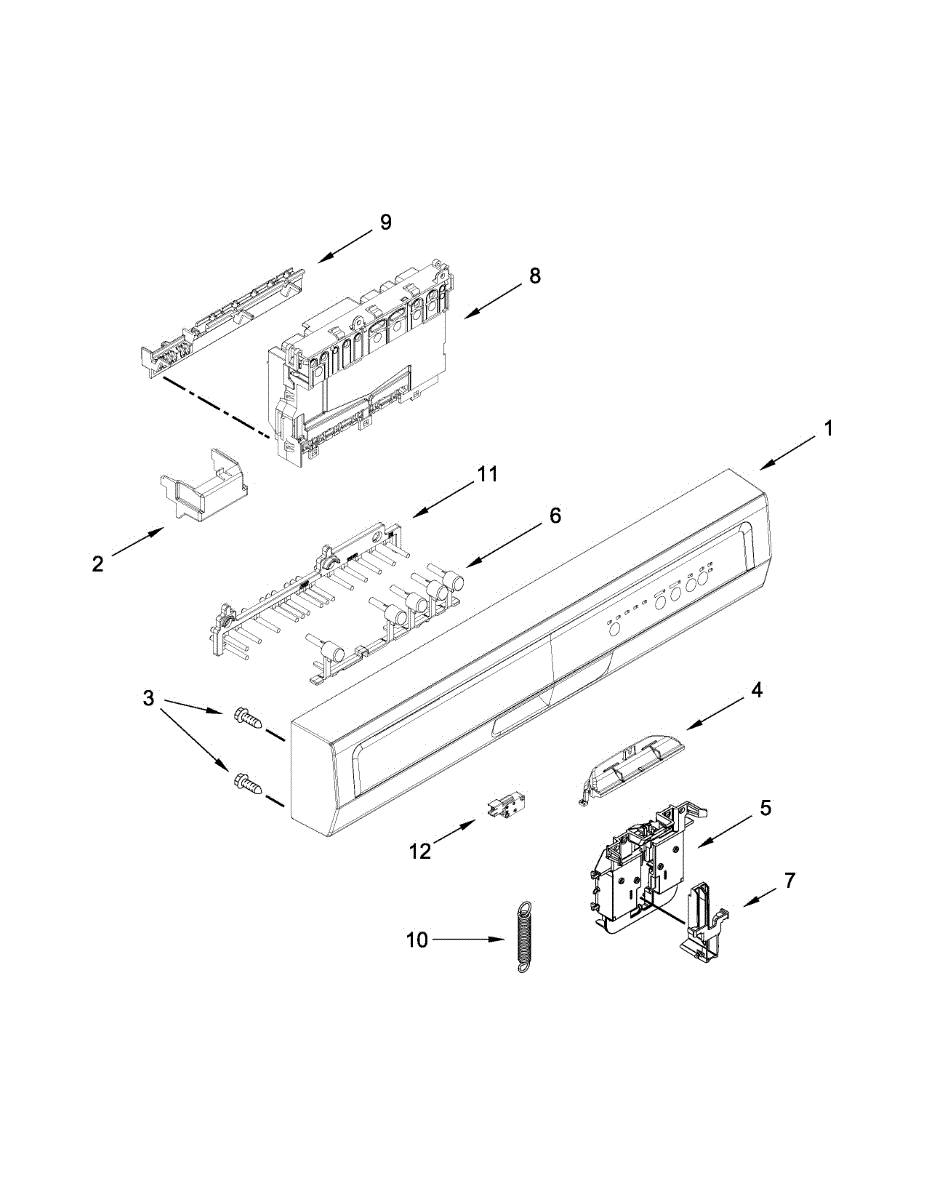

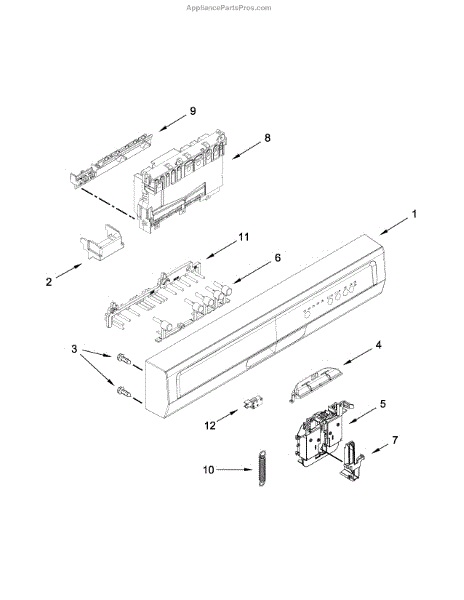

Parts for Amana ADB1300AFB1: Control Panel And Latch Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This replacement console is the exterior control panel housing that holds your appliance's buttons, knobs and display so you can operate settings and view status. It restores the user interface and the visible trim around the controls. What it does:

• Provides the mounting and visible trim for buttons, touchpads and display windows
• Protects underlying control electronics from everyday wear and direct contact
• Helps resolve user-interface issues such as missing or damaged buttons, cracked trim, or broken display windows
• Reinstates a clean, finished appearance to the front of the appliance

• Disconnect power to the appliance before starting any repair
• Handle plastic or painted surfaces carefully to avoid scratches during removal and installation
• Installation typically requires removing housing screws and reconnecting any button or display harnesses; retain all fasteners
• If electronic controls or the control board are damaged, verify those components separately — this part is the exterior console housing only

This outer console/ control panel covers and secures the user controls while giving the appliance a finished appearance. Replacing a damaged console restores safe access to the buttons and switches and improves the unit's look. What it does:

• Houses and supports the control buttons, knobs and display components
• Protects internal switches, wiring, and control electronics from dirt and damage
• Restores a stable mounting surface for controls that are loose, cracked, or broken
• Helps resolve issues caused by a badly damaged or cosmetically worn console

• Disconnect power (unplug or shut off breaker) before starting any work
• Remove outer trim or top panel as needed to access mounting screws and connectors
• Handle panels and clips gently to avoid breaking plastic tabs; keep fasteners for reassembly

The Cntrl-Elec is an OEM part for Whirlpool dishwashers. As the control and electronic component, it governs all of the major functions and operations of the dishwasher. The control board contains integrated circuits, microprocessors, and electronic components that facilitate cycles, temperature regulation, safety features, and user input.

Over time, the electronic components inside the controller can degrade or become damaged. Environmental factors like surges, fluctuations in power, and other electrical issues may also potentially cause failure.

Symptoms of a bad controller can include:

• Not operating or cycling at all
• Inability to start or stop cycles
• Fault codes displayed
• Issues with heating or drying
• Buttons or control panel not responding

This genuine OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Hex-Head Screw is an OEM replacement part for use in Whirlpool dishwashers. This metal screw measures approximately ¾ inch long. Its primary purpose is to secure the dispenser bracket in place, ensuring stable operation. This hex-head screw is designed for use with compatible hexagonal tools. This makes installation and removal straightforward. This part is sold individually and is guaranteed to fit your dishwasher door panel. This screw is compatible with select Whirlpool brand models including Amana, Crosley, Estate, Inglis, Jenn Air, Kenmore, Kitchen Aid, and Maytag.

Color: Black


This mounting bracket holds and aligns the door interlock switch(es) so the control can accurately detect when the door is closed. Replacing a cracked or warped bracket restores reliable door recognition and consistent operation.

• Secures the door switch(es) in the correct position behind the front panel
• Maintains latch-to-switch alignment for proper door-closed detection
• Can address incorrect interior light behavior tied to door switch alignment

• Disconnect power before servicing
• Access the bracket by removing the necessary front/console panels
• Transfer existing switches and wiring to the new bracket; note wire positions
• Align and tighten fasteners; confirm switches click and door closes properly before reassembly

This push button is a replacement control panel button that restores a responsive tactile switch on your appliance. It provides a simple, user-facing interface for selecting cycles or options. What it does:

• Replaces a worn, broken, or missing control panel button so selections can be made reliably
• Restores tactile feedback for accurate button presses
• Helps resolve symptoms such as unresponsive or stuck buttons and cosmetic damage to the panel
• Designed to fit the original button location and align with the underlying switch mechanism

• One (1) push button

• Install by removing the appliance control panel or trim per your model's service instructions
• Ensure power is disconnected before attempting replacement to avoid shock or damage
• Handle the button and surrounding bezel carefully to avoid bending clips or scratching the panel

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Door Latch Actuator is an OEM part for Whirlpool dishwashers. This part securely latches the dishwasher door, ensuring that it stays closed during operation and that the wash cycles run smoothly. The actuator interacts with the door latch to activate the locking mechanism, providing a secure seal to prevent leaks.

Causes of a bad door latch actuator can include regular wear and tear, mechanical failure, or damage from accidental impacts.

Symptoms of a bad door latch actuator include:

• Dishwasher door not staying closed
• Dishwasher not starting because the door isn’t securely latched
• Difficulty latching or unlatching the door
• Leaks around the door during operation

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The electronic control board is the appliance's main control module. It interprets inputs from the user interface and sensors, then powers and times key components to run each cycle. Replacing a failed board restores reliable, predictable operation.

• Coordinates cycle sequencing and powers components through onboard relays
• Receives signals from switches/sensors and manages overall operation
• Common failure symptoms: unresponsive controls or no power
• Won't start, stops mid-cycle, or won't advance through a cycle
• Intermittent operation, flashing lights, or fault/error codes tied to the main control

• Disconnect power at the breaker before servicing; verify the unit is de-energized
• Use ESD protection; handle the board by the edges to avoid static damage
• Photograph/label wiring and move connectors one at a time to the matching terminals
• After installation, run the appliance's diagnostic/test cycle to confirm proper operation

The Cntrl-Elec is an OEM part for Whirlpool dishwashers. As the control and electronic component, it governs all of the major functions and operations of the dishwasher. The control board contains integrated circuits, microprocessors, and electronic components that facilitate cycles, temperature regulation, safety features, and user input.

Over time, the electronic components inside the controller can degrade or become damaged. Environmental factors like surges, fluctuations in power, and other electrical issues may also potentially cause failure.

Symptoms of a bad controller can include:

• Not operating or cycling at all
• Inability to start or stop cycles
• Fault codes displayed
• Issues with heating or drying
• Buttons or control panel not responding

This genuine OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Door Spring is an OEM replacement part for Whirlpool dishwashers. It assists in balancing and supporting the door during opening and closing motions.

Causes of a bad door spring can include metal fatigue from years of compression and extension during cycles. The spring can also become misshaped if over-tightened during maintenance or installation.

Symptoms of a bad door spring for a dishwasher include:

• Doors that slam shut too forcefully or rapidly
• Difficulty smoothly opening or closing the door
• An imbalanced feeling when lifting or lowering the door

This OEM Whirlpool part is also compatible with KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, and Roper built-in dishwashers.

This miniature door switch is the snap-action interlock that tells the appliance when the door is closed. Replacing a worn or sticking switch restores reliable start/stop and proper door-status sensing for safe, consistent operation. What it does:

• Acts as the latch/interlock sensor for door open/closed status
• Signals the control to allow or prevent operation based on door position
• Typical symptoms include: won't start or shows a door message, stops when the door is bumped, or light/fan behavior doesn't match door position

• 1 miniature door switch

• Disconnect power before servicing. If working on a microwave, high voltage may be present even when unplugged—properly discharge the capacitor.
• Access the latch/interlock area; note wire positions and transfer one lead at a time to the new switch.
• Use a multimeter to confirm the switch changes continuity when pressed before reassembly.
