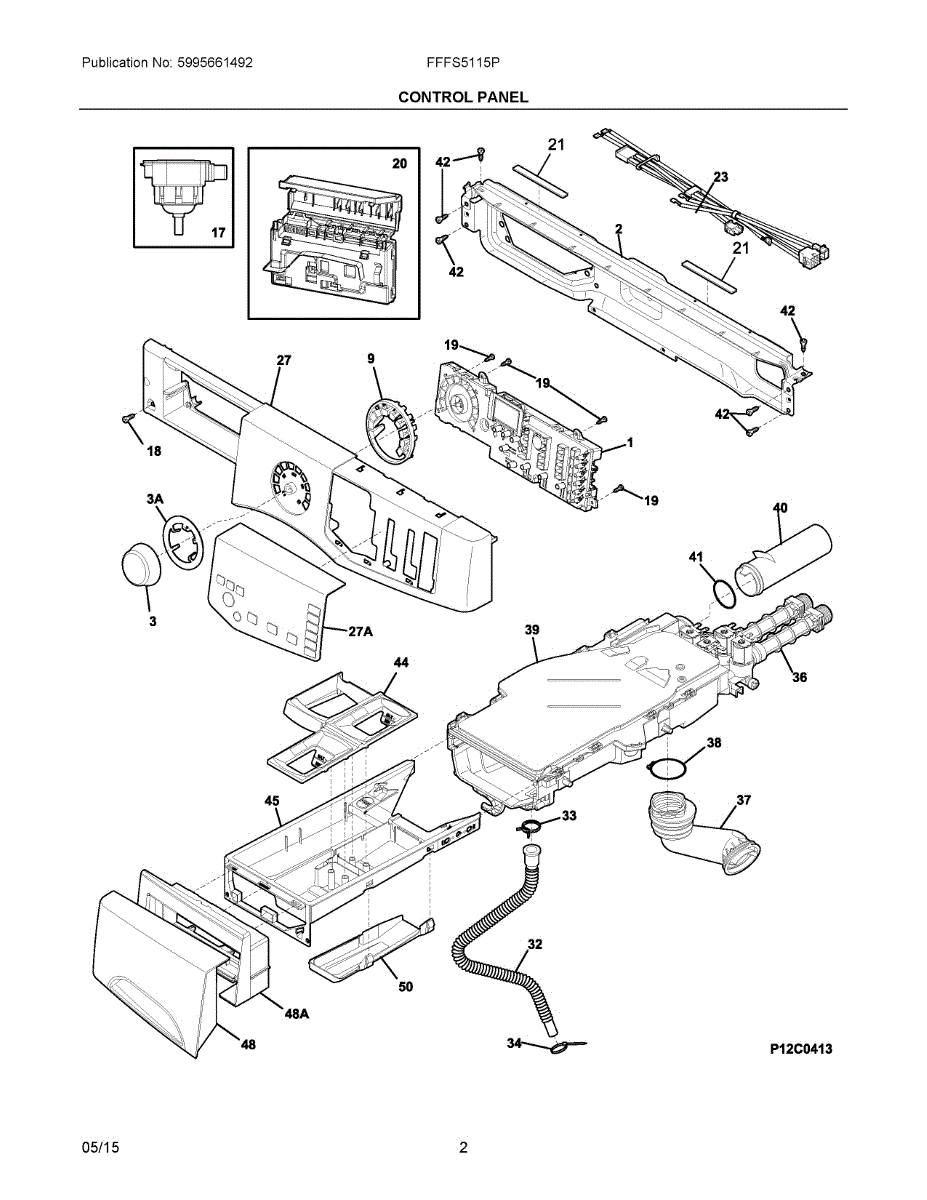

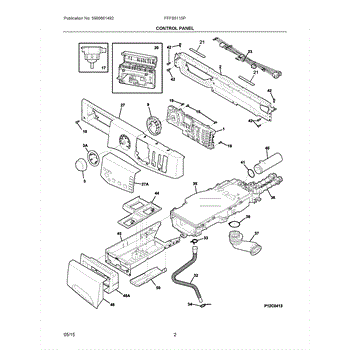

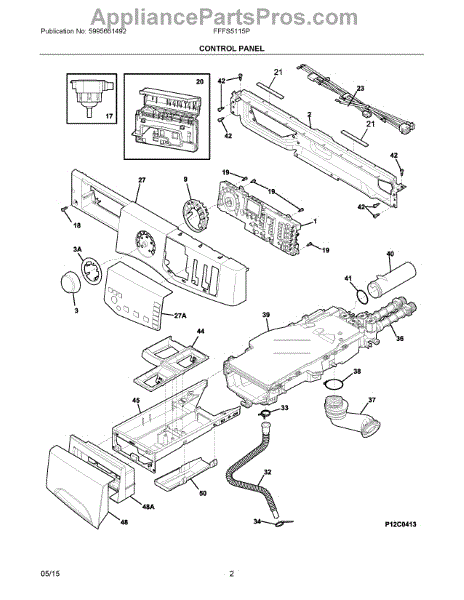

Parts for Frigidaire FFFS5115PA0: 02 - Control Panel Parts

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

The Water Level Pressure Switch is an OEM replacement part for Frigidaire washing machines. It senses the water level in the washer tub and signals to the control board when the tub is full.

Symptoms of a faulty pressure switch include:

• The washer not filling or draining properly
• No flow detection resulting in improperly filled or drained loads
• Unexpected or premature terminating of cycles
• Potential leaks from overfilling due to failed level sensing

Causes can be normal wear over time exerting pressure on internal components, moisture exposure damaging electrical circuits, or impacts disrupting accurate pressure monitoring.

This OEM Frigidaire replacement part is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This vane screw secures the internal drum baffle (vane) to the drum, keeping loads turning properly and preventing rattles or snags. Replace a missing or stripped screw to restore a tight, stable baffle during cycles.

• Fastens the drum baffle/lifter (vane) to the rotating drum
• Helps maintain proper tumble and load turnover
• Common symptoms: loose or wobbly baffle, rattling or clunking noises, items catching on a raised baffle edge, or a baffle that detaches
• Visual cues: missing screw or stripped/damaged threads at the baffle mounting holes

• Disconnect power before servicing; shut off gas
• Access the baffle from inside the drum; align holes and start the screw by hand to avoid cross-threading
• Tighten firmly but do not overtighten to prevent stripping the drum or cracking the baffle
• Start all screws before final tightening to seat the baffle evenly

This electronic control is the oven's main user interface and timing/temperature manager, restoring oven functions and display responsiveness for safe, reliable cooking. It replaces a failed control module to bring back normal oven operation. What it does:

• Manages oven temperature sensing, bake/broil cycles, timers and user commands
• Controls the oven display, clock, and front-panel touch/key inputs
• Stops oven heating or cancels cycles when internal control fails or shows errors
• Common symptom fixes: blank or unresponsive display, inaccurate temps, oven not starting, or error codes tied to the main control

• One electronic control assembly

• Disconnect power to the appliance before starting work to avoid shock or damage
• Handle the board carefully; avoid touching circuitry and use anti-static precautions when possible
• Some units may require front-panel reassembly or minor adjustments after swap;

This clamp secures a hose to its fitting, maintaining a tight, leak-resistant seal at the connection. Replace a fatigued or missing clamp to help prevent drips and stop hoses from working loose under vibration.

• Holds a hose firmly on a pump, tub, dispenser, or valve outlet
• Maintains clamping force to help minimize leaks at the joint
• Helps keep hoses from slipping off during operation
• Common signs: water at a hose joint, loose/slipping hose, damaged or corroded clamp

• Disconnect power and shut off water supply before servicing
• Place a towel or pan to catch residual water at the connection
• Note hose position; remove the old clamp, seat hose fully on the fitting, position the new clamp over the bead, and secure
• After reassembly, run a short cycle and check for leaks

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

This water inlet valve is a genuine OEM replacement part sourced directly from the manufacturer for use in washing machines. Hot and cold water coming into the machine is controlled by the water inlet valve. This valve is connected to the solenoid that receives signals from the washing machine's control center to tell it when water is needed, how much water is needed, and the water temperature. The solenoid sends those signals to the valve, opening the gates to allow water to flow in until it is signaled to stop. If the washing machine is leaking water or not filling with water, the water inlet valve should be replaced.Unplug the water and power to the washing machine. Pull the machine away from the wall and remove the back panel. Disconnect the water hoses from the inlet valve and take the wires off the valve connecting it to the solenoid. Remove the old valve and install the new valve. Reconnect the wiring and water hoses. Reinstall the back cover. Turn the water and power back on and check for leaks.This water inlet valve is made of heavy-duty molded plastic and is sold individually. It is designed for washing machines manufactured by Frigidaire.

The Dispenser to Tub Hose is an OEM part for Frigidaire washing machines. This hose is responsible for transporting detergent and other cleaning agents from the dispenser to the tub during the wash cycle.

Common causes of a bad hose include constant exposure to water and detergent, which can lead to wear and tear, blockages from detergent buildup, or physical damage such as cracks and splits.

Symptoms of a bad dispenser to tub hose include:

• Water leaks near the detergent dispenser
• Uneven or insufficient distribution of detergent
• Visible cracks, splits, or other damage to the hose
• Error codes on the washing machine related to water flow

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This clamp secures flexible hoses and small-diameter tubing to fittings, helping prevent leaks and keeping connections tight for reliable appliance operation. Use it where a compact, durable clamp is required for water or drain lines. What it does:

• Holds hoses or tubes firmly to inlet/outlet fittings to reduce leaks
• Prevents hoses from slipping off during normal use or vibration
• Helps maintain proper fluid flow by keeping connections sealed
• Useful for water lines, drain hoses, and small appliance tubing

• One clamp

• Turn off and unplug the appliance and shut off water supply before starting
• Inspect the hose and fitting; replace any damaged hose before installing clamp
• Position clamp over the hose/fitting and tighten evenly for a snug fit without crushing the hose

This O-ring is a small rubber seal that helps prevent water or refrigerant leaks by creating a tight connection between mating parts. Replacing a worn O-ring restores a secure seal and reduces dripping or loss of pressure. What it does:

• Forms a leak-tight seal at a joint or fitting to stop drips and seepage
• Helps maintain proper fluid or refrigerant pressure where used
• Commonly replaced when cracked, flattened, or hardened
• Can eliminate intermittent leaks that occur under load or when the appliance cycles

• Turn off and unplug the appliance and shut off water or refrigerant supply before service
• Inspect mating surfaces and replace any damaged fittings to ensure a proper seal
• Lightly lubricate the O-ring with appliance-safe silicone grease; avoid petroleum-based products
• Do not stretch or nick the O-ring during installation; confirm correct seating before restoring power or supply

This factory 8-18 screw secures appliance panels, brackets, and components. Replace missing or stripped hardware to restore a tight, rattle-free assembly and dependable operation.

• Fastens components to frames, brackets, and covers
• Replaces missing, damaged, or rusted screws
• Helps reduce looseness, vibration, and rattling noises
• Restores proper alignment of panels and assemblies

• Disconnect power before servicing; shut off gas/water if applicable
• Start the screw by hand to avoid cross-threading; use the proper driver
• Tighten snugly—do not overtighten to prevent stripping metal or plastic

The Cover is an OEM part for Frigidaire washing machines. This cover marks the location and type of detergent, bleach, or fabric softener to be used, ensuring proper distribution during the wash cycle. It provides clear guidance for correct detergent placement, contributing to optimal washing performance.

Causes of a bad cover can include wear and tear over time, damage from harsh cleaning agents, or physical impact resulting in cracks or faded markings.

Symptoms of a bad dispenser drawer compartment cover include:

• Faded or illegible markings
• Detergent not dispensing correctly
• Leaks or spills around the dispenser area
• Visible cracks or damage to the cover

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Detergent Drawer is an OEM part for Frigidaire washing machines. It holds and dispenses detergent at the appropriate times during wash cycles. The drawer is designed with compartments to separate powder and liquid detergents for optimized cleaning.

Causes of a bad detergent drawer can include leaks from cracks in the plastic material, malfunctions in the electronic components that control dispensing, or damage to the drawer itself.

Symptoms of a bad Detergent Drawer include:

• Incorrect or insufficient detergent amounts dispensed during cycles
• Residue, puddles, or leaks of detergent inside the washer tub or housing
• Odors or mold growth near the detergent area
• The drawer failing to open or close fully

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This dispenser assembly replaces a worn or damaged refrigerator dispenser to restore reliable dispensing of water and ice. It provides the dispenser housing and interface needed for proper user operation and sealing at the door. What it does:

• Houses the dispenser components and provides the push-lever/door opening for water and ice delivery
• Restores a broken, cracked or loose dispenser opening that causes poor engagement or cosmetic damage
• Helps stop minor leaks or drips at the dispenser area when seals and gaskets are intact
• Eliminates sticking or misaligned dispenser operation that prevents normal dispensing

• Disconnect power and shut off the water supply before beginning any work.
• Installation typically requires removing the refrigerator door panel(s) and detaching the old dispenser from the inner door; keep fasteners for reuse unless replacements are provided.
• Handle plastic parts gently to avoid cracking; inspect door seals and gaskets and replace if worn.
• After installation, restore power and water, then test dispenser operation and check for leaks.

A small metal mounting screw used to secure appliance panels and internal components. Simple replacement that restores proper fit and reduces rattling or loose parts when the original fastener is missing or damaged. What it does

• Secures panels, brackets, or trim pieces to the appliance chassis
• Holds internal components in place to maintain alignment and function
• Helps prevent vibration noise and movement from loose parts
• Suitable where the OEM listed screw size and thread match the original

• Disconnect power and water before servicing
• Use the correct screwdriver or driver bit to avoid stripping the head
• Start threads by hand to prevent cross-threading; tighten until snug—do not overtighten
• Keep any removed screws organized to ensure correct reassembly

This is a dispenser inlet gasket intended for use on washing machines. This part ensures that the hot and cold water lines do not leak at the point where they are connected to the appliance. If the washing machine is leaking, the gasket may need to be replaced.Replacing a dispenser inlet gasket in a washing machine can be done easily. Screwdrivers and pliers are required. Disconnect the appliance before starting the repair. Wear work gloves for safety. The hot and cold water lines should both be turned off and removed to prevent flooding.This dispenser inlet gasket is an authentic OEM replacement part. It is sourced from the manufacturer. The replacement component is made of high-quality materials. It can be installed in several different models of washing machines. The dispenser inlet gasket is compatible with appliances produced by Frigidaire, Gibson, Electrolux, Westinghouse, and Kelvinator brands.
