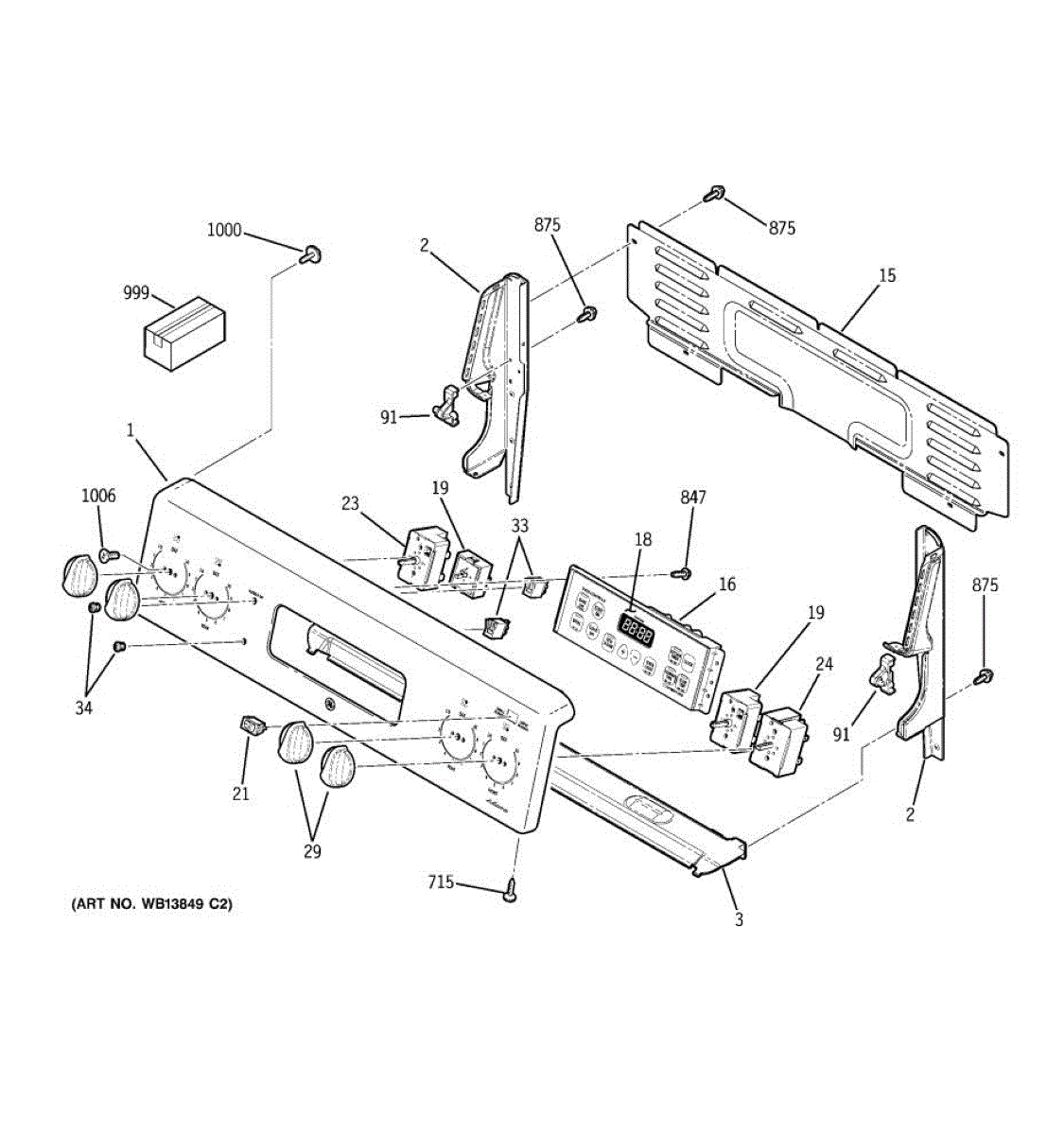

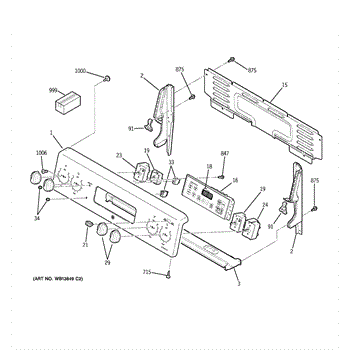

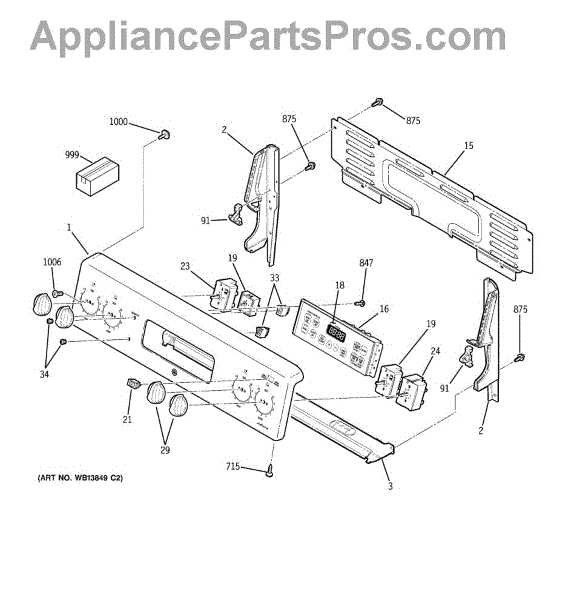

Parts for Ge JB640DR4BB: 01 - Control Panel Parts

Color: White

Color: Black

The Control Oven TO9 is an OEM part for GE ranges. This part manages the oven's various functions, including temperature regulation, cooking modes, and timer settings. It serves as the central interface for the user to control the oven's operations, ensuring precise and reliable cooking performance.

Causes of a bad control module can include electrical surges, general wear and tear, or physical damage from impacts or spills.

Symptoms of a bad control oven module include:

• Unresponsive or malfunctioning buttons and dials
• Incorrect temperature readings or inconsistent heating
• Display not functioning properly
• Oven not turning on or shutting off unexpectedly

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Color: White

The Faceplate Graphics is an OEM part for GE ranges. It is responsible for covering and protecting the control panel, while also displaying the necessary graphics and labels for operating the oven.

Causes of a bad faceplate graphics can include exposure to high temperatures, wear and tear over time, or damage due to cleaning with harsh chemicals.

Symptoms of a bad faceplate graphics include:

• Faded or illegible graphics
• Cracks or peeling of the faceplate
• Difficulty in identifying or using controls
• Discoloration or warping of the material

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Oven Overlay is an OEM replacement part for GE ovens. This overlay is essentially the interface between you and your oven's control board. It features buttons and symbols that allow you to set temperatures, cooking modes, and timers. The overlay is designed to fit directly over the control board, providing a user-friendly interface for your appliance.

Causes for a malfunctioning Oven Overlay can include wear and tear from frequent use, damage from cleaning solutions or spills, or issues with the adhesive that keeps it attached to the control board.

Symptoms of a bad Oven Overlay include:

• Unresponsive or inconsistent buttons
• Peeling or bubbling of the overlay material
• Difficulty in setting cooking modes or temperatures
• Error messages that may indicate a communication issue between the overlay and the control board

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Surface Element Control is an OEM part for GE ranges. It regulates the heat output of the surface elements on the cooktop, allowing users to adjust the cooking temperature precisely.

Over time, the surface element control can wear out due to regular use, electrical issues, or exposure to high temperatures. If it fails, it can lead to inconsistent heating or no heat at all, affecting your cooking performance.

Symptoms of a bad surface element control include:

• Inconsistent or no heat from the surface elements
• The inability to adjust the temperature settings
• The surface element staying on despite being turned off
• Sparking or unusual noises from the control area

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Restore reliable on/off control of your cooking surface. This surface element rocker switch features a white actuator and replaces a worn, loose, or heat-damaged switch that can cause no heat, stuck-on, or intermittent operation.

• Switches power to a surface element when toggled on; disconnects power when off
• Installs in the control panel; white rocker matches white control finishes
• Common symptoms: element won't turn on or won't turn off; intermittent heating; arcing/discoloration; loose or broken rocker
• Helps restore safe, consistent element control

• Disconnect power at the breaker or unplug the appliance before servicing
• Access the control panel area; photograph wiring and transfer wires to the new switch one at a time
• Secure the switch in the panel, reassemble, and restore power
• Match each wire position to the same terminal layout

The Rocker Switch is an OEM part for GE ranges. This switch is used to control the surface heating elements, allowing users to turn them on or off and adjust the heat levels. It is designed to fit securely into the range's control panel, providing reliable operation and ease of use.

Causes of a bad switch rocker element can include regular wear and tear, electrical issues, or damage from spills or high temperatures. Over time, the internal contacts of the switch can degrade, leading to malfunction.

Symptoms of a bad switch rocker element include:

• The heating element not turning on or off
• Difficulty in adjusting the heat levels
• The switch feeling loose or unresponsive
• Flickering or intermittent operation of the heating element

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Surface Burner Switch is an OEM part for GE ranges and cooktops, designed to control the heat level of the surface burners. This switch allows users to adjust the temperature of the burners for boiling, simmering, or frying.

Causes for replacement may include electrical issues within the switch, physical damage, or wear and tear from regular use. A faulty switch can lead to cooking frustrations, potential safety hazards due to uncontrolled heat, and increased energy consumption.

Symptoms of a bad Surface Burner Switch include:

• Burner not heating to the set level
• Burner heating inconsistently or not at all
• The switch feeling loose or failing to click into position

This genuine GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Infinite Control Switch is an OEM part for GE ranges. This part controls the temperature of the surface burners by regulating the power sent to the heating elements, allowing for precise heat adjustments during cooking.

Causes of a bad infinite control switch can include electrical issues such as short circuits, wear and tear from regular use, or internal mechanical failures.

Symptoms of a bad infinite control switch include:

• The burner not heating up or getting stuck on one temperature
• Inconsistent or erratic heating
• Difficulty in adjusting the burner temperature
• The burner not turning off or on properly

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This replacement control knob presses onto the range/cooktop's infinite switch shaft to turn a surface element on/off and adjust heat levels. It restores smooth, dependable temperature selection and a finished look when the original knob is cracked, stripped, or missing.

• Mounts on the surface burner's infinite switch to select Low-to-High settings and Off
• Provides direct, smooth control of the surface heating element
• Typical symptoms: broken or missing knob, stripped hub that won't turn the switch, loose/wobbly fit
• Replacing the knob alone will not resolve the issue

• Disconnect power at the breaker before servicing
• Pull the old knob straight off the switch shaft—avoid prying on the control panel
• Align the new knob with "Off" and press straight on until fully seated
• Verify smooth rotation and proper pointer alignment with the panel markings

Color: White

The Pilot Indicator Light is an OEM part for GE ranges. It indicates whether an element on the range is active and hot, providing a safety feature that alerts users to potentially dangerous heat levels.

Common causes of a bad pilot indicator light include electrical failures, wear and tear from frequent use, or physical damage to the light or its housing. A malfunctioning indicator light can lead to difficulty in determining whether the appliance is on, which could pose safety risks.

Symptoms of a bad pilot indicator light include:

• The light fails to illuminate when an element is turned on.
• The light remains on, indicating an element is hot when it is not.
• Flickering or erratic behavior of the indicator light.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This indicator light lens covers the control-panel lamp opening, diffusing the light and protecting the hole from debris and contact. Replace a missing or damaged lens to restore a clean, finished look and clear on/off indication.

• Provides a finished cover for the indicator lamp opening on the panel
• Diffuses the light for clearer visibility
• Shields the opening from dust, moisture, and accidental contact
• Common signs to replace: lens is cracked, missing, discolored, or won't stay seated

• Disconnect power at the breaker before servicing
• Access the control panel as required for your model (remove knobs/screws if needed)
• Lens typically snaps in; some models use a rear retainer—transfer any clip or seal
• Align with the lamp and press evenly; do not force or overtighten fasteners

Black. 8-18 x 5/16 inch.

White. 8-18 x 5/16 inch.

Bisque. 8-18 x 5/16 inch.

This mounting screw secures appliance components to the chassis for a tight, rattle-free fit. Replacing a missing, stripped, or corroded fastener helps keep panels, brackets, or burner assemblies properly aligned and secure.

• Fastens designated parts to the appliance frame or mounting points
• Helps maintain proper alignment of panels, trim, brackets, or burner assemblies
• Restores hold when the original screw is worn, rusted, or lost
• Symptoms include loose or wobbly components, rattling/vibration, or visible gaps

• Disconnect power; allow all surfaces to cool. For gas units, also shut off the gas supply.
• Use the correct driver/bit; avoid cross-threading.
• If mating threads or clip/nut are damaged, repair or replace them before installing.
• Tighten until secure; do not overtighten to prevent stripping.

Package of 12

Black. 8-18 AB HXW 3/8

Cerama Bryte Cooktop Cleaner is a special cleaner designed specifically for ceramic glass and smooth-top cooking surfaces. It easily removes cooked-on foods, spills, or grease while leaving your cooktop looking like new. This product contains no abrasives or harsh chemicals, so it won’t scratch or damage your delicate cooktop surface.

To use the cleaner effectively, all you need to do is spray it onto the surface and then scrub it with a clean damp cloth. Use circular motions for best results. The product can also be used to remove baked-on foods from grates and drip pans on your stovetop. For tougher stains, let the cleaner sit for a few minutes before wiping it away.

Size: 8 - 18 ab hxw 5/8 s

This silicon controlled rectifier (SCR) switches and regulates power to heating elements and motors in compatible appliances, restoring controlled current flow for proper operation. It's a direct-replacement electronic switching component. What it does:

• Acts as a solid-state switch to control AC power to heater or motor circuits
• Helps regulate current during timed or thermostatic cycles
• Common replacement when appliance shows intermittent heating, no heat, or erratic motor control
• Replaces a failed/shorted SCR that can cause blown fuses or control board errors

• One silicon controlled rectifier (single SCR)

• Intended for technicians or experienced DIYers; disconnect power before servicing
• Verify correct SCR orientation and secure the 8-32 screw terminal; avoid overtightening
• Observe ESD precautions and handle the part by non-conductive areas

This silicon controlled rectifier (SCR) switches and regulates power to heating elements and motors in compatible appliances, restoring controlled current flow for proper operation. It's a direct-replacement electronic switching component. What it does:

• Acts as a solid-state switch to control AC power to heater or motor circuits
• Helps regulate current during timed or thermostatic cycles
• Common replacement when appliance shows intermittent heating, no heat, or erratic motor control
• Replaces a failed/shorted SCR that can cause blown fuses or control board errors

• One silicon controlled rectifier (single SCR)

• Intended for technicians or experienced DIYers; disconnect power before servicing
• Verify correct SCR orientation and secure the 8-32 screw terminal; avoid overtightening
• Observe ESD precautions and handle the part by non-conductive areas
