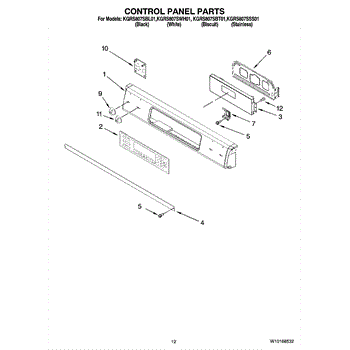

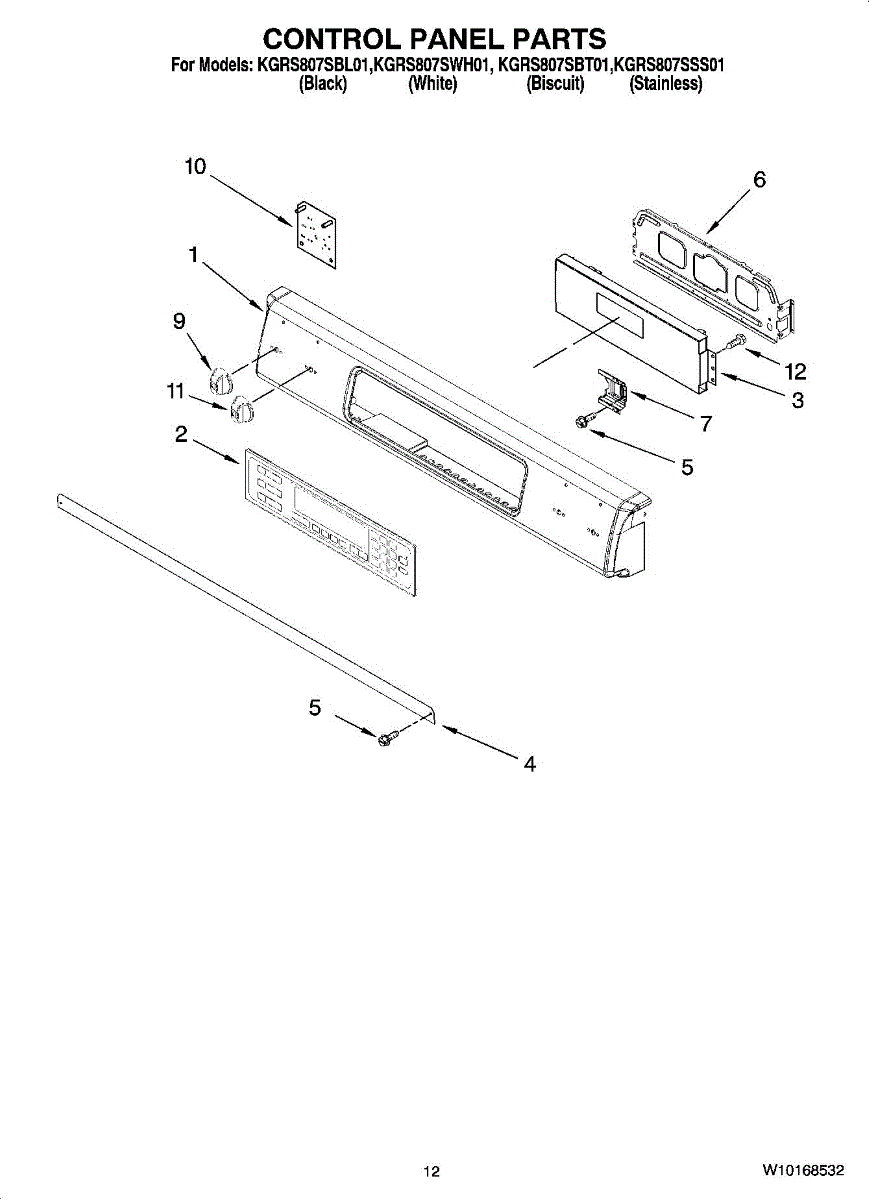

Parts for Kitchenaid KGRS807SBL01: 09 - Control Panel Parts, Optional Parts (Not Included) Parts

This control panel is the front console assembly that houses the cooktop and oven controls and display, restoring normal user interface and control access for your range. It replaces a cracked, faded, or unresponsive console to improve usability and appearance. What it does:

• Provides the push-button/knob interface and display window for setting burners, oven temperature, timers, and modes
• Re-establishes visual feedback when the original panel or display lens is cracked, scratched, or worn
• Restores control responsiveness when buttons or touch areas on the console have failed
• Replaces cosmetic-damaged or yellowed panels to improve the appliance's appearance

• One control panel (console) assembly

• Disconnect power (and gas, if applicable) before beginning work to avoid shock or gas hazards
• Handle the panel and any glass or plastic display lens carefully to prevent damage
• Some disassembly of the range front or top may be required; keep screws and small parts organized

This genuine OEM replacement part is a switch membrane touchpad made for ovens. The switch membrane touchpad is the plastic display piece on the oven that holds the buttons that control the oven's essential functions. If the touchpad is worn out and the buttons are no longer responding when pushed, it might be time to replace the touchpad. Luckily replacing this part is not a difficult repair.To replace a damaged touchpad, make sure to turn off all power to the oven by unplugging the appliance or shutting off the circuit breaker. After the power to the oven is turned off, take a putty knife to pry off the old touchpad cover. Gently pull it away from the stove's control panel until it comes off. There should be enough adhesive left over to place the new touchpad back to its original place. Be sure to line up the touchpad so that it fits perfectly. This replacement part is sold individually and is compatible with Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Sears/Kenmore brand ovens.

This electronic control board manages core oven functions. It processes keypad inputs and controls heating so the oven starts, regulates temperature, and responds consistently when the original control has failed.

• Regulates oven heating cycles and sends power to bake and broil circuits
• Interprets keypad/touchpad selections to run chosen functions
• Uses oven sensor feedback to help maintain set temperatures
• Can help with symptoms like no heat, bake/broil won't start, unresponsive controls, or control-related error codes

• Disconnect power at the breaker or unplug the appliance before servicing
• Electrostatic-sensitive part—use ESD protection and handle the board by the edges
• Note/photograph wiring and move connectors to matching terminals on the new board
• Restore power, set the clock, and verify all oven functions after installation

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

This is a replacement control knob for gas ranges — a direct-fit knob that restores safe, reliable control of burner or oven settings. It replaces worn, cracked, or missing knobs so you can set heat levels with confidence. What it does

• Provides a secure grip and positive detent for selecting burner or oven settings
• Replaces cracked, stripped, or missing knobs that slip or won't turn
• Restores clear position indication for accurate temperature/power selection
• Helps prevent accidental setting changes from loose or damaged knobs

• Always turn gas supply and electrical power to the appliance off before servicing
• Pull old knob straight off the valve stem; align splines and push the new knob firmly onto the stem until fully seated
• Verify knob turns smoothly and seats fully on all selected positions before use
• If the knob does not fit or turn correctly, stop and confirm the valve stem type and part number before attempting further use

The Spark Module is an OEM replacement part for Whirlpool ranges. It is an electrical component that generates the spark needed to ignite the gas burners. By sparking consistently and reliably, the module allows the cooktop burners to ignite with each use.

Causes of a bad spark module can include normal wear and tear over time, exposure to moisture or residue, or issues with the electronic components that produce the spark.

Symptoms of a bad spark module include:

• Burners that will not ignite or light consistently
• Burners that ignite but then immediately go out
• Only some of the burners lighting while others do not
• A clicking sound coming from the ignitors but no visible spark

Note: For harness from spark module to igniters use part number 9756892.

This OEM Whirlpool replacement spark module is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement control knob restores tactile control of a stove or range burner/temperature selector so you can set heat levels accurately and confidently. It matches OEM fit and appearance for a direct push-on replacement. What it does:

• Replaces a worn, broken or stripped user control for burner or oven temperature selection
• Provides a secure grip for precise setting adjustments and reliable knob rotation
• Helps when a knob won't turn, spins freely, has a cracked stem, or missing pointer alignment
• Restores correct engagement with the switch or valve so controls respond properly

• One control knob

• Disconnect power (and shut off gas for gas ranges) before replacing the knob
• Most knobs simply pull straight off the control shaft and push the new knob fully on until seated
• If the knob won't come off easily, use a flat tool carefully to pry at the base—avoid damaging the control panel

This is a replacement mounting screw used to secure panels and small components on Whirlpool appliances, restoring proper fastening to reduce rattling and prevent parts from shifting during operation. What it does

• Secures panels, trim pieces or small brackets to the appliance frame or components
• Helps stop loose parts that cause rattling or vibration during use
• Keeps controls and external trim aligned and properly seated
• Replaces missing or worn screws that can lead to unsecured panels or gaps

• Disconnect power (and gas if applicable) before servicing the appliance
• Use the correct screwdriver or driver bit to avoid stripping the head
• Thread carefully and tighten until snug; do not overtighten to avoid damaging threads or plastic parts
• Replace with the same screw type and size for proper fit and function

Specs: 25ft, 14 Ga. 150 c Black

Specs: 25ft, 14 Ga. 150 c Blue

Specs: 25ft, 14 Ga. 150 c Brown

Specs: 25 ft, 14 Ga., 150 c Green

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Orange 14 Ga. 150~c)

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Red 14 Ga. 150~c)

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Yellow 14 Ga. 150~c)

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Red 14 Ga. 200~c)

Size: 1/3 oz.

Size: 25ft, 12 Ga. 150 c Black

Specs: 25ft,14 Ga., 200 c Brown

This wire harness connects Direct Spark Ignition components to the appliance control system, restoring reliable electrical connections for safe ignition performance. It's a direct-replacement harness used where DSI wiring has failed or been damaged. What it does:

• Routes power and control signals between the DSI module, igniters, and control board to enable spark ignition.
• Replaces frayed, burned, or broken wiring that can prevent burner ignition or cause intermittent sparks.
• Helps eliminate loose or corroded connections that produce ignition delays or no-spark symptoms.
• Maintains the correct plug and terminal arrangement for a proper, secure fit.

• Disconnect power and gas supply before starting any repair to avoid shock or fire hazards.
• Verify harness routing and connector orientation match OEM routing; avoid pinching or contact with hot surfaces.
• Inspect connectors and adjacent components for heat or corrosion; replace any damaged parts.

Color: Citrine white. Size: 0.6 fl.oz. Bottle with brush.

Size: 2.8 fl.oz tube. 748 non-corosive sealant.

Color: Citrine white. Size: 4.5 oz. can. Acrylic appliance aerosol can spray paint.

This wire harness connects the appliance's control board to its electrical components, restoring reliable power and signal flow. Replacing a damaged harness helps resolve intermittent operation and restores proper function to affected circuits. What it does

• Transfers power and control signals between the main control and components (motors, switches, heaters)
• Replaces damaged, burned, or corroded wiring that can cause intermittent or no operation
• Commonly used when the appliance won't start, certain functions don't respond, or error codes indicate open/shorted circuits
• Ensures correct connector fit and routing to prevent shorts and improve reliability

• One wire harness

• Disconnect power (unplug or shut off breaker) before starting any repair
• Verify connector orientation and routing before disconnecting old harness; take photos for reference
• Handle connectors gently to avoid bending pins or damaging insulation

Color: Black. Size: 12 oz. Acrylic appliance aerosol can spray paint.

The Anti Tip Bracket is an OEM component specifically designed for Whirlpool ranges. This bracket plays a crucial safety role in preventing the range from accidentally tipping over if excessive weight is applied to the open oven door.

The anti-tip bracket secures tightly to the floor or wall behind the range, linking it securely in place. It allows the oven door to function while ensuring the entire appliance remains stable even under heavy use.

Causes of a bad bracket can include damage, deterioration of mounting hardware over time, or failure to install properly according to manufacturer instructions.

Symptoms of a faulty anti-tip bracket include:

• The range appears unsecured and able to wobble or rock backward
• Looseness between the bracket and mounting surface
• Cracks or breaks in the anti-tip bracket material

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


Bottle with brush. Color: Black. Size: 0.6 fl.oz.

This factory replacement screw secures panels, brackets, and covers in your appliance. Replacing missing or stripped hardware restores a solid fit, reduces vibration and rattles, and keeps components properly aligned during everyday use. What it does:

• Fastens panels, trim, brackets, and internal components to the cabinet or chassis
• Helps maintain alignment and reduce vibration or rattling noises
• Replaces missing, rusted, or stripped screws discovered during service
• Matches the OEM spec for locations where this part is called out on your model's diagram

• Disconnect power (and gas or water, if applicable) before servicing
• Use the appropriate driver; start threads by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent stripping metal or plastic
• Replace hardware one screw at a time to keep parts aligned

The Appliance Touchup Paint is an OEM product for Whirlpool appliances. This touchup paint is used to cover scratches, chips, and minor blemishes on the surface of various appliances, helping to maintain their appearance and protect them from rust and other damage. It is specifically formulated to match the original color and finish of Whirlpool appliances, ensuring a seamless repair.

Causes of needing touchup paint include everyday wear and tear, accidental impacts that cause chipping or scratching, and exposure to harsh cleaning chemicals that can damage the finish. Regular use of touchup paint can help keep appliances looking new and extend their lifespan.

Symptoms indicating the need for Appliance Touchup Paint include:

• Visible scratches or chips on the appliance surface
• Areas of exposed metal prone to rust
• Blemishes that affect the overall aesthetic of the appliance

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: White. Size: 13 oz can. Acrylic appliance aerosol can spray paint.

The Appliance Spray Paint is an OEM part for Whirlpool appliances, designed to provide a quick and effective way to touch up or completely refinish the exterior of various appliances. This specialty spray paint is formulated to adhere to metal surfaces, offering a durable and resistant finish that can withstand the routine wear and tear of kitchen environments, including heat, moisture, and everyday use.

The primary reason for using such a specialized paint is to maintain or restore the aesthetic appeal of your appliances while protecting them from further damage.

Symptoms needing for Appliance Spray Paint include:

• Scratches, chips, or rust spots on the appliance's exterior that can lead to further damage or corrosion if left untreated
• A desire to refresh or update the appearance of the appliance without the need for complete replacement
• Discoloration or fading of the original finish due to age, exposure to sunlight, or cleaning agents

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.
