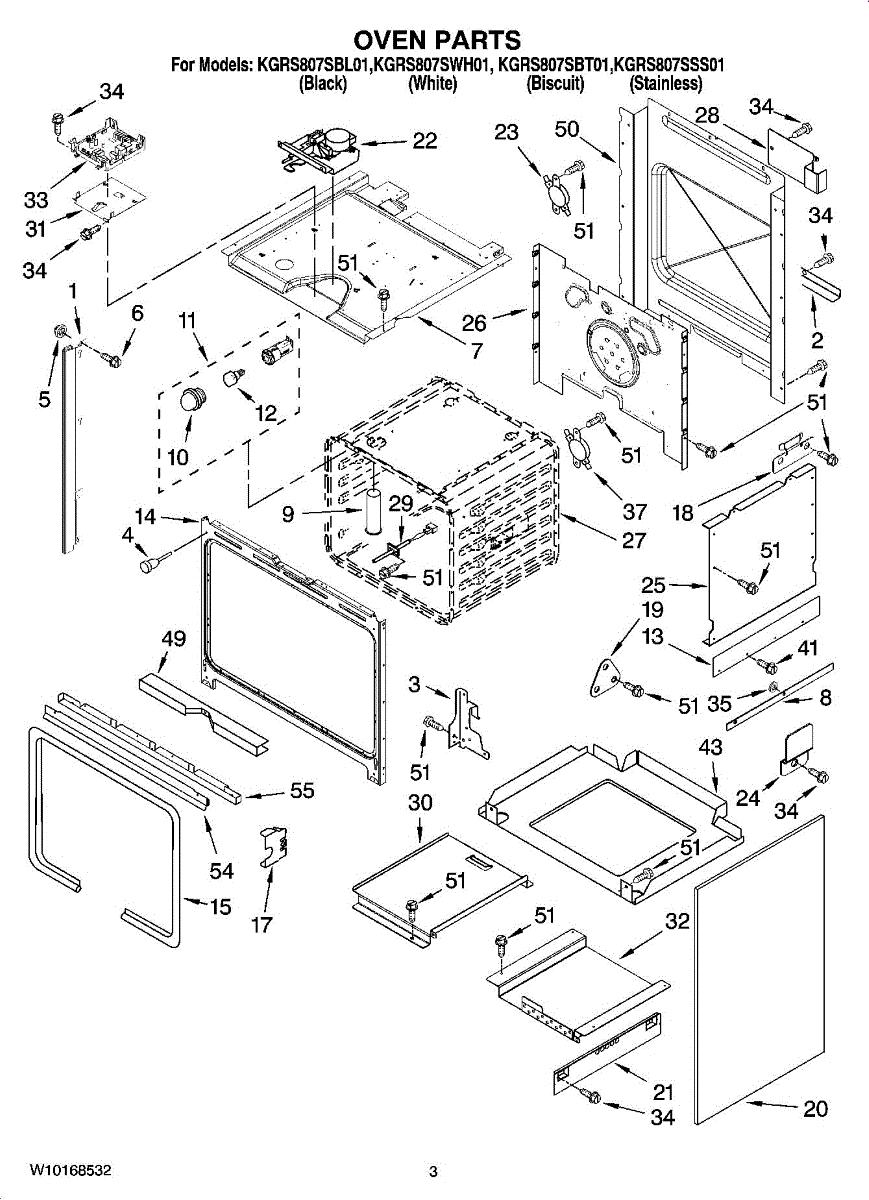

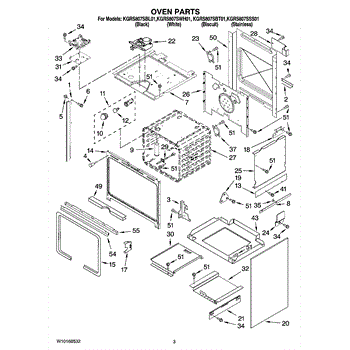

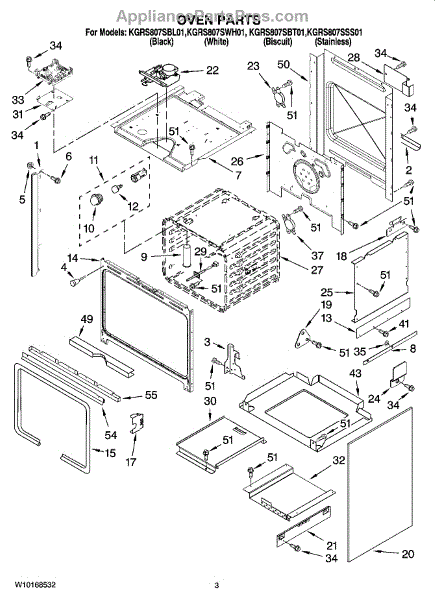

Parts for Kitchenaid KGRS807SBL01: 02 - Oven Parts

Door hinge receiver for wall ovens. Mounts inside the oven frame to hold the door hinge in place. Replace if cracked, deformed, or causing door alignment issues.

Left side hinge receiver for door hinge. For right side hinge receiver use WP4455606.

The screw and bumper assembly includes a small cushioning stopper and its mounting screw, designed to prevent hard contact between moving parts or doors and the appliance frame. These bumpers absorb impact and reduce noise when drawers, doors, or panels are opened and closed. Replace this set if you hear loud banging or rattling when operating your appliance or if the existing bumper is worn, torn, or missing.

The range oven rack side rail grommet is a small rubber or plastic component that allows the oven rack to slide smoothly in and out of the side rails. Replace it when racks stick or bind during insertion, fall out unexpectedly, or if the grommet is visibly cracked or missing.

Mounting screw for securing trim, hinges, drawer guides, and interior components. Replace if missing, stripped, or broken during repair or maintenance.

This oven light assembly provides interior illumination so you can check cooking progress without opening the door. It replaces a failed lamp component to restore clear, reliable oven cavity lighting. What it does:

• Replaces the oven interior lamp assembly to restore illumination
• Lets you view food without opening the oven door, reducing heat loss
• Commonly used when the oven light is out, flickering, or the lens is cracked
• Works with compatible ranges and wall ovens that use this factory lamp assembly

• Disconnect power to the appliance before installing to avoid shock hazard
• Allow the oven to cool fully; handle bulbs and glass parts carefully to avoid breakage
• Basic hand tools may be required; follow the appliance service manual for access and removal steps

120-130 volt, 15 watt.

This front frame fin replaces a damaged or worn front frame piece to help keep the dryer drum/tub aligned and reduce rubbing or airflow leaks. It restores the front assembly fit for reliable operation. What it does:

• Supports the front edge of the tub/drum and helps maintain proper drum alignment
• Helps seal and guide airflow at the dryer front to promote efficient air movement
• Reduces rubbing, scraping, or vibration caused by a cracked or warped front frame area
• Resolves symptoms like unusual noise, clothes catching, or uneven drum rotation when damaged

• Disconnect power (and gas if applicable) before starting any repair
• Replacement typically requires removing the dryer front panel or bulkhead; follow your model's service instructions
• Keep all fasteners and seals in place and reassemble securely before testing

Seals your oven door to prevent heat loss and maintain cooking temperatures. Replace if worn, cracked, or heat escapes. Confirm fit with your model.

Mounting bracket that secures the bottom trim vent on your wall oven. Replace if the bracket is bent, broken, or missing to properly secure trim pieces.

Color: White.

Color: Black.

If your oven door won't lock, stays locked after self-clean, or shows door lock errors, this door lock motor and switch assembly often solves the issue.

Fix an oven that overheats or won't heat properly. This high-limit thermostat monitors temperature and shuts off power if the cavity gets too hot.

Right and left hand side.

Oven won't heat properly or overheats? A faulty temperature sensor may be the cause. Simple 15-minute DIY repair with basic tools and our video guide.

This replacement part is an electronic control panel. This electronic control panel is able to display certain information to the user and allows them to alter the controls according to their preferences. A new electronic control panel might be needed if the connection has become worn down between the panel and the machine. If the display is no longer showing information, it might be best to replace the part altogether as the display may be damaged.This is a genuine OEM replacement part made by Whirlpool and sold individually.

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

Oven won't heat after self-cleaning? This thermal fuse cuts power when overheating occurs. Common DIY repair takes under 10 minutes with basic tools.

This ground screw secures the appliance's grounding wire or strap to the chassis or terminal area, creating a reliable bonding point. Replace a missing or damaged screw to restore a proper ground connection during installation or service.

• Provides the designated bonding point for the grounding wire/strap
• Fastens to the frame or terminal area using 8-32 machine threads
• Helps maintain a consistent ground path for safe operation
• Typical reasons to replace: stripped head/threads, corrosion, or a missing screw

• Disconnect power at the breaker or unplug the appliance before servicing
• Route the ground wire/strap to the specified grounding location
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Ensure the ground connection is secure and complies with local electrical codes before restoring power

The Gasket Retainer is an OEM part for Whirlpool ovens. It secures the oven door gasket in place, ensuring a tight seal that prevents heat from escaping during cooking. This helps maintain consistent cooking temperatures and improves energy efficiency.

Causes of a bad oven gasket retainer can include wear and tear from repeated use, heat damage, or accidental impact that causes the retainer to break or become misshapen.

Symptoms of a bad oven gasket retainer include:

• The oven door gasket not staying in place
• Heat escaping from the oven, leading to uneven cooking
• Visible damage or deformation of the retainer

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Replacement mounting screw for securing panels, brackets, covers, and trim pieces in appliances. Restores fit when hardware is missing, stripped, or lost.
