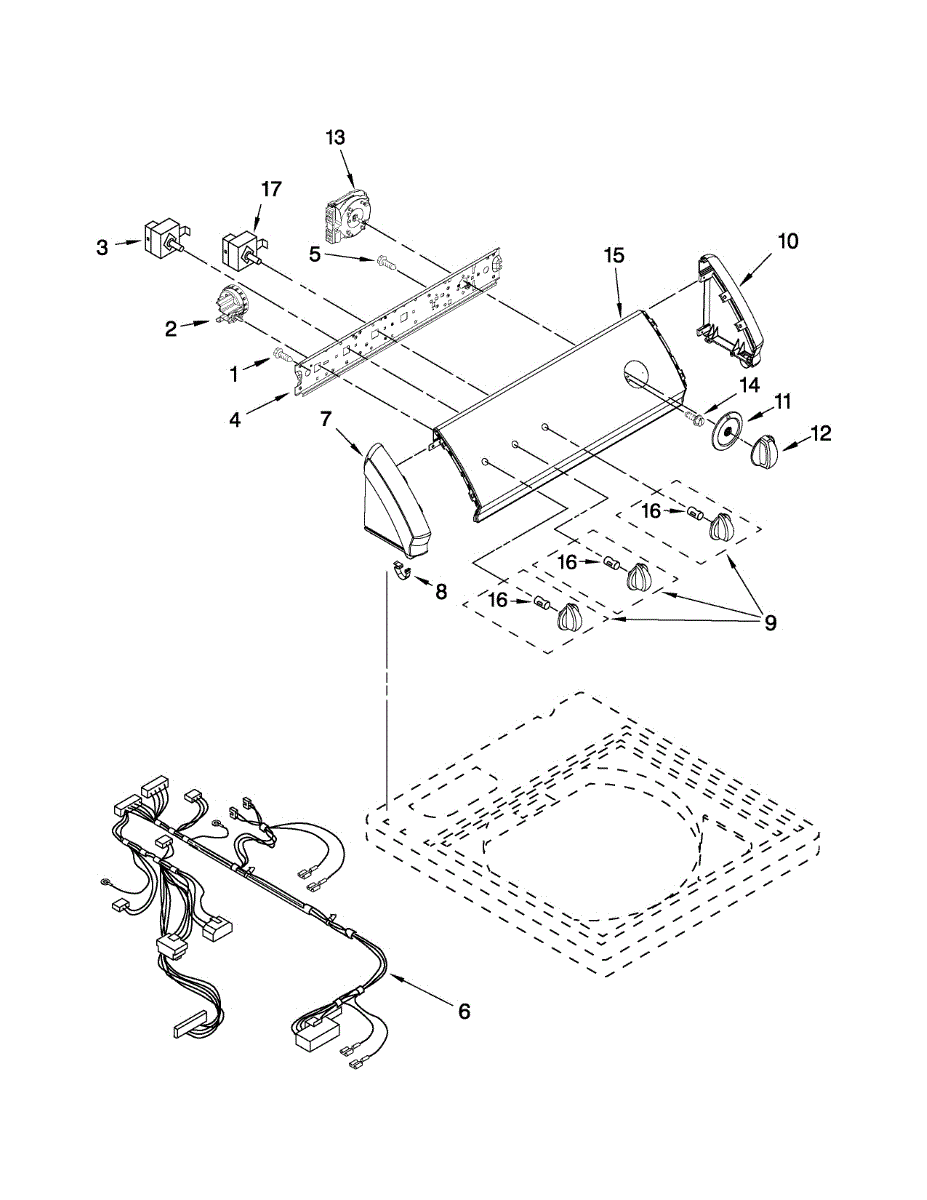

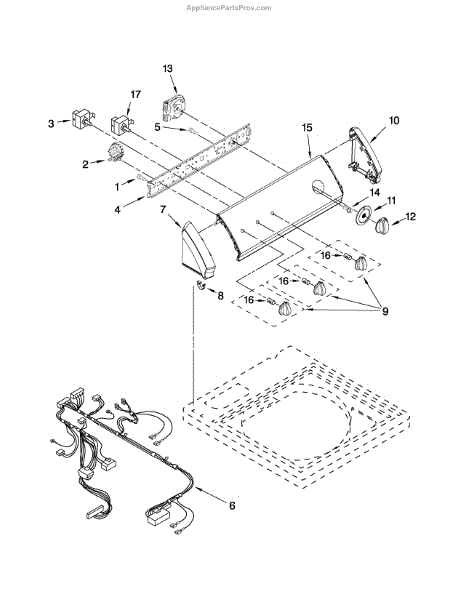

Parts for Kenmore 110.20522900 (11020522900, 110 20522900): Control Panel Parts

Dissolves odor-causing residue and mildew buildup in washing machine tubs. Use every 30 washes to maintain freshness. Verify fit with your model.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Water Level Switch is an OEM replacement part for Whirlpool washing machines. It monitors and controls the amount of water that fills the drum during each wash cycle. By ensuring the appropriate water level, it aids in the efficient and effective cleaning of laundry while conserving water.

Symptoms of a bad Water Level Switch include:

• The washing machine overfilling or underfilling with water
• Inconsistent or erratic water levels during cycles
• The machine failed to progress from filling water to the wash cycle
• Error codes or indicators related to water levels or filling

Causes for a malfunctioning Water Level Switch can include electrical issues affecting signal transmission, mechanical failures within the switch, or blockages in the pressure hose connected to the switch.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Washer only fills with hot water or stops mid-cycle? The water temperature switch controls incoming water temps for proper cycle selection. DIY repair.

Size: 10 - 24 x 3/8

Internal wire harness for washers. Connects electrical components inside the cabinet. Replace if wires are frayed, damaged, or connections are loose.

This endcap assembly replaces a worn or damaged endcap to restore proper fit and protect the appliance's exposed end components. It helps keep parts aligned and prevents rubbing, vibration, and debris entry for smoother operation. What it does:

• Secures and protects the exposed end of the related component or housing
• Maintains proper alignment to reduce vibration, noise, and premature wear
• Replaces cracked, broken, or missing endcaps that allow movement or debris intrusion
• Restores finished appearance where the original endcap is damaged

• Disconnect power (and water if applicable) before starting any repair.
• Installation usually involves aligning the endcap and fastening or snapping it into place; confirm orientation before securing.
• Keep track of any screws or clips removed and reuse original fasteners unless replacements are specified.

The Console Clip is an OEM part compatible with Whirlpool dryers. This clip secures the control console assembly to the top panel, ensuring it is firmly mounted during operation. Properly functioning clips are necessary to maintain the correct alignment of controls and prevent detachment.

Causes of a bad clip can include wear and fatigue from repeated opening and closing of the dryer door. Excessive force or impact could also bend or break the clip over time.

Symptoms of a bad clip include:

• Loose console assembly that is not securely fastened
• Misaligned or dangling controls that do not sit flush
• Dislodged console at risk of detaching from housing
• Missing clip leaving an open mounting point

This OEM Whirlpool replacement clip is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

A replacement selector knob selection assembly that restores a secure, easy-to-turn control for cycle or setting selection. Replaces a cracked, loose, or missing knob so you can confidently select functions again. What it does:

• Replaces a worn, broken, or missing selector knob used to choose cycles or settings
• Provides a secure grip and positive engagement with the control shaft
• Helps stop slipping, wobbling, or a knob that won't turn properly
• Restores normal control operation when the original knob is damaged

• One selector knob selection assembly

• Disconnect power to the appliance before starting any repair
• Most knobs pull straight off the control shaft; align the splines and press on until fully seated
• If the knob resists, verify orientation—do not force to avoid shaft damage

Dissolves odor-causing residue and mildew buildup in washing machine tubs. Use every 30 washes to maintain freshness. Verify fit with your model.

Timer dial installs over the timer shaft on your washer control panel. Replace if cracked, broken, or worn to restore proper cycle alignment and markings.

Replacement timer knob for washers. Restores grip and control when original is cracked, stripped, or broken off the shaft. Installs on timer dial shaft.

This mechanical cycle timer controls the sequence and duration of washer operations. Replacing a failing timer restores proper advancement through fill, agitate, drain, and spin so cycles complete reliably with accurate timing. What it does:

• Advances the washer through each step by routing power to the water valves, motor, and drain pump at the correct times
• Sets the length of each stage for consistent operation
• Common failure signs: cycle won't advance or stops mid-cycle
• Timer knob doesn't move or must be jiggled to run
• Skips functions (no agitate, drain, or spin) while others still work

• 1 mechanical timer assembly

• Disconnect power before servicing; access the timer from the control console
• Take photos or label wires; transfer them to the new timer one at a time to maintain correct positions
• Reuse the existing knob and dial; align the timer shaft properly and secure the mounting screws
• After reassembly, run a short test cycle to ensure proper advancement

Fixes loose or wobbly timer controls by securing the timer assembly to its mounting bracket. Simple 5-minute repair restores proper cycle operation.

Secures control knobs to the panel on washers and dryers. Replace if the clip is broken, missing, or worn, causing knobs to fall off or sit loose.

Fix a washer that won't advance cycles or gets stuck between rinse and spin. This cycle selector switch controls washing cycle progression.

Dissolves odor-causing residue and mildew buildup in washing machine tubs. Use every 30 washes to maintain freshness. Verify fit with your model.
