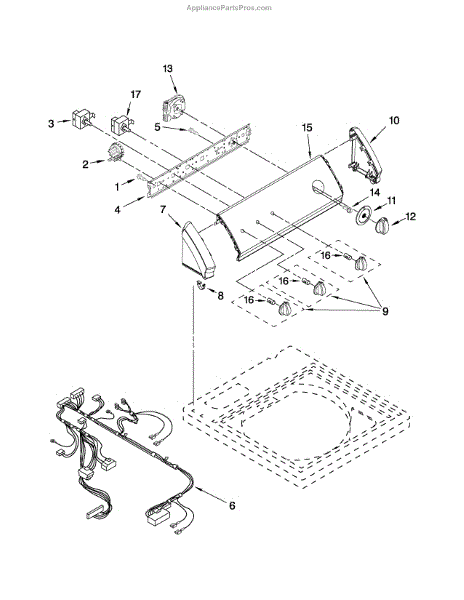

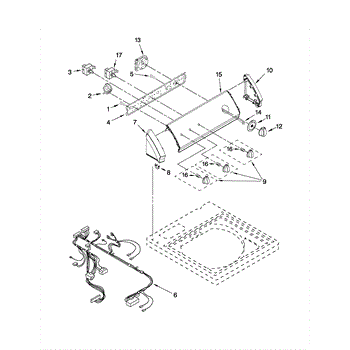

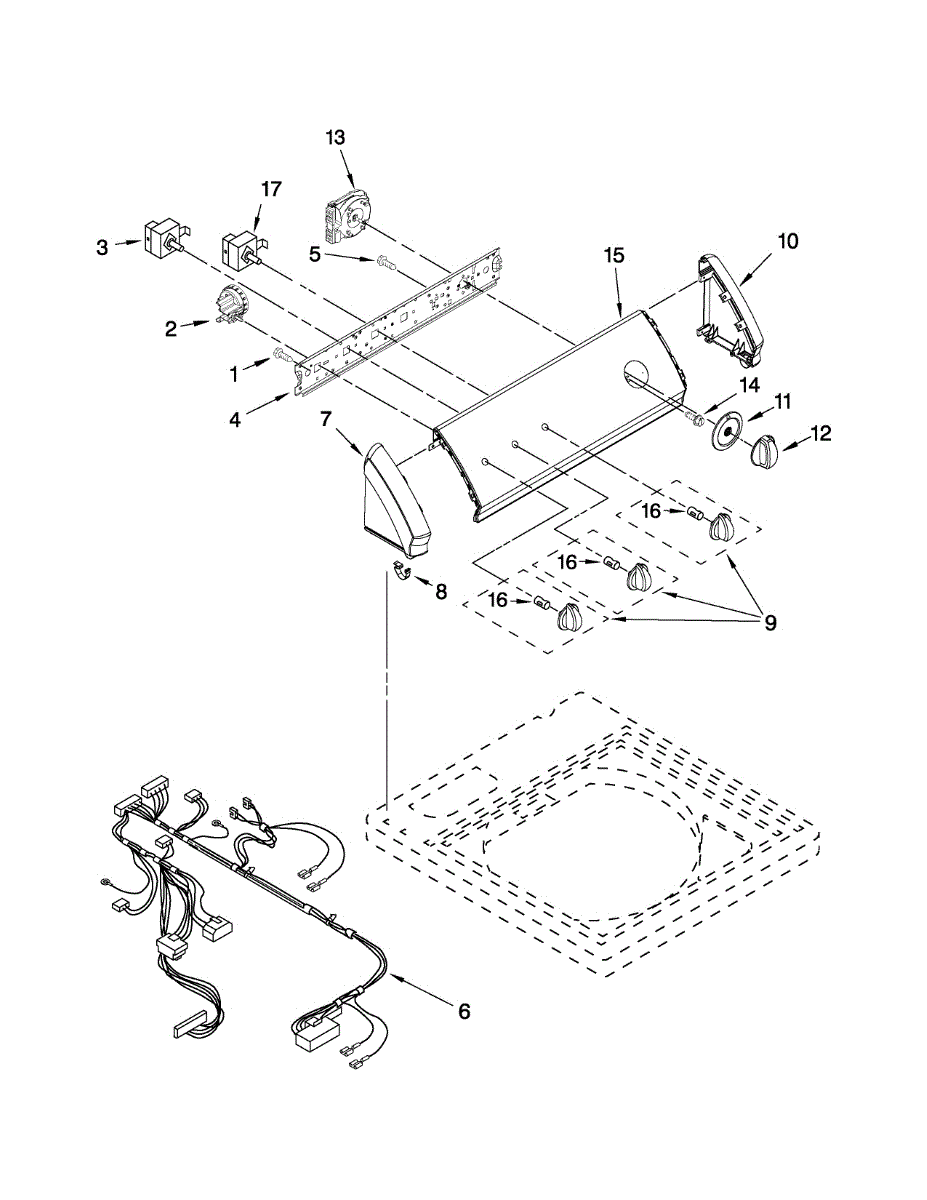

Parts for Kenmore 20522: Control Panel Parts

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Water Level Switch is an OEM replacement part for Whirlpool washing machines. It monitors and controls the amount of water that fills the drum during each wash cycle. By ensuring the appropriate water level, it aids in the efficient and effective cleaning of laundry while conserving water.

Symptoms of a bad Water Level Switch include:

• The washing machine overfilling or underfilling with water
• Inconsistent or erratic water levels during cycles
• The machine failed to progress from filling water to the wash cycle
• Error codes or indicators related to water levels or filling

Causes for a malfunctioning Water Level Switch can include electrical issues affecting signal transmission, mechanical failures within the switch, or blockages in the pressure hose connected to the switch.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Water Temperature Switch is an OEM replacement part for Whirlpool washing machines. This switch monitors incoming water temperatures to ensure they fall within the thresholds required for selecting dependent wash cycles. It plays an important safety function by preventing the activation of vulnerable "hot" cycles if water is too cool.

Causes of a bad water temperature switch can include failures from repetitive heating/cooling cycles, mineral deposits obstructing sensors over time, or defective temperature sensing mechanisms.

Symptoms of a bad water temperature switch include:

• Inability to select high-temperature cycles
• Fault codes related to water supply temperatures
• Potential improper washing if the temperature reading is inaccurate

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Size: 10 - 24 x 3/8

This endcap assembly replaces a worn or damaged endcap to restore proper fit and protect the appliance's exposed end components. It helps keep parts aligned and prevents rubbing, vibration, and debris entry for smoother operation. What it does:

• Secures and protects the exposed end of the related component or housing
• Maintains proper alignment to reduce vibration, noise, and premature wear
• Replaces cracked, broken, or missing endcaps that allow movement or debris intrusion
• Restores finished appearance where the original endcap is damaged

• Disconnect power (and water if applicable) before starting any repair.
• Installation usually involves aligning the endcap and fastening or snapping it into place; confirm orientation before securing.
• Keep track of any screws or clips removed and reuse original fasteners unless replacements are specified.

The Console Clip is an OEM part compatible with Whirlpool dryers. This clip secures the control console assembly to the top panel, ensuring it is firmly mounted during operation. Properly functioning clips are necessary to maintain the correct alignment of controls and prevent detachment.

Causes of a bad clip can include wear and fatigue from repeated opening and closing of the dryer door. Excessive force or impact could also bend or break the clip over time.

Symptoms of a bad clip include:

• Loose console assembly that is not securely fastened
• Misaligned or dangling controls that do not sit flush
• Dislodged console at risk of detaching from housing
• Missing clip leaving an open mounting point

This OEM Whirlpool replacement clip is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

A replacement selector knob selection assembly that restores a secure, easy-to-turn control for cycle or setting selection. Replaces a cracked, loose, or missing knob so you can confidently select functions again. What it does:

• Replaces a worn, broken, or missing selector knob used to choose cycles or settings
• Provides a secure grip and positive engagement with the control shaft
• Helps stop slipping, wobbling, or a knob that won't turn properly
• Restores normal control operation when the original knob is damaged

• One selector knob selection assembly

• Disconnect power to the appliance before starting any repair
• Most knobs pull straight off the control shaft; align the splines and press on until fully seated
• If the knob resists, verify orientation—do not force to avoid shaft damage

The timer dial fits over the timer shaft on the control panel. It displays cycle options and provides a secure, aligned surface for the knob to rotate the timer so selections line up correctly.

• Surrounds the timer knob and shows cycle names/markers
• Aligns with the timer so the knob can index and turn settings properly
• Typical symptoms: cracked or broken ring, faded markings, loose/wobbly dial, difficulty selecting or aligning cycles
• Direct-fit replacement of the original timer dial

• Disconnect power to the appliance
• Pull off the timer knob; remove any retaining clip or nut if present
• Lift off the old dial; align the new dial with the panel indexing and timer shaft, then press into place
• Reinstall the retainer and knob; restore power and verify alignment

This timer control knob restores a secure, easy-to-grip dial so you can set cycles with confidence. It replaces cracked or stripped originals that spin freely or fall off the shaft, bringing back reliable manual control. What it does:

• Attaches to the timer shaft so you can turn and set the cycle
• Replaces a cracked, stripped, loose, or missing knob that won't engage the timer
• Restores proper feel and alignment of the timer dial
• Common symptoms: free-spinning or slipping knob, falls off, hard to turn, can't select a cycle

• 1 timer knob

• Disconnect power to the appliance before service
• Pull the old knob straight off; remove/transfer the retaining clip from the back of the knob
• Align the new knob with the timer shaft and press until fully seated
• Test knob engagement and cycle selection before returning to service

This mechanical cycle timer controls the sequence and duration of washer operations. Replacing a failing timer restores proper advancement through fill, agitate, drain, and spin so cycles complete reliably with accurate timing. What it does:

• Advances the washer through each step by routing power to the water valves, motor, and drain pump at the correct times
• Sets the length of each stage for consistent operation
• Common failure signs: cycle won't advance or stops mid-cycle
• Timer knob doesn't move or must be jiggled to run
• Skips functions (no agitate, drain, or spin) while others still work

• 1 mechanical timer assembly

• Disconnect power before servicing; access the timer from the control console
• Take photos or label wires; transfer them to the new timer one at a time to maintain correct positions
• Reuse the existing knob and dial; align the timer shaft properly and secure the mounting screws
• After reassembly, run a short test cycle to ensure proper advancement

This small mounting screw secures the appliance's timer to its bracket or control console. It replaces missing or stripped hardware to keep the timer stable, properly aligned, and operating smoothly when you turn the control knob.

• Fastens the timer assembly securely to its mounting bracket or console
• Prevents shifting and vibration that can make the control feel loose or wobbly
• Helps maintain proper alignment of the timer shaft/knob
• Ideal replacement when original hardware is missing or threads are damaged

• Disconnect power before servicing; shut off gas if applicable
• Access the control console and support the timer while removing/reinstalling hardware
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening into plastic or thin metal
• Replace screws one at a time to keep the timer aligned

The Knob Spring Clip is an OEM part for Whirlpool appliances, specifically designed for use in washers and dryers. This small but essential component is responsible for securing the control knob to the control panel, ensuring that the knob stays firmly in place during operation.

Common causes of a bad spring clip include frequent use, accidental impacts, or wear and tear over time. A faulty spring clip can result in the control knob becoming loose or falling off, making it difficult to operate the appliance.

Symptoms of a bad knob spring clip include:

• The control knob is loose or wobbly
• The control knob falls off easily
• Difficulty in turning or setting the control knob
• The appliance not responding correctly to knob adjustments

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

2 position. Extra rinse.
