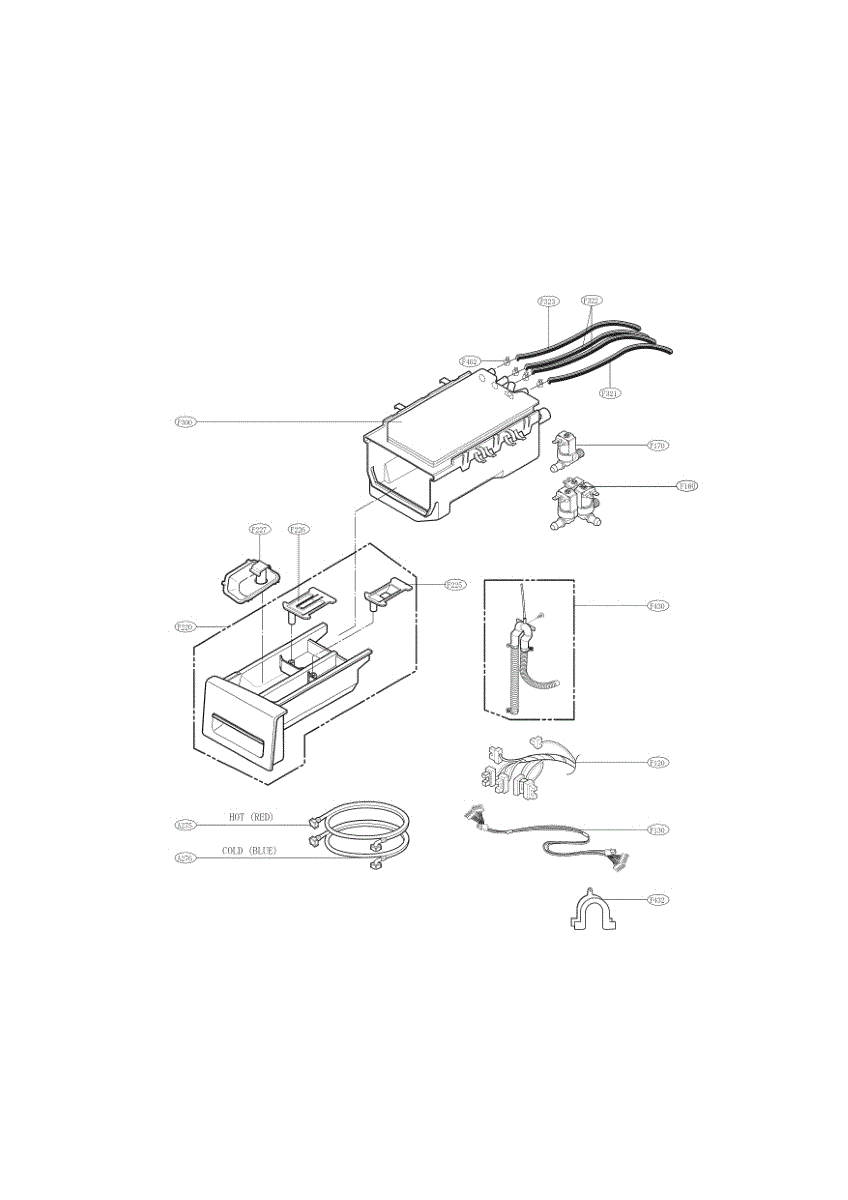

Parts for Lg WM3170CW / 00: Dispenser Parts

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

This multi-connector wiring harness routes power and control signals between internal components for reliable appliance operation. Replacing a damaged harness restores secure electrical connections and helps resolve intermittent or lost-function symptoms. What it does:

• Links control board and internal components using multiple connector plugs for correct signal and power distribution.
• Commonly replaced for intermittent operation, loss of specific functions, or visible damaged/burned wiring.
• Ensures connector-to-connector fit to prevent loose connections and arcing that can cause faults.
• Works as a direct replacement harness where the original wiring assembly is damaged or connectors are worn.

• Disconnect power (unplug or turn off circuit breaker) before accessing internal wiring.
• Note connector positions and routing before removal; swap one connector at a time to avoid miswiring.
• Do not force connectors; align pins and push until fully seated. Replace any damaged retaining clips.
• After installation, restore power and test all functions before reassembling panels.

The Water Inlet Valve Assembly is an OEM replacement part for LG washing machines. This critical component regulates the flow of water into the washing machine tub, ensuring the proper water supply for various wash cycles and functions.

Causes of a faulty water inlet valve assembly in a washing machine can include sediment buildup or clogs, electrical malfunctions preventing proper valve operation, or physical damage to the valve or its components. Normal wear and tear over time can also lead to valve failure.

Symptoms of needing to replace the water inlet valve assembly include:

• Insufficient or no water entering the washing machine tub
• Leaks or water drips around the inlet valve area
• The washing machine failing to fill with water or fill slowly
• Constant water flow or inability to shut off the water supply

This OEM LG part is also compatible with select Kenmore washer models.

The Water Inlet Valve Assembly is an OEM replacement part for LG washing machines, designed to control the flow of water into the laundry tub. This part is responsible for opening and closing to allow water into the wash drum at the appropriate times during the wash cycle, providing the correct water level and temperature.

Causes of a bad Water Inlet Valve Assembly can include mineral deposits blocking the valve, electrical failure preventing the valve from opening or closing properly, or physical damage to the valve mechanism itself.

Symptoms of a bad Water Inlet Valve Assembly include:

• Inadequate filling of the washer drum
• Water entering the drum when the washer is off
• Unusual noises during the fill cycle
• Water that is too hot or too cold, indicating a failure in valve operation that controls temperature

This OEM LG part can also be used on Kenmore/Sears appliances.

The Fabric Softener Cap is an OEM replacement part for LG front-loading washing machines. It is a replaceable component that securely fastens into the internal dispenser drawer, containing liquid fabric softener added during wash cycles. Color: blue. It measures about 2-1/2 inches wide by 4-1/2 inches deep.

Symptoms of a problematic cap could include:

• Softener stains or residue accumulating around base gasket seals
• Drips or puddles indicative of compromised sealing surfaces
• Cracks, fatigue, or warping affecting secure closure

Causes typically relate to normal plastic material breakdown after years of opening and closing cycles. Exposure to cleaning detergents could potentially deteriorate gaskets as well.

Compatible brands include Kenmore Elite and some Café laundry appliances too.

The Bleach Funnel is an OEM part for LG washing machines. This part safely dispenses and introduces liquid bleach or other cleaning agents into the wash cycle at the appropriate time.

Causes of a bad Bleach Funnel can include physical damage, wear and tear over time, or clogs from residue buildup.

Symptoms of a faulty Bleach Funnel include:

• Bleach or cleaning agents not being properly dispensed
• Leaks or residue buildup in the dispenser area
• Clogging or blockages preventing proper flow
• Washing machine not effectively utilizing bleach or cleaning additives

This OEM LG part is also compatible with some Kenmore models.

The Detergent Box Assembly is an OEM replacement part for LG washing machines. This assembly is responsible for holding and dispensing detergent and other laundry additives during the wash cycle. It ensures that the correct amounts of detergent, bleach, and fabric softener are released at the appropriate times, contributing to effective cleaning and care of your clothes.

Over time, the detergent box assembly can become worn out or damaged due to continuous exposure to water and detergent. Buildup of detergent residues can clog the compartments, and the mechanical parts of the assembly can also degrade.

Symptoms of a bad detergent box assembly include:

• The detergent, bleach, or fabric softener not dispensing properly
• Visible cracks, warping, or damage to the box
• Residues remaining in the compartments after a wash cycle
• Leaks from the detergent box area
• Error messages related to dispensing issues

This OEM LG part is also compatible with some Sears/Kenmore washing machine models.

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

The Dispenser Assembly is an OEM part for LG front-loading washers. It is responsible for dispensing detergent and fabric softener at the appropriate times during the wash cycle. The dispenser assembly contains separate compartments for detergent and fabric softener, as well as timed mechanisms that release each additive when needed for cleaning and softening results.

Causes of a bad dispenser assembly can include issues with the dispensing mechanisms like clogging, jamming, or malfunctions preventing the timely release of detergent and softener. Damage to compartment seals or lids could also cause improper dispensing.

Symptoms of a bad dispenser assembly include:

• Residue or buildup of detergent in the drum or tub
• Strong detergent or fabric softener odors that won't come out of clothes
• Dispenser drawers, lids, or seals that do not close or lock securely

This OEM LG part is also compatible with Sears/Kenmore.

The Dispenser Inlet Hose is an OEM part for LG washing machines. This hose directs water from the water inlet valve to the detergent dispenser, ensuring that water mixes with the detergent before entering the drum for efficient washing. The hose is designed to withstand high water pressure and temperature fluctuations.

Over time, the dispenser inlet hose can become clogged, cracked, or worn out due to regular use. Causes of a bad inlet hose include mineral deposits or debris buildup, wear and tear, and exposure to high temperatures or pressure that can cause the hose to degrade.

Symptoms of a bad dispenser inlet hose include:

• Leaking water around the detergent dispenser area
• Reduced water flow into the dispenser
• Visible cracks or wear on the hose
• Incomplete dissolution of detergent during wash cycles

This OEM LG part is also compatible with Sears/Kenmore.

This inlet hose routes incoming water from the washer's fill valve into the machine to support proper filling. Replace a cracked or leaking hose to stop drips, prevent water damage, and restore reliable fill performance.

• Directs incoming water from the fill valve to the dispenser/tub during wash cycles
• Maintains a sealed path to prevent internal or external leaks
• Helps the washer reach proper fill levels and timing
• Common symptoms of failure: water on the floor, leaks during fill, visible cracks or bulges, long/no fill or IE error

• Unplug the washer and turn off both hot and cold water supplies
• Keep towels or a pan handy; relieve residual water pressure before disconnecting
• Note the original routing; fully seat the hose on fittings and secure with existing clamps
• Restore water and power, then run a quick fill to check for leaks

This Hose, Pump is an OEM part for LG washing machines. It plays a crucial role in the appliance's water management system, connecting the pump to the drum or the outlet, and facilitating the flow of water during various washing cycles.

Hoses in washing machines can degrade due to wear and tear, exposure to high water pressure, or damage from external factors. A malfunctioning hose can lead to water leakage, and inefficient draining, and could potentially cause water damage.

Symptoms of a failing pump hose in a washing machine include:

• Water leaking from the washer during or after the cycle.
• Puddles forming around the washer, indicating a leak.
• The washing machine failed to drain water properly.
• Unusual noises during the draining phase, possibly caused by water struggling to pass through.
• Signs of wear, such as cracks or bulges, on the hose.

This OEM LG part is also compatible with some Sears/Kenmore models.


This clamp assembly secures a hose or tubing connection to maintain a watertight seal and reduce vibration. Replacing a worn or damaged clamp helps stop leaks and prevents hoses from slipping loose during operation. What it does:

• Holds a hose or tube firmly in place to maintain proper sealing at the connection point.
• Prevents leaks caused by loose, cracked or corroded clamps.
• Reduces vibration and rattling from unsecured hoses.
• Common symptom: visible leaking, water pooling, or a loose hose connection.

• Disconnect power and shut off water supply before starting any repair.
• Use the correct pliers or screwdriver for the clamp type; avoid damaging the hose.
• Inspect the mating hose and seal; replace any cracked or hardened hoses before reinstalling.
• Do not overtighten—tighten just enough to secure the hose without cutting or deforming it.
