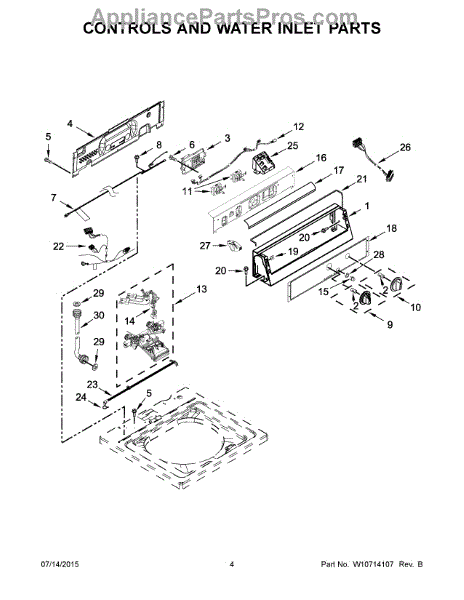

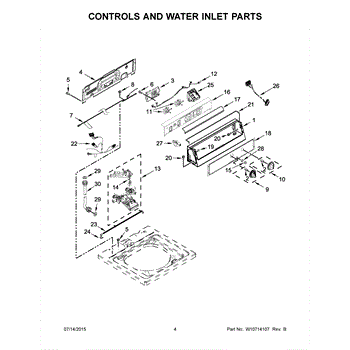

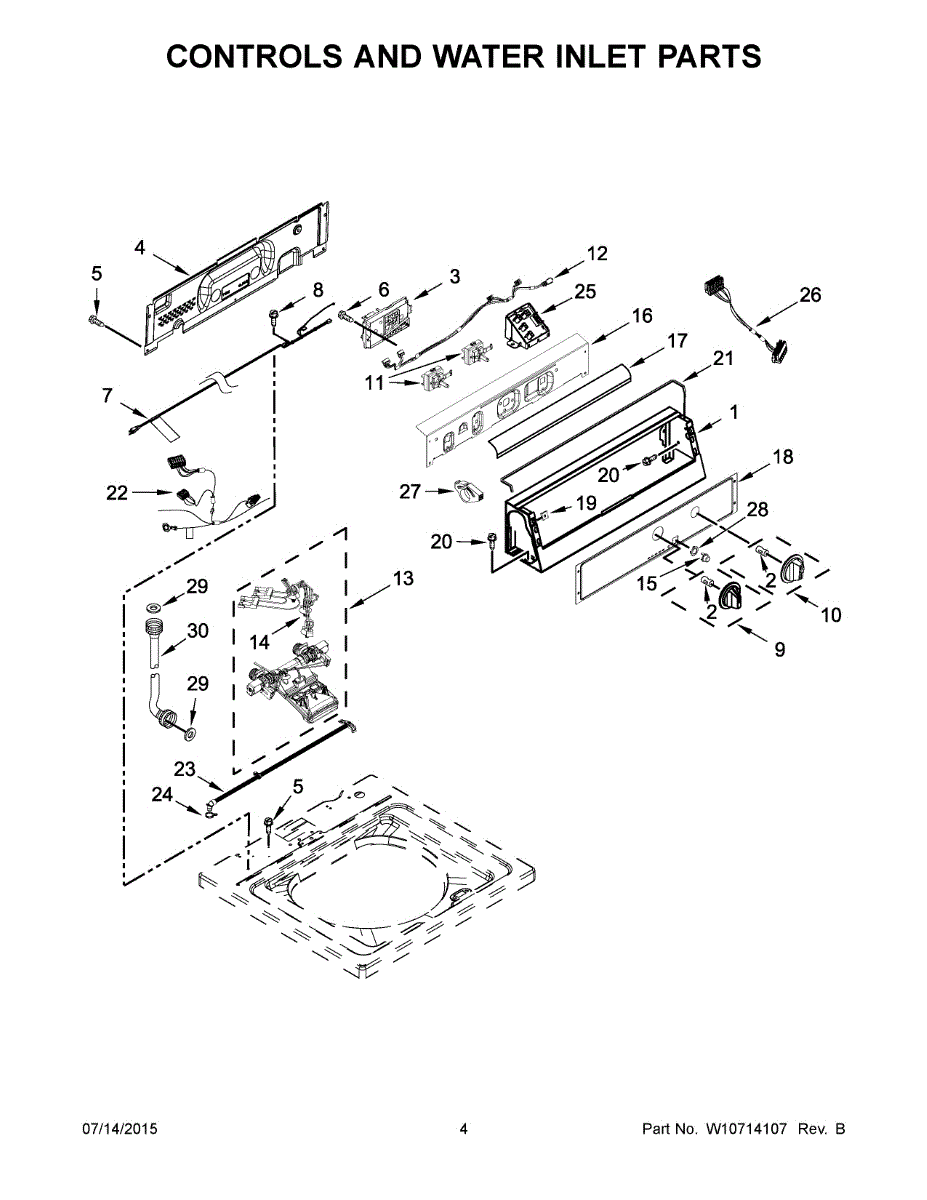

Parts for Whirlpool CAE2793CQ0: 03 - Controls And Water Inlet Parts

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

This is the appliance's main electronic control board. It interprets user and sensor inputs and switches onboard relays to run the proper functions and timing, restoring normal operation when the original board fails.

• Processes keypad and sensor signals to control the appliance's functions
• Sequences operations and timing by energizing relays to connected components
• Typical symptoms: unresponsive controls, won't start, erratic cycling, blank or garbled display, recurring error codes

• Disconnect power to the appliance before servicing
• Use ESD protection and handle the board by the edges
• Photograph/label wiring; move each harness and any jumpers/settings to the same locations on the new board
• After installation, restore power and run model-specific diagnostics or calibration per the service manual

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Screw is an OEM component compatible with Whirlpool washing machines. This screw secures the rear bulkhead to the tub, ensuring vibrations are reduced through solid mounting points. Properly installed screws dampen oscillating movement.

Causes of a bad screw include damage from water exposure like corrosion or breakage from stress concentrations if the tub bangs around during imbalanced loads.

Symptoms of a bad screw include:

• Loose or detached rear bulkhead allowing side-to-side play
• Excessive noise and shaking felt through the surrounding walls
• Development of micro-cracks around screw holes over time
• Potential leak paths if holes are no longer sealed

This Whirlpool replacement screw restores a stable suspension system. It is compatible with additional brands like Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This control knob replaces a worn or broken stove/oven front control knob, restoring easy, accurate control of burner and oven settings. It fits on the control shaft to provide a secure, user-friendly grip. What it does:

• Replaces a damaged or missing stove/oven control knob so you can change burner or oven settings
• Provides a positive tactile click and clear pointer for accurate heat selection
• Helps prevent slipping or incomplete engagement that can affect temperature selection
• Matches OEM fit and function for direct, no-modification swap

• One control knob as shown

• Remove power to the appliance before attempting service (unplug or shut off breaker)
• Pull old knob straight off the control shaft; align new knob on splines and push until fully seated
• If the knob feels loose or won't engage, check the control shaft and splines are not damaged

This replacement control knob restores reliable user control for your appliance's front panel. It provides a firm grip for selecting settings so you can operate cycles, temperatures, or functions with confidence. What it does

• Replaces a cracked, stripped, or missing control knob so settings can be selected and held securely.
• Provides tactile feedback and a positive grip for turning and selecting controls.
• Helps eliminate slipping or loose control operation that prevents accurate selection of cycles or temperatures.
• Fits onto the appliance control shaft to restore normal manual control.

• Disconnect power (and gas supply for gas appliances) before servicing.
• Typically a push-on replacement onto the control shaft; align splines and press firmly until seated.
• If knob is tight or stuck, use gentle leverage; avoid excessive force that could damage the control shaft.

This rotary encoder mounts behind the washer's cycle knob and tells the main control which setting you select. When it fails, selections may be erratic or unresponsive. Replacing it restores accurate, dependable cycle selection. What it does

• Detects the position of the cycle selector knob
• Sends selection signals to the main control board
• Enables precise cycle and option changes
• Common symptoms: knob turns but lights don't follow, random/incorrect selection, can't select a cycle, won't start

• One rotary encoder

• Disconnect power to the washer before servicing
• Access the control console and remove the knob/dial to reach the encoder
• Note orientation, unplug the harness, release tabs/screws, and swap in the new encoder
• Handle electronics carefully and avoid static discharge; verify knob-to-light tracking before reassembly

This wire harness assembly routes power and signals between appliance components to restore reliable electrical connections. It replaces a damaged or worn multi-conductor harness to help eliminate intermittent operation and restore proper control functions. What it does:

• Carries power and control signals between modules, switches, and motors
• Replaces frayed, burned, or disconnected wiring that can cause intermittent or no operation
• Helps stop electrical arcing, shorts, and loose-connection symptoms that trigger errors or shutdowns
• Restores reliable connections for proper appliance control and performance

• One complete wire harness assembly as shown

• Disconnect power (unplug or shut off breaker) before starting any work
• Take reference photos of the original harness routing and connector positions to ensure correct reassembly
• Match connectors and routing exactly; avoid stretching or pinching wires when reinstalling
• If you see burned terminals, damaged connectors, or other component damage, inspect related parts and replace as needed

This is the appliance's water inlet valve. It controls and opens the water supply to the unit at the correct times so cycles can fill properly and dispense water where needed.

• Regulates incoming water flow to the appliance
• Can address no water to ice maker or dispenser
• May correct humming or buzzing from a stuck solenoid

• Disconnect power and shut off the water supply before servicing
• Keep a towel handy; a small amount of residual water may spill
• Transfer any mounting hardware or fittings from the old valve if required
• After installation, restore water, check for leaks, then test operation

This pushbutton installs in the control console and actuates the underlying switch, restoring positive, reliable selection of a cycle or feature and a clean, finished appearance when the original button is worn, sticky, or broken. What it does

• Provides the user-facing cap that presses the internal control switch
• Restores smooth button travel and positive engagement
• Helps ensure selections register consistently
• Common symptoms: button cap cracked/missing, sticks or won't spring back, selection only registers when pressed hard, loose or wobbly button

• 1 pushbutton

• Disconnect power before servicing to avoid electrical shock
• Access the control/console per your service manual
• Note orientation; release retaining tabs and remove old button
• Seat the new button fully; test travel and function before reassembly

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

10 - 16 x 1/2

The Hose Clamp is an OEM part for Whirlpool appliances. It secures hoses in place, ensuring a tight connection and preventing leaks in various systems such as washing machines, dishwashers, and refrigerators. This clamp is crucial for maintaining the integrity of the water or air lines it secures.

Causes of a bad hose clamp include wear and tear over time, exposure to water and detergents, or mechanical stress from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Leaks at the hose connection points
• Hoses slipping off the connections
• Visible rust or damage on the clamp
• Reduced appliance efficiency due to leaks

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Coin Slide Interface is an OEM part for Whirlpool commercial washers. It is a component that allows users to insert coins or tokens to activate the machine and initiate the laundry cycle.

Causes of a faulty coin slide interface can include regular wear and tear, damage due to misuse or vandalism, or electrical component failure. These factors can result in issues such as coin rejection, incorrect coin counting, or the inability to start the machine using coins.

Symptoms of a Bad Part:

• Will not start
• Not washing properly
• Timer will not set

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Replacement wire harness that reconnects an appliance's electrical components to restore reliable power and signal paths for controls and motors. Use when worn or damaged wiring causes intermittent operation or control failures. What it does:

• Routes and links power and signal lines between the control board and components.
• Restores reliable connections to eliminate intermittent or lost function.
• Common symptom fixes: appliance won't start, controls or displays unresponsive, specific cycles or features fail.
• Helps address visible wiring damage, burned connectors, or loose plug connections.

• Disconnect power (and water, if applicable) before beginning any work.
• Follow the appliance's service manual or parts diagram to confirm routing and connector orientation.
• Inspect connectors and mating terminals for damage; replace if corroded or burned.
• Do not modify the harness; secure wiring to prevent pinching and avoid contact with high-heat areas.

This 3-level pressure switch senses washer water level and tells the control when to fill, stop filling, or advance cycles—helping prevent overfilling and ensuring correct cycle operation. It replaces a failed or inconsistent water-level sensor. What it does:

• Detects water pressure changes and signals the washer control to fill, stop, or change cycles.
• Prevents overfilling by reporting accurate water level to the control board.
• Can restore normal fill/drain behavior when a faulty switch causes incorrect water levels or cycle errors.
• Common symptoms: washer overfills, won't fill to correct level, or displays water-level related errors.

• Disconnect power and turn off water supply before starting any repair.
• Label and gently disconnect the air tube and electrical connector from the old switch; avoid stretching or pinching the tube.
• Mount the new switch in the same orientation and reconnect the air tube and wiring securely.
• After installation, run a short test cycle to check for air-tube leaks or kinks.

Size: 1-1/16 x 5/8 inch. Used for fill hose. For a 4 pack order 285448A

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.
