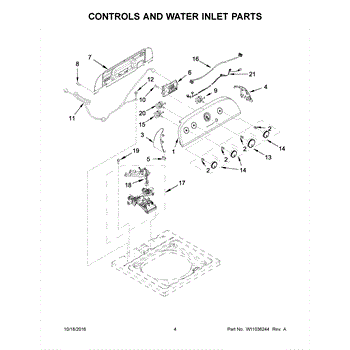

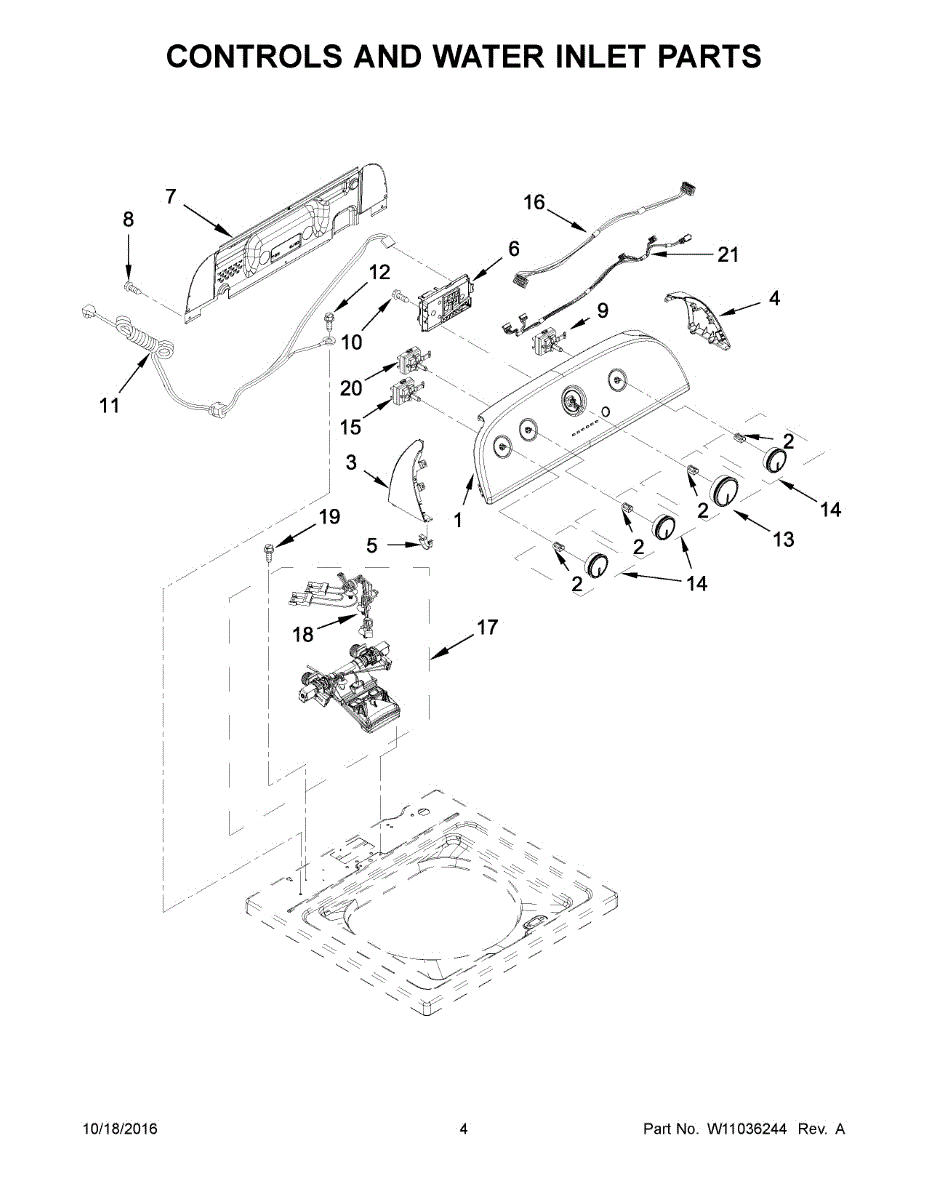

Parts for Whirlpool WTW4815EW2: 03 - Controls And Water Inlet Parts

This is a D-shaped knob insert or spring clip that fits inside a control knob and connects it to the control shaft on the dryer's front panel. It ensures the knob grips the shaft properly so you can turn the timer or selector. Replace this insert if your control knob spins freely without engaging the shaft or if the knob feels loose and won't stay in position.

This is the left-side end cap that attaches to the dryer's control panel, providing a finished appearance on the edge of the console. It snaps or screws into place and helps hold the control panel assembly together. Replace this end cap if it is cracked, broken, or missing, which can leave the control panel edges exposed and unsightly.

This is a white plastic end cap that attaches to the right side of the dryer's control panel console. It provides a finished appearance and helps secure the control panel assembly in place. Replace this end cap if it is cracked, broken, or missing, which can leave the edges of the control panel exposed and cause the console to feel loose.

The Console Clip is an OEM part compatible with Whirlpool dryers. This clip secures the control console assembly to the top panel, ensuring it is firmly mounted during operation. Properly functioning clips are necessary to maintain the correct alignment of controls and prevent detachment.

Causes of a bad clip can include wear and fatigue from repeated opening and closing of the dryer door. Excessive force or impact could also bend or break the clip over time.

Symptoms of a bad clip include:

• Loose console assembly that is not securely fastened
• Misaligned or dangling controls that do not sit flush
• Dislodged console at risk of detaching from housing
• Missing clip leaving an open mounting point

This OEM Whirlpool replacement clip is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Covers the back of your laundry center, protecting internal wiring and components. Replace if cracked, broken, or missing to restore a finished look.

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

Fix unresponsive or erratic cycle selection with this rotary encoder switch. Mounts behind the control knob to restore accurate cycle settings and indicators.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Replacement power cord for laundry centers and washers. Installs at the rear panel to restore electrical connection. Needed when original cord is damaged, frayed, or missing.

The Screw is an OEM component compatible with Whirlpool washing machines. This screw secures the rear bulkhead to the tub, ensuring vibrations are reduced through solid mounting points. Properly installed screws dampen oscillating movement.

Causes of a bad screw include damage from water exposure like corrosion or breakage from stress concentrations if the tub bangs around during imbalanced loads.

Symptoms of a bad screw include:

• Loose or detached rear bulkhead allowing side-to-side play
• Excessive noise and shaking felt through the surrounding walls
• Development of micro-cracks around screw holes over time
• Potential leak paths if holes are no longer sealed

This Whirlpool replacement screw restores a stable suspension system. It is compatible with additional brands like Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Timer Knob is an OEM part for Whirlpool washers and dryers. It is located on the control panel that allows you to set and adjust the timer for different wash and dry cycles.

A bad timer knob can be caused by regular use, accidental damage, or wear and tear over time. If you notice cracks, a loose fit, or difficulty in turning the knob, it may indicate a problem with the knob itself.

Symptoms of a bad timer knob include:

• Cracked or damaged knob surface
• Loose or wobbly fit of the knob on the control panel
• Inability to set or adjust the timer accurately

Replace your faulty timer knob with this genuine OEM part to restore your appliance.

This Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


The Knob is an OEM component for Whirlpool dryers. As the user interface, it allows selections of temperature, settings, and time options with the twist of a finger.

Designed for comfort during extended cycles, the durable knob utilizes non-slip textured surfaces around robust internal gears. Integrated fasteners mount securely to shafts coupling knobs to their respective switches.

Causes of faulty knobs can include stripped internal teeth from mineral deposits binding moving parts or broken mounting tabs weakened through normal wear over many years.

Symptoms of a damaged knob include:

• Failure to engage settings or spin freely
• Dials loose on shaft allowing accidental shifts
• Missing labels from normal cleaning/wear reducing visibility
• Cracks or breaks compromising seal against moisture

Replace yours today with this genuine Whirlpool knob to restore easy navigation of cycles. Compatible with Kenmore and some Maytag dryers.

Fix erratic or unresponsive cycle selections with this laundry center rotary encoder switch. Mounts behind the cycle knob to restore accurate settings.

Fix intermittent power loss or component failures in your washer with this main wire harness. Routes power and control signals between electrical parts.

Fix a washer that won't fill or fills slowly with a new water inlet valve. Controls hot and cold water flow into the tub. Moderate DIY repair.

Fix washer control issues or no power problems with this main wire harness. Routes signals between control board and motor. Moderate DIY repair.

Number-8, 18-thread mounting screw secures panels, brackets, and assemblies. Replace missing, stripped, or damaged screws to restore secure fitting.

Fix a washer that won't advance through cycles or gets stuck between wash and rinse. This cycle switch controls your wash sequence. DIY repair.

This wire harness assembly routes power and signals between appliance components to restore proper electrical connections and reliable operation. It replaces a damaged or worn harness to help eliminate intermittent power, control failures, or no-start conditions. What it does:

• Provides factory-style wiring connections between control, motor, heating element, and other components
• Restores lost or intermittent electrical continuity that can cause no-start or inconsistent operation
• Replaces frayed, burnt, or corroded wiring and terminals that create safety or performance issues
• Ensures correct wire routing and secure terminals to prevent shorts and improve reliability

• One complete wire harness assembly with terminals and connectors as shown

• Disconnect all power to the appliance before starting; follow lockout/tagout for safety
• Compare the harness to the original for matching connector types and lengths before installing
• Route and secure wiring away from moving parts and heat sources; use retained clips or ties
