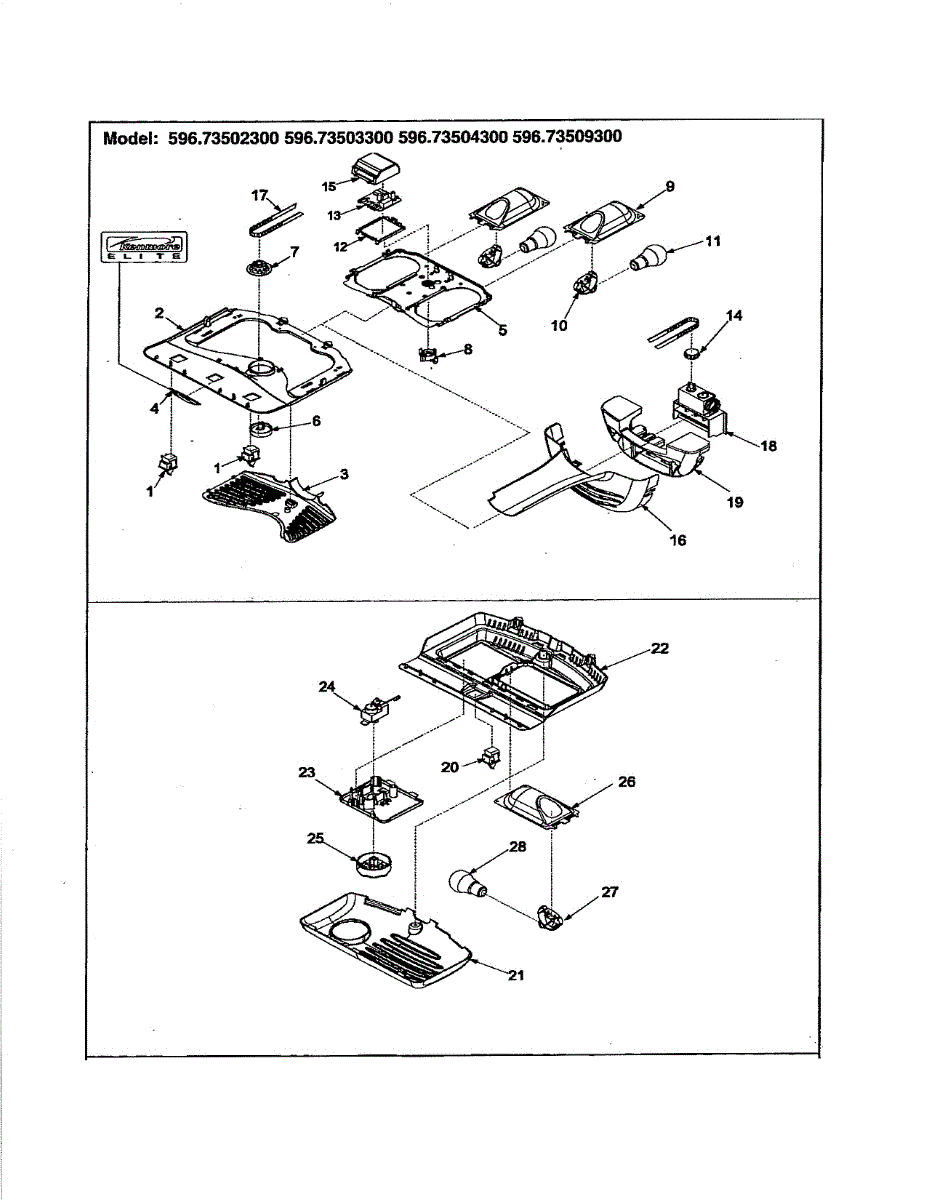

Parts for Kenmore 596.73502203 (59673502203, 596 73502203): Controls Parts

This replacement pan-timer/light housing assembly secures the timer and light components behind the control panel and restores proper fit and operation. Use it when the original housing is cracked, loose, or not holding the lamp/timer correctly. What it does:

• Provides the mounting structure for the timer and control panel light so components sit securely
• Keeps the light assembly aligned to illuminate the control area
• Prevents rattling or movement of timer/light parts caused by a damaged housing
• Safe, common symptom fix for visible cracks, loose control trim, or intermittent light alignment

• One pan-timer/light housing assembly

• Disconnect power to the appliance before starting any repair
• Access typically requires removing the control panel or trim; handle plastic tabs and clips carefully to avoid breakage
• Reinstall screws and connectors to factory torque; do not force parts into position
• If wiring or bulbs are damaged, replace those items separately

The Defrost Thermostat is an OEM part for Whirlpool refrigerators. It monitors the temperature of the evaporator coil and signals the defrost heater to turn on when necessary, preventing frost buildup on the coil.

You should replace the defrost thermostat if it becomes faulty or damaged. Causes of a bad defrost thermostat can include electrical issues, exposure to moisture, or general wear and tear over time.

Symptoms of a bad defrost thermostat include:

• Frost buildup on the evaporator coil
• The refrigerator running constantly or not cooling properly
• Water leaks inside the refrigerator
• The defrost heater not activating during the defrost cycle

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Gear knob for refrigerators. Installs on control mechanisms to adjust settings. Replace if cracked, broken, worn, or missing for proper operation.

Replacement power cord for refrigerators. Restores electrical connection when the original cord is frayed, damaged, cracked, or has broken prongs.

Water line kit for connecting ice makers to household water supply. Includes copper tubing, valve, and fittings for installation under kitchen sink.

The Replacement Icemaker is an OEM replacement part for Whirlpool made refrigerators including Whirlpool, Amana, Maytag, and many others. It is a component responsible for producing ice cubes or crushed ice, ensuring a constant supply of fresh ice for your convenience. Measuring approximately 11 inches long and 5 inches wide, this ice maker assembly is made of durable plastic and metal

Symptoms of needing a replacement icemaker include:

• No ice production or significantly reduced ice output
• Ice cubes appearing misshapen or clumped together
•  Leaks or water buildup in the icemaker area
• Strange noises or grinding sounds coming from the icemaker

Causes of a faulty icemaker can include normal wear and tear over time, water supply issues, clogging or blockages, or electrical malfunctions.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore refrigerator models.

Please note: that this ice maker is a replacement only and not suitable for add-ons or brand-new installations. It does not include the harness or hardware. For wire harness(Plug)order WPD7813010. For cover order WPW10289690. For shut off bail arm order WP67004028.

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

This electronic control board manages the appliance's functions and user interface, restoring normal operation when the original board fails. It replaces a faulty control module to help re-enable cycles, settings, and display feedback. What it does:

• Receives input from the control panel and sensors to run timed cycles and selected options
• Controls power delivery, timers, and cycle sequencing for proper operation
• Can cause error codes, unresponsive buttons, or intermittent operation if damaged

• One electronic control board (main control board) as shown

• Disconnect power before removing or installing the control board to avoid shock or damage
• Handle the board carefully; avoid touching circuitry and use anti-static precautions when possible
• Verify the board mounting, wiring harness connections, and connectors seat fully during installation

Interior lights staying on or not working? This door switch controls refrigerator lighting and functions. Moderate DIY repair with video guide available.

Freezer not cooling properly or frosting over? This control module regulates temperature and defrost cycles. Restores proper freezer operation.

Freezer not cooling or running constantly? This mechanical temperature control thermostat regulates freezer temps. DIY-friendly repair in under an hour.

Freezer temperature control knob mounts on the control shaft inside your refrigerator. Replace yours if cracked, worn, or missing to restore grip.
