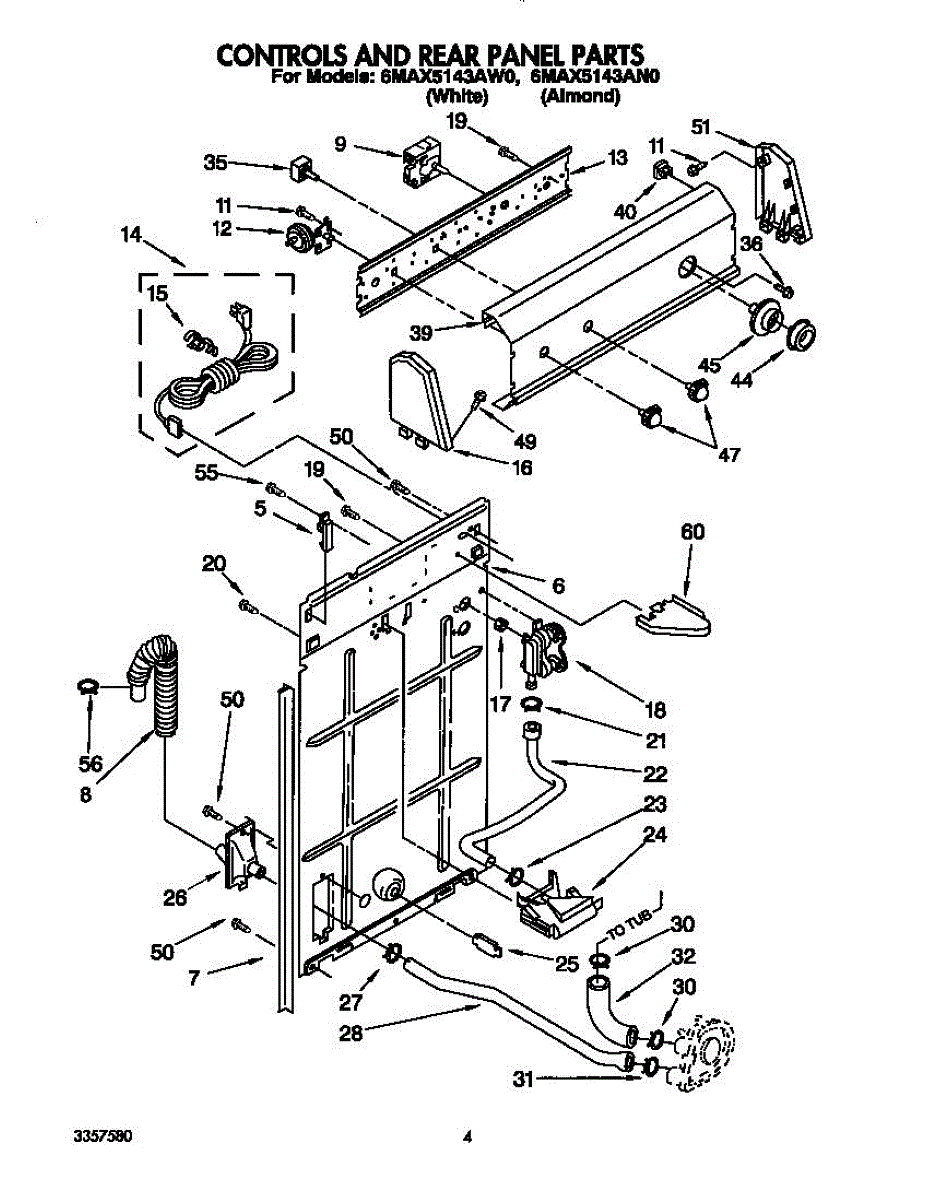

Parts for Whirlpool 6MAX5143AN0: Controls And Rear Panel Parts

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

Used for control panel.

Size: 8 foot long. This external washer drain hose is needed when there is more distance between the washer and the drain. Note: comes with 1.5" diameter clamp but hose is 1.25" in diameter; therefore you may need to order the 1.25" diameter clamp separately: WP356138

Size: 48 inches long. Clamp included. For 21 inch extension use 285702.

This is a replacement machine screw sized 8-18 x 3/8 that secures panels and components on compatible appliances. It restores proper fastening where a worn, stripped, or missing screw causes loose parts or rattling. What it does

• Fastens control panels, trim pieces, or brackets to the appliance chassis
• Replaces stripped, corroded, or missing screws that cause loose panels or vibrating noise
• Provides correct thread engagement for a secure hold in tapped holes
• Small hardware solution often used during door, console, or interior repairs

• One 8-18 x 3/8 machine screw (quantity: 1)

• Use the correct screw size and thread; do not force a different-size fastener into tapped holes
• Hand-start the screw to avoid cross-threading, then tighten with the appropriate screwdriver
• Disconnect power before accessing internal components or panels on electrical appliances
• If metal threads are damaged, repair with a helicoil or replace the damaged component rather than over-torquing

This water level pressure switch senses the tub's fill level through an air hose and signals the washer to start or stop filling and advance the cycle. Replacing a faulty switch restores proper fill levels and reliable cycle timing.

• Monitors water level via an internal pressure diaphragm connected to the tub air hose
• Opens/closes contacts to control the inlet valve and inform the timer/control
• Common symptoms: washer overfills or keeps filling, won't fill, incorrect/erratic water levels
• Cycle may stall at fill or rinse when the switch doesn't detect the proper level

• Disconnect power and turn off water before servicing
• Access the console; transfer wires to the new switch one at a time to maintain correct positions
• Inspect and firmly seat the pressure hose; ensure the hose and tub air dome are clear and the hose isn't cracked or kinked
• After installation, run a test fill to verify proper shutoff at the selected level

This adapter tube assembly connects sections of the appliance's water line to create a secure, leak-resistant path for water flow. Replace it if the tube is cracked or the connection no longer seals properly to prevent leaks and restore flow.

• Connects water tubing between components within the appliance's water system
• Helps maintain a tight, leak-resistant seal at the joint
• Restores proper water flow when a tube or connector is damaged
• Typical symptoms: water leaking at the connection, reduced or no water flow, visible cracks/kinks, loose fit

• Disconnect power and shut off the water supply before servicing
• Relieve line pressure and place a towel or pan to catch any residual water
• Note routing and orientation before removal to ensure correct reassembly
• After installation, restore water and check all connections for leaks

The Hose Clamp is an OEM part for Whirlpool appliances. It secures hoses in place, ensuring a tight connection and preventing leaks in various systems such as washing machines, dishwashers, and refrigerators. This clamp is crucial for maintaining the integrity of the water or air lines it secures.

Causes of a bad hose clamp include wear and tear over time, exposure to water and detergents, or mechanical stress from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Leaks at the hose connection points
• Hoses slipping off the connections
• Visible rust or damage on the clamp
• Reduced appliance efficiency due to leaks

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Vacuum Break Inlet Hose is an OEM part for Whirlpool washing machines. This hose is designed to prevent backflow of water into the washer, ensuring that water flows in the correct direction during the wash cycle. It plays a crucial role in maintaining the efficiency and hygiene of the washing process.

Common causes of a bad hose include regular wear and tear, exposure to harsh detergents, or accidental punctures. A compromised hose can lead to water flow issues and potentially contaminate the wash water.

Symptoms of a bad vacuum break inlet hose include:

• Water leakage around the hose area
• The washer not filling properly
• Backflow of water into the washer
• Reduced water pressure during the wash cycle

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Hose Clamp is an OEM part for Whirlpool appliances. It secures hoses in place, ensuring a tight connection and preventing leaks in various systems such as washing machines, dishwashers, and refrigerators. This clamp is crucial for maintaining the integrity of the water or air lines it secures.

Causes of a bad hose clamp include wear and tear over time, exposure to water and detergents, or mechanical stress from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Leaks at the hose connection points
• Hoses slipping off the connections
• Visible rust or damage on the clamp
• Reduced appliance efficiency due to leaks

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Vacuum Break is an OEM part for Whirlpool washing machines, designed to prevent the siphoning of water back into the machine once it has been drained. This part ensures that dirty water does not re-enter the wash drum, maintaining the cleanliness of the wash cycle and protecting the integrity of the clothes being washed.

A malfunctioning Vacuum Break can lead to various issues, including inefficiencies in water use, prolonged or ineffective wash cycles, and even the risk of mildew or odors developing from standing water.

Symptoms of a bad Vacuum Break include:

• Water siphoning back into the tub after the spin cycle
• Unusual noises coming from the washing machine during or after the drain cycle
• Clothes being wetter than usual at the end of the cycle, indicating incomplete draining
• Potential leaks or water buildup at the back of the washing machine

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Internal Drain Hose is an OEM part for Whirlpool washing machines. This hose is responsible for carrying used water from the washer tub to the drain pump, facilitating the efficient removal of water during the drain cycles. It ensures that water is properly directed out of the washer, preventing leaks and maintaining optimal washing performance.

Causes of a bad internal drain hose can include blockages from debris or lint, wear and tear from regular use, or damage such as cracks or splits from mishandling or aging.

Symptoms of a bad internal drain hose include:

• Water leaking inside or around the washer
• Slow or incomplete draining
• Error codes related to draining issues
• Unusual noises during the drain cycle

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Spring Tension Hose Clamp is an OEM part for Whirlpool washing machines. It is designed to secure hoses in place, preventing leaks by maintaining consistent tension on the hose connections.

Over time, spring tension hose clamps can lose their effectiveness due to metal fatigue, corrosion, or damage from frequent tightening and loosening. This can lead to leaks and improper hose connections.

Symptoms of a bad spring tension hose clamp include:

• Water leaks around hose connections
• Loose or disconnected hoses
• Unusual noises or vibrations during operation
• Water pressure issues within the washing machine

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This internal pump-to-drain hose routes water from the drain pump to the outlet, helping prevent leaks and ensuring proper draining. Replace a cracked or clogged hose to restore reliable, mess-free operation.

• Connects the pump outlet to the machine's drain/outlet port to carry wastewater out during the drain cycle
• Maintains a sealed path to help prevent internal leaks
• Common symptoms of failure: water on the floor, slow or incomplete draining, visible splits or soft spots on the hose
• Replacing a restricted hose can reduce drain pump strain and noise

• Disconnect power and shut off water supply; remove standing water from the tub if needed
• Access the drain pump and hose by removing the cabinet/front or rear panel per your model
• Release hose clamps, remove the old hose, and seat the new hose fully on both fittings; reuse clamps if in good condition
• Route the hose as originally to avoid kinks; run a drain cycle and check for leaks

Spring-style hose clamp that secures flexible appliance hoses to fittings, helping keep connections tight to reduce leaks and maintain proper water flow. Use it to replace a worn or damaged clamp and restore a reliable hose seal. What it does:

• Compresses around a flexible hose to lock it onto barbs or fittings
• Helps prevent drips, leaks, and water pooling at hose connections
• Keeps hoses from slipping off during appliance operation
• Useful when a clamp is corroded, stretched, or no longer holds tension

• Disconnect power and shut off water to the appliance before starting any repairs
• Use pliers to compress the clamp for removal and installation; keep hands and face clear when releasing tension
• Inspect the hose and fitting for damage; replace the hose if cracked or excessively worn

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

This kit contains two knobs and dial replacing many models. Color: black. The knobs are about 2 inches in diameter. The dial is about 3 inches in diameter.

This console screw secures the control console to the appliance cabinet or top, keeping the panel tight and aligned. Replace a missing or damaged screw to stop panel wobble and rattling and maintain a snug, stable fit. What it does:

• Fastens the control console/control panel to the cabinet or top panel
• Helps maintain alignment and reduces vibration and rattling
• Replaces a missing, stripped, or rusty original screw
• Common fix for a loose or lifting console/panel

• 1 screw

• Disconnect power before service; if applicable, shut off gas/water
• Support the console to avoid straining wiring harnesses
• Start threads by hand to prevent cross-threading; tighten until snug—do not overtighten
• Use the correct driver style for your model's hardware

This cover screw secures appliance panels and covers, keeping components protected and aligned. Replace missing, stripped, or corroded screws to restore a tight fit and help eliminate rattles, gaps, or panels that won't stay in place.

• Attaches an access cover or panel to the appliance frame
• Helps maintain proper alignment to protect internal components
• Replaces missing, stripped, or rusted hardware
• Typical signs: loose or rattling panel, cover won't stay secure, damaged or rounded screw head

• Disconnect power before servicing
• Support the panel while removing and installing screws to prevent misalignment
• Start threads by hand to avoid cross-threading; do not overtighten
• Use a matching driver bit to avoid damaging the screw head

This drain hose clamp secures the hose connection to keep water where it belongs during the drain cycle. A tight, reliable clamp helps prevent leaks and hose pull-off from vibration or pressure changes. What it does:

• Secures the drain hose to a pump outlet or drain port to maintain a watertight seal
• Helps prevent the hose from slipping off during operation
• Reduces leaks at the hose connection point
• Common symptoms of a bad clamp: water leaking at the drain hose joint, a loose/detached hose, or a visibly rusted/broken clamp

• 1 clamp

• Disconnect power and turn off the water supply; place a towel to catch residual water
• Access the hose connection, remove the old clamp, and inspect the hose end and fitting; replace the hose if cracked or swollen
• Position the new clamp correctly over the hose and behind the fitting bead; tighten/seat evenly without overtightening
• Reassemble and run a brief drain test to check for leaks

Catches lint, threads, and strings.

Use only in brake shoe assembly on roller & pin. Color: White/Grey.

This syphon breaker prevents dirty drain water from being siphoned back into the dishwasher, helping maintain proper draining and protect wash water from contamination. It's a direct-replacement drain air-break for compatible dishwashers. What it does:

• Stops backflow/siphoning from the household drain into the dishwasher
• Helps maintain proper drain performance and prevents wastewater re-entry
• Can reduce odors and cloudy or soiled dishes caused by contaminated wash water
• Works as part of the dishwasher's drain plumbing to preserve wash hygiene

• Disconnect power to the appliance and turn off water supply before servicing
• Replace only with identical part and ensure correct hose routing and secure clamps
• Inspect adjacent drain hoses and connections; replace damaged hoses or clamps as needed

Color: Gray. Size: 13 oz. can. Used for coating the dryer drum interior. Acrylic appliance paint.

Size: .20 Fl. Oz. (6 ml)

The Gear Case Oil is an OEM part for Whirlpool washing machines. It lubricates the gears and components within the washing machine’s transmission, ensuring smooth and efficient operation during the wash and spin cycles.

Causes of bad gear case oil can include degradation over time, contamination from water or debris, and leaks due to worn seals or gaskets.

Symptoms of a bad gear case oil include:

• Loud or unusual noises during the wash or spin cycles
• The washing machine not agitating or spinning properly
• Oil leaks visible under the washing machine
• Increased friction or overheating of the transmission components

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.
