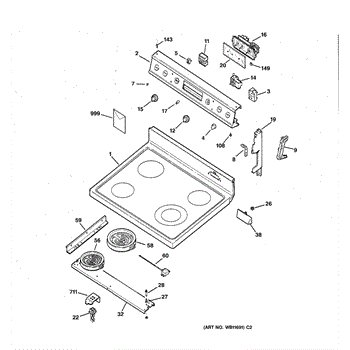

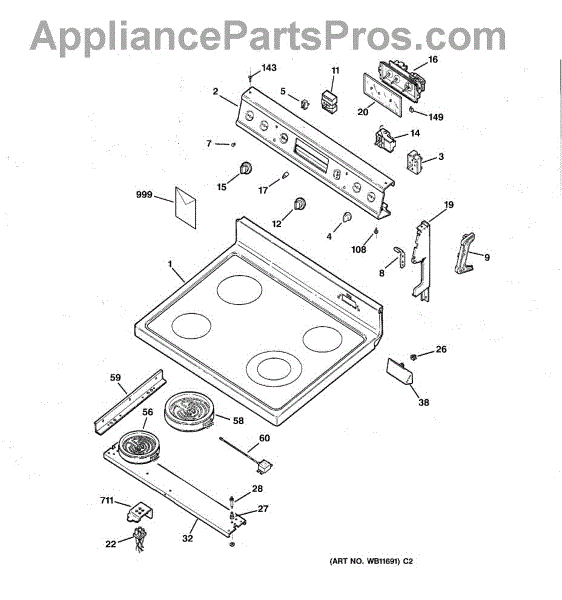

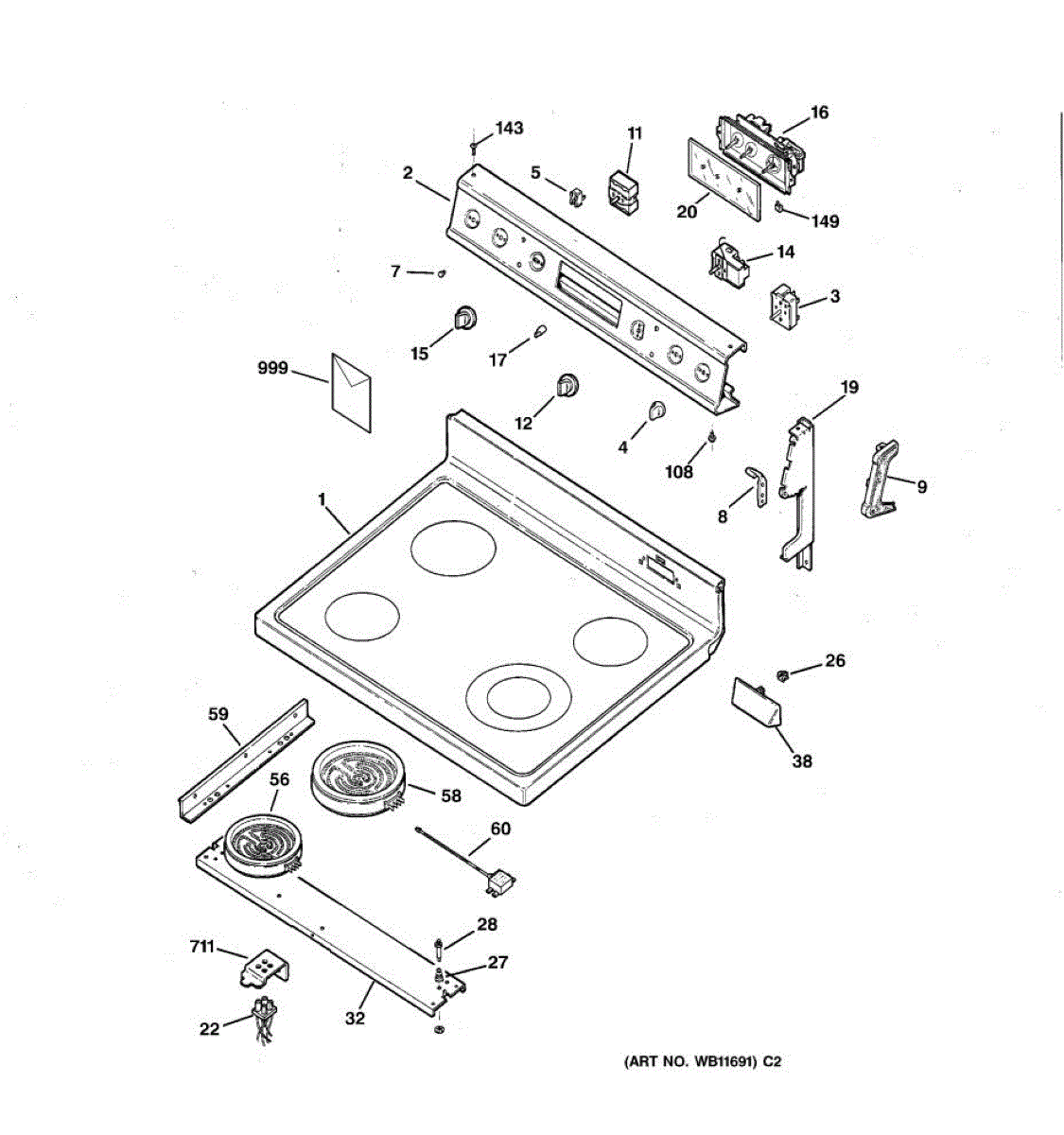

Parts for Ge JBP63SV3WH: 01 - Cooktop & Control Panel Parts

The Infinite Heat Switch Kit is an OEM part for GE ranges and cooktops. This kit is essential for controlling the temperature of the burners on your range or cooktop, allowing you to adjust the heat level from low to high.

Causes of damage to the infinite heat switch can include normal wear and tear from frequent use, electrical issues such as short circuits or power surges, and physical damage from cleaning or impact.

Symptoms of a bad Infinite Heat Switch include:

• Burners not heating to the desired temperature, either staying too hot or not getting hot enough.
• The burner not turning on at all, indicating a possible failure in the switch's electrical contacts or circuit.
• Inconsistent cooking temperatures, where the burner cycles on and off too frequently or not often enough, affecting cooking performance.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Clock Knob Kit is an OEM replacement part for GE ranges. It contains the necessary knobs to control clock and timer functions from the control panel. This 3 pack of range clock knobs is all you need to cover one timer control. Color: Black. Each knob measures about 1/2 an inch in diameter, and 1 inch deep

Symptoms of faulty knobs include:

• Knobs no longer stay securely attached to shafts
• Issues selecting timer options or adjusting clock settings
• Incorrect rotation feel or knobs difficult to turn
• Display issues arising from loose or faulty internal connections

This GE replacement kit is also compatible with Hotpoint, RCA and some Kenmore ranges for convenient cooking.

NOTE: For chrome order WB3X459.

Color: White

The Medium Haliant Element is an OEM part for GE cooktops. This radiant heating element is located beneath the ceramic cooktop surface and provides a medium-sized heating area for cooking various dishes. This element measures 6 Inches.

Causes of a bad haliant element can include electrical issues such as short circuits, wear and tear from regular use, or physical damage from impacts or overheating.

Symptoms of a bad medium haliant element include:

• The element not heating up or only heating partially
• Inconsistent or uneven heating
• The cooktop displaying error codes related to the heating element
• Visible damage or discoloration on the element

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Large Haliant Element is an OEM replacement part for GE ranges/cooktops. This haliant burner element is 8 inches in diameter. The element lies underneath the stovetop and will need to be replaced if it stops heating. 8-inch 2100 watt. Includes limiter

Causes of a bad halogen element can include cracked or damaged ceramic material, broken support coils, or malfunctioning heating coils.

Symptoms of a bad halogen element include:

• Element not heating up properly or unexpectedly shutting off
• Burned-out coils or melting/warping of the protective, reflective dish

This is a genuine OEM part that works for some models of GE, and Hotpoint models.

Size: 8-18 BA POR 3/4 SN

This scraper blade replaces a worn or damaged cleaning scraper to help remove baked-on food and residue from appliance surfaces, restoring the tool used for safer, easier cleanup. Ideal when the existing scraper is dull or broken. What it does:

• Provides a sharp edge to lift and remove stubborn, baked-on spills and residue from glass and smooth appliance surfaces
• Helps restore proper scraping action when the original blade is nicked, bent, or missing
• Reduces the need for excessive scrubbing or abrasive cleaners that can damage surfaces
• Commonly used to address poor cleaning results or an unusable scraper tool

• Disconnect power to the appliance and allow all surfaces to cool fully before handling
• Handle the blade carefully; edges may be sharp—wear cut-resistant gloves
• Replace only the damaged scraper blade; follow OEM instructions for securing the blade if required
• Test scraping action gently after installation to ensure proper fit and avoid surface damage

Includes: Anti-tip bracket, screws and instruction sheet.
