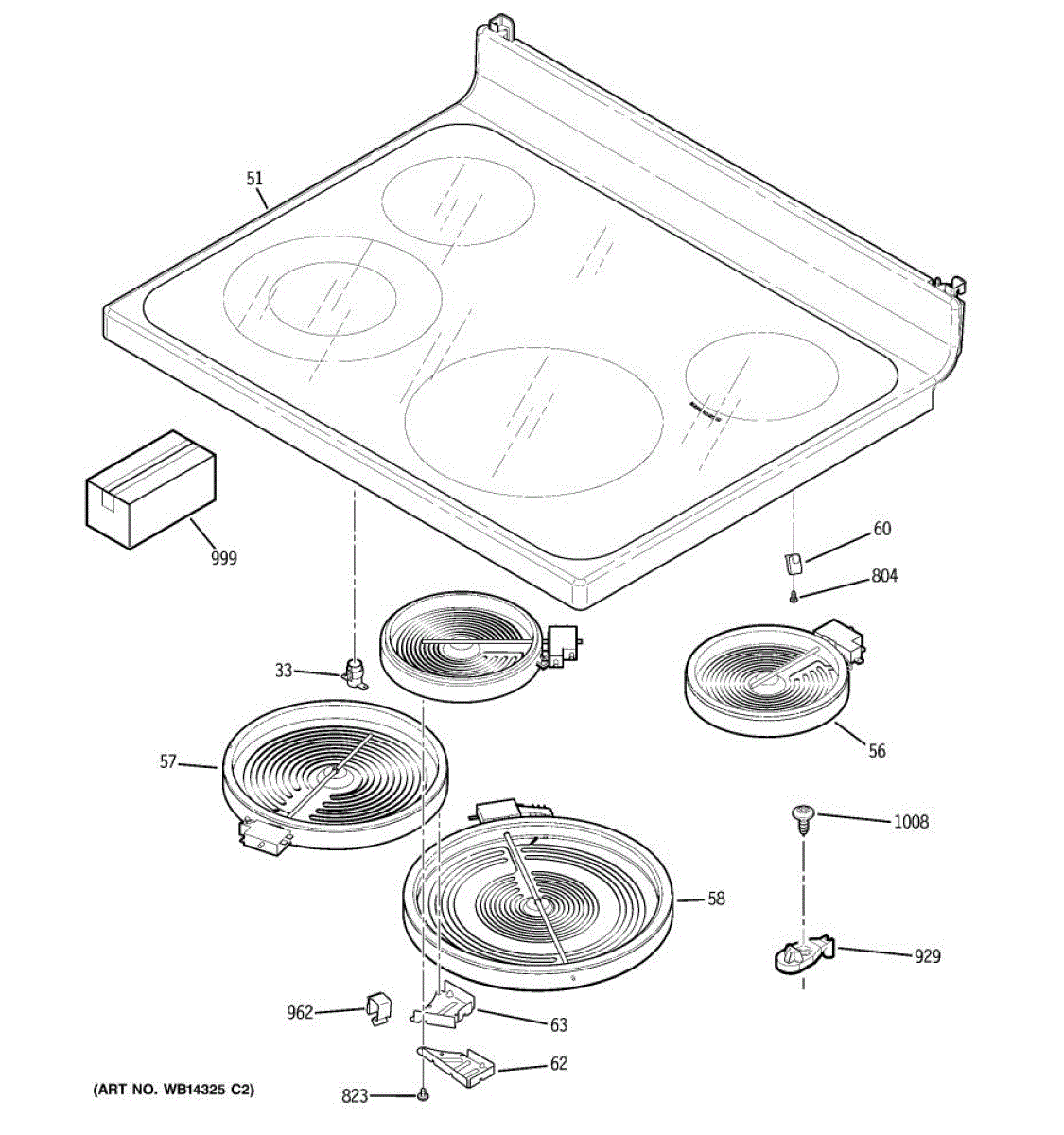

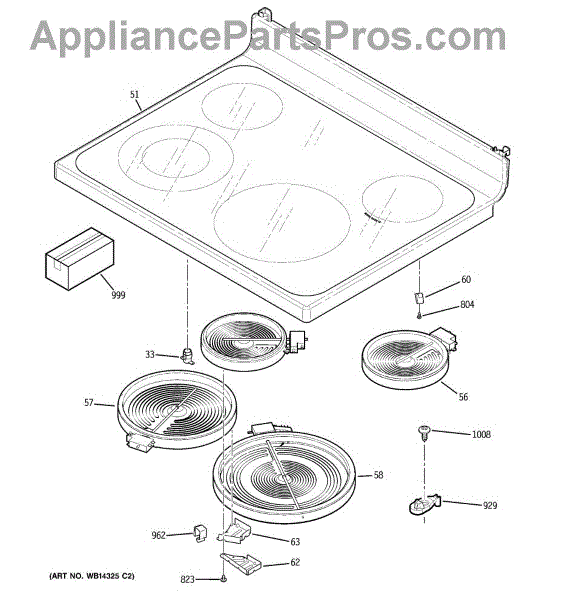

Parts for Ge EER2000M01BB: 02 - Cooktop Parts

The Pilot Indicator Light is an OEM part for GE ranges. It indicates whether an element on the range is active and hot, providing a safety feature that alerts users to potentially dangerous heat levels.

Common causes of a bad pilot indicator light include electrical failures, wear and tear from frequent use, or physical damage to the light or its housing. A malfunctioning indicator light can lead to difficulty in determining whether the appliance is on, which could pose safety risks.

Symptoms of a bad pilot indicator light include:

• The light fails to illuminate when an element is turned on.
• The light remains on, indicating an element is hot when it is not.
• Flickering or erratic behavior of the indicator light.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This pilot indicator light mounts in the control panel and illuminates to show when a surface element or another heating circuit is powered. Replace a burned-out or stuck-on light to restore a clear, reliable power-on warning.

• Lights when the corresponding heating circuit is energized
• Alerts users that heating components are active
• Common symptoms: light does not turn on, stays on constantly, flickers, or is very dim
• Shows physical damage to the lens or terminals when failed

• Disconnect power at the breaker before servicing
• Remove the backguard or control panel cover to access the indicator light from behind
• Note wire positions; move connectors to the new light one at a time and secure the light in the panel
• Restore power and test operation before reassembly

The Medium Haliant Element is an OEM part for GE cooktops. This radiant heating element is located beneath the ceramic cooktop surface and provides a medium-sized heating area for cooking various dishes. This element measures 6 Inches.

Causes of a bad haliant element can include electrical issues such as short circuits, wear and tear from regular use, or physical damage from impacts or overheating.

Symptoms of a bad medium haliant element include:

• The element not heating up or only heating partially
• Inconsistent or uneven heating
• The cooktop displaying error codes related to the heating element
• Visible damage or discoloration on the element

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Large Haliant Element is an OEM replacement part for GE ranges/cooktops. This haliant burner element is 8 inches in diameter. The element lies underneath the stovetop and will need to be replaced if it stops heating. 8-inch 2100 watt. Includes limiter

Causes of a bad halogen element can include cracked or damaged ceramic material, broken support coils, or malfunctioning heating coils.

Symptoms of a bad halogen element include:

• Element not heating up properly or unexpectedly shutting off
• Burned-out coils or melting/warping of the protective, reflective dish

This is a genuine OEM part that works for some models of GE, and Hotpoint models.

Restore a large burner on your glass cooktop with this 12-inch Haliant surface element. Mounted beneath the glass, it delivers fast, even radiant heat for big pots and pans and replaces a burner that no longer heats reliably.

• Provides radiant heat to a 12-inch cooking zone beneath the glass surface
• Replaces a failed element that is open, cracked, or burned out
• Typical symptoms: surface burner won't heat or glow, heats unevenly, or works intermittently
• Helps restore consistent heating and proper cycling through the surface controls

• Disconnect power at the breaker before servicing; high voltage is present
• Allow the cooktop to cool completely; handle the element carefully—it's fragile
• Lift the cooktop to access the elements; move wires from the old element to the new one one at a time to match positions
• Ensure the element is centered and secured in the mounting clips before reassembly and testing

This radiant element bracket secures the oven's radiant cooktop element, keeping it properly positioned for reliable heat transfer and safe operation. A worn or broken bracket can allow the element to sag or shift, causing noise or uneven heating. What it does:

• Supports and centers the radiant heating element under the cooktop
• Keeps the element stable to prevent movement, rattling, or contact with other components
• Helps maintain consistent heat distribution across the cooking surface
• Reduces risk of abrasive wear to element leads and connection points

• Disconnect power to the appliance before attempting any repair
• Inspect mounting area and hardware; replace any damaged screws or clips
• Ensure bracket seats fully and the element is properly aligned before restoring power

This is a 6-20 machine screw, 3/8 inch length, used to secure trim, panels, or small components on compatible cooking appliances. Replacing a missing or damaged screw helps keep parts tight and prevents rattles or shifting during use.

• Fastens brackets, panels, or trim in the appliance chassis
• Helps restore a secure fit when the original screw is stripped or lost
• Can resolve issues like loose trim, minor rattling, or misaligned panels
• Nickel finish for corrosion resistance in warm, humid environments

• Disconnect power and allow appliance to cool before servicing
• Remove only the necessary adjacent fasteners to access the mounting point
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing
• Replace any missing clips or spacers originally used with the screw

This maintop strike is the small latch plate the cooktop engages with to stay secured and aligned. Replacing a bent or missing strike restores a snug-fitting main top and proper engagement with the latch mechanism.

• Provides the engagement point for the main top's latch mechanism
• Helps keep the cooktop seated and aligned to reduce movement and rattling
• Can correct issues like the top not staying down or visible gaps at the front edge
• Supports proper actuation of any associated latch/safety switch, when applicable

• Disconnect power (and gas, if applicable) and allow the appliance to cool before servicing
• Open/raise the cooktop per the unit's design and support it safely
• Remove the old strike and align the new strike in the same position; reuse existing mounting hardware if applicable
• Tighten fasteners securely and test latch engagement before restoring power

This wire clip secures a wiring harness to the appliance cabinet to prevent rubbing, pinching, or loose connections. Replacing a worn or broken clip helps restore proper wire routing and reduces the risk of electrical contact issues. What it does:

• Holds wiring harnesses in place to prevent chafing and stress on connections
• Keeps wires routed away from sharp edges, moving parts, and heat sources
• Helps stop intermittent electrical problems caused by loose or strained wires
• Reduces risk of arcing or shorting from wires rubbing on metal components

• One wire clip

• Always disconnect power (unplug or switch off circuit breaker) before servicing electrical components
• Remove any panels or obstructions to access the damaged clip, then release the harness and snap the replacement clip into the original mounting location
• Verify wires are seated properly in the clip and routed clear of moving or hot parts before restoring power
• If wiring or connectors are damaged, replace or repair those components rather than relying on the clip alone

Cerama Bryte Cooktop Cleaner is a special cleaner designed specifically for ceramic glass and smooth-top cooking surfaces. It easily removes cooked-on foods, spills, or grease while leaving your cooktop looking like new. This product contains no abrasives or harsh chemicals, so it won’t scratch or damage your delicate cooktop surface.

To use the cleaner effectively, all you need to do is spray it onto the surface and then scrub it with a clean damp cloth. Use circular motions for best results. The product can also be used to remove baked-on foods from grates and drip pans on your stovetop. For tougher stains, let the cleaner sit for a few minutes before wiping it away.

Size: 8-18 BA POR 3/4 SN
