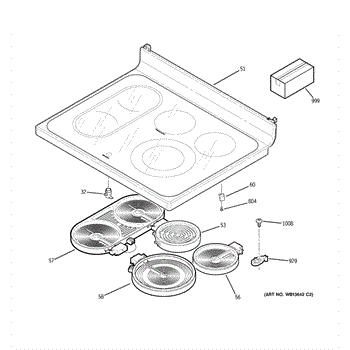

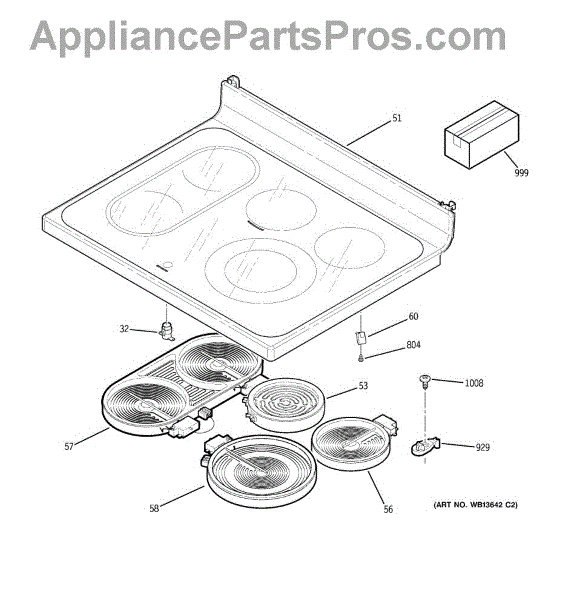

Parts for Ge JBP84TM2CC: 02 - Cooktop Parts

This indicator light is a small panel-mounted lamp that illuminates to show when a heating circuit is active. Replacing a failed indicator restores a clear visual cue so you know when the appliance is operating. What it does

• Lights when the corresponding function or element is energized
• Provides a visual status cue during operation
• Common symptoms: light won't come on, stays on continuously, flickers or is dim, or shows physical damage

• One indicator light assembly

• Disconnect power at the breaker before servicing
• Access the rear of the console/control area; note wire positions and transfer one at a time
• Secure the new light in the panel opening per design (snap-in or nut-mounted)
• Restore power and test operation before reassembly

Warming Element

The 6" Radiant Element In is an OEM replacement part for GE electric ranges. This element provides reliable and even heating across the cooktop surface to heat pans consistently.

Causes of a failing element can include wear from extended everyday use, buildup of carbon residue on the coils inhibiting heat transfer, or physical damage such as cracks in coils.

Symptoms of a bad element include:

• Slow or incomplete heating of cookware placed above the element
• Temperature inconsistencies causing hot/cold spots on the cooktop
• The element making a loud popping or cracking noise when in use

This OEM GE replacement part is also compatible with Hotpoint, RCA, and select Kenmore electric ranges.

The Haliant Element is an OEM part for GE ranges. It is a high-performance radiant heating element used in the stovetop, designed to provide consistent and efficient heat for cooking. This element heats up quickly and delivers precise temperature control for various cooking tasks.

Over time, the Haliant element can wear out due to repeated heating and cooling cycles, physical damage, or electrical issues. When the element becomes faulty, it can significantly impact the range's cooking performance.

Symptoms of a bad Haliant element include:

• The burner not heating up
• Uneven heating or hot spots
• Visible damage or breaks in the element
• The element cycling on and off irregularly

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This is a 6-20 machine screw, 3/8 inch length, used to secure trim, panels, or small components on compatible cooking appliances. Replacing a missing or damaged screw helps keep parts tight and prevents rattles or shifting during use.

• Fastens brackets, panels, or trim in the appliance chassis
• Helps restore a secure fit when the original screw is stripped or lost
• Can resolve issues like loose trim, minor rattling, or misaligned panels
• Nickel finish for corrosion resistance in warm, humid environments

• Disconnect power and allow appliance to cool before servicing
• Remove only the necessary adjacent fasteners to access the mounting point
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing
• Replace any missing clips or spacers originally used with the screw

This maintop strike is the small latch plate the cooktop engages with to stay secured and aligned. Replacing a bent or missing strike restores a snug-fitting main top and proper engagement with the latch mechanism.

• Provides the engagement point for the main top's latch mechanism
• Helps keep the cooktop seated and aligned to reduce movement and rattling
• Can correct issues like the top not staying down or visible gaps at the front edge
• Supports proper actuation of any associated latch/safety switch, when applicable

• Disconnect power (and gas, if applicable) and allow the appliance to cool before servicing
• Open/raise the cooktop per the unit's design and support it safely
• Remove the old strike and align the new strike in the same position; reuse existing mounting hardware if applicable
• Tighten fasteners securely and test latch engagement before restoring power

Cerama Bryte Cooktop Cleaner is a special cleaner designed specifically for ceramic glass and smooth-top cooking surfaces. It easily removes cooked-on foods, spills, or grease while leaving your cooktop looking like new. This product contains no abrasives or harsh chemicals, so it won’t scratch or damage your delicate cooktop surface.

To use the cleaner effectively, all you need to do is spray it onto the surface and then scrub it with a clean damp cloth. Use circular motions for best results. The product can also be used to remove baked-on foods from grates and drip pans on your stovetop. For tougher stains, let the cleaner sit for a few minutes before wiping it away.

Size: 8-18 BA POR 3/4 SN
