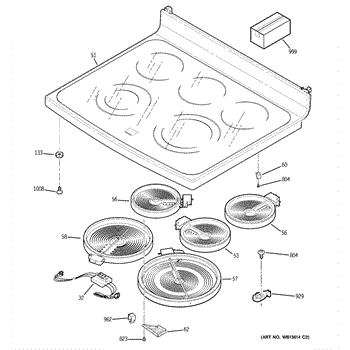

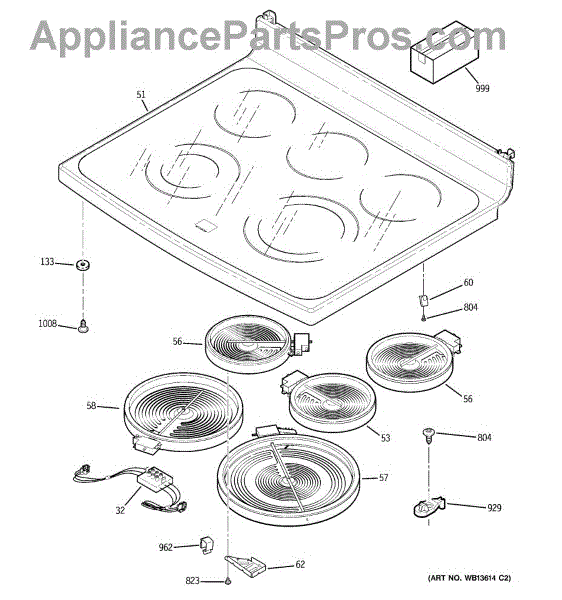

Parts for Ge JCB800BK1BB: 02 - Cooktop Parts

This module indicator light is a small replacement indicator lamp that shows the status of the appliance control module, restoring visible status feedback for diagnostics and normal operation. What it does:

• Lights to indicate the control module or user interface is powered or active
• Helps you troubleshoot control or display issues
• Fails silently when burned out, causing no visible status light
• Small electrical signal/light element designed to mate with the module harness

• Disconnect power to the appliance before servicing to avoid shock or damage
• Access typically requires removal of the control panel or console; keep fasteners organized
• Inspect and reseat connectors; replace only if the lamp or socket is visibly damaged
• Test the control board and wiring for faults

6" warmer

6"

This radiant surface element powers the tri-ring burner beneath your glass cooktop. Replacing a failed unit restores reliable, selectable heating across the rings so cookware warms evenly and the burner responds properly to the control. What it does:

• Supplies radiant heat to the cooking zone under the ceramic glass
• Tri-ring design lets you match the heated area to your pan size
• Common failure symptoms: burner won't heat, only one ring heats, uneven/intermittent heating, visible hot spots or breaks under the glass
• Also known in GE documentation as a "Haliant" element

• 1 radiant surface element

• Disconnect power at the circuit breaker; ensure the cooktop is completely cool
• Lift/tilt the glass top per service instructions and support it to avoid stressing the glass
• Move wires from the old element to the new one one-at-a-time to keep connections correct
• Seat the element flat in its brackets and centered under the glass before reassembly

The Radiant Element is an OEM part for GE ranges and cooktops. This part provides efficient and even heating for cooking. This part uses electricity to heat up and transfer warmth directly to the cookware. The radiant element is encased under the glass surface of the cooktop, offering a sleek and easy-to-clean cooking area while ensuring optimal heat distribution and cooking performance.

Causes of failure might include a burnt-out heating coil, damage to the element's electrical connections, or a malfunction within the control system that regulates power to the element.

Symptoms of a bad Radiant Element include:

• The element not heating up, leading to insufficient cooking temperatures.
• Uneven heating, causing inconsistent cooking results.
• The cooktop surface not responding or only partially heating, indicating a possible failure in the element's circuit.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This rubber rangetop bumper cushions and supports the cooktop, reducing vibration and protecting the surface from metal-on-metal contact. It helps restore proper spacing and reduces rattling or chafing from loose or missing bumpers. What it does:

• Cushions the cooktop edge to prevent scratching and wear
• Keeps the cooktop and rangetop components properly spaced and stable
• Reduces rattling, vibration, and noise during use
• Commonly replaced when bumpers are cracked, flattened, missing, or allow movement

• Remove power to the appliance and allow all surfaces to cool before servicing.
• Access may require lifting or removing the cooktop; follow manufacturer instructions for your model.
• Replace with the same style bumper to maintain proper fit and spacing.
• Use care around sharp edges.

This foam tape seals and cushions the oven door assembly to reduce vibration and help keep the door glass and inner components stable. It restores proper spacing and helps reduce rattling or light air leaks around the door. What it does:

• Provides a soft, compressible seal between the door and frame to reduce noise and movement
• Cushions and protects glass and trim from contact and vibration
• Helps limit minor air leakage that can allow heat or odors to escape
• Commonly used when door trim or glass is loose, rattling, or shows visible gaps

• One adhesive-backed foam tape strip

• Clean and dry mating surfaces before applying to ensure good adhesive contact
• Measure and trim to fit; press firmly along the full length for proper adhesion
• Replace only with the same style of tape—do not use electrical or non-heat-rated foam in high-temperature areas
• Disconnect power/cool the appliance before working on the door assembly to avoid burns or injury

This is the door pad. Consider replacing both when replacing trim number WB07T10230

This replacement screw secures appliance panels and components to restore proper fit and prevent rattling or movement. Use it to replace a missing or stripped fastener for a snug, durable connection. What it does:

• Secures trim, panels, brackets, or internal components in place
• Restores proper alignment and reduces vibration or noise
• Replaces missing, worn, or damaged screws that cause loose parts
• Compatible with the original mounting point and fastening method

• Turn off power and unplug the appliance before starting any repair
• Use the correct driver to avoid stripping the head; match thread engagement fully
• If threads are damaged, inspect the mating part and replace or repair as needed

This maintop strike is the small latch plate the cooktop engages with to stay secured and aligned. Replacing a bent or missing strike restores a snug-fitting main top and proper engagement with the latch mechanism.

• Provides the engagement point for the main top's latch mechanism
• Helps keep the cooktop seated and aligned to reduce movement and rattling
• Can correct issues like the top not staying down or visible gaps at the front edge
• Supports proper actuation of any associated latch/safety switch, when applicable

• Disconnect power (and gas, if applicable) and allow the appliance to cool before servicing
• Open/raise the cooktop per the unit's design and support it safely
• Remove the old strike and align the new strike in the same position; reuse existing mounting hardware if applicable
• Tighten fasteners securely and test latch engagement before restoring power

A small replacement cable clip that secures an appliance wiring harness to the cabinet or chassis, helping prevent wire rubbing and vibration. Replacing a broken clip keeps wiring routed and reduces loose, rattling wires. What it does:

• Secures wiring harnesses to the cabinet or chassis to keep wires in place and routed away from moving parts.
• Reduces wire chafing and abrasion that can cause exposed conductors or intermittent connections.
• Helps eliminate rattling noise caused by loose or vibrating wires.
• Keeps harnesses positioned to reduce stress on connectors and wiring runs.

• Always unplug the appliance or shut off power at the breaker before inspecting or replacing wiring hardware.
• Remove the old clip and press the replacement into the same mounting slot or stud until it snaps into place; light tool assistance (small flat screwdriver) can help in tight locations.
• Inspect nearby wiring and connector insulation for damage; repair or replace any frayed wires rather than relying on the clip alone.

Cerama Bryte Cooktop Cleaner is a special cleaner designed specifically for ceramic glass and smooth-top cooking surfaces. It easily removes cooked-on foods, spills, or grease while leaving your cooktop looking like new. This product contains no abrasives or harsh chemicals, so it won’t scratch or damage your delicate cooktop surface.

To use the cleaner effectively, all you need to do is spray it onto the surface and then scrub it with a clean damp cloth. Use circular motions for best results. The product can also be used to remove baked-on foods from grates and drip pans on your stovetop. For tougher stains, let the cleaner sit for a few minutes before wiping it away.

Size: 8-18 BA POR 3/4 SN
