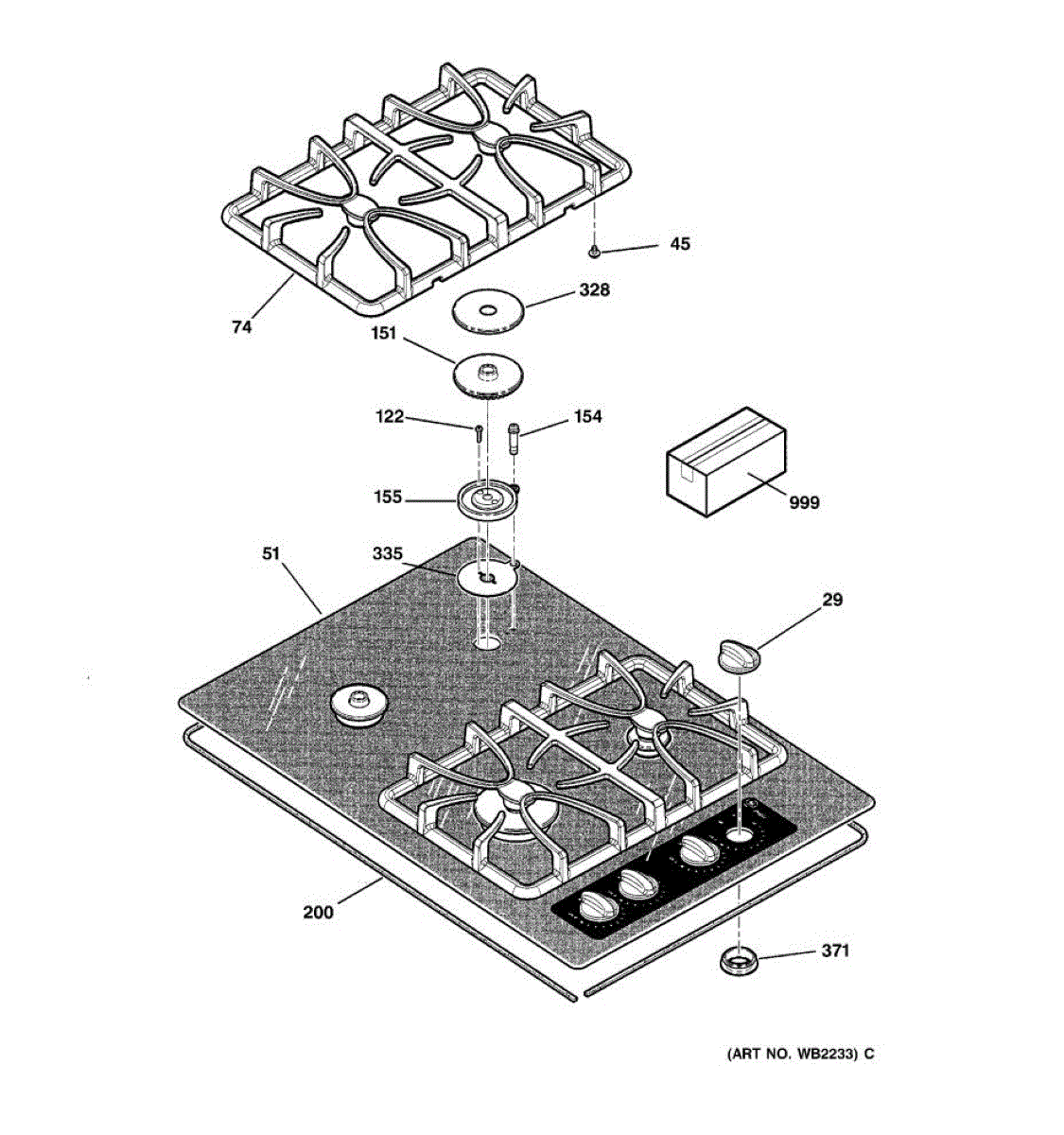

Parts for Ge JGP932BEC1BB: 01 - Cooktop Parts

Rubber foot that attaches to the bottom of cooktop grates. Replace if cracked, worn, missing, or loose to prevent grates from sliding and scratching.

Color: Black

This machine screw is an authentic OEM replacement part sourced directly from the manufacturer. It is used in securing the burner head to the gas range top so that it can be used for cooking. If the burner head becomes loose or the screw is missing, it sh

Burner won't light or clicking with no spark? This igniter creates the spark to light gas burners. Easy press-fit installation takes 15 minutes.

Burner base for gas cooktops, secures to cooktop surface and holds igniter assembly. Replace if cracked, broken, or damaged during repairs.

Burner base installs beneath the burner cap on gas cooktops. Replace if cracked, warped, or dome-shaped to restore proper flame coverage and alignment.

Approx 3 inches in diameter

Burner base that sits beneath the burner cap on your cooktop. Replace this component if damaged, cracked, or missing to restore your burner's appearance.

Foam gasket tape seals gaps around cooktop burners and edges to prevent spills from leaking beneath. Replace if worn, compressed, or damaged. Verify fit with your model number before ordering.

This burner cap is an authentic OEM replacement part sourced directly from the manufacturer. It is used on gas ranges to distribute the burner's heat evenly. There are various size burners on gas stovetops, with each size having a specific size of burner cap. This cap is for large burners and should not be used on other size burners. Over time, the burner cap may become rusted from being washed or having liquids spilled on it. If the cap is damaged, it should be replaced before cooking on the burner.To start, disconnect the gas and ensure that the grate and burner are completely cool before touching the parts. Remove the cooking grate and set it aside. Lift the burner cap and remove it from the stove. Align the new burner cap up with the grooves on the burner and set it flush. Restore the grate and turn the gas back on to operate the stove. Test the burner to make sure it is seated correctly.This large burner cover is made of heat-tempered metal and is sold individually. It is designed for use on gas stovetops manufactured by General Electric.

Color: Black. This medium burner cap is used to ensure the gas burner's heat is evenly distributed for cooking on gas stoves. The burner cap sits under the burner grate and covers the exposed flame, acting as a sort of hot plate. As the flame heats the cap, the heat is distributed upwards. The amount of heat is determined by temperature control which adjusts the gas flow. This burner cap is designed for the medium burners on the stove and should not be used for other size burners. Over time, the burner cap may become damaged due to food spills or simply due to the stove's age. If the cap is damaged, it should be replaced before cooking on the burner.Make sure the stove is completely cool before removing and replacing the burner cap. Remove the cooking grate and set it aside. Lift the burner cap and remove it from the stove. Line the new burner cap up and place it over the burner spreader. Put the grate back on the stove.This medium burner cover is made of heat-tempered metal and is sold individually. It is an authentic OEM part sourced directly from the manufacturer. It is designed for use on gas stovetops manufactured by General Electric.

Small

Note: The part is approximately 4" in diameter.

Note: The part is approximately 2-3/8" in diameter.

Seals burner assembly to cooktop surface, preventing gas leaks and ensuring proper ignition. Replace if cracked, brittle, or damaged during cleaning.

Seal for cooktop control knobs that prevents cleaning fluids and spills from entering the dial area. Replace when worn or cracked to protect controls.

Replace your dull, broken, or missing cooktop scraper blade. This cleaning tool blade removes baked-on food and residue from glass cooktop surfaces.

Specially formulated cleaner for ceramic glass and smooth cooktops. Removes cooked-on food, grease, and spills without scratching. Verify fit by model.
