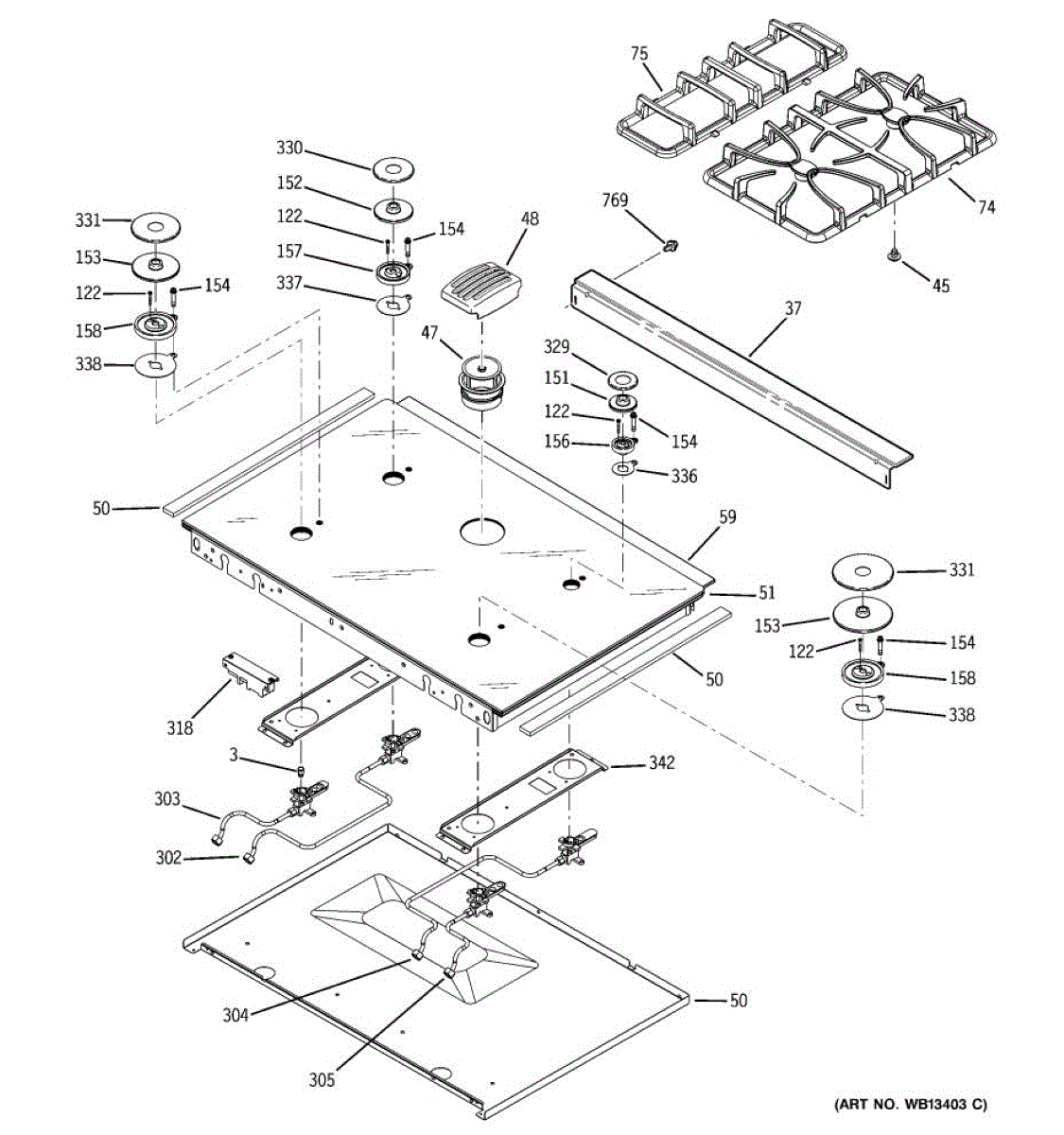

Parts for Ge JGSP48BH4BB: 03 - Cooktop Parts

Natural gas orifice spud for cooktop burners. Installs at burner base to regulate gas flow. Replace if damaged, worn, or converting fuel type.

Burner orifice spud for cooktop or range. Installs in burner assembly to regulate gas flow. Replace if damaged, worn, or converting between fuel types.

Natural gas orifice spud for cooktop burner assembly. Needed when converting from LP to natural gas or replacing damaged orifice threading.

LP orifice spud directs propane gas flow to the burner on gas cooktops and ranges. Replace if cracked, worn, or missing to restore proper gas metering.

Converting your cooktop from natural gas to liquid propane? This LP gas orifice spud enables proper fuel conversion for specific burner positions.

Liquid propane orifice spud for cooktop and range burners. Regulates gas flow for proper flame. Replace if damaged, worn, or converting from natural gas.

Rubber foot that attaches to the bottom of cooktop grates. Replace if cracked, worn, missing, or loose to prevent grates from sliding and scratching.

Vent cap for range ventilation system. Covers and protects the vent opening. Replace if cracked, damaged, or missing to maintain proper airflow.

This bottom burn box is the oven's lower cavity component that directs heat and protects the oven floor from food drips and debris. It helps keep the burner area contained for cleaner cooking and easier cleanup. What it does:

• Channels heat and flame around the lower oven burner for proper combustion in gas models
• Protects the oven floor from spills, grease and falling food that can cause smoke or flare-ups
• Helps maintain even heat flow across the oven bottom for consistent cooking performance
• Reduces direct exposure of the oven floor to flame and hot debris

• One bottom burn box

• Designed to mount in the oven lower cavity; follow your model's service manual for correct orientation
• Disconnect power and shut off gas supply before beginning service on gas ovens
• Handle with care—edges may be sharp; wear gloves and eye protection

Seals the left edge of your range cooktop to the chassis, containing spills and fumes. Replace when worn to restore a clean seal and easier cleanup.

Seals the right edge of your electric range cooktop to prevent spills from entering the chassis. Replace if worn, cracked, or no longer sealing properly.

Seals the top maintenance panel on over-the-range units to keep grease and steam out of internal cavities. Replace when worn to restore a snug seal.

Color: Black

This machine screw is an authentic OEM replacement part sourced directly from the manufacturer. It is used in securing the burner head to the gas range top so that it can be used for cooking. If the burner head becomes loose or the screw is missing, it sh

Burner base for gas cooktops, secures to cooktop surface and holds igniter assembly. Replace if cracked, broken, or damaged during repairs.

Burner base installs beneath the burner cap on gas cooktops. Replace if cracked, warped, or dome-shaped to restore proper flame coverage and alignment.

Fix oven overheating or F9 error codes with a thermal limit switch replacement. This safety shutoff prevents damage when temperature exceeds safe limits.

Approx 3 inches in diameter

Burner tube for the right rear position on your range cooktop. Replace if cracked, corroded, or damaged to restore proper gas flow to the burner head.

Fix burners that won't ignite or spark continuously. This spark module controls ignition for all surface burners. DIY repair in about 45 minutes.

Color: Black. This medium burner cap is used to ensure the gas burner's heat is evenly distributed for cooking on gas stoves. The burner cap sits under the burner grate and covers the exposed flame, acting as a sort of hot plate. As the flame heats the cap, the heat is distributed upwards. The amount of heat is determined by temperature control which adjusts the gas flow. This burner cap is designed for the medium burners on the stove and should not be used for other size burners. Over time, the burner cap may become damaged due to food spills or simply due to the stove's age. If the cap is damaged, it should be replaced before cooking on the burner.Make sure the stove is completely cool before removing and replacing the burner cap. Remove the cooking grate and set it aside. Lift the burner cap and remove it from the stove. Line the new burner cap up and place it over the burner spreader. Put the grate back on the stove.This medium burner cover is made of heat-tempered metal and is sold individually. It is an authentic OEM part sourced directly from the manufacturer. It is designed for use on gas stovetops manufactured by General Electric.

Color: Black. Approx 2-3/4 inches in diameter

This burner cap is an authentic OEM replacement part sourced directly from the manufacturer. It is used on gas ranges to distribute the burner's heat evenly. There are various size burners on gas stovetops, with each size having a specific size of burner cap. This cap is for large burners and should not be used on other size burners. Over time, the burner cap may become rusted from being washed or having liquids spilled on it. If the cap is damaged, it should be replaced before cooking on the burner.To start, disconnect the gas and ensure that the grate and burner are completely cool before touching the parts. Remove the cooking grate and set it aside. Lift the burner cap and remove it from the stove. Align the new burner cap up with the grooves on the burner and set it flush. Restore the grate and turn the gas back on to operate the stove. Test the burner to make sure it is seated correctly.This large burner cover is made of heat-tempered metal and is sold individually. It is designed for use on gas stovetops manufactured by General Electric.

Small

Note: The part is approximately 2-3/8" in diameter.

Seals burner assembly to cooktop surface, preventing gas leaks and ensuring proper ignition. Replace if cracked, brittle, or damaged during cleaning.

Inner glass assembly for oven doors. Replace when cracked, shattered, or broken to restore door visibility and insulation. Verify fit with your model number.

These GE screws are a 12-pack of OEM replacement parts responsible for securing and fastening various components and panels in a GE range or oven. These screws are designed with a hexagonal head, which allows for the use of a compatible wrench or socke
