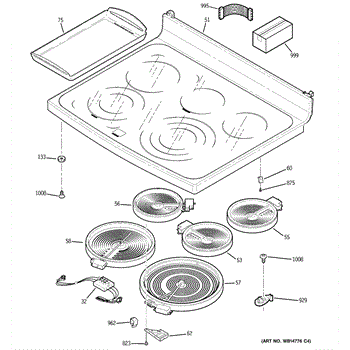

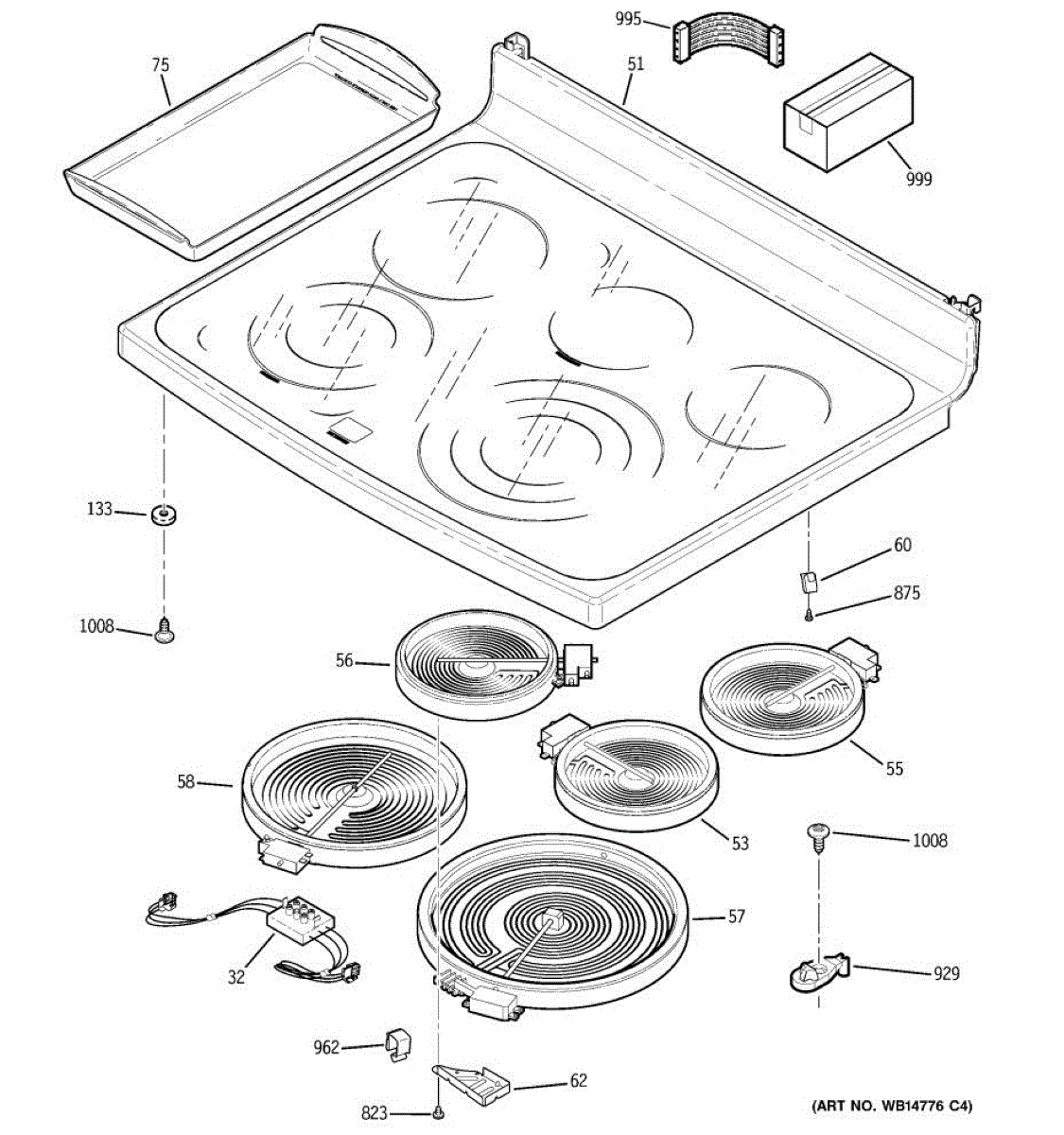

Parts for Ge PB920DP4BB: 02 - Cooktop Parts

This module indicator light is a small replacement indicator lamp that shows the status of the appliance control module, restoring visible status feedback for diagnostics and normal operation. What it does:

• Lights to indicate the control module or user interface is powered or active
• Helps you troubleshoot control or display issues
• Fails silently when burned out, causing no visible status light
• Small electrical signal/light element designed to mate with the module harness

• Disconnect power to the appliance before servicing to avoid shock or damage
• Access typically requires removal of the control panel or console; keep fasteners organized
• Inspect and reseat connectors; replace only if the lamp or socket is visibly damaged
• Test the control board and wiring for faults

Warming Element

The 6" Radiant Element In is an OEM replacement part for GE electric ranges. This element provides reliable and even heating across the cooktop surface to heat pans consistently.

Causes of a failing element can include wear from extended everyday use, buildup of carbon residue on the coils inhibiting heat transfer, or physical damage such as cracks in coils.

Symptoms of a bad element include:

• Slow or incomplete heating of cookware placed above the element
• Temperature inconsistencies causing hot/cold spots on the cooktop
• The element making a loud popping or cracking noise when in use

This OEM GE replacement part is also compatible with Hotpoint, RCA, and select Kenmore electric ranges.

The Radiant Stovetop Element is an OEM part for GE electric ranges. It is designed to provide consistent and even heat for cooking. This element sits beneath the glass or ceramic cooktop surface and heats up when electricity flows through it, allowing you to cook food efficiently.

Over time, the radiant stovetop element can wear out or become damaged due to frequent use, power surges, or accidental impact. A faulty element can affect cooking performance and may pose a safety risk.

Symptoms of a bad radiant stovetop element include:

• The element not heating up
• Uneven heating or hot spots
• Visible damage such as cracks or burns
• The element cycling on and off erratically

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Haliant Element is an OEM part for GE ranges. It is a high-performance radiant heating element used in the stovetop, designed to provide consistent and efficient heat for cooking. This element heats up quickly and delivers precise temperature control for various cooking tasks.

Over time, the Haliant element can wear out due to repeated heating and cooling cycles, physical damage, or electrical issues. When the element becomes faulty, it can significantly impact the range's cooking performance.

Symptoms of a bad Haliant element include:

• The burner not heating up
• Uneven heating or hot spots
• Visible damage or breaks in the element
• The element cycling on and off irregularly

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

An 8-inch Haliant radiant surface element for smooth-top ranges. It replaces a worn or burned-out burner so your cooktop heats evenly and responds correctly, restoring reliable everyday cooking performance. What it does:

• Supplies controlled radiant heat beneath a glass-ceramic cooktop for the 8-inch burner position
• Common fix for a surface element that will not heat
• Helps resolve slow or uneven heating, or when only part of the ring glows
• Appropriate when the element shows visible breaks, hot spots, or burn marks

• 1 8-inch Haliant radiant surface element

• Disconnect power at the breaker and allow the cooktop to cool completely before service
• Lift or open the glass top per your service information; handle the element carefully—it is fragile
• Move wires one at a time to matching terminals; transfer any mounting brackets/clips from the old element
• Ensure the element sits flat and centered before reassembly; test operation before cooking

The Radiant Element Spring is an OEM part for GE electric ranges. This spring supports the radiant element coil and provides the necessary tension to allow the coil to glow red-hot during the cooking process.

Causes of a bad spring can include fatigue from repeated heating and cooling cycles, damage due to impact or mishandling, or corrosion over extended use.

Symptoms of a bad radiant element spring include:

• Radiant element coil sagging or not sitting flush
• Element coil not heating properly or heating unevenly
• Excessive heat and energy use from a misaligned coil
• Element mounting brackets becoming loose over time

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This radiant element bracket secures the cooktop's heating element to the cooktop frame so the element stays aligned and stable during use. Replaces a worn or broken bracket to restore proper element positioning. What it does:

• Holds the radiant (surface) heating element firmly in place under the cooktop glass
• Prevents the element from shifting, wobbling, or seating unevenly
• Helps maintain safe electrical contact and consistent heating performance
• Can reduce intermittent heating or arcing caused by a loose or damaged mount

• Disconnect power at the circuit breaker before starting any repair.
• Handle glass cooktops and ceramic parts carefully to avoid cracks or injury.
• Basic hand tools may be required; follow the appliance's service instructions for access and reassembly.

This rubber rangetop bumper cushions and supports the cooktop, reducing vibration and protecting the surface from metal-on-metal contact. It helps restore proper spacing and reduces rattling or chafing from loose or missing bumpers. What it does:

• Cushions the cooktop edge to prevent scratching and wear
• Keeps the cooktop and rangetop components properly spaced and stable
• Reduces rattling, vibration, and noise during use
• Commonly replaced when bumpers are cracked, flattened, missing, or allow movement

• Remove power to the appliance and allow all surfaces to cool before servicing.
• Access may require lifting or removing the cooktop; follow manufacturer instructions for your model.
• Replace with the same style bumper to maintain proper fit and spacing.
• Use care around sharp edges.

Black. 8-18 AB HXW 3/8

This maintop strike is the small latch plate the cooktop engages with to stay secured and aligned. Replacing a bent or missing strike restores a snug-fitting main top and proper engagement with the latch mechanism.

• Provides the engagement point for the main top's latch mechanism
• Helps keep the cooktop seated and aligned to reduce movement and rattling
• Can correct issues like the top not staying down or visible gaps at the front edge
• Supports proper actuation of any associated latch/safety switch, when applicable

• Disconnect power (and gas, if applicable) and allow the appliance to cool before servicing
• Open/raise the cooktop per the unit's design and support it safely
• Remove the old strike and align the new strike in the same position; reuse existing mounting hardware if applicable
• Tighten fasteners securely and test latch engagement before restoring power

A small replacement cable clip that secures an appliance wiring harness to the cabinet or chassis, helping prevent wire rubbing and vibration. Replacing a broken clip keeps wiring routed and reduces loose, rattling wires. What it does:

• Secures wiring harnesses to the cabinet or chassis to keep wires in place and routed away from moving parts.
• Reduces wire chafing and abrasion that can cause exposed conductors or intermittent connections.
• Helps eliminate rattling noise caused by loose or vibrating wires.
• Keeps harnesses positioned to reduce stress on connectors and wiring runs.

• Always unplug the appliance or shut off power at the breaker before inspecting or replacing wiring hardware.
• Remove the old clip and press the replacement into the same mounting slot or stud until it snaps into place; light tool assistance (small flat screwdriver) can help in tight locations.
• Inspect nearby wiring and connector insulation for damage; repair or replace any frayed wires rather than relying on the clip alone.

Cerama Bryte Cooktop Cleaner is a special cleaner designed specifically for ceramic glass and smooth-top cooking surfaces. It easily removes cooked-on foods, spills, or grease while leaving your cooktop looking like new. This product contains no abrasives or harsh chemicals, so it won’t scratch or damage your delicate cooktop surface.

To use the cleaner effectively, all you need to do is spray it onto the surface and then scrub it with a clean damp cloth. Use circular motions for best results. The product can also be used to remove baked-on foods from grates and drip pans on your stovetop. For tougher stains, let the cleaner sit for a few minutes before wiping it away.

Size: 8-18 BA POR 3/4 SN
