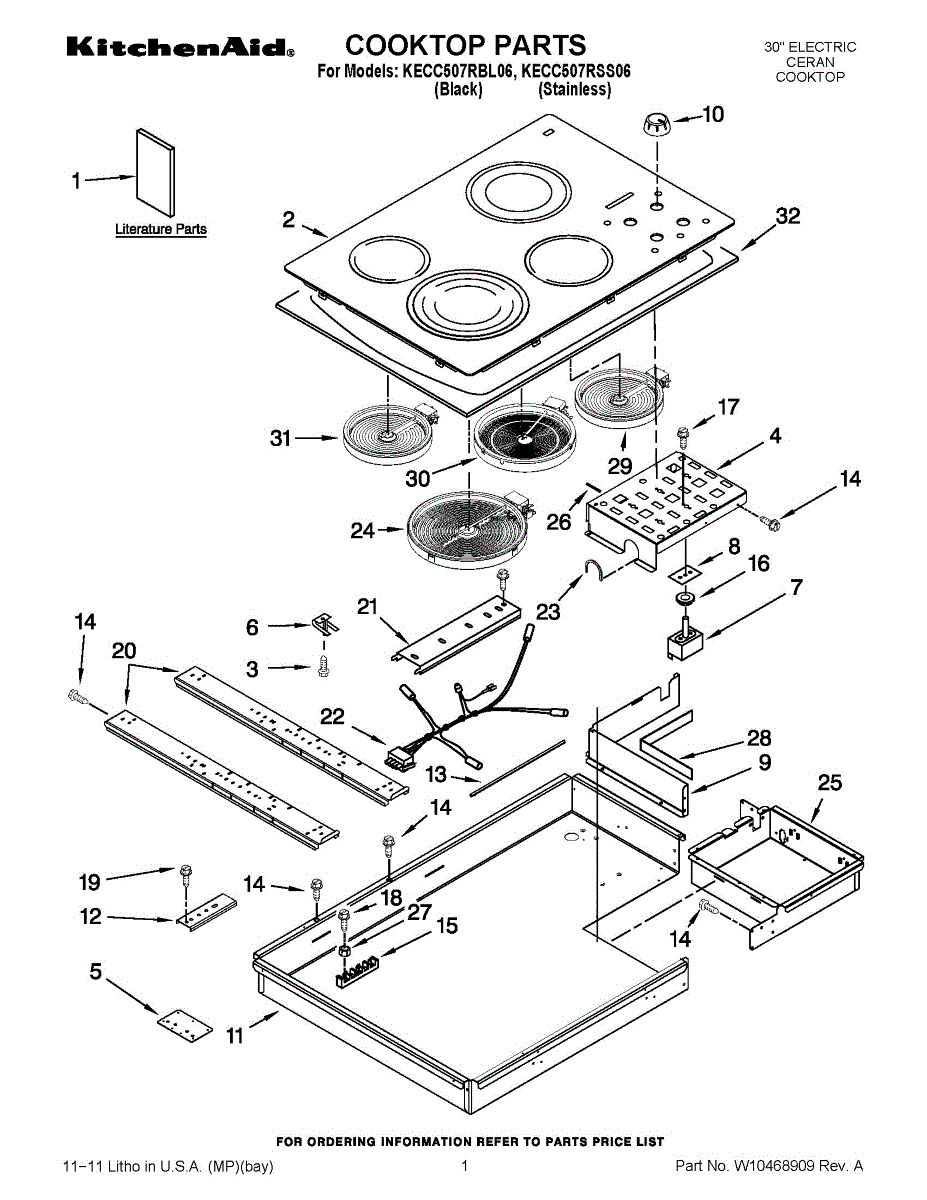

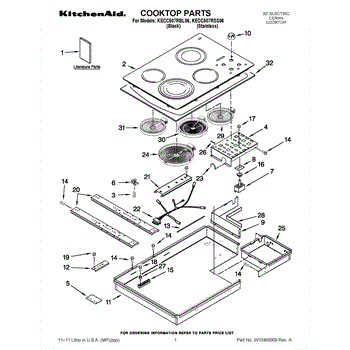

Parts for Kitchenaid KECC507RSS06: 01 - Cooktop Parts

Size: 6-32 x 3/8 inch.

Replacement tension spring for cooktop assemblies. Restores proper tension for moving components. Order when original is stretched, broken, or missing.

Seals and cushions the switch bracket mounting area on your cooktop. Replace if worn to prevent moisture and debris intrusion. Confirm fit with your model.

Black control knob that mounts on your cooktop's control shaft. Replaces worn, cracked, or missing knobs to restore proper grip and pointer alignment.

Hardware kit with screws and brackets to secure cooktop components. Replaces worn, missing, or damaged mounting fasteners for proper fit and stability.

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

The Terminal Block is an OEM part for Whirlpool ranges. It serves as a crucial connection point for the range’s electrical wiring, ensuring a safe and reliable transfer of power to the appliance.

Over time, terminal blocks can deteriorate due to factors such as heat exposure, electrical surges, or wear and tear. When the terminal block becomes damaged or corroded, it can lead to poor electrical connections or potential safety hazards.

Symptoms of a bad terminal block include:

• Burnt or scorched connections
• Intermittent power loss to the range
• Difficulty in the range heating up properly
• Visible damage or corrosion on the terminal block

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Centers and cushions control knobs while sealing against spills that can damage switches. Replace if knobs wobble or spills leak underneath. Verify fit.

This Support is a replacement mounting bracket that helps secure internal components and maintain proper alignment for reliable operation. It restores worn or damaged support points to reduce rattling and misalignment. What it does:

• Provides a secure mounting point for adjacent parts to prevent movement and vibration
• Restores proper alignment where a broken or bent support causes noise or component shift
• Helps maintain component spacing to support normal operation and airflow
• Commonly used when a cracked, bent or missing support is visible during inspection

• One Support mounting bracket

• Disconnect power to the appliance before starting any repair
• Use basic hand tools; retain fasteners and note their location for reassembly
• Inspect surrounding components and replace any damaged clips or screws as needed

If your cooktop burner won't heat or stays on high, this surface heating element may need replacement. Moderate DIY repair with basic tools.

Protects cooktop switches from moisture and debris that cause shorting and corrosion. Replace if damaged, missing, or when installing new switches.

This 10-32 terminal block nut fastens wire lugs to the appliance's terminal studs. Replacing a missing, stripped, or corroded nut restores a tight, reliable connection and helps prevent heat damage or intermittent power at the connection.

• Secures wire lugs to a 10-32 terminal stud for a solid electrical connection
• Restores proper clamping force when the original nut is stripped, corroded, or missing
• Helps address loose/burned terminal connections, heat discoloration, or intermittent power at the block
• Suitable for terminal block and similar 10-32 stud applications on compatible appliances

• Disconnect power at the breaker or unplug the appliance before servicing
• Inspect the terminal block, studs, and wiring for heat damage; replace any damaged components
• Clean threads and start the nut by hand to avoid cross-threading; tighten firmly without overtightening
• If the stud turns while tightening, hold it with an appropriate tool to protect the block

The Small Surface Element is an OEM part for Whirlpool electric ranges and cooktops. This heating element is responsible for providing heat to a specific area on the cooktop, typically used for smaller pots and pans. It ensures even and efficient heating, allowing for precise cooking control.

Causes of a bad surface element can include regular wear and tear, overheating, or electrical malfunctions. A malfunctioning surface element can result in uneven heating, longer cooking times, or no heat at all.

Symptoms of a bad small surface element include:

• The element not heating up
• Uneven or inconsistent heating
• Sparks or electrical arcing when the element is turned on
• Visible damage or discoloration on the element

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Burner not heating or 'Hot Surface' light stays on? This electric cooktop surface element is likely the fix. DIY-friendly, most installs take 15 minutes.

Decorative frame top trim for cooktops. Installs around the perimeter of the glass surface. Replace if cracked, chipped, discolored, or missing.
