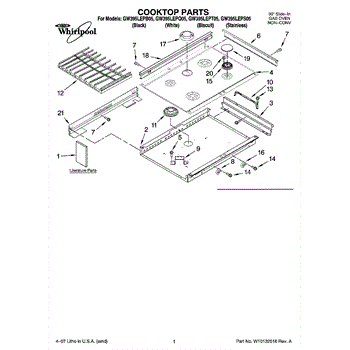

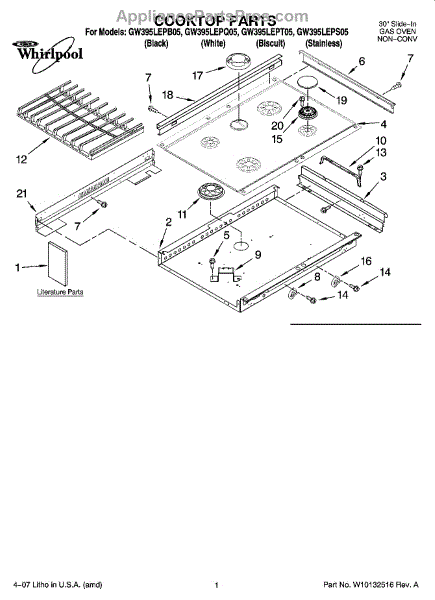

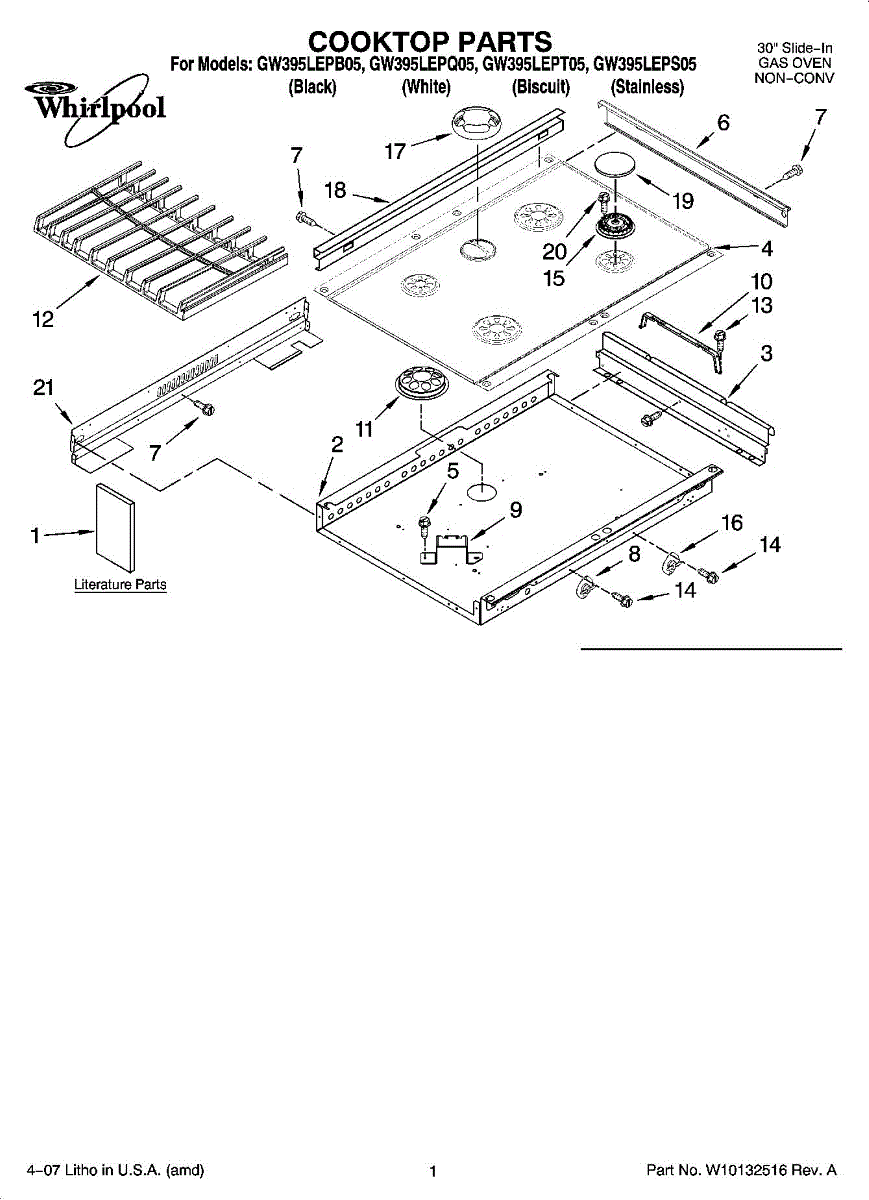

Parts for Whirlpool GW395LEPS05: 01 - Cooktop Parts

This part has been discontinued and is no longer available

This hex-head sheet metal screw secures appliance panels, brackets, and trim for a tight, rattle-free fit. Replace missing or stripped fasteners to keep covers and components firmly in place and restore proper alignment.

• Fastens sheet-metal parts, brackets, and trim using a hex drive
• Replaces worn, rusted, missing, or stripped screws
• Helps reduce vibration and rattling from loose panels
• Common signs you need this fastener: head or threads stripped, screw won't tighten, panel or handle coming loose

• Unplug the appliance before service; turn off water supply if working near water lines
• Use the correct nut driver or socket to avoid rounding the head
• Replace one fastener at a time to maintain alignment; do not overtighten
• Match screw type/length to the original location as specified by the manufacturer

Color: White. Right hand side

Color: Biscuit. Left hand side

Color: Biscuit. Right hand side

Color: Stainless steel. Left hand side

Color: White. Left hand side

Color: Stainless steel. Right hand side

Color: Black. Left hand side

Color: Black. Right hand side

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

This fixed high-limit thermostat is a safety device for your oven. It monitors temperature and opens the circuit if the cavity overheats, helping protect components and restore normal heating when the failed thermostat is replaced.

• Provides over-temperature protection for the oven's heating circuit
• Opens the electrical circuit at a preset limit to stop heat when overheating occurs
• Typical symptoms of failure: oven won't heat, shuts off during use, or won't start after a self-clean cycle
• Often tests open for continuity at room temperature when failed

• Disconnect power at the breaker before servicing; oven circuits carry dangerous voltage
• Allow the appliance to cool completely before access
• Access location varies by model; the thermostat is typically mounted on or near the oven cavity or rear panel
• Move wires one at a time to the new thermostat, ensure tight spade connections, remount securely, restore power, and test

Color: Black.

Color: espresso. For grate pads order 8183759.

Color: Espresso. For grate pads order 8183759.

Color: Mouse grey. For grate pads order 8183759.

Color: Mouse Grey. For grate pads order 8183759.

Color: Black. For grate pads order 8183759.

color: Black. For grate pads order 8183759.

This factory replacement screw secures panels, brackets, and covers in your appliance. Replacing missing or stripped hardware restores a solid fit, reduces vibration and rattles, and keeps components properly aligned during everyday use. What it does:

• Fastens panels, trim, brackets, and internal components to the cabinet or chassis
• Helps maintain alignment and reduce vibration or rattling noises
• Replaces missing, rusted, or stripped screws discovered during service
• Matches the OEM spec for locations where this part is called out on your model's diagram

• Disconnect power (and gas or water, if applicable) before servicing
• Use the appropriate driver; start threads by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent stripping metal or plastic
• Replace hardware one screw at a time to keep parts aligned

The Range Screw is an OEM part for Whirlpool ranges. It is a small but essential component used to secure various parts and panels of the range. It is designed to fit securely into pre-drilled holes, holding components tightly in place.

There are a few factors that can lead to a bad Range Screw. Over time, screws may become loose or stripped due to frequent use or inadequate tightening. Accidental cross-threading or overtightening can also damage the screw or the surrounding components.

Symptoms of a bad screw may include loose or wobbly parts, rattling noises during operation, or difficulty in keeping components securely attached. This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This auxiliary surface burner head mounts over the orifice on your gas cooktop/range and distributes gas through precision ports for an even flame. Replacing a clogged or damaged head restores fast ignition and consistent heat on the small burner. What it does:

• Distributes gas through ports to produce a stable, even flame on the auxiliary burner
• Interfaces with the igniter electrode for quick, reliable lighting
• Common symptoms of a worn/clogged head: burner won't ignite or clicks without lighting; weak, uneven, or yellow flame; delayed ignition
• Helps restore proper simmer performance after corrosion, warping, or blocked ports

• 1 auxiliary burner head

• Shut off gas and disconnect power; allow the cooktop/range to cool completely
• Remove grate and burner cap, then lift off the old head; clear debris from the orifice and around the igniter (do not enlarge burner ports)
• Position the new head over the orifice and igniter; align locating features and seat fully; if your model uses screws, tighten them evenly without over-torquing
• Reinstall the cap and grate, restore gas/power, and verify even flame and normal ignition

The Burner Head is an OEM part for Whirlpool ranges. It is responsible for distributing gas to create an even flame for cooking on the stovetop. This burner head ensures efficient gas flow and optimal flame control, which are essential for consistent cooking performance.

Causes of a bad burner head can include clogging from food debris or grease, corrosion due to prolonged exposure to heat and moisture, or physical damage from impact. Such issues can obstruct gas flow and result in uneven heating or poor flame quality.

Symptoms of a bad burner head include:

• Uneven flame or poor flame control
• Difficulty igniting the burner
• Low or inconsistent heat output
• Unusual noises such as hissing or popping during operation

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This fixed thermostat switches near 60C to control a heat-managed circuit—often the oven's cooling/blower fan. Replacing a failed unit restores proper fan cycling and helps protect the control area from excessive heat during and after cooking.

• Monitors temperature in the oven cabinet/control area and switches power based on heat level
• Cycles the cooling/blower fan on and off to manage cabinet temperature
• Helps safeguard electronic controls from heat buildup
• Failure may cause symptoms such as a fan that won't run, a fan that runs continuously, or an unusually hot control area

• Disconnect power at the breaker before servicing
• Access the thermostat per your model; it is typically mounted to a plenum or bracket near the oven cavity
• Move wires one at a time and mount the new thermostat flat against the surface for accurate sensing
• Restore power and verify the fan cycles during operation

Color: Black.

Color: Biscuit. Rear

Color: White. Rear

Color: Stainless steel. Rear

Color: Black. Rear

Color: Espresso

Color: Gray. Size: Small. For black order WP3191898. For the large cap order WP3191905.

Color: black. Small size. Measures about 2-1/2 inches in diameter.

The Torx Screw is an OEM replacement part for Whirlpool brand appliances. The Torx Screw is responsible for providing secure and stable connections between different components of washing machines, dryers, dishwashers, and more. These screws are characterized by their star-shaped drive design, which offers better torque transfer and reduces the risk of stripping or cam-out. Sold individually. 7-18 x 3/4"

Causes of a bad Torx screw can include stripping of the screw head, rust or corrosion from prolonged exposure to moisture, or damage from over-tightening or cross-threading. A compromised screw can lead to loose or insecure parts, which can affect the performance and safety of the appliance.

Symptoms of a bad Torx screw include:

• The screw head being stripped and difficult to turn
• Rust or corrosion visible on the screw
• The screw not holding components securely
• Loose or rattling parts within the appliance

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.
