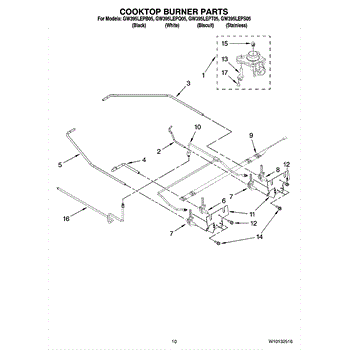

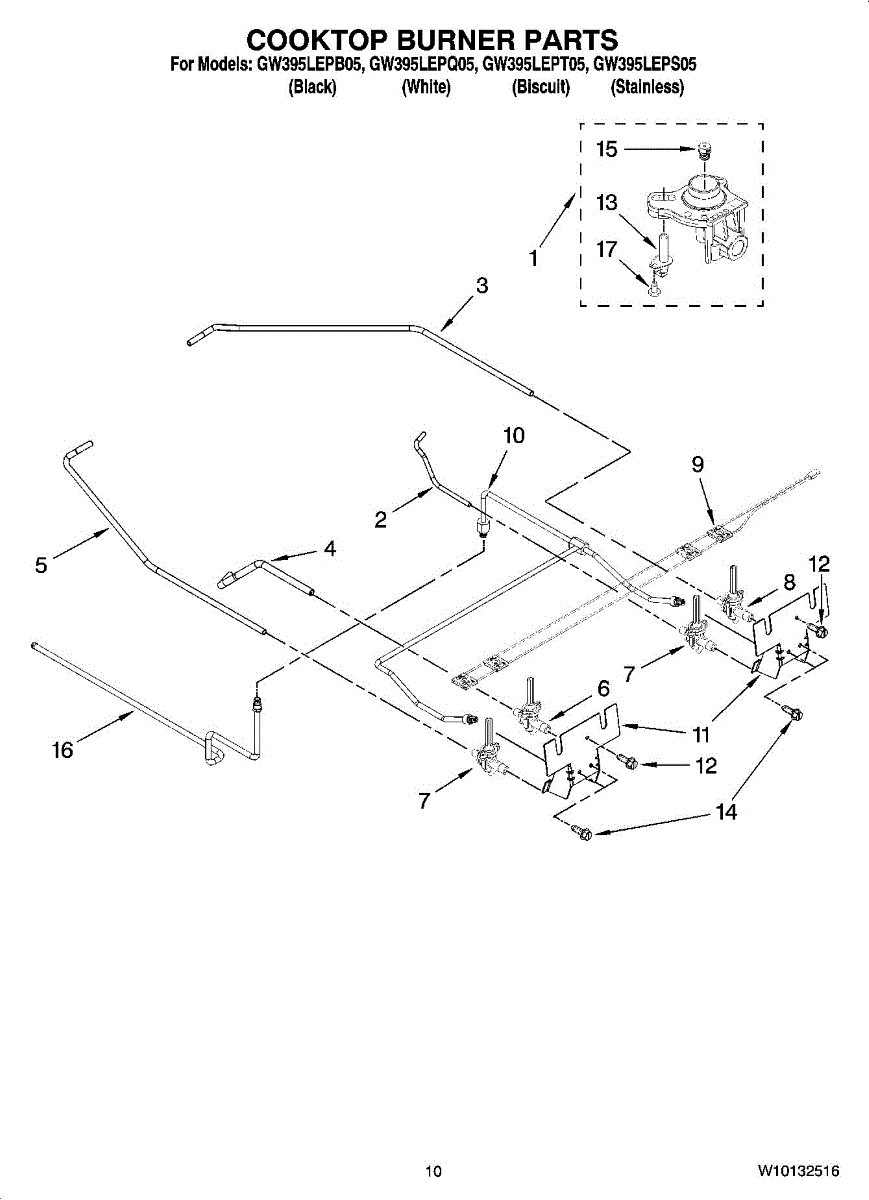

Parts for Whirlpool GW395LEPS05: 08 - Cooktop Burner Parts, Optional Parts

This orifice holder assembly secures and positions the gas orifice for a G4 burner, ensuring consistent gas flow to the burner for stable ignition and cooking. Designed to replace a worn or damaged holder and restore proper burner operation. What it does:

• Holds the burner orifice in the correct position so gas flows steadily to the burner head
• Helps maintain even flame distribution and reliable ignition
• Can resolve symptoms like weak or uneven flames, intermittent ignition, or burner misalignment
• Works as the mounting interface between the orifice and burner components

• Turn off gas supply and power to the appliance before beginning any service
• Handle components carefully; confirm proper seating and alignment of orifice and burner before testing
• After installation, check for gas leaks and proper ignition at low and high flame settings

This orifice holder secures the gas orifice in the G4 burner assembly so fuel flows correctly to the burner. It helps restore reliable ignition and a steady flame for safer, more consistent cooking. What it does:

• Holds the burner orifice in place to maintain correct fuel delivery to the burner.
• Helps correct ignition issues caused by a loose, misaligned, or damaged orifice holder.
• Promotes an even, stable flame and consistent heat across the burner.
• Used when burner flames are weak, uneven, or fail to light reliably.

• Turn off the appliance and shut off gas and electrical power before servicing. If you smell gas, stop.
• Remove burner grates and caps to access the orifice holder; reassemble components in original order.
• Inspect the orifice and threads for damage before installation; hand-tighten and avoid over-torquing.

This orifice holder assembly secures the gas orifice to the burner tube, helping maintain correct gas flow for reliable ignition and consistent, even burner flame performance on compatible gas ranges and cooktops. What it does:

• Positions and secures the burner orifice to ensure correct gas delivery to the burner.
• Helps maintain a steady, even flame and consistent heat output across burners.
• Common symptoms indicating replacement: burners fail to light, flame is weak or uneven, or ignition is delayed.
• Use when the holder is damaged, corroded, stripped, or not seating the orifice properly.

• Turn off the appliance's gas supply and power before servicing; follow local codes.
• Remove burner cap and grate, replace the holder, and hand-tighten securely—do not overtighten or cross-thread.
• Inspect the orifice and any seals or gaskets and replace if worn or damaged.
• After reinstalling, restore gas and power, confirm proper ignition and flame, and if you detect gas odor or unsafe operation, shut off gas.

This small burner valve controls gas flow to a single cooktop burner, restoring reliable ignition and flame control. Use when a burner won't light, has weak or uneven flame, or fails to respond to the control knob. What it does

• Regulates gas flow to the burner for proper ignition and flame adjustment
• Replaces a worn or leaking valve that can cause no flame or low/irregular flame
• Helps restore consistent heat output and safe burner operation
• Works with the range's control knob mechanism to open and close gas flow

• One small burner gas valve

• Disconnect power and shut off the household gas supply before servicing
• Only install on compatible appliances; follow OEM diagram and torque specs when available
• If you smell gas during testing or installation, stop.

This replacement gas burner valve controls gas flow to a large surface burner, restoring proper flame control and reliable heating for gas ranges. Designed to match OEM fit and function for direct replacement. What it does

• Regulates gas flow to a large cooktop burner so the flame lights and holds steady
• Restores normal heat output when a burner won't light or produces a weak/uneven flame
• Works with the cooktop's control knob to adjust flame size safely and predictably
• Helps stop intermittent gas flow that can cause poor cooking performance

• Turn off the appliance's gas supply and electrical power before starting work.
• Replace only with the exact part; follow OEM instructions.
• Check all connections for proper seal after installation; test operation at low flame first.

This genuine wire harness connects the appliance's electrical components, restoring reliable power and signal routing so controls and driven parts operate correctly. It replaces damaged or worn wiring to help stop intermittent operation and loss of function. What it does:

• Routes power and control signals between components so buttons, motors, and lights receive proper connections
• Replaces frayed, burned, or broken wiring that can cause intermittent operation or complete failure of circuits
• Helps resolve symptoms like unresponsive controls, motors that won't run, or components that power intermittently
• Provides factory-style connectors and wire lengths to match the original routing and fit

• Disconnect all power (unplug or shut off breaker) before accessing wiring
• Match connectors and routing to the original harness; avoid stretching or pinching wires
• Inspect connectors and terminals for heat damage; replace harness if any insulation or terminals are compromised

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

This surface burner spark igniter creates the electric arc that lights the gas flame on your cooktop or range. Replacing a worn or cracked electrode restores reliable ignition and helps resolve hard-to-light burners and intermittent sparking.

• Provides a high-voltage spark at the surface burner to ignite gas
• Mounts to the orifice holder beneath the burner head
• Failure symptoms include burner not lighting, needing a match, or intermittent/weak spark
• Common issues: chipped/cracked ceramic insulator or damaged terminal/lead

• Disconnect power and shut off the gas supply before servicing
• Allow the appliance to cool; remove grates, burner caps, and heads to access the orifice holder
• Transfer the ignition lead, install the new electrode, and route the wire away from heat and sharp edges
• Ensure the tip is positioned near the burner as designed; verify spark and ignition before reassembly

Orifice meters gas flow to a cooktop or range burner, helping maintain correct flame size and reliable ignition. Replacing a clogged or damaged orifice restores consistent heat and more stable burner performance. What it does:

• Meters and controls the gas flow to a single burner so the flame burns at the proper height.
• Helps maintain steady ignition and even heating across the burner.
• Common symptoms indicating replacement: weak or uneven flames, difficulty lighting, or burners that won't stay lit.
• Clogged by debris or corroded over time, causing restricted gas flow.

• Turn off the appliance power and shut off the gas supply before attempting any service.
• Verify the correct orifice size and gas type for your appliance using the OEM diagram; use proper seals and avoid overtightening.
• If you smell gas, stop immediately, ventilate the area.

This range screw is an OEM replacement part sourced directly from the manufacturer for gas stove burners. These screws attach the ignitor to the burner. Screws may corrode and rust during everyday use. Spills and accidents on the range top may leak down to the screws and cause them to become worn. Screws are not considered part of the ignitor kit or burner kit and will need to be purchased separately. If the screws appear rusty or corroded while replacing the ignitor, it is beneficial to replace them. It is a good idea to purchase the screws at the same time as the parts are purchased so that they are available when needed. A Phillips head screwdriver is necessary to remove and replace the old screws. Make sure the power and gas are disconnected before installing the new screws.This screw is made of silver metal and is a Phillips head screw that is sold individually. Verify the number of screws needed before ordering. This screw is designed for use in gas ranges manufactured by Whirlpool, KitchenAid, Roper, Estate, Inglis, Maytag, Amana, Jenn-Air, and Crosley.

Size: 25ft, 12 Ga. 150 c Black

Specs: 25ft, 14 Ga. 150 c Black

Specs: 25ft, 14 Ga. 150 c Blue

Specs: 25ft, 14 Ga. 150 c Brown

Specs: 25 ft, 14 Ga., 150 c Green

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Orange 14 Ga. 150~c)

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Red 14 Ga. 150~c)

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Yellow 14 Ga. 150~c)

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Red 14 Ga. 200~c)

Size: 1/3 oz.

Specs: 25ft,14 Ga., 200 c Brown

This bushing is a small sleeve-style bearing that supports a rotating shaft and reduces metal-to-metal wear for smooth operation. It helps restore proper alignment and quiet operation when the original bushing is worn. What it does

• Guides and supports a rotating shaft or spindle to reduce friction and wear
• Prevents metal-to-metal contact that can cause grinding or scoring
• Helps stop rubbing, squeaking, or vibration caused by a worn bearing surface
• Restores proper alignment of the moving component for smoother operation

• Inspect the mating shaft and housing for wear or damage before installing a new bushing
• Press or seat the bushing evenly; avoid hammering directly on the bushing surface
• Use proper tools and safety gear; disconnect power or unplug the appliance before service
• If surrounding parts are worn (shafts, seals, clips), replace them to prevent premature bushing failure

This orifice is the small metal fitting that meters gas to a burner, helping maintain a consistent flame for reliable cooking and oven performance. It replaces a clogged or damaged metering fitting to restore proper burner operation. What it does:

• Controls and meters gas flow to a specific burner for correct flame size
• Helps maintain a steady, even flame for consistent cooking or baking
• A clogged or damaged orifice can cause weak, uneven, or failed ignition
• Worn or damaged fittings may cause gas flow issues that affect burner performance

• Turn off the appliance and shut off the gas supply before beginning work
• Replace only with the exact orifice specified for your appliance
• Tighten securely with the proper wrench and check connections for leaks using a soap-and-water solution

Color: Citrine white. Size: 0.6 fl.oz. Bottle with brush.

Size: 2.8 fl.oz tube. 748 non-corosive sealant.

Color: Citrine white. Size: 4.5 oz. can. Acrylic appliance aerosol can spray paint.

A replacement wire harness assembly that restores reliable electrical connections between control components. Replacing a damaged harness can stop intermittent operation and restore power or signals to affected systems so controls and features work properly. What it does:

• Routes power and signal between the control and appliance components to enable normal operation.
• Replaces frayed, broken, or burned wiring that can cause intermittent function or loss of power to parts.
• Helps resolve unresponsive controls, features that stop working, or faults caused by open/shorted wiring.
• Eliminates related error codes or unexpected shutdowns when the harness is the root cause.

• Disconnect power (unplug or shut off breaker) before inspecting or replacing the harness.
• Document connector locations and routing with photos before removal; match routing and connector orientation on reassembly.
• Make sure connectors are fully seated and wires are secured away from moving parts and heat sources.

Color: Black. Size: 12 oz. Acrylic appliance aerosol can spray paint.

The Anti Tip Bracket is an OEM component specifically designed for Whirlpool ranges. This bracket plays a crucial safety role in preventing the range from accidentally tipping over if excessive weight is applied to the open oven door.

The anti-tip bracket secures tightly to the floor or wall behind the range, linking it securely in place. It allows the oven door to function while ensuring the entire appliance remains stable even under heavy use.

Causes of a bad bracket can include damage, deterioration of mounting hardware over time, or failure to install properly according to manufacturer instructions.

Symptoms of a faulty anti-tip bracket include:

• The range appears unsecured and able to wobble or rock backward
• Looseness between the bracket and mounting surface
• Cracks or breaks in the anti-tip bracket material

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


Bottle with brush. Color: Black. Size: 0.6 fl.oz.

This factory replacement screw secures panels, brackets, and covers in your appliance. Replacing missing or stripped hardware restores a solid fit, reduces vibration and rattles, and keeps components properly aligned during everyday use. What it does:

• Fastens panels, trim, brackets, and internal components to the cabinet or chassis
• Helps maintain alignment and reduce vibration or rattling noises
• Replaces missing, rusted, or stripped screws discovered during service
• Matches the OEM spec for locations where this part is called out on your model's diagram

• Disconnect power (and gas or water, if applicable) before servicing
• Use the appropriate driver; start threads by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent stripping metal or plastic
• Replace hardware one screw at a time to keep parts aligned

The Appliance Touchup Paint is an OEM product for Whirlpool appliances. This touchup paint is used to cover scratches, chips, and minor blemishes on the surface of various appliances, helping to maintain their appearance and protect them from rust and other damage. It is specifically formulated to match the original color and finish of Whirlpool appliances, ensuring a seamless repair.

Causes of needing touchup paint include everyday wear and tear, accidental impacts that cause chipping or scratching, and exposure to harsh cleaning chemicals that can damage the finish. Regular use of touchup paint can help keep appliances looking new and extend their lifespan.

Symptoms indicating the need for Appliance Touchup Paint include:

• Visible scratches or chips on the appliance surface
• Areas of exposed metal prone to rust
• Blemishes that affect the overall aesthetic of the appliance

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: White. Size: 13 oz can. Acrylic appliance aerosol can spray paint.

The Appliance Spray Paint is an OEM part for Whirlpool appliances, designed to provide a quick and effective way to touch up or completely refinish the exterior of various appliances. This specialty spray paint is formulated to adhere to metal surfaces, offering a durable and resistant finish that can withstand the routine wear and tear of kitchen environments, including heat, moisture, and everyday use.

The primary reason for using such a specialized paint is to maintain or restore the aesthetic appeal of your appliances while protecting them from further damage.

Symptoms needing for Appliance Spray Paint include:

• Scratches, chips, or rust spots on the appliance's exterior that can lead to further damage or corrosion if left untreated
• A desire to refresh or update the appearance of the appliance without the need for complete replacement
• Discoloration or fading of the original finish due to age, exposure to sunlight, or cleaning agents

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.
