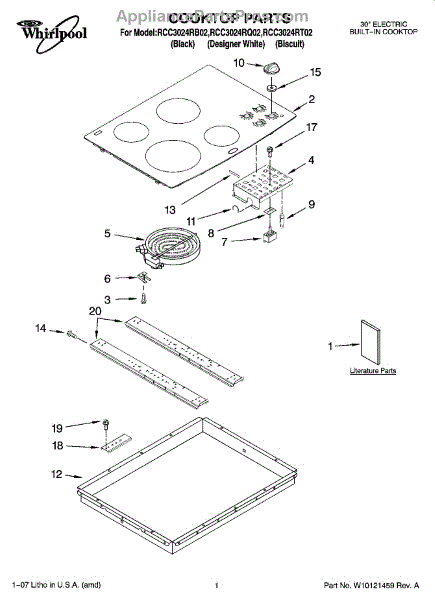

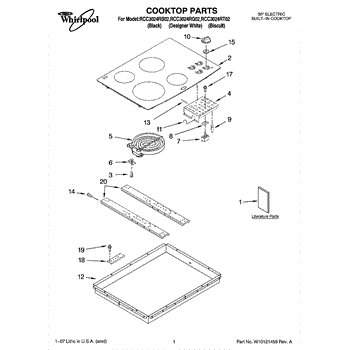

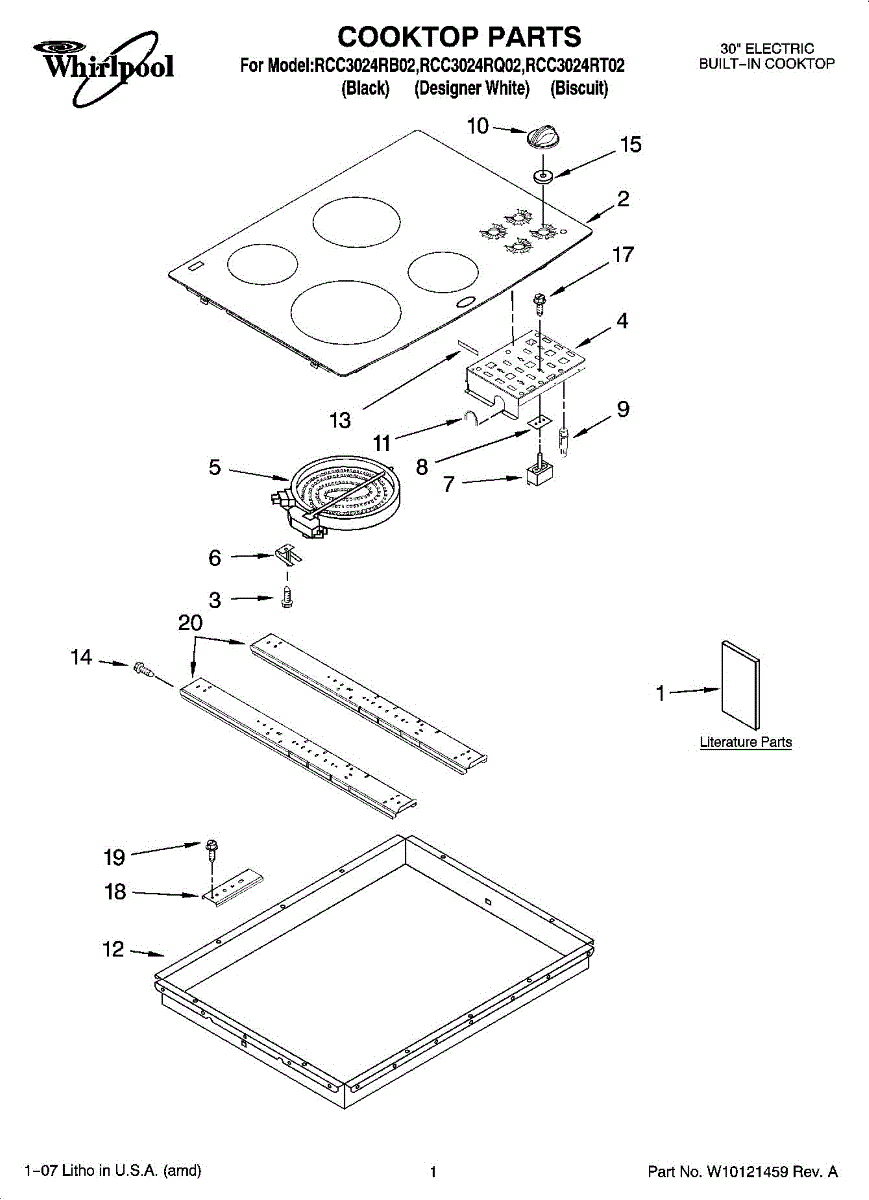

Parts for Whirlpool RCC3024RT02: 01 - Cooktop Parts, Optional Parts

Size: 6-32 x 3/8 inch.

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

The Range Screw is an OEM part for Whirlpool ranges. It is a small but essential component used to secure various parts and panels of the range. It is designed to fit securely into pre-drilled holes, holding components tightly in place.

There are a few factors that can lead to a bad Range Screw. Over time, screws may become loose or stripped due to frequent use or inadequate tightening. Accidental cross-threading or overtightening can also damage the screw or the surrounding components.

Symptoms of a bad screw may include loose or wobbly parts, rattling noises during operation, or difficulty in keeping components securely attached. This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Surface Element is an OEM replacement part for Whirlpool ranges. It is responsible for generating heat on the cooktop, allowing for efficient and even cooking. This component is designed to provide adjustable heat levels to accommodate various cooking needs, from simmering to boiling.

Symptoms of a bad Surface Element include:

• Inconsistent heating or failure to heat up
• Visible damage or wear, such as burns or warping
• Electrical issues, like sparking or short-circuiting

Causes for a malfunctioning Surface Element can be attributed to electrical failures, prolonged use at high temperatures, or physical damage due to spills and overflows.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Surface Element is an OEM replacement part for Whirlpool ranges and cooktops. Specifically designed for the 7" cooktop element, the entire body of the Surface Element measures approximately 8" in diameter. It generates and distributes heat evenly across the cooktop.

Causes of a bad Surface Element can include electrical issues, such as wiring problems or a malfunctioning switch, and physical damage or wear that impairs its heating capability.

Symptoms of a bad Surface Element include:

• Inconsistent heating or failure to heat
• Visible damage to the element, such as burns or breaks
• The element not responding to the control switch
• Uneven cooking results due to fluctuating temperatures

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Surface Element is an OEM component for Whirlpool ranges. It is responsible for heating the cooktop surface to the desired temperature selected by the user. Made of durable metal coil construction, the element surface quickly distributes heat evenly across burners to boil, sauté or simmer foods effectively.

Causes of a bad element includes baked-on grime or mineral buildup inhibiting heat transfer or damage due to the use of improper cookware that has cracked or warped the coils over time.

Symptoms of a bad element includes:

• Burners failing to heat up fully or taking a long time
• Inconsistent or uneven heating across coils
• Hotspots or deadzones in cooking areas
• Visible damage like cracks or bends in coil construction

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, and Kenmore range models.

This replacement tension spring restores proper tension and movement for the linked assembly, helping components return to position and operate smoothly. Designed to match the original spring's shape and function for reliable performance. What it does:

• Provides return tension for moving parts so doors, levers, or linkages operate correctly
• Helps maintain correct alignment and prevents sagging or binding
• Replaces worn or stretched springs that cause sluggish or uneven operation
• Common symptom: assembly won't return to its resting position or feels loose

• One tension spring

• Disconnect power (and water if applicable) before beginning any repair
• Use care handling springs under tension; wear eye protection
• Remove any retaining clips or brackets in the order shown in the service diagram

An infinite switch that controls the heat level for an electric range surface element, allowing smooth temperature adjustments and reliable burner control. Replaces a faulty control to restore consistent element heating and variable heat settings. What it does:

• Regulates power to a single electric surface element so the burner can vary between low and high heat.
• Used when a burner won't heat, stays at one temperature, or heats inconsistently.
• Replaces the control behind the range knob to return normal temperature responsiveness.
• Matches the original function and is intended for surface (coil/glass-top) element control.

• Disconnect the range from power at the breaker before starting any repairs.
• Keep terminals and wiring dry; avoid touching exposed contacts during installation.

This infinite switch controls power to a 6-inch surface element on an electric range or cooktop, allowing smooth heat adjustment from low to high. Replace a worn switch to restore consistent burner control and cooking performance.

• Regulates power to a 6-inch surface burner as you turn the knob
• Provides variable heat by cycling power on and off at the selected setting
• Typical failure symptoms: burner won't heat, only heats on high, won't adjust temperature, or won't shut off

• Disconnect power at the breaker before servicing
• Pull off the control knob and access the switch from the control panel; note/take a photo of wire locations
• Transfer wires to the new switch one at a time to match terminals; mount the switch and reinstall knob/panel
• Restore power and test the 6-inch burner through all settings

This is the variable heat control for an 8-inch surface element. When the switch fails, the burner may stop heating, stay on high, or lose precise temperature control—replacing it restores smooth, adjustable cooking performance. What it does:

• Regulates power to the 8-inch surface element for variable heat settings
• Common symptoms: burner only on high, no heat, won't shut off, or won't adjust temperature
• Restores proper cycling of the element for consistent heating
• Matches the 8-inch element position designated on the appliance

• 1 surface burner infinite switch

• Disconnect power at the breaker before servicing
• Remove the control knob and access the switch from the control panel/rear panel
• Transfer wires one at a time from the old switch to the same terminals on the new switch
• Secure the switch, reinstall panels/knob, and test the 8-inch burner operation

This switch bracket mounting seal replaces a worn or damaged seal that cushions and protects the door or control switch mounting area. It helps keep the switch assembly seated and reduces debris and moisture intrusion for reliable operation. What it does:

• Seals the switch bracket mounting area to protect the switch from lint, dust and moisture
• Helps keep the switch properly positioned for accurate door or control sensing
• Can prevent intermittent or failed switch contacts caused by contamination or misalignment
• Useful when replacing a brittle, torn or missing mounting seal during switch or door repairs

• Disconnect power to the appliance before starting any repair
• Remove the door or panel per service instructions to access the switch bracket area
• Fit the seal into the bracket groove or around the switch housing, ensuring full seating without stretching
• Inspect adjacent clips or screws and reuse or replace as needed; test the switch function after reassembly

This indicator light assembly is a direct-fit replacement that restores the illuminated status signals on your appliance's control panel, helping you see cycle progress and active functions at a glance. What it does:

• Replaces a worn, cracked, or non-illuminating control panel indicator so status lights are visible again
• Illuminates to show active cycles, selected functions, or alerts depending on your model's control logic
• Common symptoms it addresses: no light, dim or flickering indicator, or broken lens/assembly
• Fits into the control/display area and mates with existing wiring and mounting points

• Always disconnect power to the appliance before starting any repair to avoid shock
• Typically accessed from the appliance control or console; may require removing the console or control panel
• Handle lens/assembly carefully to avoid scratching or damaging the light surface
• Test functionality before fully reassembling the unit

This white control knob replaces a worn, cracked or missing control knob so you can reliably select settings on your appliance's control shaft. It provides a clean, easy-to-grip interface for adjusting temperature or function settings. What it does:

• Fits onto a splined control shaft to allow selection of settings or temperatures
• Restores secure, tactile rotation when the original knob is loose or damaged
• Eliminates slipping or inability to turn the control caused by broken knobs
• Helps prevent accidental changes by providing a proper grip and stop alignment

• Disconnect power (and gas if applicable) before servicing the appliance for safety
• Pull the old knob straight off the control shaft; align splines and push the new knob on until fully seated
• Do not force the knob; if it does not fit easily, confirm spline type and orientation
• After installation, restore power and verify proper control operation

This black surface element control knob fits the burner's infinite switch, letting you turn the element on/off and set heat levels. Replace cracked, stripped, or missing knobs to restore safe, reliable control of your cooktop settings.

• Attaches to the infinite switch shaft to control a surface heating element
• Provides on/off and variable heat selection
• Replace if the knob is cracked, stripped, missing, or no longer engages the shaft
• Helpful when the control is hard to turn, wobbly, or can't be reliably set to Off

• Turn the appliance off and disconnect power before servicing
• Ensure the control is in the Off position
• Pull the old knob straight off the switch shaft; align the new knob with the shaft and press until fully seated
• Do not force; apply even pressure and verify proper alignment

This switch seal is a small rubber gasket that protects a control or door switch from moisture and debris, helping maintain reliable operation and prevent damage to the switch assembly. What it does:

• Creates a moisture- and dust-resistant barrier around a switch to reduce shorting and corrosion
• Helps keep switches operating smoothly by blocking contaminants that cause sticking or intermittent contacts
• Supports safe electrical performance by keeping water away from switch terminals and housings
• Common symptom linkage: switch malfunction, intermittent control, or moisture-related failures near switch area

• Disconnect power to the appliance before inspecting or replacing the seal
• Remove surrounding trim or components carefully to avoid damaging the switch or housing
• Confirm correct orientation and full seating of the seal during reassembly for an effective barrier
• If the switch shows damage or corrosion, replace the switch assembly as well

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

This replacement knob grommet cushions and centers a control knob on the console, helping reduce wobble and protect the panel from wear for smoother, more secure knob operation. What it does

• Centers and cushions the control knob for proper alignment and tactile feel.
• Helps reduce knob wobble, rubbing, and wear on the control panel.
• Can address symptoms like loose, uneven-feeling, or noisy knobs when turning.
• Fits the knob mounting on compatible Whirlpool control panels for a restored fit.

• Disconnect power to the appliance before servicing.
• Remove the control knob, press the grommet into the panel opening, then reinstall the knob; generally requires no special tools.
• Inspect the knob and shaft—replace if damaged, as a damaged shaft can prevent a secure fit.
• Reconnect power and confirm proper knob alignment and operation after installation.

This latch knob screw secures the latch knob to its shaft on compatible appliances. Replace a missing, stripped, or rusted screw to restore a firm, reliable attachment and proper latch/knob operation. What it does:

• Attaches the latch knob securely to the latch mechanism/shaft
• Helps maintain proper door latch engagement and knob control
• Common fix for a loose, wobbly, or falling-off knob
• Replaces a lost, corroded, or cross-threaded screw

• 1 latch knob screw

• Disconnect power and allow the appliance to cool completely before servicing
• Align the knob on the shaft and start the screw by hand to avoid cross-threading
• Tighten with the correct screwdriver; do not overtighten to prevent damage
• The latch engages and releases smoothly after installation

This hardware kit contains the small mounting parts needed to secure and support the appliance component. It provides replacement fasteners and brackets to restore proper fit and stability after service. What it does:

• Replaces worn or missing mounting pieces that cause loose panels or components
• Restores proper alignment and support for the associated assembly
• Helps stop rattling, vibration, or movement caused by missing hardware
• Matches OEM fit and function when used as a direct replacement

• Intended for technicians or experienced DIYers; inspect the kit before installation
• Use appropriate hand tools; tighten fasteners to manufacturer torque where specified
• Disconnect power and follow all safety procedures before servicing the appliance
• Replace only the parts shown for your specific model

Specs: 25ft, 14 Ga. 150 c Brown

Specs: 25 ft, 14 Ga., 150 c Green

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Orange 14 Ga. 150~c)

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Red 14 Ga. 150~c)

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Yellow 14 Ga. 150~c)

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Red 14 Ga. 200~c)

Size: 25ft, 12 Ga. 150 c Black

Specs: 25ft, 14 Ga. 150 c Black

Specs: 25ft,14 Ga., 200 c Brown

This foam tape is used to seal and cushion mating surfaces in your appliance. Replacing a worn strip restores a snug fit, helps reduce noise, and helps maintain proper airflow, heat, or moisture control where specified by the manufacturer.

• Provides a compressible seal between components per the unit's parts diagram
• Cushions panels and trim to reduce vibration, buzzing, or rattling
• Helps prevent air, steam, or heat leaks at joints and seams
• Replace if the original tape is torn, flattened, missing, or contaminated

• Disconnect power and shut off gas/water as applicable; allow the appliance to cool before service
• Note the original tape placement; remove old material and residue, then clean and dry surfaces
• Apply per the service manual; avoid stretching; press evenly to ensure full contact
• If the OEM procedure calls for trimming, cut carefully to length and avoid gaps or overlaps

Size: 10 fl. oz. Used on glass, ceramic and porcelain cooktops.
