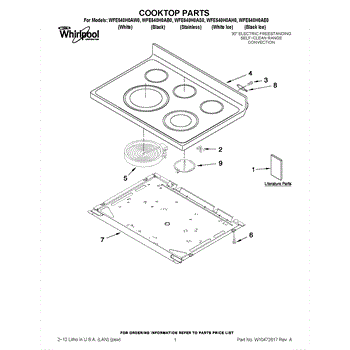

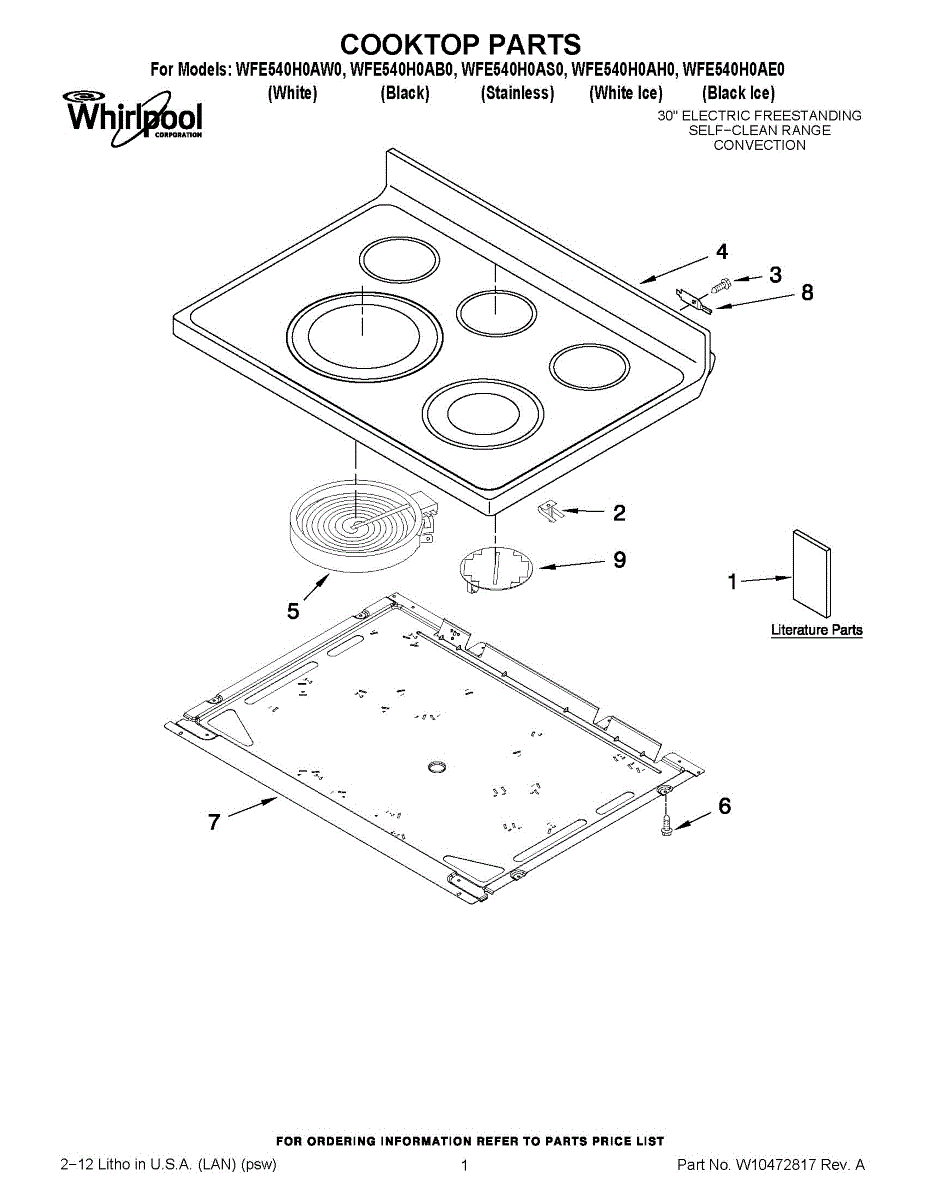

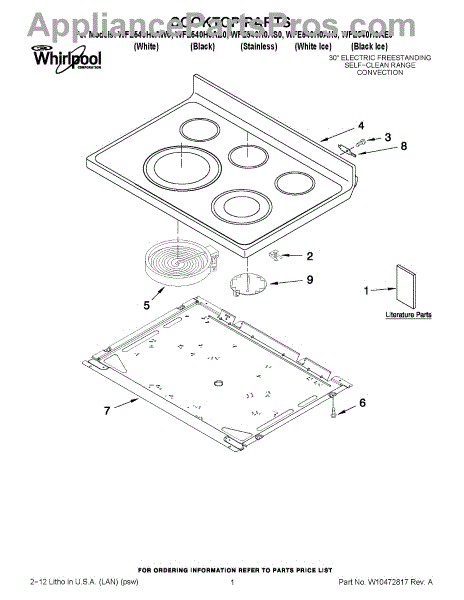

Parts for Whirlpool WFE540H0AE0: 01 - Cooktop Parts

This small spring applies tension to hold an element in the correct position within the appliance, helping maintain reliable contact and stable operation. Replacing a worn spring can restore proper element support and performance.

• Provides push tension to keep the element seated and secure
• Helps prevent intermittent heating due to poor element contact
• Common signs include rattling, poor element stability, or intermittent heat

• Disconnect power and allow the unit to cool before service
• Access the element mounting area; note original spring placement
• Use needle-nose pliers to remove and install the spring carefully
• Inspect adjacent clips and wiring; replace damaged parts as needed

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This is a cooktop. It is installed on top of a stove and is used to heat dishes while cooking. It is made for use on electric ranges and is a smooth-surfaced alternative to typical coils. Since the cooktop is made of glass, it can become damaged, cracked, or broken, which will prevent cooking on the range. If this happens, the cooktop will need to be replaced.Work gloves, pliers, and a screwdriver are needed to replace the range cooktop. Unplug the stove from the wall and open the oven door. Remove the screws that hold the cooktop and lift it up and away from the frame. Remove the burners and cooktop and set them to the side. Clean out the inside of the cooktop before sliding the new cooktop onto the range. Reattach the burners and screw in the cooktop. Plug in the range and test it before using.This part is sold as an individual product. It is a genuine OEM replacement component that is sourced directly from the manufacturer. The cooktop is designed for use with ranges, ovens, and stoves by Whirlpool.

This 300mm, 3000W radiant surface element restores the large cooking zone on a smooth-top range or cooktop. Replace it to bring back consistent, even heating when the large burner stops working or only heats partially. What it does:

• Supplies radiant heat to the large surface burner beneath the glass cooktop
• Common fix for a burner that won't heat, only part of the ring glows/heats, or shows a visible burned spot/break
• Helps restore even heating and proper cycling when the original element has failed

• 1 radiant surface element

• Disconnect power at the breaker and allow the cooktop to cool fully before servicing
• Lift/remove the glass top per service instructions to access the elements; support the glass and keep insulation in place
• Transfer mounting hardware and wires one at a time to matching terminals; handle the ceramic element carefully—it is fragile
• Reassemble and test the burner for proper operation before returning to use

The Surface Element is an OEM part for Whirlpool stoves and cooktops. It is the heating element located on the cooktop, responsible for providing heat to pots and pans for cooking.

Common causes of a bad surface element include wear and tear from repeated use, overheating, or electrical issues. Ensuring the element is functioning correctly is crucial for efficient and safe cooking.

Symptoms of a bad surface element include:

• Element not heating up
• Inconsistent or uneven heating
• Visible damage or burning on the element
• Sparking or electrical issues when the element is turned on

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: 1200 watt - LR / RR element

The Surface Element is an OEM part for Whirlpool ranges. It is responsible for providing the heat necessary for cooking on the stovetop. Designed to fit seamlessly into the range, this element ensures even heating and efficient energy use, allowing for precise temperature control during cooking.

Causes of a bad surface element can include normal wear and tear, electrical faults, or damage from cookware. Over time, repeated heating and cooling cycles can cause the element to degrade, while physical impacts or spills can also lead to malfunction.

Symptoms of a bad surface element include:

• Inconsistent or uneven heating
• The element not heating up at all
• Visible damage or burn marks on the element
• Sparks or unusual noises when the element is turned on

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: 3000/1400W - Left front element

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

This hinge pin fits hinged-top ranges and provides the pivot point for the cooktop. Replacing a worn or missing pin helps restore smooth lift action, alignment, and stability when opening the top for cleaning or service.

• Provides the pivot between the cooktop and hinge bracket for lift-up operation
• Helps keep the cooktop aligned and stable when closed
• Common symptoms include a loose or wobbly cooktop, scraping or binding when lifting, or uneven gaps
• Replacing a damaged pin helps restore smooth, secure movement

• Disconnect power and turn off gas supply before servicing
• Support the cooktop to prevent strain on the hinges while working
• Remove the old pin and any retainer; install the new pin in the same orientation and fully seat it
• Verify smooth, aligned operation before restoring power and gas

This replacement surface heating element restores direct heat to a cooktop burner so pots and pans heat properly. It's a straightforward swap for a damaged or non-heating top burner coil. What it does:

• Heats cookware by providing the cooktop's surface heating element for the top burner
• Replaces elements that no longer glow, get intermittently hot, or fail to heat at all
• Restores even cooking when an old or damaged element causes uneven heating
• Works with controls and infinite switches that send power to the burner

• One surface heating (top burner) element

• Disconnect power to the range before attempting service to avoid shock hazard
• Allow the old element to cool completely before removal; handle the element by its base only
• Ensure the replacement is seated and connected to the terminal block securely before testing
