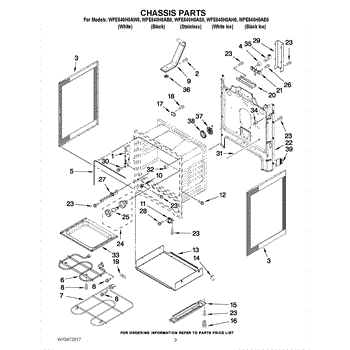

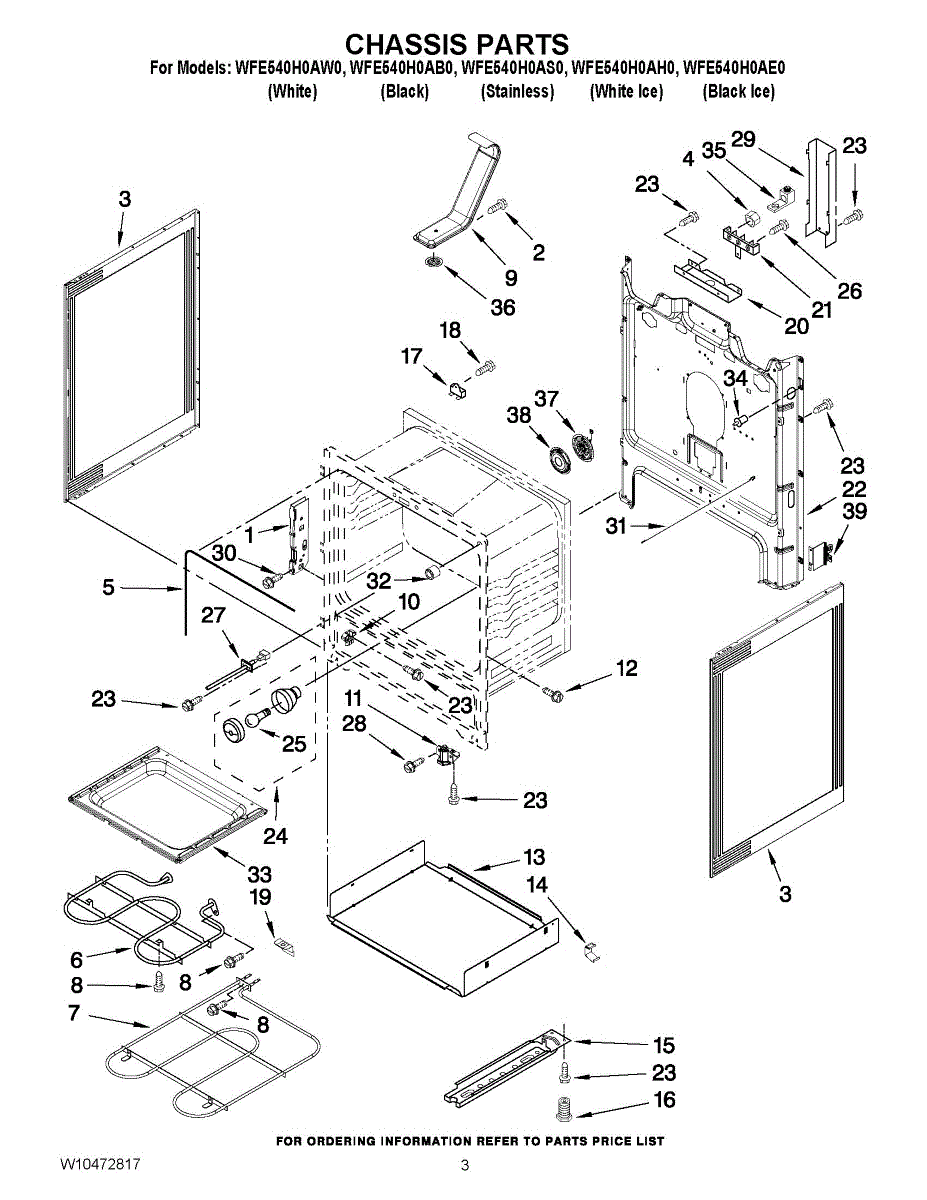

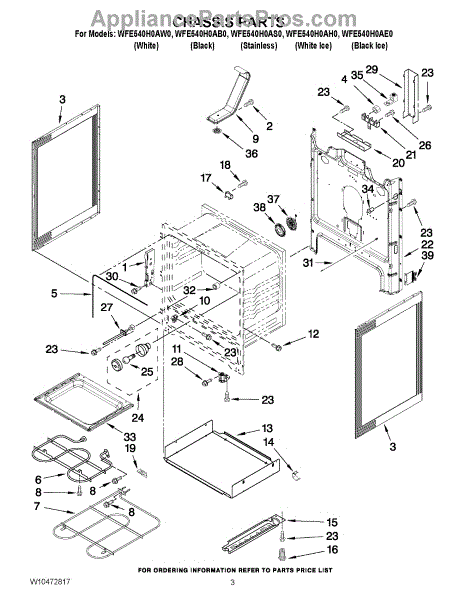

Parts for Whirlpool WFE540H0AE0: 03 - Chassis Parts

This hinge receiver mounts to the appliance frame and accepts the door hinge arm/pin. It keeps the door aligned and secure so it opens and closes smoothly. Replacing a worn or cracked receiver restores proper door action.

• Anchors the hinge arm/pin at the cabinet/frame for smooth door movement
• Maintains door alignment and consistent closing action
• Wear or damage can cause a loose or sagging door, misalignment, or binding
• Common signs include clicking/grinding noises and visible cracks or deformation

• Disconnect power; allow the appliance to cool and shut off gas/water if applicable
• Support or remove the door to access the receiver
• Remove mounting fasteners, swap in the new receiver, and align per service instructions
• Reinstall the door and verify smooth movement and full closure

This is a ground-wire screw used to attach a grounding conductor to the appliance chassis, ensuring a reliable electrical ground and safer operation. It matches the common 8-32 machine screw thread used on many Whirlpool appliances. What it does:

• Secures the ground wire to the appliance cabinet or grounding point
• Restores or maintains a continuous equipment ground for safe operation
• Helps prevent electrical shock and fault conditions when properly installed
• Fits locations that accept an 8-32 threaded screw for grounding

• One ground-wire screw

• Disconnect power before accessing electrical components or performing service
• Use the correct Phillips driver or nut-driver sized for 8-32 screws to avoid stripping
• Tighten until snug—do not over-torque; ensure the grounding conductor is under the screw head or terminal as intended
• If corrosion or damaged threads are present, clean or replace the mating hardware to ensure a secure ground

This side panel is a replacement cabinet trim piece that restores the exterior finish and protects the refrigerator side from dings and scratches. It matches original fit and appearance for a clean, factory look. What it does

• Covers and protects the refrigerator cabinet side from damage and wear
• Restores a uniform exterior appearance after dent or cosmetic repair
• Helps maintain proper panel alignment and mounting for adjacent parts
• Matches OEM shape so doors and trim fit correctly

• One side panel

• Intended for cabinet-side replacement; verify side (left/right) using your model diagram before ordering
• Remove power and empty nearby shelves before starting; handle panel edges carefully to avoid cuts
• May require basic tools (screwdriver, trim removal tool) and a second person for proper alignment

This 10-32 terminal block nut fastens wire lugs to the appliance's terminal studs. Replacing a missing, stripped, or corroded nut restores a tight, reliable connection and helps prevent heat damage or intermittent power at the connection.

• Secures wire lugs to a 10-32 terminal stud for a solid electrical connection
• Restores proper clamping force when the original nut is stripped, corroded, or missing
• Helps address loose/burned terminal connections, heat discoloration, or intermittent power at the block
• Suitable for terminal block and similar 10-32 stud applications on compatible appliances

• Disconnect power at the breaker or unplug the appliance before servicing
• Inspect the terminal block, studs, and wiring for heat damage; replace any damaged components
• Clean threads and start the nut by hand to avoid cross-threading; tighten firmly without overtightening
• If the stud turns while tightening, hold it with an appropriate tool to protect the block

The Door Gasket is an OEM part for Whirlpool ovens. This part creates a tight seal around the oven door, preventing heat from escaping during cooking. This part ensures that the oven maintains a consistent temperature, leading to more efficient cooking and energy use.

A damaged gasket might also allow hot air to escape, potentially causing heat damage to surrounding kitchen cabinetry and increasing energy consumption.

Symptoms of a bad Door Gasket include:

• The oven takes longer to preheat
• You notice heat escaping from the edges of the oven door
• Uneven cooking or baking results
• Increased energy bills due to the oven working harder to maintain temperatures

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Broil Element is an OEM part for Whirlpool ranges. This heating element is responsible for providing high heat from the top of the oven, essential for broiling and achieving a crisp, browned finish on dishes.

Common causes of a faulty broil element include wear and tear over time, exposure to high temperatures, or physical damage from cleaning or moving oven racks.

Symptoms of a bad broil element include:

• The broil element not heating up
• Uneven cooking or broiling results
• Visible damage, such as breaks or blisters on the element
• The oven not reaching the desired temperature during broiling

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Bake Element is an OEM replacement part for Whirlpool ovens. It is a component responsible for generating the heat necessary for baking and roasting operations within the oven cavity.

Symptoms of needing to replace the bake element include:

• Uneven or inconsistent baking results
• Difficulty in reaching or maintaining the desired oven temperature
• Visible damage or burnout on the element itself
• Unusual smells or odors associated with a faulty heating element

Causes of a faulty bake element can include normal wear and tear over time, electrical malfunctions, or physical damage due to impact or excessive temperature fluctuations.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore oven models.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

The Drawer Glide Kit is an OEM part for Whirlpool ovens and ranges. It consists of glides that attach to the sides of the storage drawer, allowing for effortless opening and closing. These glides are made from durable materials to withstand regular use and provide reliable support. The kit also includes any necessary mounting hardware for easy installation.

Causes of a faulty drawer glide kit can include wear and tear over time, damage due to excessive weight or force, or broken or worn-out glides.

Symptoms of a bad drawer glide kit may include:

• Storage drawer sticking or not sliding smoothly
• Uneven movement or misalignment
• The drawer not closing or staying securely in place

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This leveling foot adjusts the appliance's height at the front to keep the cabinet stable and level. A properly leveled unit helps reduce vibration and noise and ensures doors, drums, and drawers operate smoothly.

• Supports the appliance and provides front height adjustment
• Helps correct rocking, vibration, and excessive noise from an unlevel appliance
• Can improve door alignment and smooth operation when the cabinet is leveled
• Common wear or damage can cause wobbling or difficulty staying level

• Unplug the appliance and, if applicable, turn off the water supply before servicing
• Tip or lift the unit carefully; use a helper to avoid injury
• Thread the new foot into the base and adjust until the cabinet is level and stable
• Tighten any applicable lock nut and recheck level after repositioning the appliance

This factory screw secures panels, brackets, or trim within your appliance. Replacing a missing or stripped fastener restores a tight fit, reduces vibration and rattles, and helps keep components aligned for reliable, long-term performance.

• Fastens panels, brackets, or trim to the appliance cabinet/frame
• Replaces damaged, rusted, or missing hardware
• Helps eliminate vibration noises, gaps, and loose-fitting parts
• Supports proper alignment of adjoining components

• Disconnect power; turn off gas/water supplies where applicable.
• Match to the original screw from your model's parts diagram before installation.
• Start threads by hand to avoid cross-threading; use the correct driver bit for the head.
• Tighten snugly—do not overtighten to prevent stripping threads or cracking plastic bosses.

This heat shield protects nearby components from excessive heat by deflecting and insulating oven/range surfaces. It helps maintain safe cabinet temperatures and prevents heat-related damage to adjacent parts. What it does:

• Deflects and shields nearby components from direct heat
• Prevents heat damage to wiring, insulation, and cabinet panels
• Stops rattling or contact when the original shield is warped or missing
• Safe symptom link: replace if you see scorched insulation, warped metal, or unusual heat transfer to nearby surfaces

• Disconnect power (and gas, if applicable) and allow appliance to cool fully before starting
• Use basic hand tools; refer to your service manual for exact removal and attachment points
• Inspect surrounding components and replace any heat-damaged parts during reassembly

This rail base provides the structural support for the refrigerator drawer/rail assembly, restoring smooth drawer alignment and preventing sagging or binding. It's a direct-fit replacement that helps maintain proper drawer operation and cabinet fit. What it does:

• Supports and aligns the drawer/rail assembly so drawers slide smoothly
• Secures the lower rail to the cabinet to prevent shifting or sagging
• Restores proper drawer clearance and prevents sticking or uneven movement
• Addresses symptoms like crooked or loose drawers, binding, or gaps at the drawer edge

• One rail base

• Disconnect power to the appliance before beginning work
• Remove drawer(s) and any trim panels to access the rail area
• Use basic hand tools; avoid overtightening fasteners to prevent damage

This rail base provides the structural support for the refrigerator drawer/rail assembly, restoring smooth drawer alignment and preventing sagging or binding. It's a direct-fit replacement that helps maintain proper drawer operation and cabinet fit. What it does:

• Supports and aligns the drawer/rail assembly so drawers slide smoothly
• Secures the lower rail to the cabinet to prevent shifting or sagging
• Restores proper drawer clearance and prevents sticking or uneven movement
• Addresses symptoms like crooked or loose drawers, binding, or gaps at the drawer edge

• One rail base

• Disconnect power to the appliance before beginning work
• Remove drawer(s) and any trim panels to access the rail area
• Use basic hand tools; avoid overtightening fasteners to prevent damage

The Leveling Leg is an OEM part for Whirlpool ranges. It's designed to ensure your range is perfectly balanced and stable on uneven floors. By adjusting the height of the leveling legs, you can prevent wobbling and ensure that your cooking surface is perfectly horizontal, which is critical for even cooking and baking.

Causes of a malfunctioning Leveling Leg can stem from physical impact damage, corrosion in humid conditions affecting integrity and adjustability, and wear over time, particularly if frequently adjusted or cleaned aggressively.

Symptoms of a bad Leveling Leg include:

• The range tilts or wobbles, making cooking uneven.
• Difficulty sliding pots and pans across the cooking surface due to the appliance not being level.
• Increased strain on other components of the range, which could lead to premature wear or failure.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Thermal Fuse is an OEM replacement part for Whirlpool ovens. This safety device is designed to prevent the oven from overheating by cutting off electrical power if the internal temperature exceeds a safe level.

The thermal fuse can fail due to normal wear and tear, prolonged exposure to high temperatures, or electrical surges. Accumulation of grease and debris around the fuse can also cause it to malfunction.

Symptoms of a bad thermal fuse include:

• The oven not heating up
• The oven shutting off during use
• No power to the oven
• Error codes related to temperature control

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This is a replacement mounting screw used to secure appliance panels and components. It restores proper fastening so panels and parts stay aligned and stable during normal use. What it does:

• Fastens appliance panels, trim or internal components in place
• Replaces missing or stripped screws that cause rattling or loose parts
• Helps stop panel vibration and maintain proper component alignment
• Matches OEM fit where specified for a secure installation

• One replacement mounting screw

• Verify screw size and fit before installation; use the correct screw location from your parts diagram
• Turn off and disconnect power to the appliance before accessing internal components
• Hand-start the screw to avoid cross-threading; tighten until snug—do not over-tighten
• Wear safety glasses and follow manufacturer service instructions when applicable

The Terminal Block is an OEM part for Whirlpool ranges. It serves as a crucial connection point for the range’s electrical wiring, ensuring a safe and reliable transfer of power to the appliance.

Over time, terminal blocks can deteriorate due to factors such as heat exposure, electrical surges, or wear and tear. When the terminal block becomes damaged or corroded, it can lead to poor electrical connections or potential safety hazards.

Symptoms of a bad terminal block include:

• Burnt or scorched connections
• Intermittent power loss to the range
• Difficulty in the range heating up properly
• Visible damage or corrosion on the terminal block

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

The Light Socket Assembly is an OEM part for Whirlpool ranges and wall ovens. This part houses the oven light bulb, providing the necessary electrical connections to illuminate the oven's interior. It ensures that you can monitor the cooking process without opening the oven door, thereby maintaining a consistent temperature and energy efficiency.

Causes of damage to the light socket assembly often include excessive heat, electrical surges, or physical damage during cleaning or maintenance.

A malfunctioning light socket assembly can lead to several issues, including:

• The inability to turn the oven light on
• Flickering or inconsistent lighting caused by loose connections or damage to the socket
• Complete failure of the light feature, due to wear and tear or electrical faults

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

A self-tapping screw used to secure appliance panels and components, providing reliable fastening to sheet metal and plastic parts. Replaces worn or missing fasteners to restore proper fit and reduce rattling. What it does:

• Fastens panels, brackets, or trim to appliance frames and housings
• Creates its own threads in sheet metal or plastic for a secure hold
• Helps stop loose panels, vibration noise, and misaligned parts
• Commonly used where a short, durable fastener is needed

• Disconnect power and water before starting any repair
• Use the correct screwdriver or driver bit to avoid stripped heads
• Start threads carefully and avoid over-torquing to prevent damage
• Wear eye protection and gloves when working with sheet metal

The Oven Sensor Assembly is an OEM part for Whirlpool ovens, designed to accurately measure the oven's internal temperature and communicate it to the control board. This ensures that the oven maintains the desired temperature setting during baking or roasting, providing consistent cooking results.

Causes of a bad Oven Sensor Assembly can include exposure to high temperatures for prolonged periods, affecting the sensor's accuracy, electrical malfunctions like short circuits or wiring issues impacting its performance, and physical damage from cleaning or moving the oven compromising the sensor's integrity.

Symptoms of a bad Oven Sensor Assembly include:

• The oven does not heat to the set temperature
• Over or undercooking of food
• Error codes displayed on the oven's control panel

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

This replacement terminal block cover encloses the appliance's incoming power connections. It protects the wire terminals from accidental contact and debris, restoring a safe, finished connection area when the original cover is damaged or missing. What it does:

• Covers and shields the power terminal block where the supply wires connect
• Helps prevent accidental contact with live electrical connections
• Helps keep dust and debris out of the connection area
• Common signs: missing or broken cover, cover won't stay attached, visible heat damage or discoloration on the original cover

• One terminal block cover

• Disconnect power at the breaker or unplug the appliance before servicing
• Access the terminal block per your model's service information
• Reuse existing mounting hardware; position and secure the new cover without pinching wires
• Inspect wires/terminals for heat damage or looseness and correct before reassembly

The Screw is an OEM part for Whirlpool ranges. This screw is used to secure various components within the range, ensuring that parts such as panels, control boards, or burners are firmly attached and remain stable during operation.

Causes of a bad range screw can include regular wear and tear, over-tightening, or exposure to high heat.

Symptoms of a bad range screw include:

• Loose or unstable components within the range
• Difficulty in securing parts during maintenance or repair
• Visible damage or wear on the screw
• Parts becoming misaligned or rattling during operation

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This spacer provides a precise gap for proper alignment and clearance between components, helping maintain correct part positioning for reliable operation. It's a simple replacement that restores intended spacing and reduces wear. What it does:

• Positions and separates adjoining parts to maintain correct clearance
• Helps prevent rubbing, misalignment, or binding of moving components
• Restores factory spacing after maintenance or part replacement
• Fits where the original spacer was used to support assembly alignment

• One spacer as shown

• Inspect surrounding components and mounting surfaces for damage before installing
• Remove power to the appliance and follow manufacturer service instructions
• Install in the same orientation as the original spacer and verify proper clearance
• If fasteners or adjacent parts are worn, replace them to ensure a secure fit

This is the removable metal oven bottom for the lower oven cavity. It forms the floor above the heating components, protecting them from spills while providing a clean, even surface for baking and easier cleanup.

• Shields heating components beneath the lower-oven floor from drips and debris
• Provides a flat, durable surface inside the oven cavity
• Helps promote even heating and airflow within the oven
• Typical replacement reasons: warped or rusted panel, chipped/flaking enamel, persistent smoke/odors from burnt-on spills

• Disconnect power at the breaker and allow the oven to cool completely before service
• Remove oven racks for access
• Remove the mounting screws (often at the rear), then lift and slide the panel out
• Reinstall with existing hardware; ensure proper clearance from the heating element before restoring power

This door-activated switch detects when the oven door opens or closes and signals the appliance to control the interior light. Replacing a worn or failed switch restores dependable light operation and accurate door-status feedback.

• Senses oven door position and opens/closes the light circuit
• Controls the oven's interior light based on door position
• Provides door-status input to the control for normal operation
• Typical symptoms: light stays on, won't turn on, or flickers with door movement; door-ajar messages may appear

• Disconnect power at the breaker or unplug the unit before servicing
• Access the switch from behind the front frame or control area, depending on model
• Move wires to the new switch one at a time to maintain correct positions; secure with existing hardware
• Restore power and verify light operation with door open/closed before reassembly

Comes with three connectors per package.

This convection fan circulates hot air inside the oven cavity to promote even baking and roasting. Replacing a failed fan restores proper air flow for more consistent cooking results. What it does:

• Spins to move heated air around the oven cavity for uniform temperature distribution
• Commonly used when baking or roasting with convection mode
• Symptoms of failure: uneven cooking or baking, convection mode not working, no air movement from oven interior
• Can make noise or wobble if bearings are worn or blade is damaged

• Turn off power to the appliance at the breaker before starting work
• Replacement typically requires access to the oven interior or rear panel and removal of mounting screws
• Handle the fan blade carefully to avoid bending; ensure proper seating on the motor shaft
• If electrical connectors are corroded or damaged, replace or repair them before reassembly

This main back insulation panel replaces the factory foam insulation behind the refrigerator cabinet to help reduce heat transfer and minimize noise. Installing the correct back insulation helps the refrigerator maintain temperature more consistently. What it does:

• Provides thermal barrier behind the cabinet to slow heat gain from the rear.
• Helps limit compressor and airflow noise by absorbing sound near the rear cavity.
• Commonly replaced when insulation is damaged, missing, compressed, or when the appliance has higher-than-normal run times or inconsistent cooling.
• Protects internal components from external temperature swings and debris entering rear cavities.

• Disconnect power before accessing the rear of the appliance and remove any rear access panels or brackets to reach the insulation location.
• Handle the panel gently to avoid tearing or compressing the insulation; secure using original clips/adhesive or replacement fasteners as applicable.
• Ensure the insulation fits flush and does not interfere with wiring, tubing, or moving parts.

This insulation wrap surrounds a designated hot component inside the appliance to contain heat and shield nearby wiring and surfaces. Replacing a worn or missing wrap helps maintain proper temperatures and safe, reliable operation.

• Provides a thermal barrier around the specified component or area
• Helps protect adjacent wiring and panels from excessive heat
• Replace if the original is charred, brittle, torn, contaminated, or missing
• Common signs include hot spots, scorch marks, or a burning odor near the component

• Disconnect power before servicing and allow the appliance to cool completely
• Note the original routing/overlap and install the new wrap in the same orientation
• Wear gloves and eye protection; edges and fibers can irritate skin
• Ensure the wrap doesn't obstruct airflow or moving parts and is secured as originally

The Insulation is an OEM part for Whirlpool ranges. It is designed to insulate the oven cavity, helping to maintain the desired temperature during cooking and improving energy efficiency.

Causes of a bad range insulation can include wear and tear over time, exposure to high temperatures leading to deterioration, or physical damage from handling or installation.

Symptoms of a bad range insulation include:

• Increased cooking times
• Uneven cooking or baking results
• Excessive heat on the exterior of the range
• Higher energy consumption

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.
