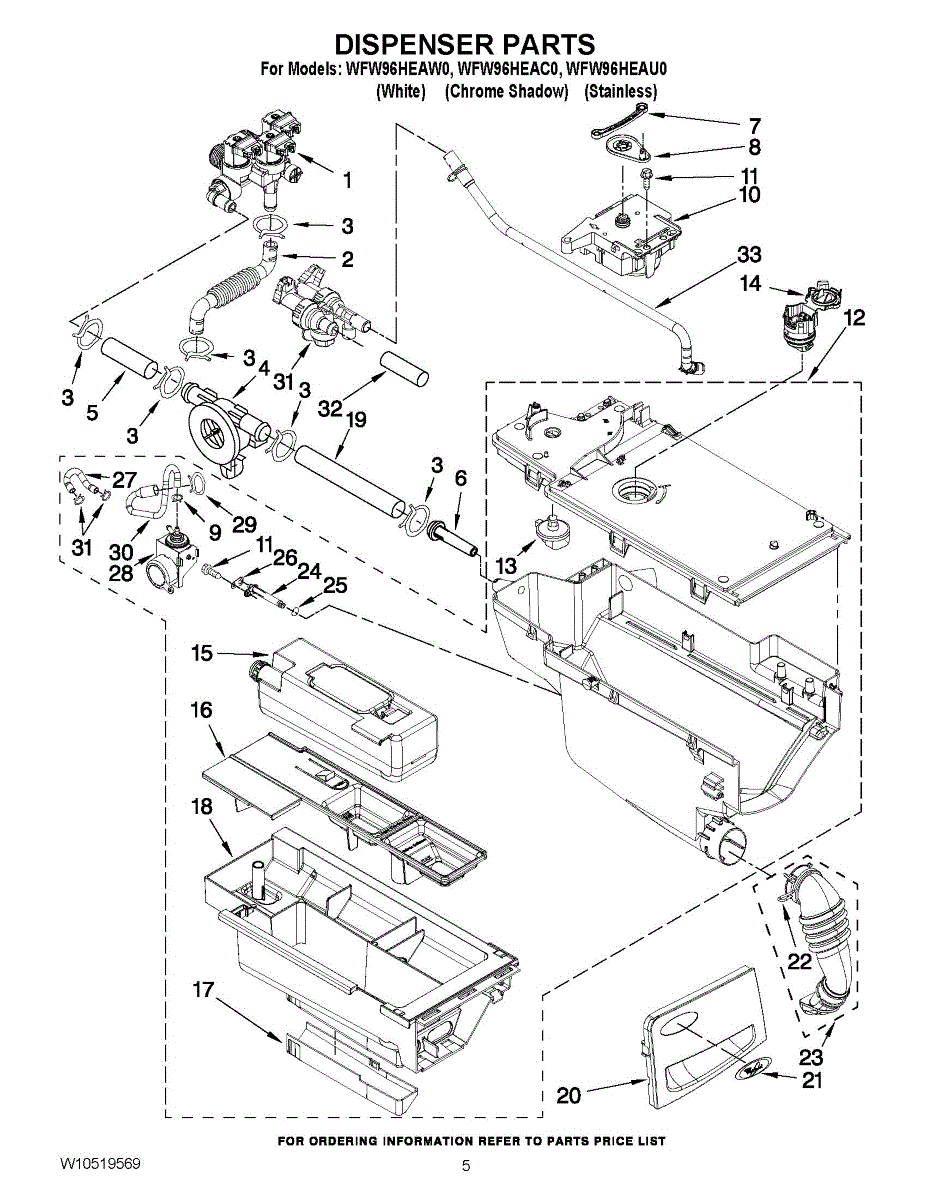

Parts for Whirlpool WFW96HEAC0: 04 - Dispenser Parts

Dissolves odor-causing residue and mildew buildup in washing machine tubs. Use every 30 washes to maintain freshness. Verify fit with your model.

Fix a washer that won't fill, has an F20 error, or leaks water between loads. This water inlet valve controls flow during fill cycles. DIY repair.

Replacement water hose for washers and laundry centers. Routes water between internal components. Replace if cracked, kinked, brittle, or leaking.

The Water Inlet Flow Meter is an OEM part for Whirlpool washing machines. It is responsible for monitoring and regulating the flow of water entering the washing machine during the fill cycle, ensuring the correct amount of water is added for efficient and effective cleaning.

Causes of a faulty Water Inlet Flow Meter include sediment buildup, physical damage, or electrical issues with the meter's sensors or connections.

Symptoms of a bad Water Inlet Flow Meter include:

• Incorrect water levels in the wash tub
• Washing machine not filling properly with water
• Error codes related to water inlet flow or water level issues

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Replace your washer's hose if cracked, worn, or leaking. This hose connects water supply lines or drain components inside your washing machine.

This is the inlet nozzle that directs water into the washing machine tub during the fill cycle. It connects to the water inlet valve and channels water flow into the drum. Replace this nozzle if you notice restricted water flow, leaking at the tub entry point, or if the nozzle is cracked or clogged with mineral deposits.

This replacement lever is a small mechanical link that engages or releases its mating mechanism inside the appliance. Replacing a worn or broken lever restores crisp actuation and reliable operation of the related control or latch. What it does:

• Transfers motion from a button, handle, or cam to the connected mechanism (such as a latch, switch, or dispenser component)
• Ensures the mechanism moves fully and smoothly
• Wear or breakage can cause a loose feel, incomplete travel, or no response when pressing/pulling the control
• Visible cracks, missing tabs, binding, or intermittent operation are common signs it needs replacement

• 1 lever

• Disconnect power before servicing; also turn off water supply
• Access the assembly for your model per the service/parts diagram
• Note orientation of any springs or clips connected to the original lever; transfer them if present
• Reinstall with existing fasteners and test operation before reassembly

Fix a washer that stops mid-cycle or won't advance between wash stages. This actuator cam guides the lever arm movement for proper cycle transitions.

The Dispenser Actuator is an OEM part for Whirlpool washing machines. It is responsible for controlling the release of detergent and fabric softener during the wash cycle, ensuring that these cleaning agents are dispensed at the correct times.

Causes of a bad dispenser actuator can include wear and tear over time, damage from detergent residue build-up, or electrical faults within the actuator mechanism. If the actuator fails, it can disrupt the washing cycle and prevent proper dispensing of cleaning agents.

Symptoms of a bad dispenser actuator include:

• Detergent or fabric softener not being dispensed
• The washer displaying error codes related to the dispenser
• Intermittent or inconsistent dispensing
• Unusual noises during the dispensing phase

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement screw secures appliance components and panels so they stay aligned and rattle-free during operation. Replace stripped, missing, or corroded hardware to restore a tight fit and dependable performance. What it does

• Fastens brackets, panels, and internal sub-assemblies in the appliance
• Helps maintain alignment to reduce vibration and rattling
• Replaces missing, rusted, or stripped screws that no longer hold
• Useful when a part won't mount securely or a screw backs out during use

• One screw

• Disconnect power; for gas appliances, also shut off the gas supply
• Compare to the original for length and thread style for the location
• Start threads by hand to avoid cross-threading; use the correct driver bit
• Do not overtighten; if the mounting hole or clip is worn, replace it

Fix soap not dispensing or rinse aid leaks with this washer detergent dispenser assembly. Restores proper detergent release during wash cycles.

Washer not dispensing soap or softener? A clogged or broken distribution nozzle prevents water flow to dispensers. Moderate DIY repair restores function.

Angular magnetic sensor that detects when a door or panel is closed and tells the appliance control. Replacing a worn or failed sensor restores reliable door-sensing so cycles, lights, and safety features respond correctly. What it does:

• Detects the magnet/strike position and signals the control board that the door or panel is closed.
• Allows the control to enable or disable functions tied to door position (cycles, interior lights, locks).
• Common symptoms it can fix: appliance won't start, door-related error codes, interior light not responding, or door lock not engaging.
• Intermittent or failed sensors can cause erratic operation or prevent normal cycle starts.

• Disconnect power to the appliance before starting any repair.
• Remove and replace the sensor in the same orientation; ensure the magnet/strike aligns with the sensor for reliable operation.
• Handle the sensor and connector carefully; avoid bending contacts or pulling on wires.

Fix softener or bleach not dispensing properly with this dispenser funnel. Channels liquids from drawer into tub to restore correct flow. Easy install.

This is the lower cover panel for the detergent dispenser drawer on a front-load washing machine. It snaps onto the bottom of the dispenser drawer to enclose the compartment and direct water flow properly during the wash cycle. Replace this cover if it is cracked, missing, or warped, which can cause detergent to dispense incorrectly or water to leak from the dispenser area.

Fix detergent leaking or improper dispensing with a new washer dispenser drawer. Replaces cracked or worn 3-compartment drawers. Easy DIY repair.

Replace your washer's worn, cracked, or leaking hose. This water supply or drain hose connects to your washing machine to ensure proper water flow during cycles.

Dissolves odor-causing residue and mildew buildup in washing machine tubs. Use every 30 washes to maintain freshness. Verify fit with your model.

This is a white plastic handle that attaches to the front of the washer's detergent dispenser drawer, allowing you to pull it open to add detergent, bleach, or fabric softener. Replace this handle if it is cracked, broken, or has snapped off, making it difficult to open the dispenser drawer.

Broken or missing dispenser handle? This assembly restores a solid grip so your washer's dispenser opens smoothly. Easy DIY repair for most models.

Color: Grey

Secures water and drain hoses to fittings, preventing leaks at connections. Replace if hoses slip or show water seepage. Confirm fit with your model.

Replace your washer's water hose assembly to stop leaks and restore proper water flow. Install when hoses are cracked, worn, or damaged by pests.

Replacement water supply tube for front-load washers. Restores proper fluid routing when original tube is cracked, damaged, or leaking. Direct fit.

Replace your washer's o-ring seal to fix leaks and maintain proper sealing. Install when you notice water dripping or moisture buildup. Verify fit with your model number before ordering.

Fix soap not dispensing or rinse aid leaks with this washer detergent dispenser assembly. Restores proper detergent release during wash cycles.

Replace a cracked, leaking, or worn washer hose. This internal hose connects water components inside your front or top load washing machine.

Fix soap not dispensing or rinse aid leaks with this washer detergent dispenser assembly. Restores proper detergent release during wash cycles.

This is a rubber hose that connects the pump to the dispenser assembly in the washing machine. It carries water from the pump to the detergent or fabric softener dispenser during the wash cycle. Replace this hose if you notice leaking underneath the washer, if the dispenser is not getting water, or if the hose is cracked or deteriorated.

Restore targeted spray in your dishwasher with this diverter valve assembly. It controls where wash water flows during the cycle, helping ensure both racks receive proper pressure for consistent cleaning performance.

• Directs wash water to selected spray arms/zones during the cycle
• Failure can cause poor cleaning or one rack not receiving spray
• Can lead to longer cycles or repeated wash segments as the control retries

• Disconnect power and shut off the water supply before servicing
• Access from the bottom of the dishwasher; remove toe-kick and pull unit out as needed
• Expect some residual water; use towels and wear cut-resistant gloves
• Ensure seals are properly seated, transfer any original clamps/fasteners as needed, and test for leaks after installation

This is a water inlet hose that connects the household water supply to the washer's fill valve. It allows water to flow into the wash tub during the fill cycle. Replace this hose if it is cracked, kinked, leaking at the connections, or shows signs of bulging, which can lead to water damage or the washer not filling properly.

Internal hose for front-load and top-load washers. Replaces cracked, kinked, or leaking hoses that cause water to pool inside the machine during cycles.

Dissolves odor-causing residue and mildew buildup in washing machine tubs. Use every 30 washes to maintain freshness. Verify fit with your model.
