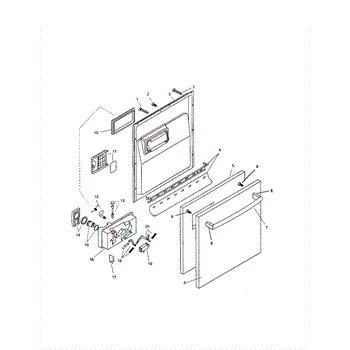

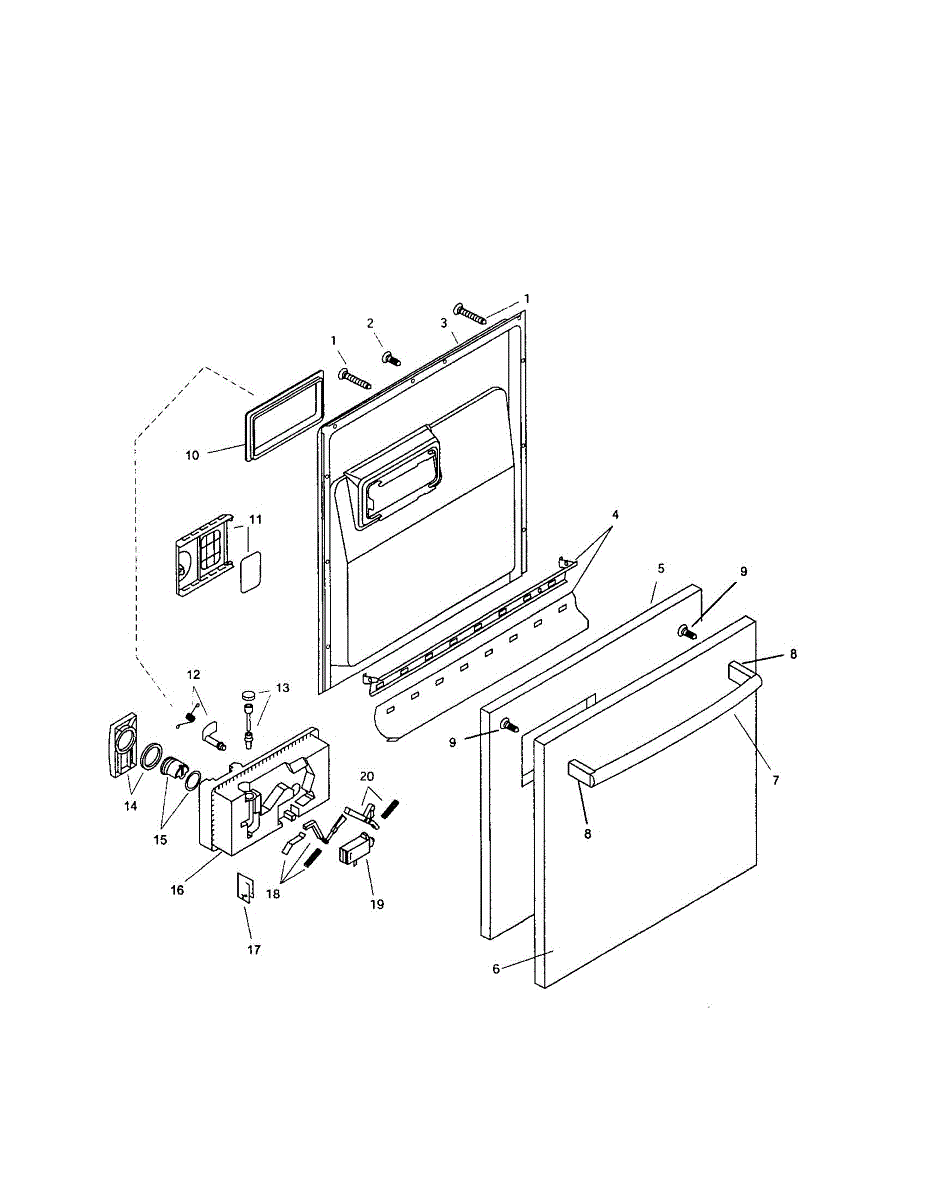

Parts for Bosch SHX46B06UC/14: Door Assembly Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Screw is an OEM replacement part for Bosch dishwashers. Hundreds of screws hold the appliance panels and internal mechanisms securely in place. Consistent, protective enclosures ensure long-lasting performance.

Causes of a bad screw can include stripped threads from repeated tightening/loosening during repairs. Corrosion posing integrity risks may develop if water penetrates screw heads over time.

Symptoms of a bad screw include:

• Panels or racks that rattle or come loose during operation
• Gaps appear that allow residual moisture to seep within
• Internal components shifting position from the original assembly
• Loose wiring susceptible to abrasion posing electrical hazards

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

The Screw Kit (Inner Door) is an OEM part for Bosch dishwashers. It is a comprehensive kit that includes 6 screws required for securing and maintaining the inner door assembly of the dishwasher.

Symptoms of needing a new screw kit:

• Loose or rattling inner door panels
• Inner door components becoming misaligned or detached
• Water leaks or vapor escaping from the inner door area
• Difficulty in opening or closing the dishwasher door smoothly

Causes of a bad screw kit can include missing or stripped screws, corrosion or wear over time, or damage during repair or maintenance work.

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore dishwasher models.

This inner door is the interior panel for a dishwasher door that protects internal components and provides a finished inside surface. Replacing a damaged inner door restores proper sealing and appearance. What it does:

• Forms the interior surface of the dishwasher door and helps contain water during cycles
• Protects wiring, insulation, and electronics housed inside the door
• Helps maintain a proper seal to prevent leaks and improve wash performance
• Addresses symptoms like visible door damage, interior rust, dents, or moisture inside the door cavity

• Disconnect power and water supply before starting any repair
• Removing the outer door panel or control panel may be required;
• Keep fasteners and trim organized for reassembly; some clips or screws may be needed

The Lower Door Seal is an OEM part for Bosch dishwashers. It plays a crucial role in preventing water from leaking out of the dishwasher door during cycles. This seal is positioned along the bottom of the door, ensuring a tight and secure closure that keeps water contained within the unit.

Causes of a bad Lower Door Seal may stem from various factors. These include natural wear and tear due to extended use, chemical degradation caused by harsh detergents, physical damage like tears or cuts, as well as improper installation or alignment.

Symptoms of a bad Lower Door Seal include:

• Water leaking from the bottom of the dishwasher door
• Visible signs of wear or damage on the seal
• Mold or mildew buildup on the seal due to constant moisture exposure

This OEM Bosch part can also be used on Thermador and Gaggenau appliances.

This black replacement door handle restores a dishwasher's exterior grip and appearance, letting the door open and close securely. It matches factory fit and finish for compatible Bosch dishwasher models. What it does:

• Replaces a cracked, broken or missing door handle to restore normal door opening
• Provides a solid grip for pulling the dishwasher door open and closed
• Restores the appliance's exterior appearance when the original handle is damaged
• Fits the factory handle mounting locations and aligns with the door trim

• One black door handle

• Disconnect power to the dishwasher before starting any repair
• Support the door while removing fasteners to prevent it from closing unexpectedly
• Remove interior door panel or trim as required to access handle screws or clips
• Use manufacturer service manual or OEM instructions for step-by-step removal and reassembly

Color: Black. For white use 00615350. For stainless use 00615352. For bisque use 00418631

The Dispenser Gasket is an OEM part for Bosch dishwashers. This gasket forms a seal around the detergent dispenser, ensuring that water and detergent are properly contained within the dispenser until they are released during the wash cycle. It helps prevent leaks and ensures efficient operation of the dishwasher’s detergent system.

Causes of a bad dispenser gasket can include regular wear and tear, exposure to high temperatures, and the use of harsh detergents.

Symptoms of a bad dispenser gasket include:

• Leaks around the detergent dispenser area
• Detergent not being dispensed properly
• Visible cracks or wear on the gasket
• Water pooling inside or outside the dispenser

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

The Detergent Lid is an OEM part for Bosch dishwashers, designed to cover the detergent dispenser compartment. This lid ensures that dishwasher detergent is contained and released at the correct point in the wash cycle, contributing to efficient and effective cleaning.

Causes of a malfunctioning detergent lid can range from physical damage, such as cracks or warping that prevent a proper seal, to mechanical failure in the latch mechanism that prevents it from staying closed during the wash cycle.

Symptoms of a bad Detergent Lid include:

• Detergent not being dispensed properly during cycles
• Water leaking from the dispenser area
• Dishes not being cleaned effectively due to the detergent not releasing at the correct time

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

The Detergent Cup Latch W Spring is an OEM part for Bosch dishwashers. This latch securely closes the detergent dispenser cup, containing detergent during the wash cycle.

Causes of a bad latch can include wear and fatigue of the latching spring over many uses.

Symptoms of a bad detergent cup latch include:

• The cup popping open unexpectedly during a wash
• Difficulty fully closing and hearing the "click" of the latch
• Detergent leakage resulting in reduced cleaning

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This plunger is a small push-style actuator that transfers motion between linked components, restoring proper mechanical engagement for the related mechanism. It's a direct-fit replacement designed to return a lever or latch to its resting position. What it does:

• Acts as the push/pull actuator in a latch, dispenser or control assembly to transmit motion
• Helps the related mechanism engage, release, or return smoothly when working correctly
• Common symptom: lever or latch fails to engage, stick, or does not return to home position
• Prevents intermittent operation caused by a worn or broken push rod

• One plunger

• Disconnect power before beginning any repair to avoid electrical or mechanical hazards
• Access may require removal of trim or housing panels; keep small parts organized
• Inspect mating pivot points and bushings for wear; replace if excessively worn

The Rinse Aid Door (with Gasket) is an OEM replacement part for Bosch dishwashers. It is responsible for covering and sealing the rinse aid dispenser. Problems with a rinse aid door can cause leaks during washing.

Causes of issues may include wear over time, damage to the door or integrated gasket. This can compromise the seal needed to contain rinse aid.

Symptoms of a problem rinse aid door:

• Observing liquid around the dispenser area
• Water spots after a cycle
• A loose or damaged gasket allows contents to leak underneath.

This genuine Bosch OEM replacement part is also compatible with Thermador, Gaggenau, and some Kenmore models

Regulator with o-ring.

Bosch dishwasher soap dispenser assembly, unvented, dark gray

A reed switch door sensor that detects when the appliance door is closed so the control can start cycles. Replaces a failed magnetic sensor to restore reliable door-closed detection and normal operation. What it does

• Acts as a magnetic contact that signals the control when the door or lid is closed
• Helps prevent the appliance from starting if the door is open or not fully latched
• Common symptom fix for no-start, intermittent cycle start, or control not recognizing a closed door
• Works as the electrical switching element in the door/detector assembly

• One reed switch (single replacement sensor)

• Disconnect power to the appliance before replacing the part to avoid shock or damage
• Handle the switch and wiring gently; avoid bending or stressing terminals and solder joints
• Locate and access the door/detector area per your service manual or tech sheet; confirm connector orientation before installing

This actuator lever assembly with springs replaces a worn or broken control lever to restore proper mechanical movement in the appliance. It helps the dispenser/latch mechanism operate smoothly for reliable everyday use. What it does:

• Transfers motion from a control cam or motor to the latch or dispenser linkage
• Restores proper engagement when a broken or fatigued lever prevents operation
• Helps stop intermittent or failed cycle starts caused by damaged mechanical linkage
• Works as a direct-fit replacement that re-establishes spring tension and lever action

• Disconnect power before accessing internal components to avoid shock or injury
• Basic hand tools usually required; maintain original screw/hardware if reusing
• Inspect surrounding linkages and replace damaged clips or fasteners as needed

Wax motor for detergent/rinse-aid dispenser.

This actuator arm is the mechanical lever inside the dishwasher door's dispenser assembly. Working with its spring, it releases the detergent cup at the proper point in the cycle to restore consistent detergent dispensing. What it does

• Transfers motion from the control/drive mechanism to the dispenser latch to open the detergent cup
• Provides the spring tension needed for the lever to return to its home position
• Helps ensure detergent is dispensed at the intended time in the wash cycle
• Common symptoms include detergent left in the cup, a dispenser door that won't latch or opens inconsistently, or a visibly broken/missing lever

• 1 actuator arm with spring

• Disconnect power to the dishwasher before servicing
• Open the door and remove the inner door panel fasteners to access the dispenser linkage
• Note the spring orientation; move the spring to the new arm if needed and seat the arm in the correct pivot location
• Reassemble the door and manually test the dispenser action before running a cycle
