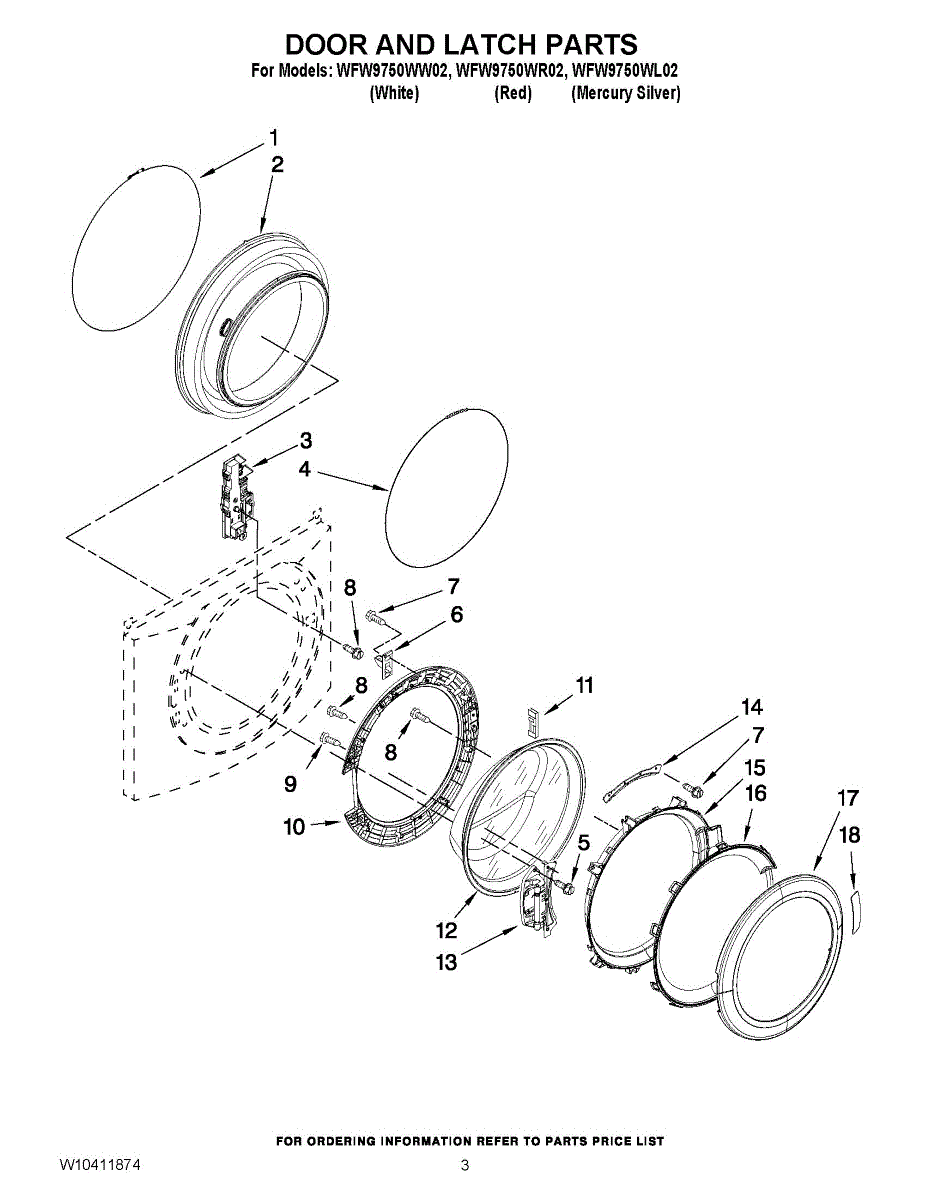

Parts for Whirlpool WFW9750WL02: 02 - Door And Latch Parts

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

The Bellow Seal Clamp Ring is an OEM part for Whirlpool washing machines. This ring secures the bellow seal, which is a flexible gasket that provides a watertight seal between the washer door and the drum.

You should replace the bellow seal clamp ring if it becomes damaged or loses its ability to hold the seal tightly. This can occur due to wear and tear, frequent door use, or improper installation. A compromised clamp ring can lead to leaks and inefficient washer operation.

Symptoms of a bad bellow seal clamp ring include:

• Water leaking from the door area during washing
• The bellow seal coming loose or out of place
• Difficulty in keeping the washer door sealed properly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Bellow Tub Seal is an OEM part for Whirlpool washing machines. This part acts as a flexible seal between the door and the drum of front-loading washers, preventing water from leaking out during operation. Note: The clamps do not come with the seal. For clamps order W10902779 and WP8182210

Causes of damage to the bellow tub seal often include regular wear and tear from frequent use, the buildup of detergents and chemicals that can degrade the material over time, and physical damage from overloading or from objects caught between the door and the drum.

Symptoms of a bad Bellow Tub Seal include:

• Visible cracks, holes, or tears in the bellow
• The accumulation of mold or mildew
• Water leakage from the front of the machine
• Clothes getting caught or snagged in the damaged areas of the bellow

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Door Latch Assembly is an OEM part for Whirlpool washing machines. This assembly secures the washer door during operation, ensuring it remains closed and the washer operates safely. It also signals the washer to begin the wash cycle when the door is properly latched.

Over time, door latch assemblies can wear out or become damaged due to frequent use, exposure to moisture, or accidental impacts. A faulty latch may prevent the washer from starting or cause it to stop mid-cycle.

Symptoms of a bad door latch assembly include:

• The washer not starting or responding
• The door not locking or unlocking properly
• Error codes related to door latch issues
• The washer stopping mid-cycle

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Boot Seal Retaining Ring is an OEM part for Whirlpool washing machines. This ring ensures the boot seal is securely fastened to the washing machine's door assembly. The boot seal retaining ring plays a key role in preventing water leaks by maintaining a tight seal between the door and the drum of the machine.

Over time, the retaining ring can lose its tension, become bent, or suffer from corrosion, leading to a compromised seal.

Symptoms of a bad Boot Seal Retaining Ring include:

• Visible water leakage around the washer door
• Difficulty closing the washer door securely
• A visible gap or misalignment between the boot seal and the door frame
• The boot seal coming loose or falling off

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Door Strike is an OEM part for Whirlpool washing machines. This component engages with the door latch to securely close the washing machine door. Ensuring a tight seal, the door strike plays a pivotal role in the appliance's safety mechanisms, preventing the washer from operating if the door is not properly shut.

Causes for replacement often stem from physical damage, such as breaking or bending due to forceful closing of the door, normal wear and tear, or manufacturing defects that prevent the door from latching correctly.

Symptoms of a bad Door Strike include:

• The washing machine door won't latch or lock properly.
• The washer fails to start due to the door not being recognized as closed.
• Visible damage or wear to the strike, indicating it may not engage correctly with the latch.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This replacement screw secures appliance components and panels so they stay aligned and rattle-free during operation. Replace stripped, missing, or corroded hardware to restore a tight fit and dependable performance. What it does

• Fastens brackets, panels, and internal sub-assemblies in the appliance
• Helps maintain alignment to reduce vibration and rattling
• Replaces missing, rusted, or stripped screws that no longer hold
• Useful when a part won't mount securely or a screw backs out during use

• One screw

• Disconnect power; for gas appliances, also shut off the gas supply
• Compare to the original for length and thread style for the location
• Start threads by hand to avoid cross-threading; use the correct driver bit
• Do not overtighten; if the mounting hole or clip is worn, replace it

This replacement screw secures appliance components and panels in their proper position. Replacing worn, stripped, or missing hardware restores a tight fit, reduces vibration or rattles, and helps maintain safe, reliable operation per the manufacturer's design. What it does:

• Fastens panels, brackets, or assemblies where specified in the model's parts diagram
• Replaces missing, rusted, or stripped hardware
• Helps eliminate looseness, rattling, or vibration
• Restores secure alignment of mounted components

• 1 screw

• Disconnect power and shut off water/gas before servicing.
• Verify the exact location in your model's parts diagram and replace screws one at a time to maintain alignment.
• Use the correct driver/bit; start threads by hand to avoid cross-threading and do not overtighten.
• Inspect mating holes/clips for damage; repair or replace related hardware if threads are compromised.

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

The Door Hinge is an OEM part for Whirlpool washing machines. This hinge attaches the door to the washing machine, allowing it to open and close smoothly while maintaining proper alignment.

You should replace the door hinge if it becomes damaged or worn out. Common causes of a bad door hinge include wear and tear from frequent use, rust or corrosion, or physical damage from accidental impacts or excessive force.

Symptoms of a bad door hinge include:

• Difficulty opening or closing the washer door
• The door not sealing properly, leading to leaks
• A sagging or misaligned door
• Unusual noises when the door is moved

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

A small metal hose clamp that secures flexible hoses and tubing to fittings to help prevent leaks and keep connections tight. Simple, durable replacement for worn or loose clamps on appliance water and drain lines. What it does:

• Holds a hose or tube firmly on a barb or fitting to prevent leaks or disconnection
• Resists loosening from vibration and normal use
• Restores a secure connection when an old clamp is corroded, stretched, or broken
• Helps prevent water damage from loose plumbing connections

• One metal hose clamp

• Disconnect power and shut off water supply before servicing
• Slide clamp over hose, position over fitting barb, then compress or tighten as required
• Replace any damaged hoses or fittings when installing a new clamp
• Verify a leak-free connection before returning appliance to service

This outer screen door is a factory-style replacement that restores the appliance's exterior access panel and appearance. It provides a proper fit and lets the underlying components operate and be accessed as designed. What it does:

• Replaces a damaged, bent, or worn outer screen door to restore proper closure and appearance
• Protects interior components and control area from debris and accidental contact
• Helps maintain correct alignment and sealing with the inner door or frame
• Common symptom: visible damage, warped door, or door that no longer closes properly

• One outer screen door

• High-level replacement: remove trim and fasteners to swap the outer door; refer to your service manual for model-specific steps
• Handle parts and edges carefully to avoid damage or cuts
• Disconnect power to the appliance before starting work if removal exposes electrical components

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.
