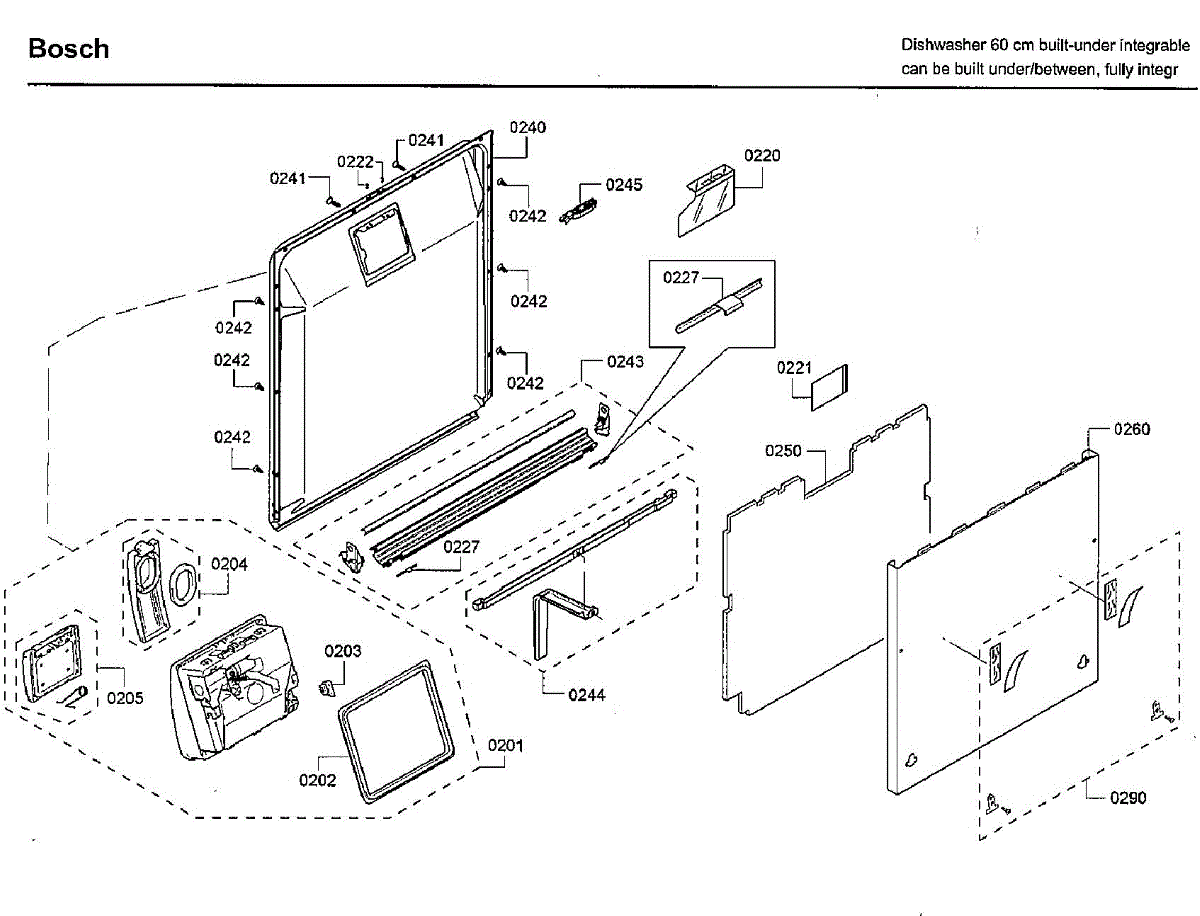

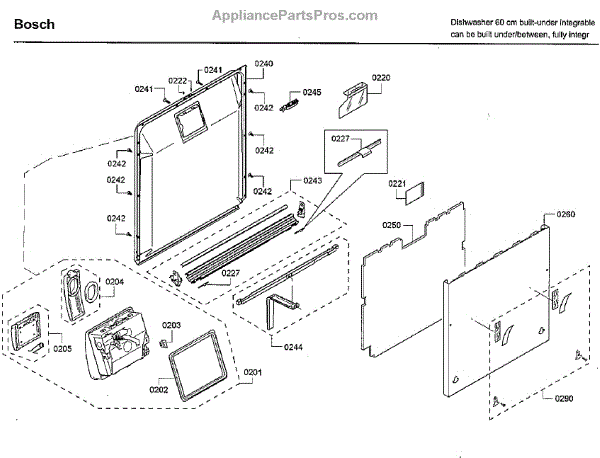

Parts for Bosch SHVM63W53N/01: Door Parts

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Fix a detergent dispenser that won't open or leaks rinse aid. Replaces the complete dispenser assembly. Moderate DIY repair with video guide.

Detergent releasing too early or leaking from the dispenser? This seal creates a watertight barrier to prevent premature dissolution. Easy 10-minute fix.

This sensor monitors the clarity and cleanliness of the wash water inside the dishwasher, helping the control board determine how dirty the water is and whether additional wash cycles are needed. It plays a key role in optimizing water usage and ensuring dishes come out clean. Replace this sensor if dishes are consistently coming out dirty, wash cycles are running too long or too short, or the dishwasher is not properly adjusting its cleaning performance.

Rinse aid leaking or sticky dishes? This dispenser lid seals the rinse aid compartment. Quick 2-minute snap-in replacement fixes leaks and residue issues.

Replace your broken or cracked dishwasher detergent dispenser door lid. This cover installs on the dispenser compartment to keep detergent secure.

Insulating strip shields dishwasher wiring from heat and abrasion. Replace if frayed, brittle, or damaged to prevent electrical hazards. Confirm fit.

Insulating protection shield for dishwasher interior. Replaces cracked, damaged, or missing shields that protect internal components. Direct fit part.

Factory mounting screw secures panels, brackets, and internal components in your dishwasher. Replace missing, stripped, or damaged screws during repair.

This lock clamp secures an appliance component or assembly so it stays properly seated during operation. Replacing a worn or missing clamp helps restore a stable, rattle-free fit and reliable performance. What it does:

• Holds mating parts together to prevent shifting or vibration
• Helps maintain correct alignment of the secured component
• Can resolve issues where a part won't stay attached or seated
• Restore normal operation when the original clamp is broken or missing

• One lock clamp

• Disconnect power (and shut off water/gas if applicable) before servicing
• Note the clamp's original orientation; take a photo to aid reassembly
• Seat the component fully, then engage the clamp securely without over-stressing it
• Reassemble and test for a firm, stable fit before returning the appliance to service

This inner door panel forms the inside surface of the dishwasher door. It supports key door components and helps seal the tub, keeping water and heat contained for reliable, quiet operation.

• Provides the structural interior panel of the door
• Mounts the detergent dispenser, latch, and vent components
• Works with the door gasket to contain water and steam
• Typical symptoms include dents/rust, leaks at the door area, or a loose/misaligned dispenser or latch

• Disconnect electrical power and turn off the water supply before starting
• Open the door, support the outer panel, and remove perimeter screws to separate the door halves
• Transfer the dispenser, latch/lock, vent, wiring, and insulation from the old panel to the new one; reuse hardware and seals if in good condition
• Ensure the door gasket seats evenly; after reassembly, run a short test cycle and check for leaks

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

This replacement screw secures panels, brackets, and internal parts in your appliance for a tight, rattle-free fit. Use it to replace lost, stripped, or corroded hardware and keep components properly fastened.

• Fastens components to the appliance frame or assemblies
• Replaces a missing, stripped, or rusted original screw
• Helps reduce rattling or vibration from loose hardware
• Restores proper alignment of panels or brackets

• Disconnect power and shut off water before servicing
• Refer to your model's parts diagram to locate and place
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening

Six-screw kit for securing the inner door assembly in your dishwasher. Replace missing, stripped, or lost screws to properly fasten door panels.

Prevents water leaks at the bottom of your dishwasher door. Replace if you see dripping, E15 error codes, or loose corners. Verify fit with your model.

Fixes dishwasher leaking or overfilling issues. This overflow tube redirects excess water back into the drain path. Simple DIY repair part.

Dishwasher door won't latch or cycle stops mid-wash? This door lock assembly secures the door during cycles. Typical DIY repair in under 30 minutes.

Molded insulation panel that separates and protects internal dishwasher components. Replaces damaged, cracked, or missing insulation panels.

Replaces damaged or worn dishwasher door panel to restore appearance and protect internal components. Ensures proper door alignment and sealing.

Installation hardware set for dishwashers. Includes mounting brackets, bolts, and screws to secure dishwasher into cabinetry. Replace missing or damaged parts.
