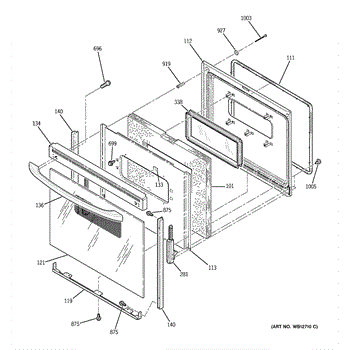

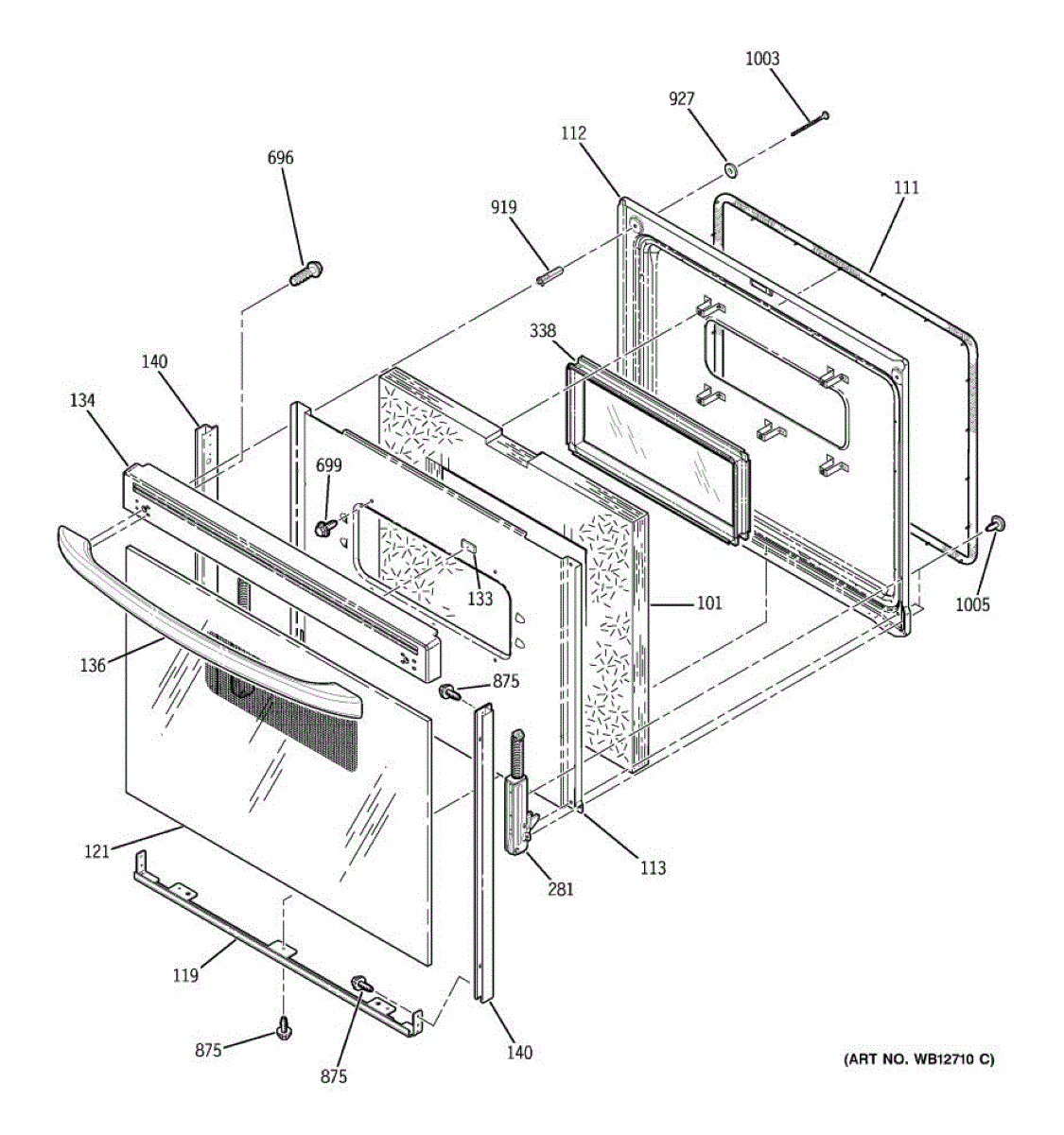

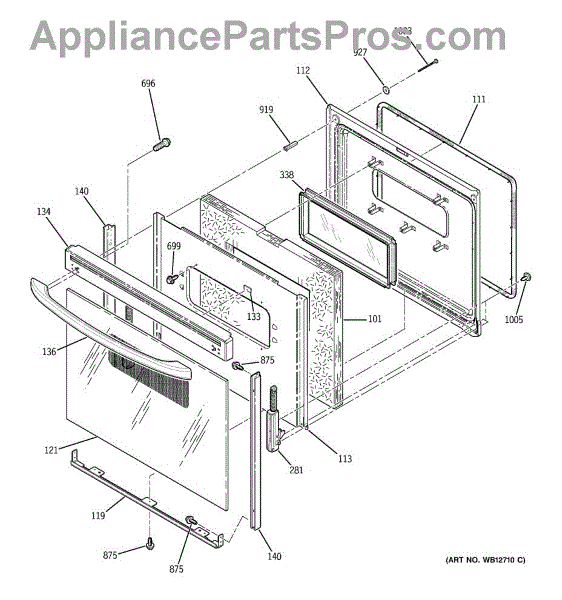

Parts for Ge JBP67BF1CT: 04 - Door Parts

The Oven Door Seal is an OEM part for GE ovens. This seal prevents heat from escaping during cooking, ensuring that the oven maintains a consistent temperature for efficient and even cooking.

A compromised Oven Door Seal can result from several factors, including normal wear and tear from regular use, exposure to high temperatures that degrade the material over time, or accidental damage such as tears or cuts.

Symptoms of a failing Oven Door Seal include:

• Visible wear or damage to the seal
• Heat escaping from the oven door during use
• An increase in cooking times or uneven cooking results
• A noticeable increase in energy consumption as the oven works harder to maintain temperatures

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

 Color: Black

The Bottom Trim Channel is an OEM part for GE ranges and wall ovens. This trim piece attaches along the bottom front edge of the oven cavity, creating a seamless facade.

The bottom trim channel is responsible for covering any unsightly gaps and providing a sleek, finished look. It also acts as a protective barrier, shielding internal electronics and insulation from accidental impacts or liquid spills on the counter below.

Symptoms of a bad bottom trim channel include:

• Drooping, loose, or improperly fitted trim piece
• Exposed internal components behind missing or damaged trim
• Liquids or debris accumulating behind or beneath the channel

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This is the door pad. Consider replacing both when replacing trim number WB07T10230

This Door Handle is an OEM part for GE ranges. It is the ergonomic component located externally on oven doors that allows for safe, comfortable opening and closing during cooking cycles. The handle is black in color and measures about 30 and 1/4 inches.

Symptoms of a bad range door handle can include:

• Looseness, wobbling, or detachment from the door assembly
• Cracked or broken plastic rendering the handle unusable
• Peeling, cracking, or discoloration of surface finishes from heat
• Difficulty grasping the handle to access oven cavities

Expected causes are repeated heat exposure and grasping stresses over time that degrade mounting points and coating integrity.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Oven Window Pack Assembly is an OEM replacement part for GE electric ranges. It provides a safe, transparent barrier for viewing cooking progress inside the oven cavity. The glass measures 17 x 7 inches.

Causes for needing replacement include cracks or chips developing over time due to consistent thermal expansion and contraction during cooking cycles. Surface scratches from harsh or abrasive cleaners are another culprit.

Symptoms of a faulty window pack include:

• Reduced visibility into the oven makes it difficult to monitor foods
• Cracks or fractures compromising the integrity of the glass
• Chips or gouges that could potentially fall into foods being cooked
• An ill-fitting window allowing heat to escape and decreasing efficiency

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore ranges

ST10-16 X 7/16"

Package of 12

Black. 8-18 AB HXW 3/8

This spacer positions and supports appliance panels and components to maintain correct alignment and clearances, helping reduce panel movement and ensure proper fit. It's a simple replacement that restores intended spacing where worn or missing. What it does

• Provides consistent spacing between panels or components to prevent rubbing or misalignment
• Helps stabilize trim, panels, or assemblies that sit flush against the cabinet
• Used when gaps, loose panels, or misaligned trim are present

• One spacer

• Disconnect power to the appliance before servicing to avoid shock or injury
• Inspect surrounding fasteners and mounting points; replace any damaged screws or clips
• Install in the same orientation and location as the original spacer; do not force into place

Includes 12 washers.

This is a genuine OEM replacement screw that is to attach the oven door panels to each other. This is a fully threaded screw that fits the predrilled hole to connect the two components. The screw is used with a washer when installed. This screw does not require a nut; it connects directly into the oven part, where it has a built-in receiving nut. If this part becomes worn and breaks or is lost during repairs to the oven, it must be replaced before the oven can be reassembled.Component assembly screws like this one used in oven panels are not normally replaced. These are made of high-temperature steel and designed to last a long time; however, if the oven panels are removed to make repairs, one or more screws may become lost. If this happens, replacement screws must be purchased and installed before the oven can be used. This screw is a silver metal replacement part that is sold individually. It does not come with the washer needed to install it. Verify the number of screws needed before ordering. This screw is designed for use in ovens manufactured by General Electric and Kenmore.

This 10-32 machine screw secures brackets, panels, and other hardware in cooking appliances. Replacing a missing or stripped screw restores a snug, rattle-free fit and keeps components aligned and safely fastened. What it does:

• Fastens panels, brackets, and components using a 10-32 machine thread
• Replaces hardware that is missing, rusted, or stripped
• Helps address loose or rattling parts and minor panel misalignment
• Maintains secure mounting after service or part replacement

• One 10-32 machine screw

• Disconnect power; for gas appliances, also shut off gas before service
• Support the panel or bracket while removing/installing hardware
• Start threads by hand to avoid cross-threading; do not overtighten
• Replace them one at a time to keep alignment
