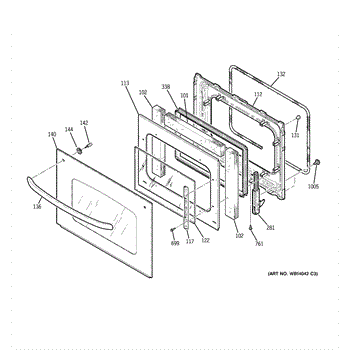

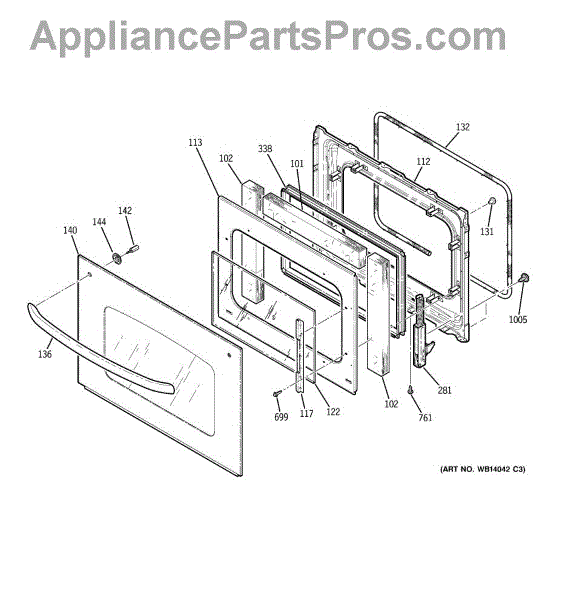

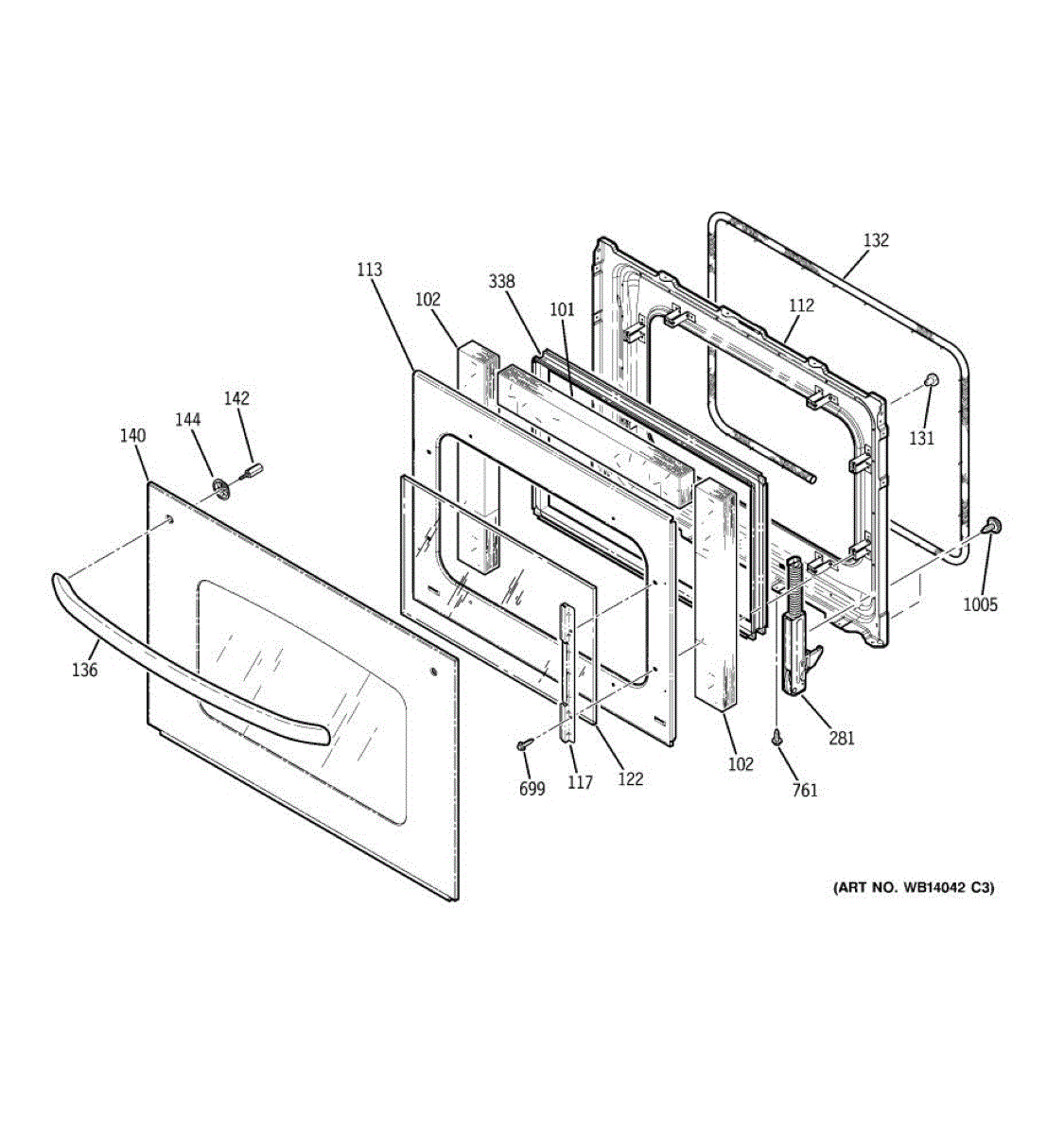

Parts for Ge JTP75SM2SS: 05 - Door Parts

This oven door insulation pad fits behind the inner door liner to help retain heat in the oven cavity and reduce heat transfer to the outer door. It restores proper oven temperature control and improves cooking consistency. What it does:

• Replaces worn or damaged insulation that can allow heat to escape from the oven cavity
• Helps the oven reach and maintain set temperatures for more even baking and roasting
• Reduces excessive outer door temperatures and hot spots on the range front
• Restores the intended thermal barrier between the oven cavity and outer door assembly

• One oven door insulation pad

• Disconnect power to the appliance before starting any repair; allow the oven to cool completely
• Installation commonly requires removing the oven door and inner door liner—follow OEM instructions
• Handle insulation carefully; wear gloves and a dust mask if material is fibrous

This oven door side insulation sits between the inner and outer door panels to limit heat loss and reduce hot spots along the door edge. Replace when the original is burnt, brittle, or missing to help restore safe thermal performance.

• Provides a thermal barrier along the side of the oven door between panels
• Helps retain oven heat and reduce heat transfer to the outer door surface
• Can help address heat escaping around door edges or a door exterior that feels hotter than normal
• Replace if the insulation is charred, frayed, compressed, or contaminated during service

• Disconnect power at the breaker and allow the oven to cool completely
• Remove the door and disassemble per your model's service instructions; work on a padded surface
• Wear gloves and eye protection; handle insulation carefully and avoid compressing it
• Do not block vents or air passages during reassembly; note orientation for proper fit

This oven door insulation retainer secures the insulation inside the oven door, helping maintain proper heat containment and preventing insulation from shifting. It's a small but important clip that keeps the door's inner components stable. What it does:

• Holds inner door insulation in place so insulation stays positioned during use
• Helps maintain consistent heat distribution by preventing insulation gaps
• Reduces rattling or movement of the door interior when opening or closing
• Commonly replaced when insulation is loose, visible, or shifting inside the door

• One oven door insulation retainer

• Disconnect power to the appliance before beginning any repair to avoid shock or injury
• Access typically requires removing the oven door or inner door panel — follow your model's service instructions
• Handle door panels and insulation carefully to avoid damage; keep fasteners organized for reassembly

The Inner Oven door glass is an OEM replacement part for GE ranges. Located inside the oven door cavity behind an outer steel panel, the inner glass allows viewing food without opening the door for temperature checks. As an insulating barrier, it separates intense oven heat from exterior door surfaces.

Causes of a bad inner door glass can include cracks or chips from heavy impacts over time, scratches clouding visibility, or breaks compromising insulation integrity.

Symptoms of a bad inner door glass include:

• Inability to see cooking progress without opening the door
• Noticeable increase in exterior door temperatures during baking
• Possible oven heat loss if broken glass disrupts insulation values
• Stress cracks spreading that threaten larger pane failures

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore wall oven models.

This foam tape seals and cushions the oven door assembly to reduce vibration and help keep the door glass and inner components stable. It restores proper spacing and helps reduce rattling or light air leaks around the door. What it does:

• Provides a soft, compressible seal between the door and frame to reduce noise and movement
• Cushions and protects glass and trim from contact and vibration
• Helps limit minor air leakage that can allow heat or odors to escape
• Commonly used when door trim or glass is loose, rattling, or shows visible gaps

• One adhesive-backed foam tape strip

• Clean and dry mating surfaces before applying to ensure good adhesive contact
• Measure and trim to fit; press firmly along the full length for proper adhesion
• Replace only with the same style of tape—do not use electrical or non-heat-rated foam in high-temperature areas
• Disconnect power/cool the appliance before working on the door assembly to avoid burns or injury

The Oven Door Gasket is an OEM part for GE ovens. It creates a seal between the oven door and the oven frame, preventing heat from escaping during cooking. This gasket is essential for maintaining consistent oven temperatures, which ensures even cooking and energy efficiency.

You should replace the oven door gasket if it becomes worn or damaged. Common causes of a bad gasket include repeated exposure to high temperatures, normal wear and tear, or physical damage from cleaning or accidental impacts. A compromised gasket can lead to heat loss, uneven cooking, and increased energy consumption.

Symptoms of a bad oven door gasket include:

• Heat escaping from around the oven door
• Longer cooking times or unevenly cooked food
• Visible cracks, tears, or deformation in the gasket
• The oven door not closing properly

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

A door handle spacer that fits behind a range of GE appliance handles to ensure correct fit and alignment, restoring a snug, finished appearance. Helps keep the handle positioned and prevents contact rubbing. What it does:

• Positions the door handle at the correct distance from the door surface for proper fit and operation
• Helps prevent handle wobble, rubbing, and cosmetic gaps
• Supports secure attachment of the handle to the door assembly
• Useful when replacing a damaged or missing spacer during handle repair

• One door handle spacer

• Install with the handle hardware in the correct order; confirm orientation before tightening
• Use proper-size screwdrivers; avoid over-tightening fasteners to prevent cracking the spacer
• Disconnect power or follow appliance-specific safety instructions when working near electrical components or heating elements
• Replace those components as well for a reliable repair

Right Side

The Door Hinge is an OEM part for GE wall ovens. It acts as the pivot point that allows easy opening and closing of the oven door during use. The durable hinge is responsible for securely yet smoothly swinging the oven door into position.

Causes of failure can be normal wear and tear over extended use. Frequent opening and shutting of a heavy oven door places considerable stress on the hinge. Accidental damage from overloading or impact can also negatively affect performance.

Symptoms of a bad hinge include:

• Difficulty opening or closing the oven door
• Excessive friction or resistance at the hinge
• Noises or squeaking emanating from the hinge area
• Visual defects such as cracks, bending, or loose/missing hardware

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Window Pack Assembly is an OEM part for GE ranges and ovens. It serves as the inner glass component of the oven door, allowing you to observe the cooking process while providing insulation and protection. It consists of an inner glass panel, frame, and seals to ensure proper insulation and prevent heat loss.

Causes of a faulty window pack assembly can include accidental impact, cracks, or damage to the inner glass panel or frame. These factors can compromise the visibility, insulation, and safety of the oven.

Symptoms of a bad window pack assembly may include:

• Cracked or shattered inner glass panel
• Impaired visibility into the oven cavity
• Heat loss or inadequate insulation

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

ST10-16 X 7/16"

This factory screw secures components within your appliance, keeping panels, brackets, and other parts tight and aligned. Replacing a missing or stripped screw helps eliminate rattles and restores a solid, properly mounted assembly.

• Fastens appliance components to frames, brackets, or cooktop/oven structures
• Replaces missing, rusted, or stripped hardware
• Helps address loose or rattling panels and misaligned trim
• Restores a secure fit after service or cleaning

• Disconnect power; if gas, shut off the gas supply. Allow the appliance to cool completely
• Match the screw to its original location and length for proper fit
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten snugly without overtightening to prevent stripping metal or plastic

This 10-32 machine screw secures brackets, panels, and other hardware in cooking appliances. Replacing a missing or stripped screw restores a snug, rattle-free fit and keeps components aligned and safely fastened. What it does:

• Fastens panels, brackets, and components using a 10-32 machine thread
• Replaces hardware that is missing, rusted, or stripped
• Helps address loose or rattling parts and minor panel misalignment
• Maintains secure mounting after service or part replacement

• One 10-32 machine screw

• Disconnect power; for gas appliances, also shut off gas before service
• Support the panel or bracket while removing/installing hardware
• Start threads by hand to avoid cross-threading; do not overtighten
• Replace them one at a time to keep alignment
